Page 1: Troubleshooting Guide

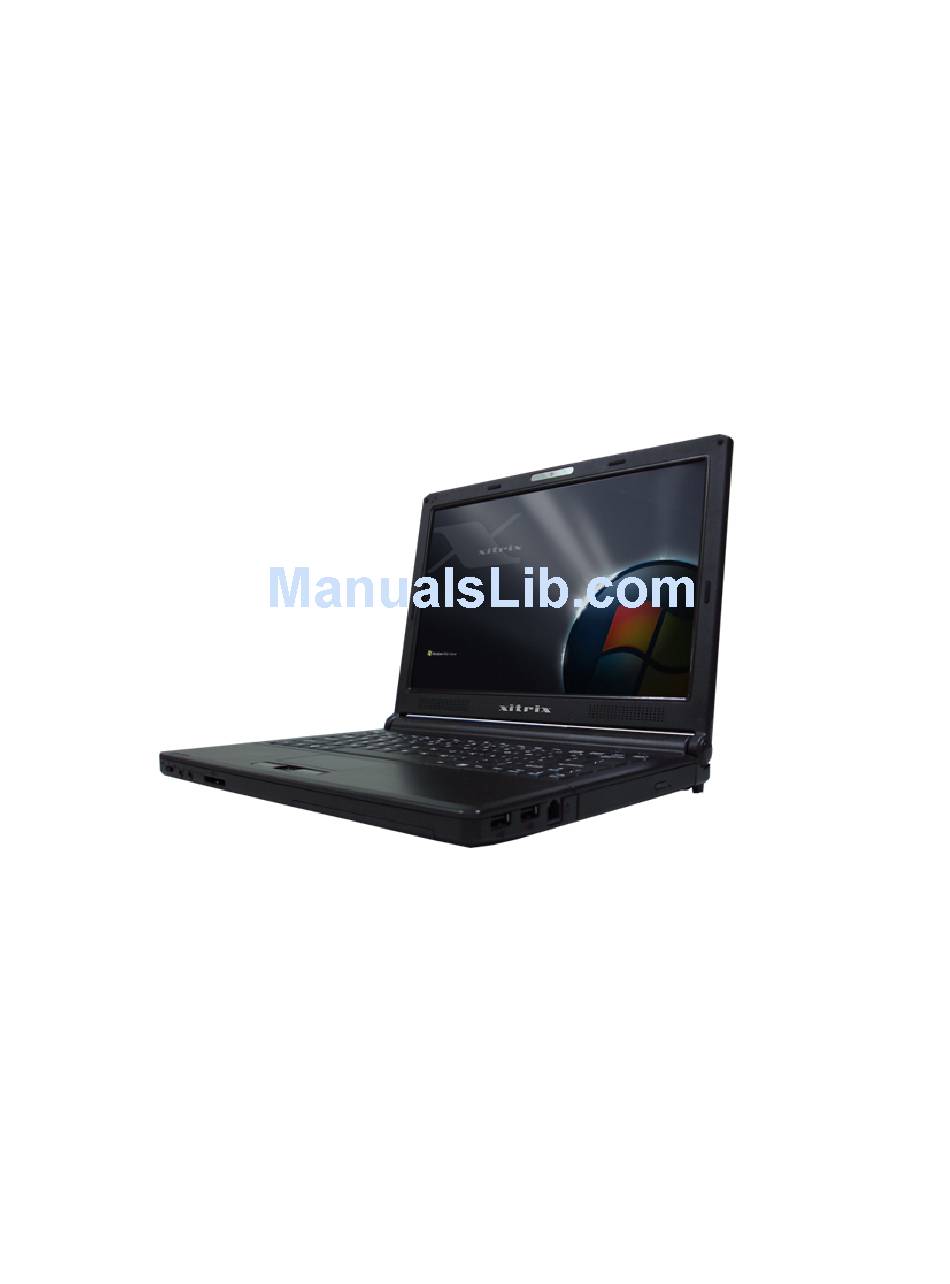

Xitrix TravelPro Systems Installation and Troubleshooting Guide TravelPro SR-200 Series www.xitrix.com support.xitrix.com... - Page 3 Preface ©Copyright 2007 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
- Page 4 • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules.
-
Page 5: Table Of Contents
Table of Content 1: B ............1 HAPTER EFORE YOU TART ............8 ET YOUR COMPUTER ACCLIMATE ITSELF ..............8 LARE UMIDITY ................9 UITABLE PLACE TO WORK 2: I ................11 HAPTER NTRODUCTION LCD P ................11 PENING THE ANEL ....................12 RONT LED S .................13 TATUS NDICATOR ....................14... - Page 6 ..............34 UDIO OLUME ONTROL ..................34 UDIO OFTWARE ..................34 OUND ECORDING .................34 LAYING OUND ILES ............34 XTERNAL PEAKERS AND ICROPHONE 6: I ..............35 HAPTER NTERNET ONNECTION 7: R BIOS S ..............39 HAPTER UNNING ETUP ....................40 ETUP ....................41 ETUP ..................41 DVANCED ETUP .......................42 ECURITY ....................42...
- Page 7 ............60 HE DISK CANNOT BE EJECTED DVD RW OMBO OR DRIVE OPTIONAL DEVICE CANNOT RECORD ……… ....61 HE DISPLAY PANEL IS BLANK WHEN THE SYSTEM IS TURNED ON - ...............61 HE SCREEN IS DIFFICULT TO READ - .................61 HE SCREEN FLICKERS - ........61 HE BUILT IN TOUCH PAD PERFORMS ERRATICALLY...
-
Page 9: Chapter 1: Before You Start
Before you Start Conventions of This Manual Use this manual will help you get the most from your Xitrix TravelPro Notebook. • If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories. - Page 10 Make sure to use the right voltage for the power source when connecting the equipment to the power outlet. Place the power cord in such a way that people can not step on it. Do not place anything on top of the power cord. All cautions and warnings on the equipment should be noted.
- Page 11 Model: 0335C2065 (65W) Model: ADP-65HB AD (65W) Model: HP-OK065E03 (65W) * Contact Xitrix if you need to replace your AC Adapter 18. When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons. These precautions includes the following: ...
- Page 12 Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. ...
- Page 13 23. The input receptacle is used as the main disconnecting device. 24. Note to CATV System Installer – This reminder provided to call the CATV system installer’s attention to Section 820-93 of the National Electric Code which provide guidelines for proper grounding and in particular, specify that the Coaxial cable shield shall be connected to the grounding system of the building, as close to the point of cable entry as practical...
- Page 14 12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden. 13. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.: Netzlabel oder Netzstecker sind beschädigt. Flüssigkeit ist in das Gerät eingedrungen.
- Page 15 Die Minimalanforderungen für das Kabel sind .75m ㎡ Leiter. Für andere Länder: Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel derjenigen Stelle, die in dem jeweiligen Land für die Sicherheitsprüfung zuständig ist, tragen. Das Kabel muss vom HAR (harmonisierten) Typ H03VV-F sein. Das Kabel-Set muss eine Stromkapazität von mindestens 2,5 Ampere haben und Spannungen von 125 oder 250 V Wechselstrom gestatten.
-
Page 16: Let Your Computer Acclimate Itself
22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts. 23. Hinweis für die CATV-Systeminstallation: Dieser Hinweis dient dazu, die Aufmerksamkeit der CATV-Systemmonteure auf Abschnitt 820-93 des National Electrical Code zu richten, der Richtlinien für die korrekte Erdung enthält und im Besonderen festlegt, dass der Schirm des Koaxialkabels an das Erdungssystem des Gebäudes angeschlossen werden muss, und zwar so nahe wie möglich am Ort des Kabeleingangs... -
Page 17: Suitable Place To Work
Suitable place to work Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be challenging to your system’s parts. There are some things you can tolerate that the computer can’t – things like static electricity, dust, water, steam and oil. -
Page 19: Chapter 2: Introduction
Introduction Welcome to the Xitrix TravelPro SR-200 Congratulations on your purchase of the Xitrix TravelPro SR-200. Your Notebook features the latest advances in portable computing technology. The Notebook’s modular design provides maximum expandability without compromising portability. Getting to Know Your Computer... -
Page 20: Front View
To avoid damage to the display panel: 1. Try not to slam the display upon closing it. 2. Try not to place any object on top when it is closed or open. 3. Be sure the system is turned off or in suspend mode before you close the display panel. -
Page 21: Led Status Indicator
LED Status Indicator System & Power Status Indicators LED Graphic Indication Symbol Blue light indicates the WLAN module is active. Persistent green light indicates the Silent mode is enabled. Blinking green light indicates the Suspend Mode is enabled. Blinking orange light indicates the battery is being charged. -
Page 22: Left Views
Left Views Kensington Lock Ventilation Grill Power Jack (DC-in) CRT Port Ethernet / LAN Port When using a LAN, please use an EMI Shielding Cable to minimize an inteference when transmitting. ExpressCard (New Card) Slot The slot is where Express Card (Type 54) is inserted. ExpressCard Type 54 allows insertion of 54mm and 34mm cards. -
Page 23: Right View
USB 2.0 Port Right View USB 2.0 Ports USB 2.0 Ports Modem Port (optional) Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. To reduce the risk of fire use only No. 26 AWG or larger telecommunication line cord. -
Page 24: Bottom View
Bottom View Expansion Compartment Battery Compartment Battery Release Latch Hard Disk Drive... -
Page 25: Chapter 3: Getting Started
Getting Started Connecting to a Power Source Connecting the AC Adapter A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. - Page 26 Never turn off or reset your Notebook while the hard disk is in use and the CD-ROM status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your Notebook before turning it back on;...
-
Page 27: To Remove The Battery Pack
Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions or local laws. Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem Hersteller empfohlenem... -
Page 29: Chapter 4: Using The Notebook Computer
Using the Notebook Computer Adjusting the LCD Screen Display The LCD screen display can be adjusted by the following key combinations. KEYS FUNCTIONS Fn + F7 Increases the brightness level. Fn + F8 Decreases the brightness level. Fn + F4 Changes Display Mode: LCD-only, CRT-only and LCD&CRT. -
Page 30: Function Keys (Quick Keys)
The Notebook’s Hot Key Controls Function Keys (Quick Keys) Graphic Symbol Action System Control Fn + F1 Enters Suspend Mode. Fn + F3 Mute/Unmute Audio/ PC beep to Output Fn + F4 Changes Display Mode: LCD-only, CRT- only and LCD&CRT. Fn + F5 Increases the speaker volume. -
Page 31: Features Of The Dvd Dual/Supermulti
DVD Dual/SuperMulti Features of the DVD Dual/SuperMulti The features of the DVD Dual/SuperMulti are listed below. • The Audio Play feature allows you to play music CDs • Front panel load/unload button • Supports CD-DA, CD-ROM mode 1 and mode 2, Multi-Session Photo CD™, CD-I/Video CD (pcs.) •... -
Page 32: The Battery Power System
Do not insert any foreign objects into the disc tray. If you experience difficulty when ejecting the CD disc tray, stretch a paper clip (or use a pin or a thin metal rod) and insert it into the emergency eject hole located on the right side of the front panel. -
Page 33: Automatic Battery Pack Charging Function
Removing the Battery Pack To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the Battery Pack. Preparing the Battery Pack for Use (Battery Calibration) Before using the battery pack for the first time, the Smart Battery IC within the battery pack should be calibrated in order to get accurate reporting of remaining battery life status. -
Page 34: Battery Status
Battery Status Windows Vista has an applet in the Control Panel that will display an icon in the Windows taskbar indicating when the Notebook is running on battery power or is attached to the AC adapter. This applet also displays a meter that indicates how much charge is remaining in the battery. - Page 35 Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.
-
Page 36: Help Windows
Using the Windows Help Windows For Windows Vista help, click Start Help and Support icon will open the dialog box. Desktop Desktop may vary differently on the software installed in your notebook with different or additional shortcuts. - Page 37 Recycle Bin Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”.
- Page 38 Notification The icons that appear here are for quick access to some programs and computer functions that you frequently used. To prevent Windows Vista from hiding icons: From an empty spot on the Taskbar, right click your mouse and select the Properties, remove the checked mark on the Auto-hide the taskbar.
- Page 39 Control Panel It is in this area that you can change how Windows looks and works. Click Start Control Panel dialog box. There are two interfaces – Classic View.
-
Page 41: Chapter 5: Desktop Operation
Desktop Operation Your notebook is capable of providing you with efficient and productive mobile computing, it also has the speed and capacity to service as a desktop system. This chapter discusses those functions of your notebook that are typical of desktop systems. Audio The Multimedia Sound System The Notebook’s built-in audio capabilities allow you to take... -
Page 42: Audio Volume Control
Audio Volume Control The Notebook is equipped with hot-key volume controls: Pressing the [Fn]+[F6] hot-key combination decreases the audio output volume, press the [Fn]+[F5] hot-key combination increases the audio output volume. Audio Software Your notebook comes equipped with an integrated sound system capable of providing you with quality audio sound through the built- in speakers or through external speakers connected via the system ports. -
Page 43: Chapter 6: Internet Connection
Internet Connection There are numerous ways to connect to the Internet. This may vary from the user’s working environment as well as system specifications. • Using a modem and a telephone line (Optional) • Using a wired LAN • Using a wireless LAN Using a modem for Connection to Internet (Optional) •... - Page 44 Using a wired LAN for Connection to Internet For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.
- Page 45 Using Wireless LAN Network for Connection to Internet...
-
Page 47: Chapter 7: Running Bios Setup
Running BIOS Setup The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. -
Page 48: Main Setup
BIOS Action Keys Function Command Description Leaves a sub-menu to return to the Exit previous menu OR exits the BIOS setup while saving changes. Enter Go to Sub Screen Shows the Sub Menu General Help Shows the Help Screen Saves changes and reboots the Save and Exit computer. -
Page 49: Info Setup
Info Setup Advanced Setup... -
Page 50: Security
Security Boot Setup... -
Page 51: Exit Setup
Exit Setup... -
Page 53: Chapter 8: Vga Utilities
VGA Utilities After you have restarted Windows, click on the “Intel® Graphics Media Accelerator Driver for Mobile” icon on the lower right corner of the screen. Click on the “Graphics Properties” to enter the “Intel® Graphics Media Accelerator Driver for Mobile” display window. You can also click the touchpad or mouse right button and select the “Personalize”... - Page 54 Select the “Display Settings” option to enter its window display. Click on the “Advanced Settings” tab to enter “Generic PnP Monitor and Mobile Intel® 965 Express Chipset Family” window display.
- Page 55 Select the “Intel ® Graphics Media Accelerator Driver for Mobile” and click on the “Graphics Properties” tab.
-
Page 56: Display Devices
Display Devices This feature allows you to connect external display devices. Display Settings This feature allows you to adjust the color scheme, resolution, refresh rate for your display. -
Page 57: Color Correction
Color Correction This feature allows you to adjust the color rate of your display. Hot Keys This feature allows you to set the corresponding hot keys in executing the program you frequently use. -
Page 58: Launch Zoom
Launch Zoom This features allows you to enlarge some parts that you would like to see for a clearer view. -
Page 59: Chapter 9: Video Conferencing
Video Conferencing This application offers video conferencing capabilities to work and communicate in real-time with one or more participants through streaming video, from any location. You can also click on the “BisonCam” icon on the Windows screen display to run the capture application. If it is disabled, press on the function keys of Fn+F7 to open the application. -
Page 60: The File Menu Commands And Buttons
The File Menu Commands and Buttons • Set Capture File - Set to save directory and video file name. • Allocate File Space - Allocate free space for video file. • Save Captured Video As - Saved as video file after capturing. •... - Page 61 • Environment - set camera work environment. • Frequency - set the frequency. • Rotation - set to horizontal rotation or vertical rotation. • Reset - reset all settings in this page to default.
- Page 62 • Brightness/Contrast/Hue/Saturation/Sharpness/Gamm a/White Balance/Backlight Comp - To adjust video settings and show value. • Default - Reset all settings in this page to default.
- Page 63 • Exposure - De-select the check mark on the box if you want to change the value. • Frame Rate - This function is to set video frame rate. If your utility rate of CPU is too high, you can choose the low frame rate to reduce the CPU’s utility rate.
-
Page 64: Capture Menu Commands And Buttons
Capture Menu Commands and Buttons • Start Capture - start capture video stream. • Stop Capture - stop capture video stream. • Set Frame Rate - set frame rate while capturing a video. • Set Time Limit - set time limit of capture stream. -
Page 65: Chapter 10: Troubleshooting
Troubleshooting Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter. -
Page 66: No Speaker Output
• Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work. • If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem. -
Page 67: The Hard Disk Drive Does Not Work Or Is Not Recognizable
After Click OK button, the recording volume control panel will appear. • Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that the audio codec mentioned in the spec is the default recording device. -
Page 68: The Hard Disk Takes Longer To Read A File
The hard disk takes longer to read a file • If you have been using the drive for a period, the files may be fragmented. Go to [Start > Programs > Accessories > System Tools > Disk Defragmenter] to perform a disk defragmentation. This operation may take a while. -
Page 69: The Display Panel Is Blank When The System Is Turned On
Display Problems The display panel is blank when the system is turned on • Make sure the computer is not in the Standby or Hibernate suspend modes. The display is turned off to conserve energy in these modes. The screen is difficult to read - •... -
Page 70: A Message "Cmos Checksum Failure" Displays During The Booting Process Or The Time (Clock) Resets When Booting
A dialogue box shows up with the adjustable settings for the keyboard. CMOS Battery Problem A message “CMOS Checksum Failure” displays during the booting process or the time (clock) resets when booting • Try to reboot the system. • If the message “CMOS Checksum Failure” appears during the booting procedure even after rebooting, it may indicate failure of the CMOS battery. -
Page 71: The Pc Card Cannot Be Recognized
• Consult the card’s manual or contact the vendor for trouble- shooting. The PC card cannot be recognized - • Make sure the card is fully inserted; the outer end of the card should be even with the edge of the computer. •... -
Page 72: The Usb Device Does Not Work
• You may be running too many applications. Try to close some applications or increase system memory for higher performance. • The processor may have been overheated due to the system’s inability to regulate its internal heat. Make sure the computer’s ventilation grills are not blocked. -
Page 73: Appendix A: Specification
Specification Operating System • Support Windows Vista Home Premium/Windows Vista Home Basic • Windows Vista Ultimate and Professional workable • Merom Core2 duo Processor, T7700/T7500/T7300, FSB 800 MHz, 4MB L2 cache • Merom Core 2 duo Processor, T7100, FSB 800 MHz, 2MB L2 Cache TDP 35W Memory... - Page 74 IEEE 1394a • Support IEEE 1394a with Open HCI Compliance • PCI V2.3 MAC/BIU supports Card reader (4 in 1) • Support SD/MMC/MS/MS-Pro card • PCI interface LAN Controller • Supports 10 and 100 Mb/Sec. Full/Half Duplex operation • PCI-E interface Modem (optional) •...
- Page 75 • 5400rpm support. Optical Device • Super-Multi, Double Layer • DVD Combo Battery Pack • Li-ion 4-Cell pack, 14.4/14.8 V x 2200 mAH • Li-ion 8-Cell pack, 14.4/14.8 V x 4400 mAH AC-Adapter • Automatics Voltage adjustment between 100 and 240VAC 50/60Hz •...
- Page 77 *XPNSR200-0801A00* SR200-0801A00 XPN – SR200-0801 Rev. A00 Printed in Taiwan www.xitrix.com support.xitrix.com...
