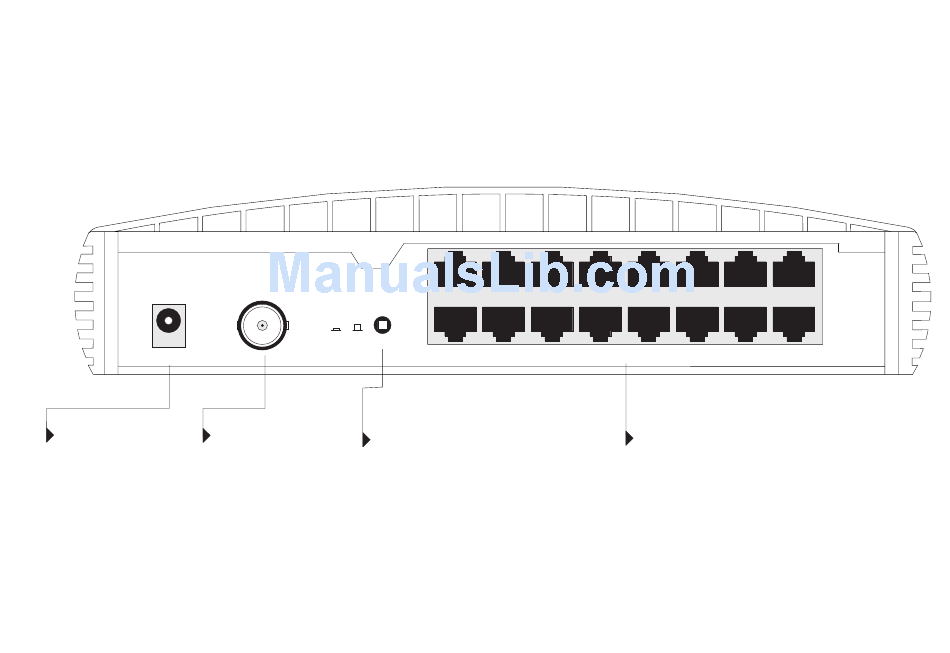

Ethernet Hub 16C—Rear
POWER
Power Adapter Coaxial port
socket Can be used to connect
your hub to other
Only use the power
OfficeConnect hubs and
adapter that is supplied
equipment with
with this OfficeConnect
10BASE-2 (Coaxial)
hub. Do not use any
cabling.
other adapter.
8X
COAX
Uplink/Normal
16
Uplink/Normal switch
Affects the operation of port 16. If you
are connecting a hub to the port, set to
Uplink (in), otherwise set to Normal (out).
See the "Connecting OfficeConnect
Hubs Together" section.
10BASE-T
Sixteen 10BASE-T RJ-45 ports
Use suitable TP cable with RJ-45 connectors. You can
connect the OfficeConnect hub to any workstation or
OfficeConnect hub that has a 10BASE-T port. See the
"Connecting OfficeConnect Hubs Together" section.
