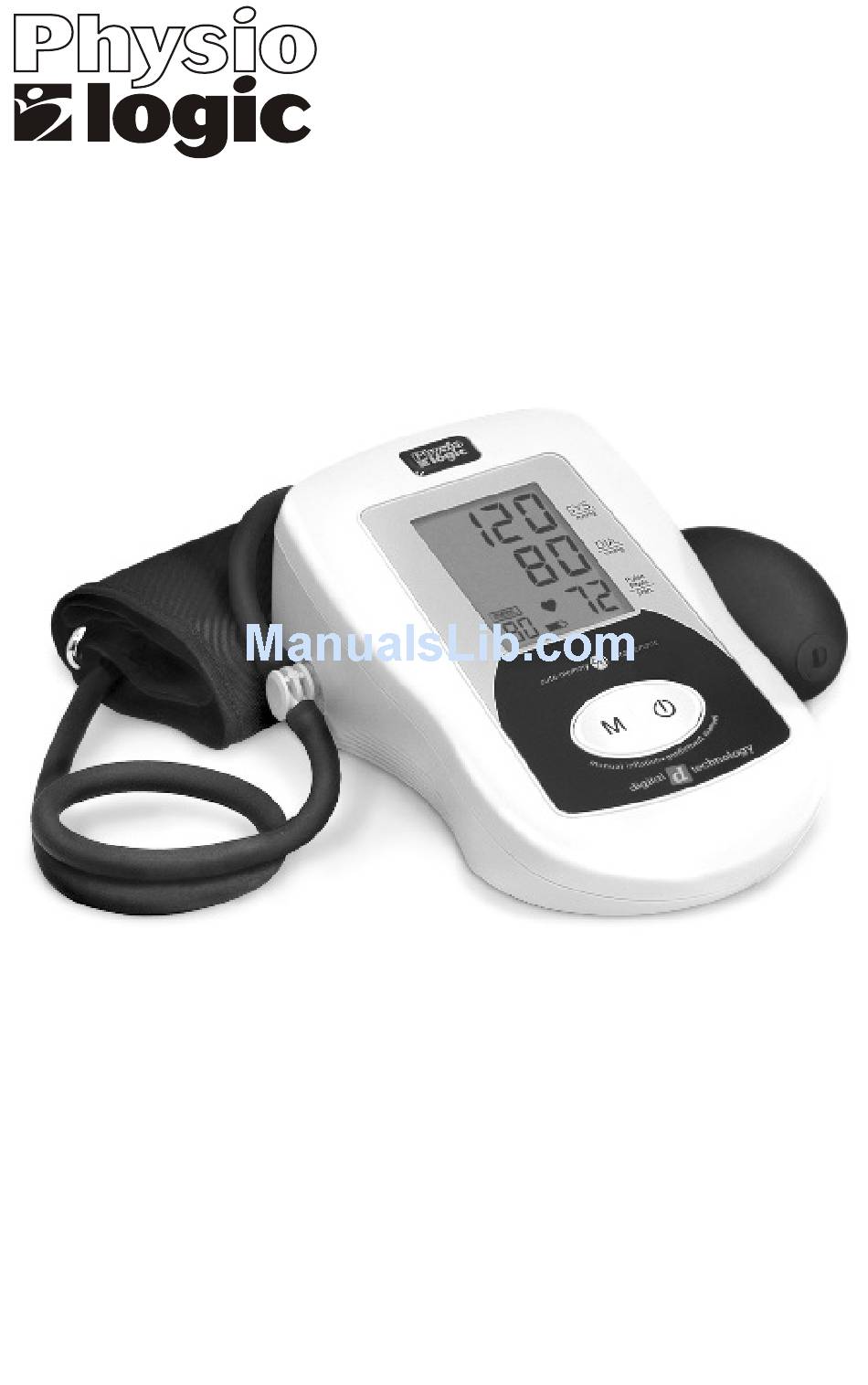

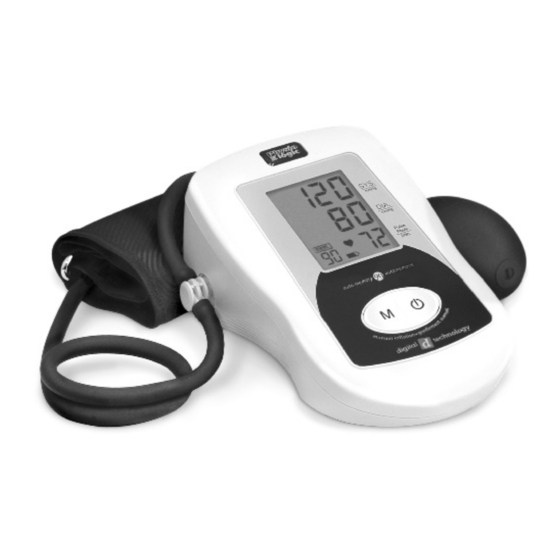

Instruction Manual
Features:
• Digital Technology
• Auto memory for up to 90 readings
•
3-Reading Averaging
• Semi-Automatic
• Easy-to-read Display
Manual Inflate
®
Blood Pressure Monitor
106-905

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Physio Logic and is the answer not in the manual?

Questions and answers

Related Manuals for AMG Physio Logic

Summary of Contents for AMG Physio Logic

  • Page 1 Manual Inflate ® Blood Pressure Monitor Instruction Manual Features: • Digital Technology • Auto memory for up to 90 readings • 3-Reading Averaging • Semi-Automatic • Easy-to-read Display 106-905...

  • Page 2: Table Of Contents

    Table of Contents Statement of accuracy ....... . . 3 About blood pressure .

  • Page 3: Statement Of Accuracy

    Measuring Technology This Physio Logic™ monitor uses the oscillometric method to detect your blood pressure. Before the cuff starts inflating, the device will establish a baseline cuff pressure equivalent to the air pressure. During the deflation, the device will detect the amplitude and slope of the pressure oscillations and thereby determine the systolic, diastolic, and pulse for you.

  • Page 4: Blood Pressure Standard

    Blood Pressure Standard The Joint National Committee on prevention, detection, evalua- tion, and treatment of high blood pressure has developed a blood pressure standard, according to which areas of low and high risk blood pressure are identified. This standard is a guideline as blood pressure varies among different people and different age groups...

  • Page 5: Before Taking A Measurement

    Before Taking a Measurement To help you obtain more accurate readings: • Urinate if necessary. • Remove any clothing and jewellery from your left arm. Placing the cuff on anything other than bare skin can result in an inaccurate reading. •...

  • Page 6: Name / Function Of Each Part

    Name / Function of Each Part Name / Function of Each Part LCD display Memory recall button Arm Cuff Air Release Valve Battery Air Tube and Connector compartment On / Off / Start button Inflating bulb Installing Batteries 1. Press down and lift the battery cover in the direction of the arrow to open the battery compartment.

  • Page 7: Display Explanation

    Display Explanation Systolic pressure Diastolic pressure No. of Memory Pulse rate Sequence Appears when manual Appears when manual cuff inflation is needed. cuff deflation is needed. Appears when measurement value is stored in memory or is recalled from memory Pulse Mark: Shows the pulse rate per minute. Appears when batteries should be replaced.

  • Page 8: Recalling Memory

    Recalling Memory 1. To read memory values, press the "M" key. The memory values will be shown on the LCD display. The average measurement of the last 3 measurements will be shown first and a new press of the “M” key will show the last measurement. 2.

  • Page 9: Applying The Arm Cuff

    Applying the Arm Cuff 1. Insert the cuff’s connecting tube into the unit. 2. Unwrap the arm cuff, leaving the “Index” end of the cuff through the D-ring of the cuff. 3. Put your left arm through the cuff loop. Position the artery mark ( ) at the middle of your arm above the elbow, in line with your middle finger.

  • Page 10: Taking A Measurement

    Taking a Measurement 1. Press the On / Off button. All displays will appear for approximately one second before returning to “0”. The unit is ready for measurement at this point. If the downward arrow “ ” flashes, release the remaining cuff air by pressing the “Air Release Valve”...

  • Page 11: Troubleshooting

    Troubleshooting Symptom: No display when the On / Off button is pressed. Correction: If the batteries have run down, replace them with new alkaline batteries. If the batteries are not in the correct position, re-insert them with the correct polarities. Symptom: EE mark shown on display or the blood pressure value is displayed excessively low (high).

  • Page 12: Specifications

    : 170 (L) x 110 (W) x 67 (H) mm Weight : 373 g (G.W.) (without batteries) * Specifications are subject to change without notice. Consumer Info-Line 1-800-363-2381 AMG MEDICAL INC. 8505 Dalton, Montreal, QC H4T 1V5 www.amgphysiologic.com www.amgmedical.com P/N 803-075 REV: 1.0 0405...
