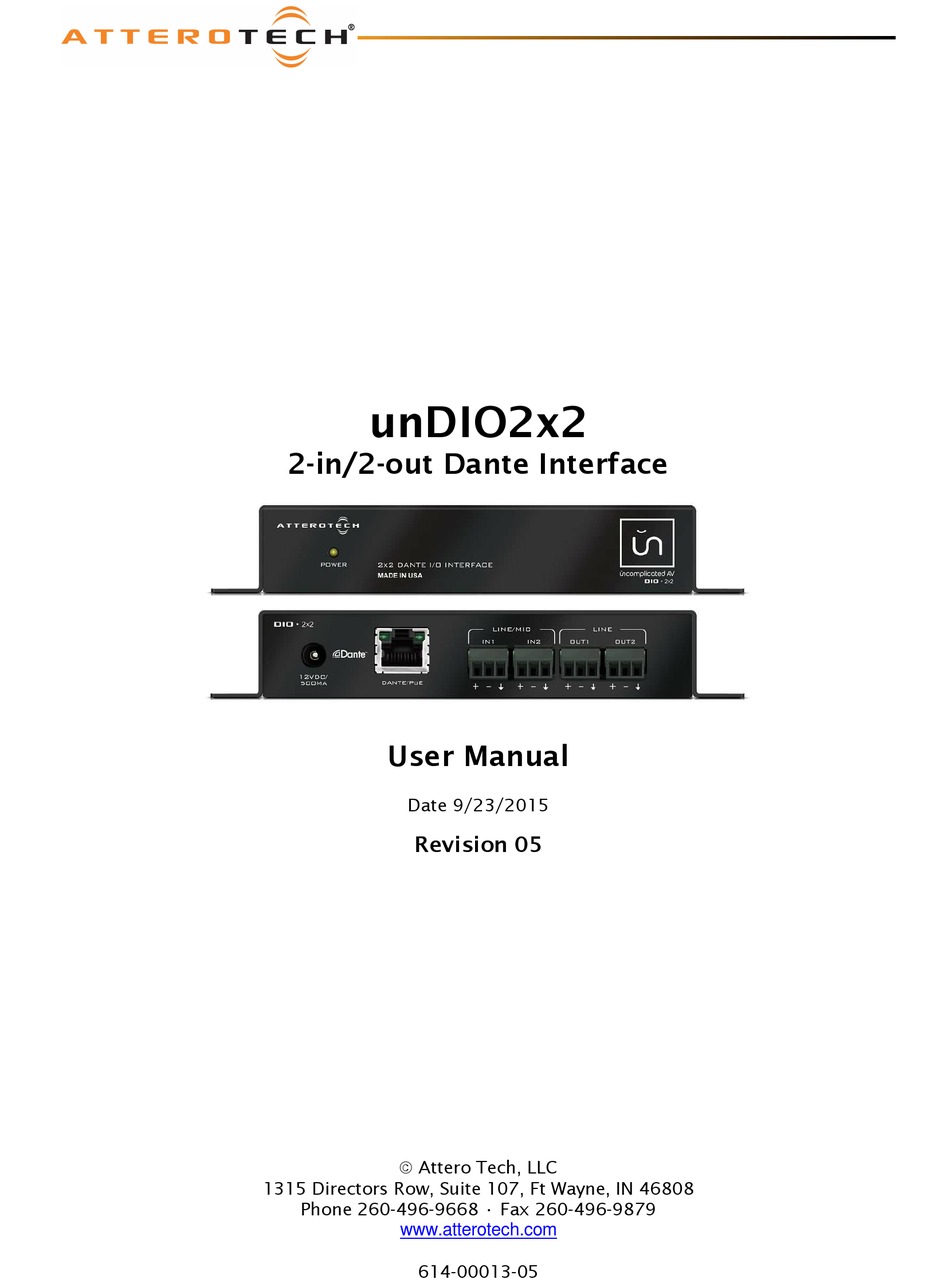

- Page 1 2-in/2-out Dante Interface User Manual Date 9/23/2015 Revision 05 Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00013-05...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. © Attero Tech LLC 2014 Page 2 614-00013-05...
-
Page 4: Table Of Contents
4.1 – Command Interface Type ............................14 4.2 – Using the Command interface ..........................14 5 – ARCHITECTS & ENGINEERS SPECIFICATION ............................15 5.1 – Device Specifications .............................. 15 APPENDIX A - Reference Documents ................................A-1 © Attero Tech LLC 2014 Page 3 614-00013-05... -
Page 5: Overview
Connection to the Dante network is provided by a single Ethernet RJ45 connector on the back of the unit. The unDIO2x2 can be powered by a 12V DC wall wart (ordered separately) but it also supports the use of PoE instead. -
Page 6: Device Installation
2 x Balanced Audio outputs *Note: The unDIO2x2 has a label on one of the mounting flanges that shows the last 6 digits of the MAC address. This is important for initial device identification as these digits make up part of the devices default network name that is shown when the device is detected by Dante Controller. -
Page 7: Mounting
2.1 – Mounting Installation of the unDIO2x2 is very straight forward. It is recommended that the unit be secured to a flat surface with a screw through each mounting flange. Dimensions for mounting are show in the Figure 2 below. Use a No. 6 screw of a type and size that is applicable to the surface to which the unDIO2x2 will be attached. -
Page 8: Hardware Connections
2.2.1 – Input from an Unbalanced Source To connect a 2-wire unbalanced source to the unDIO2x2, connect the positive output of the unbalanced source to the positive input of the unDIO2x2. Connect both the source and unDIO2x2 input grounds together, and short the negative input of the unDIO2x2 to ground at the input of the unDIO2x2. -
Page 9: Output To A Balanced Destination
2.2.4 – Output to an Unbalanced Destination To connect the unDIO2x2 outputs to a 2-wire unbalanced input, connect the positive output to the destination’s positive input and connect the grounds together through the cable shield. Leave the unDIO2x2 negative output floating. -
Page 10: Device Configuration
**************************************************************************************************************************** In order to configure an unDIO2x2 both to set up its internal parameters and also setup audio routing, the PC will need to be able to communicate with it over the network. While all Dante devices will be discovered regardless of the IP address setup on the PC, communication can only occur if the PC and the device have compatible IP addresses. - Page 11 User Manual The software will install to a default location of c:\program Files (x86)\Attero Tech\unIFY Control Panel. Clicking the “Options” button allows the user to change the installation location if required though it’s not necessary to change it. To select a new installation location, either type in a new path in the edit box, or click on the “Browse” button to browse the folder tree for the desired installation location.
-
Page 12: Selecting A Network Adapter
User Manual Once the required software is installed, click on the unIFY Control Panel icon in the programs list under Attero Tech. This will start the application. Figure 8 – Device Configuration Window 3.3 – Selecting a Network Adapter In order to connect to a device the application needs to know what network adapter it should use to contact devices. -
Page 13: Device Identification
Settings in a device can be saved to an internal preset which can then be recalled at a later date. There are 9 internal presets, one of which is the “Default” preset that is used to set device settings when the unDIO2x2 is first powered on. -
Page 14: Preset Files
To save the current settings to a file, click the “Save to File” button and then enter an appropriate filename. To load settings from a file, click the “Load from File” button and select the appropriate file. © Attero Tech LLC 2014 Page 13... -
Page 15: 3Rd Party Control
There are two control interface types available for the unDIO2x2. The first type is a Dante proprietary interface which is typically used by devices already that have built-in support for Attero Tech devices. The second type supports a 3 party UDP interface and is available to anyone to use with any device capable of sending and receiving UDP messages. -
Page 16: Architects & Engineers Specification
The unit shall accept either +12V DC or IEEE802.3af standard PoE as power input. The unit shall be compliant with FCC Part15, CE and RoHS requirements. The unit shall be the Attero Tech unDIO2x2 I/O interface. 5.1 – Device Specifications... -
Page 17: Appendix A - Reference Documents
APPENDIX A - Reference Documents The following table lists the relevant reference documents. Document Title Location unIFY 3 Party Software API Registered users area on website Dante Firmware Update Quick Start Registered users area on website © Attero Tech LLC 2014 Page A-1 614-00013-05...
