Summary of Contents for Platinum CCTV E-809

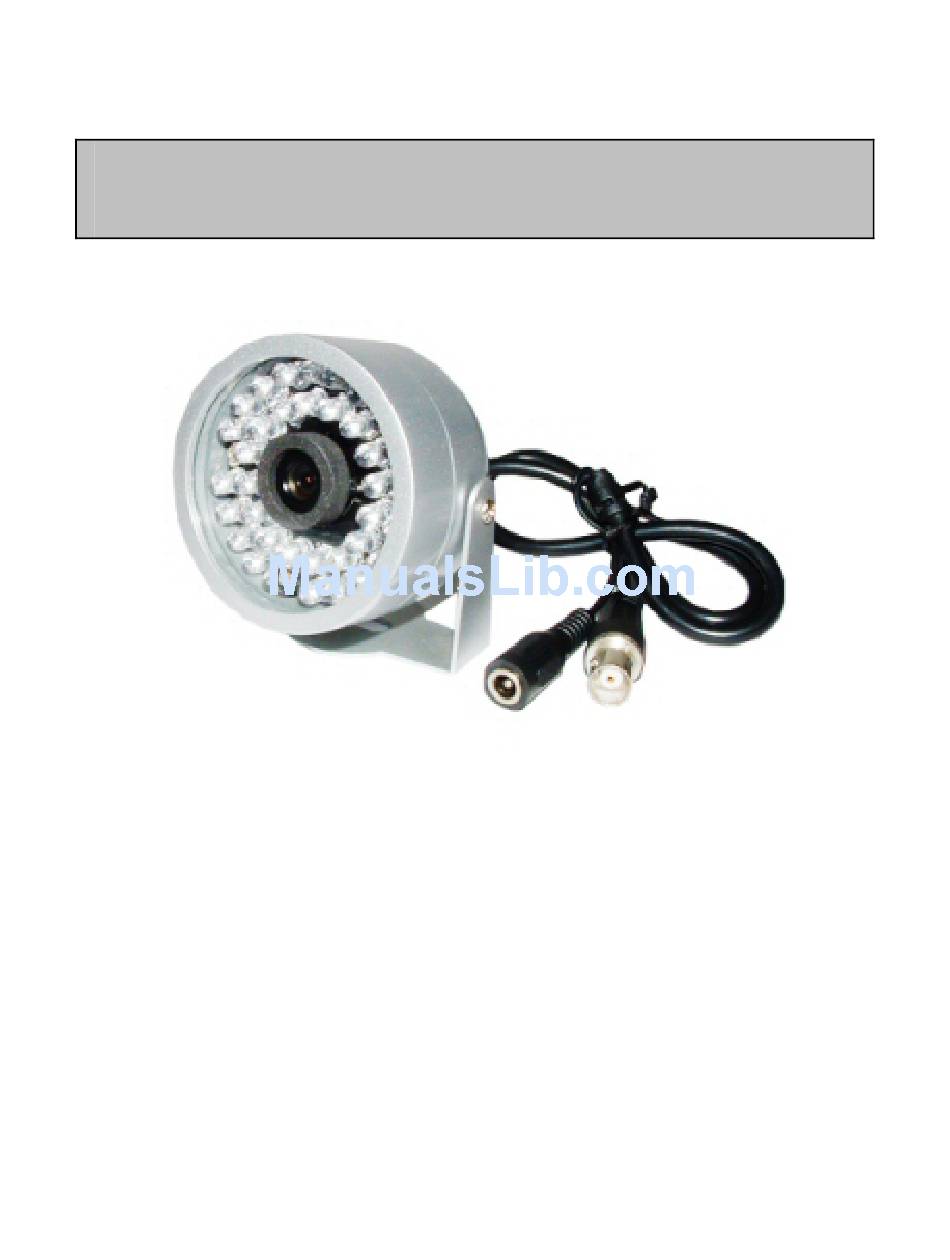

- Page 1 Platinum CCTV Surveillance Solutions E-809 IR CMOS Weatherproof Day/Night Camera Installation Manual Outdoor Weatherproof Day/Night Infrared CMOS Camera Http://Platinum-CCTV.com...
-
Page 2: Camera Installation
Platinum CCTV Surveillance Solutions Camera Installation Camera Mounting: Items Needed: Screwdriver, Drill, Mounting Hardware (not included), Pencil Remove bracket from camera body using a screwdriver. Mark wall through Mounting Holes on bracket Drill Holes for mounting Drill Hole for Cables (if needed) - Page 3 Platinum CCTV Surveillance Solutions Camera Installation Attach Camera to bracket and tighten Connect Cables Red Connector = Power Connection (Left) Yellow RCA Connector = RCA Video Connection (Right)
- Page 4 Platinum CCTV Surveillance Solutions E-809 IR CMOS Weatherproof Camera Image Sensor 1/3” Omnivision CMOS Number of Pixels NTSC: 510 (H) x 492 (V) Scanning System 60 Hz (V) Sync System Internal Synchronization Resolution 380 TVL Lens 3.6mm Video Output 1.0Vp-p75Ω...
