Summary of Contents for Thinklabs One

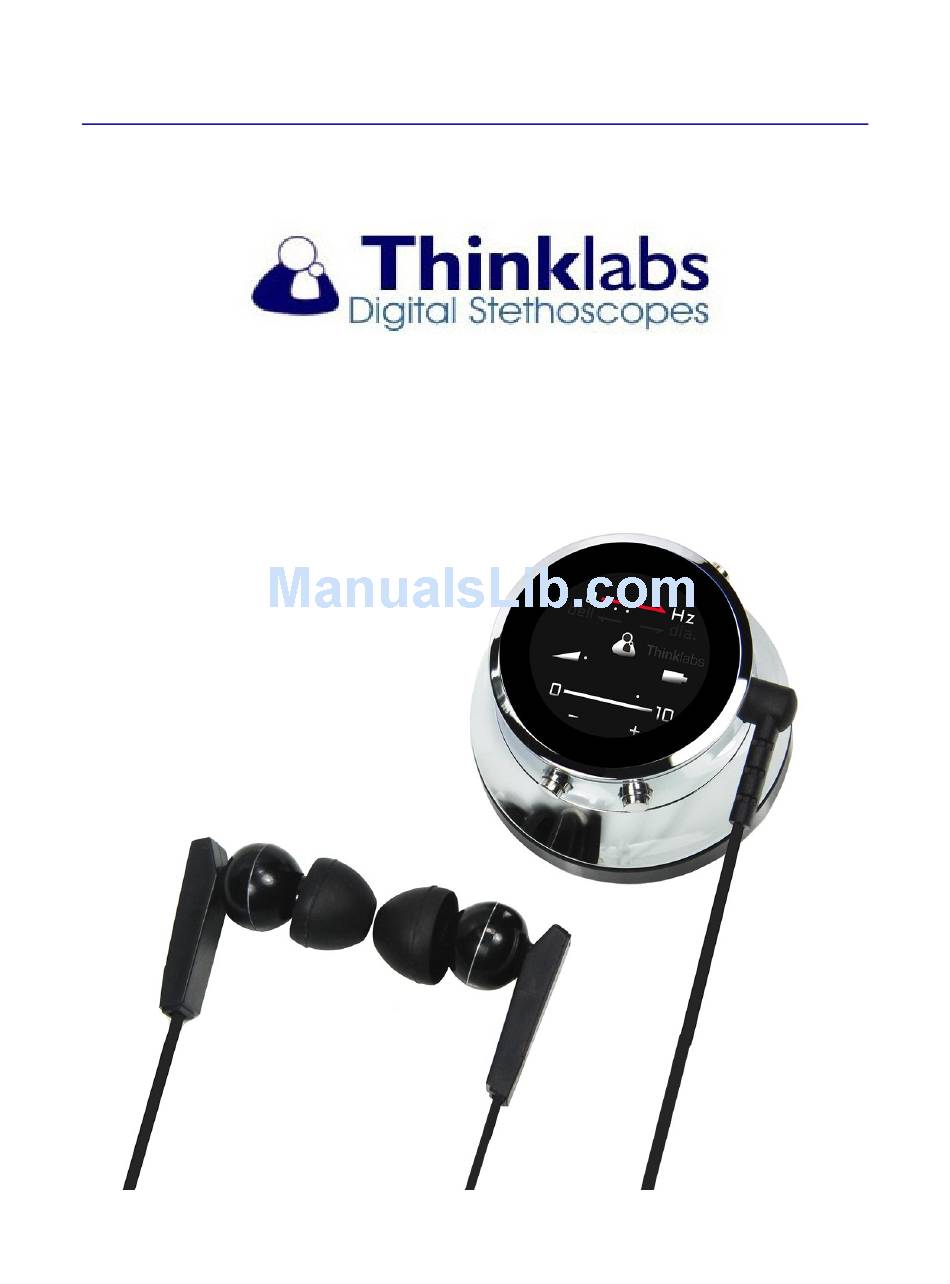

- Page 1 Thinklabs One User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction W elcome to Thinklabs Community……………………………………………………….………..Pg. 3 S tethoscope Features…………………………………………………………………….……………….Pg. 4 O ptimal Use of your Thinklabs One……………………………………………………….……...Pg. 5 P ackage Contents…………………………………………………………………………….…………..Pg. 6 Rechargeable Battery B attery Charging………………………………………………………………………………….……..….Pg. 8 B attery Charging Precautions…………………………………………………………….……..…..Pg. 9 ... - Page 3 Maintenance G eneral Maintenance……………………………………………………………………..…………….Pg. 21 H eadphone Maintenance………………………………………………………………………..…...Pg. 22 D iaphragm Cleaning & Removal…………………………………………………………..……..Pg. 23 C leaning Inside the One………………………………………………………….………………..Pg. 24 Additional Information Q uick Reference Guide………………………………………………………………..………………….Pg. 3 T roubleshooting………………………………………………………………………….…………..Pg. 25-29 F ilters……………………………………………………………………………………….…………………...Pg. 30 ...
-
Page 4: W Elcome To Thinklabs Community
Quick Reference Guide Design - T hinklabs One is designed with form and function intended for an era of compact, efficient design; a stethoscope for the age of digital music and instant communication. -
Page 5: S Tethoscope Features
● Clear user interface and simple operation ● Thinklink connects to iPhone, iPad, Android, Tablet, computers, etc. ● Record and Share sounds using audio apps and communications apps ● Thinklabs personal support, going the extra mile for customers ● Quality assembly inside Thinklabs own facility... -
Page 6: O Ptimal Use Of Your Thinklabs One
However, if you take the time to learn the deeper features of your stethoscope, you will probably use it more effectively. Sound Levels - Thinklabs One can be set to very loud volume levels. Don't make your stethoscope volume louder than necessary. Adjust volume so that heart and lung sounds are clear and comfortable to listen to. -
Page 7: Package Contents

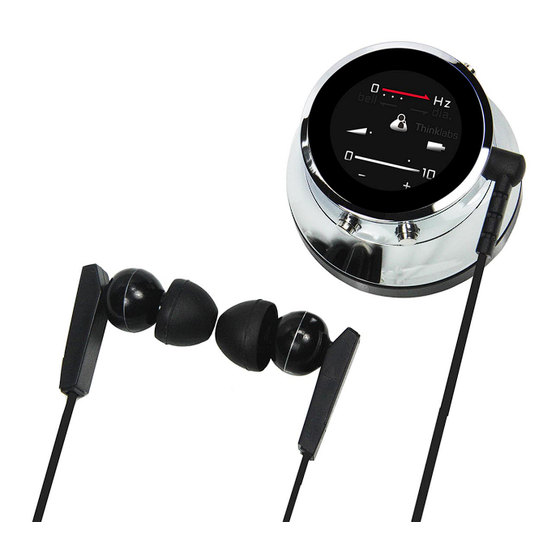

Package Contents 1X Thinklabs One Digital Stethoscope 1X Thinklabs In Ear studio quality headphones 1X Spare Eartips (Small, Medium, Large pairs provided) 1X USB Style Battery Charger (100-240V worldwide use), US style plug 1X Charger Cable 1X Headphone (10cm) male-female adapter... -
Page 8: C Ontrols And Display
"favorite". The Display shows: - Volume on 0-10 scale. - F ilter selection , indicating low, medium or high range. - Battery Level (scrolls across 0-10 scale when One turns off). - Battery Low Level warning or Charging. -
Page 9: Battery Charging
2. Connect the USB plug to the USB Charger. Use only the charger supplied with One - it has been tested and qualified to be safe for use with your stethoscope. Other USB chargers will charge your One, however we cannot guarantee their operation. -
Page 10: Battery Charging Precautions
One with other USB chargers. ● If One becomes hot while charging, disconnect immediately and allow it to cool. Do not move One while it is cooling. Contact Us immediately if One warms up during charging. -
Page 11: B Attery Level Indication
0-10 scale display and you can release the keys. Automatic shutoff Your One is programmed to automatically shut off after a preset time. The factory default is 2 minutes, and you can change this to a range of 1-10 minutes. See Auto Shutoff Programming... -
Page 12: Olume Control
Volume Control Click the "-" Key (Minus Key) to reduce volume. Click the "+" Key (Plus Key) to increase volume. Volume Level is indicated on the 0-10 Scale. NOTE: Set the Volume at a level that is comfortable. Protect your hearing - Do not listen at excessive volume. If you have normal hearing, you should seldom need to use a volume level in excess of 5. -
Page 13: Filter Selection
As shown in Circle 1, Push & Hold the Filter (f) Key and One will sequence to the next filter in red circle 1, cycling through all selections. If you then CLICK the Filter (f) Key (rapid click rather than hold down), your One will remember which filter you have currently selected in red circle 1 and will then jump across to red circle 2. -
Page 14: Reading The Hz Scale
A range of filters is provided, so that you can fine tune your own preferences. See details of the c omplete selection , and do some listening tests to determine your preference. Alternatively, turn on your One and simply enjoy it. - Page 15 Stethoscope Filter Selection Your Thinklabs One Digital Stethoscope offers a revolutionary change in filtering sound for auscultation. Instead of the limited Bell/Diaphragm selection, you get multiple filters (Actual filters can change between software revisions). Sounds comprise a combination of lower and higher pitched sounds. Some...
-
Page 16: A Uto Shutoff Programming
10 times. DO NOT CLICK MORE THAN 10 TIMES if you want Auto Shutoff to operate. 3. Now Push and Hold the Alt Key until the One shuts off. This will take about 15 seconds. Your One is now programmed. - Page 17 The Thinklabs Electromagnetic Diaphragm maintains the tactile sense of an acoustic stethoscope, where diaphragm pressure was always used to adjust the sensitivity to lower or higher frequencies. Thinklabs takes this to a new level. The stethoscope diaphragm sits in front of a conductive plate inside the stethoscope body.
- Page 18 Psychoacoustics and Stethoscope Volume As you adjust stethoscope volume, you will find that you hear low pitched sounds better when the volume is higher, even if you do not change filters or diaphragm pressure. This is due to a psychoacoustic phenomenon discovered by Fletcher &...
- Page 19 Thinklink - Using One with Mobile Devices The T hink l ink kit provides all the cables and connections to connect One to iPhones, iPads, Android devices, computers, digital recorders and so on. (NOTE - Image at right does not represent a connection diagram. See ...
- Page 20 App and start these steps again. (3) d. Once the App is running, and the One is ON, only NOW, plug the connector or cable you plugged into jack (3) into your iPad or iPhone. AS YOU PLUG IT IN, a message on the upper left corner should say "Headset".
- Page 21 Set the Source switch to the center or right position. The center position reduces the signal level to the mobile device. This is usually necessary, since the One is usually too loud for most recording devices. You may also find that reducing One's volume level to a 0 to 2 range is necessary during recording, to reduce clipping and distortion.
-
Page 22: G Eneral Maintenance
Contact Thinklabs for assistance. ● Do not sterilize One using any sterilization process. ● Wipe your One with alcohol swabs or a soft cloth moistened with alcohol or water. Do not use abrasive cleaning agents, and do not allow fluids to enter the device. - Page 23 Whatever you do, try not to lose them while removing and cleaning them. ● Replacement - You can go to the Thinklabs Store to purchase eartips, or Contact Us and request eartips, telling us which model Thinklabs...
- Page 24 (Note that there is NO electric field outside your One stethoscope.) This is a robust system and the diaphragm is strong and not easily damaged.
- Page 25 However, if the situation arises that you'd like to clean inside, this is how you do it. You might also want to perform these steps if your One stethoscope is producing strange noises, which may be caused by lint or dirt inside your stethoscope.
- Page 26 Finally, sounds are dependent on the location on the body. There is also a technique to using One well: Start by applying a light pressure on the diaphragm. As you increase pressure, One becomes more sensitive and volume increases.
- Page 27 Check to make sure you've connected your headphone plug all the way into One's jack. Note that the jack hole is rather narrow, about 6.5mm to be precise. So some plugs are a bit too fat to fit all the way. If that's a possibility, use the short male-female extension cable supplied with your One.
- Page 28 There are some interfering noises that can occur even when not examining a patient. Some potential culprits are listed below, with remedies: - Radio stations or electromagnetic pickup: Move One to a location that does not have strong electromagnetic fields. One has been hardened against such interference, but it is technically possible, albeit unlikely, that noise can be induced by such sources.
- Page 29 Think hip-hop, not classical music when considering what your headphones can handle. - One is not being held in a firm and steady position, or is not being held with a steady pressure against the patient. Changing pressure is akin to vibration.
- Page 30 - lots of tricks out there! 3. AFTER it's dry, replace the diaphragm and diaphragm ring. Read the instructions for doing so, and do not damage the sensitive thread on the One by screwing it on wrong. 4. AFTER it's dry and you've closed it up, try turning it on and test it out. If it sounds OK, and seems to be working, you're probably OK.
- Page 31 The Audio Filters In Your One The following filters are provided in your Thinklabs One. Refer to the Quick Reference if you’d like to change the 2 favorites, currently set to Filter 1 and Filter 3. 1. 30Hz - 500Hz. Produces strong low frequencies for heart sounds, especially S3.
- Page 32 Indications for Use The Thinklabs One Digital Stethoscope is intended for use as a diagnostic aid in patient diagnosis. It can be used for the amplification of heart, lung, and other body sounds with selective frequency filtering. This product is not designed, sold, or intended for any use except as indicated.
- Page 33 If a material or manufacturing defect occurs within the warranty period, repairs will be performed free of charge upon returning the device to Thinklabs. The warranty will be voided in cases of abuse, excessive or inappropriate use conditions, or accidental damage to the product.
