Connecting the Power Cables
The procedures for connecting the power cable(s) vary depending on whether you
have the AC or the DC version of the StorEdge S1 system:
"To Connect the AC Power Cable" on page 50
"To Connect the DC Power Cables" on page 51
Note – See "Electrical Site Requirements" on page 83 for information on electrical
site requirements.
To Connect the AC Power Cable
Caution – Ensure that the connection of multiple units to the supply circuit does
not overload the supply overcurrent protection or supply wiring. Refer to the
StorEdge S1 storage enclosure nameplate electrical ratings when determining the
correct branch circuit rating for your installation.
1. Connect the AC power cable to the AC power connector on the StorEdge S1
storage enclosure.
2. Connect the AC power cable to an AC power source.

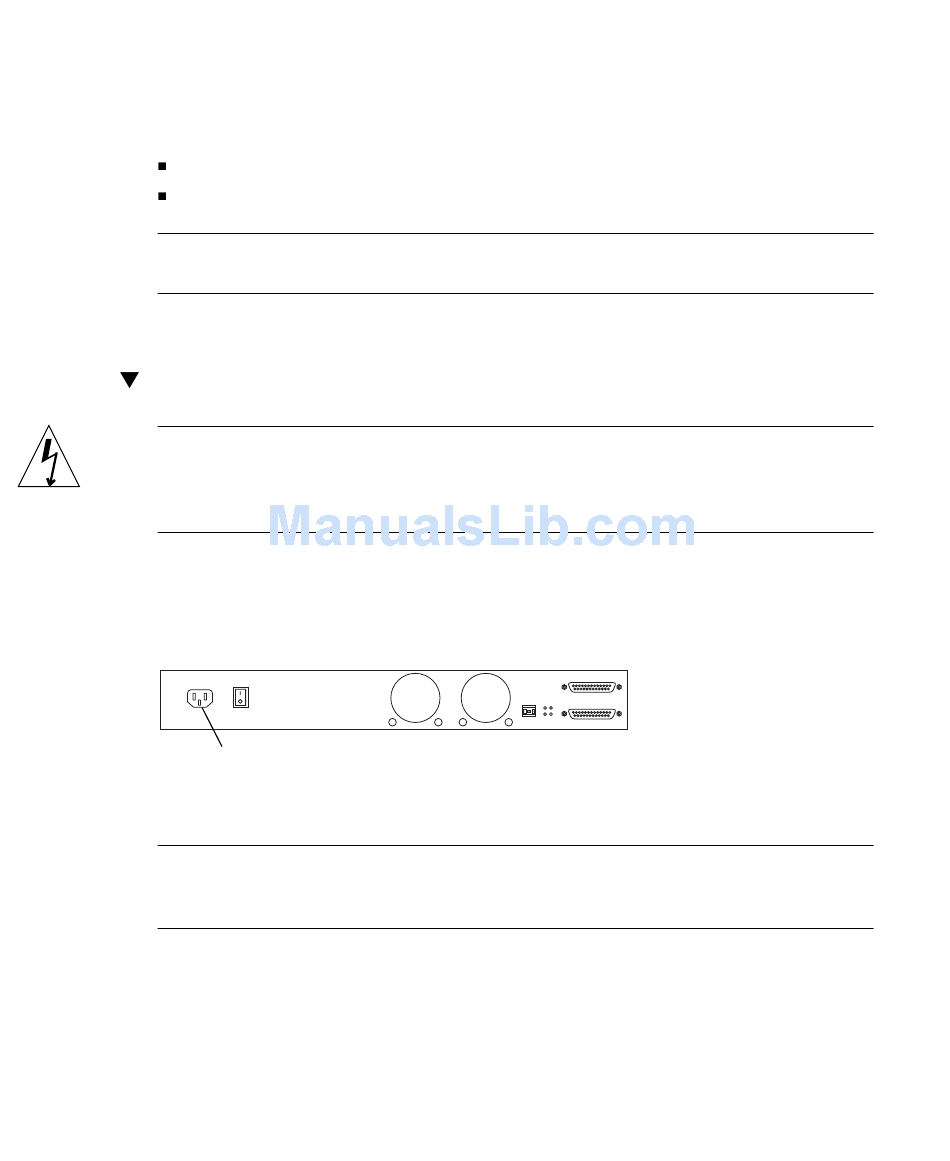

FIGURE 3-21
Note – As soon as the system is connected to a power source, it goes into Standby
mode. The amber System Summary Fault LED comes on to reflect this; it does not
indicate a fault.
50
StorEdge S1 AC100 and DC100 Installation and Maintenance Manual • March 2002
Power connector
Connecting the AC Power Cable
