NOTE:
Design and technical characteristics of the convector
heater, as well as its complete set may be changed by
the manufacturer without prior notification, when it is
needed to improve its quality.

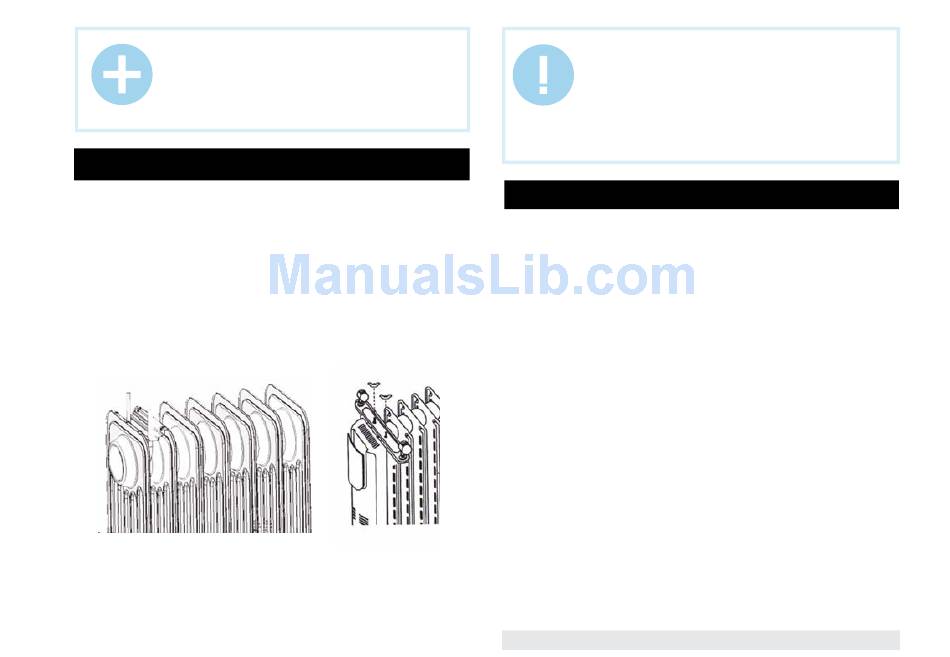

6. ASSEMBLY AND INSTALLATION
1. Unpack the radiator and roller wheels and remove all the packaging
material.
2. Overturn the radiator on a mat or no soft surface, to avoid damage to
lacquer coating.
3. Install wheel plates on the lower part of radiator sections, into two fixed
supports.
4. Draw up two finger nuts on one side and two finger nuts on the other - in
clamp extensions passed through the wheel plate supports, after making
sure that 2 openings in the wheel plate match together with the clamp
extensions (see Figure 3).
5. Turn the radiator back and tip it up.
Fig. 2
7. UNIT OPERATION RULES AND PROCEDURE
1. Read section «Important precautions» carefully unless you already did it.
2. Connect the unit's power cord to an electric outlet, observing all of the
abovementioned precautions. Remember that you can connect the unit
to electric mains only if the rotating power regulator is in OFF position
(switched off), i.e. the knob is rotated against the stop counterclockwise.
3. It is also preferable to turn the temperature regulating knob against the
stop counterclockwise. Then you can connect the unit to electric mains.
4. Set the unit's power regulator (knob) to position I, II or III (corresponds to
low, normal and maximum power of unit's operation). Remember that the
higher the power you choose, the faster the unit heats the air. But at a low
power you save electric power and reduce the load on your electric mains.
5. After you chose the desired operating power in accordance with
your individual preferences, you have to choose the desired heating
temperature. Turning the thermostat knob clockwise (from MIN position
towards MAX position), you thus adjust the temperature mode you need.
Since the moment you choose the temperature mode (provided one or
another power mode is activated see item 4) the oil filled radiator will start
to operate.
6. During the first minutes of radiator's operation you may fell a slight smell
of burning. It may be caused by dust on the unit; it will soon disappear.
If necessary, you can perform a preliminary preventive cleaning of the
unit, following rules, set forth in this manual and observing «Important
precautions».
Fig. 3
7. When the room temperature will reach the desired level, you should
slowly turn the temperature regulator's knob counterclockwise (towards
MIN). You will hear a click of the thermostat turning off, and the light on the
IMPORTANT!
1. Switch on and operate the radiator only when upright (with
wheels below and control elements above). Any other position
may cause a dangerous situation and result in failure of the oil-
filled radiator or damage of property and the manufacturer will
consider this as a non-warranty case.
2. Do not switch the radiator on, if roller wheels are not installed.
www.timberk.com • electric oil filled radiator
5
