lifesmart lux
is a registered trademark of
®
Source Network Sales & Marketing Inc., All Rights Reserved.
aTTaCh your reCeipT here
Purchase Date ____________Serial Number (
Questions, problems, missing parts? Contact technical support department at
1-866-484-2066, 8:00 a.m. - 5 p.m., CST, Monday - Friday or visit us online at
www.lifecorpproducts.com
Please have your model and serial number ready
REV9-092815

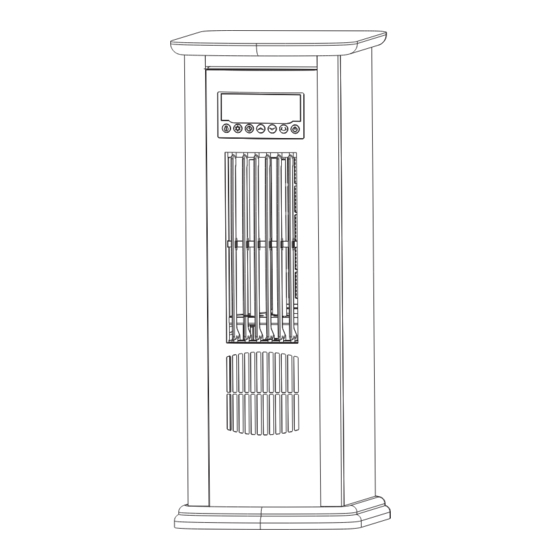

infRaREd quaRtz
) __________________
located on back of unit
1
hEatER/fan
model #LCHT0006US
Advertisement
Table of Contents
Related Manuals for Life Lux LCHT0006US
Summary of Contents for Life Lux LCHT0006US
- Page 1 ® model #LCHT0006US Source Network Sales & Marketing Inc., All Rights Reserved. aTTaCh your reCeipT here Purchase Date ____________Serial Number ( ) __________________ located on back of unit Questions, problems, missing parts? Contact technical support department at 1-866-484-2066, 8:00 a.m.
-
Page 2: Table Of Contents
tablE of contEnts Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety Information . -
Page 3: Package Contents
PackagE contEnts Front View Rear View PART DESCRIPTION QUANTITY Infrared Heater Remote Control Control Panel (preassembled to Infrared Heater (A)) Filter Cover (preassembled to Infrared Heater (A)) Master Power Switch (preassembled to Infrared Heater (A)) Temperature Sensor (preassembled to Infrared Heater (A)) -
Page 4: Safety Information
safEty infoRmation Please read and understand this entire manual before attempting to assemble, operate, or install the product . imPoRtant safEty instRuctions WaRning: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO . When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: •... - Page 5 safEty infoRmation child lock safety feature Press the Child Lock button located on the control panel for 5 seconds . Locking is confirmed when a buzzer rings and the control panel displays “CL” . When locked, the control panel and remote control (if provided) will not function . To unlock the control panel or remote (if provided), repeat this procedure .
-
Page 6: Frequently Asked Questions
fREquEntly askEd quEstions Please review these frequently asked questions on the next few pages prior to using your heater . q. my heater emits a strange odor when i first open the box and when i turn the heater on for the first time. - Page 7 fREquEntly askEd quEstions q. the temperature on my heater does not match the temperature display on my wall, or external thermostat. Why? a. This is completely normal . The temperature display on your heater may vary from the temperature display on another thermostat (like the one mounted to your wall or a purchased external thermostat) . This is because the temperature sensor on the heater reads the temperature directly around the heater .
-
Page 8: Preparation
PREPaRation Place the heater on a firm, level surface and plug into a grounded 120 V, 60 Hz power outlet and turn on the power switch on the rear of the unit . Only operate heater in upright position . Insert two AAA batteries into the remote control before using (batteries not included) . -
Page 9: Control Panel
contRol PanEl PaRt namE dEscRiPtion Fan Indicator Light Indicates when heater’s fan is active Fan Only Indicator Light Indicates when fan only mode is active Timer Indicator Light Indicates when the timer function is active Digital Display Readout of the set room temperature or timer value Celsius Indicator Light Indicates that the temperature is being displayed in Celsius Fahrenheit Indicator Light... -
Page 10: Remote Control
REmotE contRol ON/OFF PaRt namE dEscRiPtion LED Indicator Light Illuminates when remote button is pressed, indicating sent signal Mode Button Toggles between the heat and fan modes available Temp Down Button Decreases the set temperature Power Button Powers the heater ON / OFF Timer Power Button Engages the ON / OFF timer function Temp Up Button... -
Page 11: Operating Instructions
oPERating instRuctions Turn the heater on or off by pressing the Power button on the control panel (C) or by pressing the ON/OFF button on the remote control (B) . Once the power is off, heating elements will stop working first . The fan will continue working for up to 90 seconds to dispense ON/OFF residual heat inside the heater . - Page 12 oPERating instRuctions To set the timer power off, start the unit and press the Timer button on the control panel (C) or remote control (B) . TIME note: The timer-power-off function can only be set when the heater is in power-on mode . The digital display on the control panel (C) changes from the set temperature readout to a time value for the timer .
-
Page 13: Care And Maintenance
caRE and maintEnancE WaRning: Before performing any maintenance task, turn off the power switch in the rear of the unit, unplug the unit, and allow it to cool completely . To keep the heater clean, clean the outer shell with a soft, damp cloth . Use a mild detergent if necessary . -
Page 14: One-Year Limited Warranty
onE-yEaR limitEd WaRRanty The manufacturer warrants this heater against defects in materials and workmanship on functional parts, for a period of 1 year from the original date of purchase . Your sales receipt showing the date of purchase of the product is your proof of purchase . Keep it in a safe place for future reference . This warranty is subject to personal use only, commercial or rental applications will not be covered . -
Page 15: Replacement Parts List
REPlacEmEnt PaRts list For replacement parts, call our technical support department at 1-866-484-2066, 8 a .m . - 5 p .m ., CST, Monday - Friday PaRt dEscRiPtion PaRt # Control panel COPA-H2015 FAN213 Power board POBO-H2015 Tip-over switch TIPSW Limit Switch LIMIT130 Infrared tube... - Page 16 PLEASE REMEMBER TO REGISTER YOUR WARRANTY: web: www.lifecorpproducts.com email: registration@lifecorpproducts.com Printed in China lifesmart lux is a registered trademark ® of Source Network Sales & Marketing Inc., All Rights Reserved.
