lifelux
is a registered trademark
®
of Source Network Sales & Marketing Inc., All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date ____________Serial Number (
Questions, problems, missing parts? Contact technical support department at
1-866-484-2066, 8:00 a.m. - 5 p.m., CST, Monday - Friday or www.@lifecorpproducts.com
Please have your model and serial number ready
REV1-072214

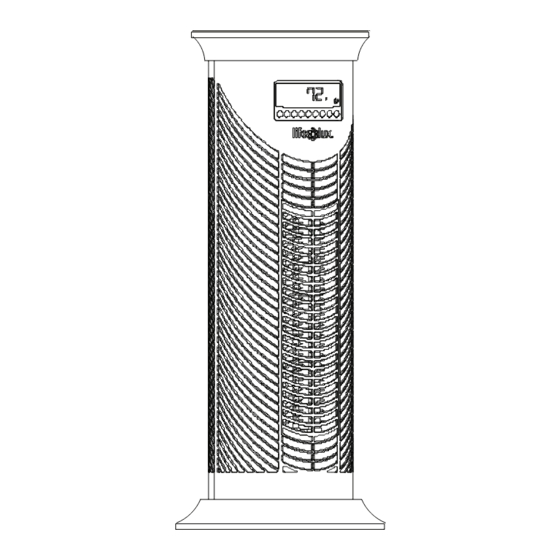

INFRARED QUARTZ TOWER
) __________________
located on back of unit
1
HEATER / FAN
MODEL #LS31-CIQT-M / MW
Advertisement
Table of Contents
Related Manuals for Life Lux LS31-CIQT-M
Summary of Contents for Life Lux LS31-CIQT-M
- Page 1 HEATER / FAN lifelux is a registered trademark ® of Source Network Sales & Marketing Inc., All Rights Reserved. MODEL #LS31-CIQT-M / MW ATTACH YOUR RECEIPT HERE Purchase Date ____________Serial Number ( ) __________________ located on back of unit Questions, problems, missing parts? Contact technical support department at 1-866-484-2066, 8:00 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety Information . -
Page 3: Package Contents
PACKAGE CONTENTS Rear View Front View PART DESCRIPTION QUANTITY Infrared Heater Remote Control Control Panel (pre assembled to Infrared Heater (A)) Temperature Sensor (pre assembled to Infrared Heater (A)) -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product . IMPORTANT SAFETY INSTRUCTIONS WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO . When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: •... -
Page 5: Specifications
SAFETY INFORMATION Child Lock Safety Feature Press the Child Lock button located on the control panel for 5 seconds . Locking is confirmed when a buzzer rings and the control panel displays “CL” . When locked, the control panel and remote control will not function . To unlock the control panel and remote, repeat this procedure . -
Page 6: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Please review these frequently asked questions on the next few pages prior to using your heater . Q. My heater emits a strange odor when I first open the box and when I turn the heater on for the first time. - Page 7 FREQUENTLY ASKED QUESTIONS Q. The temperature on my heater does not match the temperature display on my wall, or external thermostat. Why? A. This is completely normal . The temperature display on your heater may vary from the temperature display on another thermostat (like the one mounted to your wall or a purchased external thermostat) . This is because the temperature sensor on the heater reads the temperature directly around the heater .
-
Page 8: Troubleshooting
PREPERATION Place the heater on a firm, level surface and plug into a grounded 120 V, 60 Hz power outlet . Only operate heater in upright position . Insert two AAA batteries into the remote control before using (batteries not included) . Please note that infrared heaters do not heat like a traditional space heater . -
Page 9: Control Panel
CONTROL PANEL PART NAME DESCRIPTION Timer Indicator Light Indicates when the timer function is active Digital Display Readout of the set room temperature or timer value Celsius Indicator Light Indicates that the temperature is being displayed in Celsius Fahrenheit Indicator Light Indicates that the temperature is being displayed in Fahrenheit Power Indicator Light Indicates when the unit is receiving power from the wall outlet... -
Page 10: Remote Control
REMOTE CONTROL PART NAME DESCRIPTION Digital Display Displays last set heater temperature and heat modes Power Button Powers the heater on or off Heat Button Toggles between the three available modes (High / Low / Eco) Fan Speed Button Toggles between High and Low fan speeds Timer Power Button Engages the on/off timer function Temp Down Button... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS 1 . Turn the heater on or off by pressing the POWER button on the control panel (C) or by pressing the POWER button on the remote control (B) . Once the power is off, heating elements will stop working first . - Page 12 OPERATING INSTRUCTIONS 4 . To set the timer power off, start the unit and press the Timer button on the control panel (C) or remote control (B) . Note: The timer-power-off function can only be set when the heater is in power-on mode . The digital display on the control panel (C) changes from the set temperature readout to a time value for the timer .
- Page 13 6 . To engage the fan only mode, with the unit power on press the Fan Speed button on the control panel (C) or remote control (B) . The digital display on the control panel (C) changes from the set mode readout to an illuminated “L” icon . Switch from low or high fan speed settings by pressing the Fan button on the control panel (C) or remote control (B) .
-
Page 14: Care And Maintenance
CARE AND MAINTENANCE WARNING: Before performing any maintenance task, unplug the unit, and allow it to cool completely . 1 . To keep the heater clean, clean the outer shell with a soft, damp cloth . Use a mild detergent if necessary . - Page 15 LIMITED WARRANTY The manufacturer warrants this heater against defects in materials and workmanship on functional parts, for a period of 1 year from the original date of purchase . Your sales receipt showing the date of purchase of the product is your proof of purchase . Keep it in a safe place for future reference . This product is made with the highest quality materials and is warranted to be free from defects in materials and workmanship at the time of purchase .
-
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our technical support department at 1-866-484-2066, 8 a .m . - 5 p .m ., CST, Monday - Friday or Warranty@lifecorpproducts .com PART DESCRIPTION PART # Control panel RH123202 RH123253 POWER TIMER 94V 0 Power board RH123250 GD8115BP X3X 301...
