SYRDF5 Fingerprint Reader
Wiegand
& RS485 DUAL INTERFACE
TM
SYRIS Technology Corp.
ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd.
Taichung, Taiwan (403)
TEL : +886-4-2207-8888
FAX : +886-4-2207-9999
E-Mail : service@syris.com
Website : http://www.syris.com
May 25, 2004 Ver:2.00
Advertisement
Table of Contents
Related Manuals for Syris SYRDF5
Summary of Contents for Syris SYRDF5

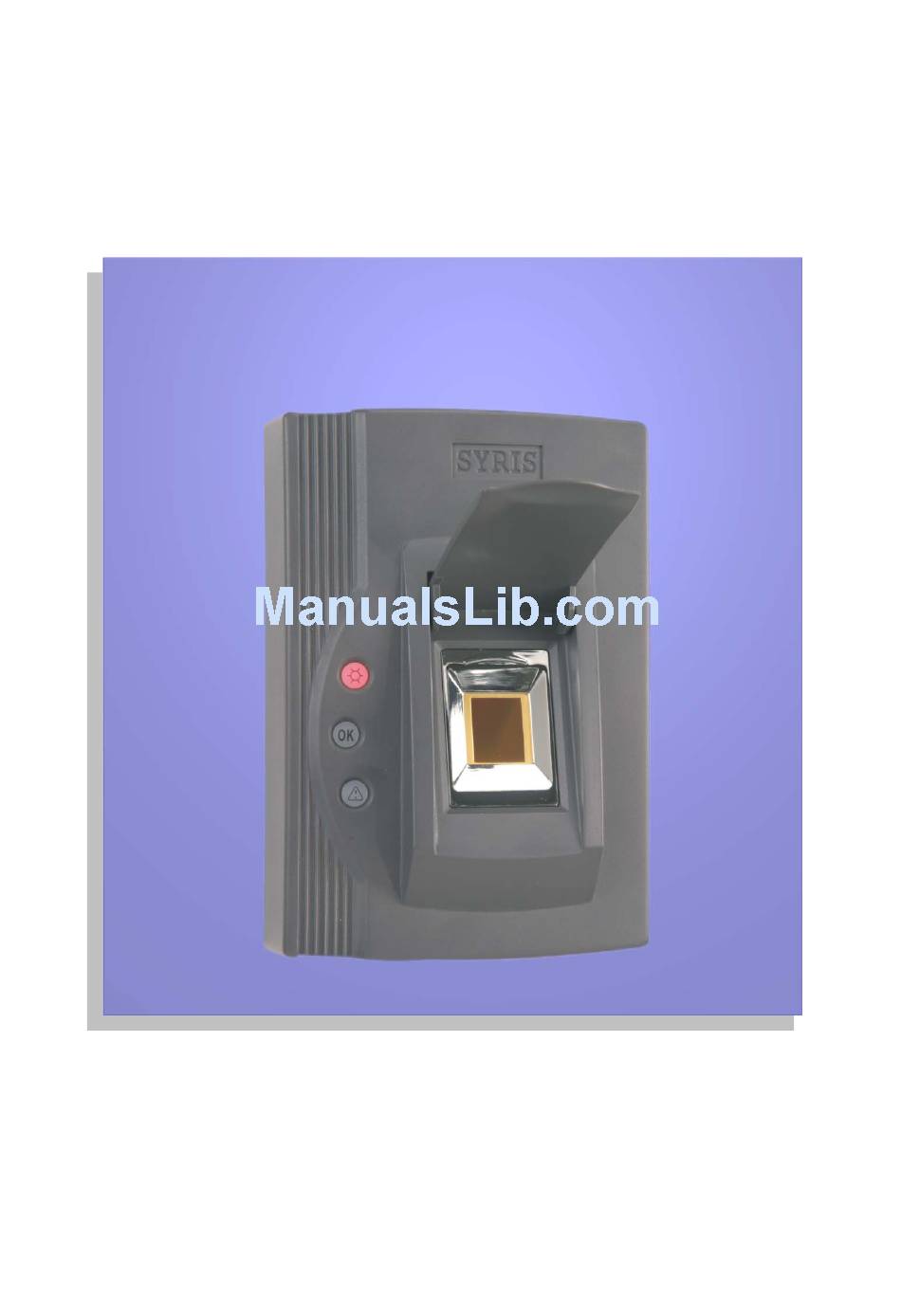

- Page 1 Install and Operation Instructions SYRDF5 Fingerprint Reader Wiegand & RS485 DUAL INTERFACE SYRIS Technology Corp. ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd. Taichung, Taiwan (403) TEL : +886-4-2207-8888 FAX : +886-4-2207-9999 E-Mail : service@syris.com Website : http://www.syris.com May 25, 2004 Ver:2.00...
- Page 2 SYRDF5 WIRING DIAGRAM * Power supply should be regulated linear power supply. * Your system must have a single earth ground point. * The shield must run continuous throughout the installation.
- Page 3 SYRDF5 MOUNTING PLATE SYRDF5 Specification Items / Specs SYRDF5 Number of fingerprint 1,000 Fingerprint sensor capacitive sensor in CMOS technology 224x288 pixels （513dpi） ；data format；8bit/pixel ESD protection2；15kV air discharge on the sensor surface Mechanical resistance；hard surface provides protection against Chemical resistance；Enhanced resistance against most liquids,gasses,sweat 125KHz,TEMIC/EM compatible （Option 13.56MHz Mifare 1）...
