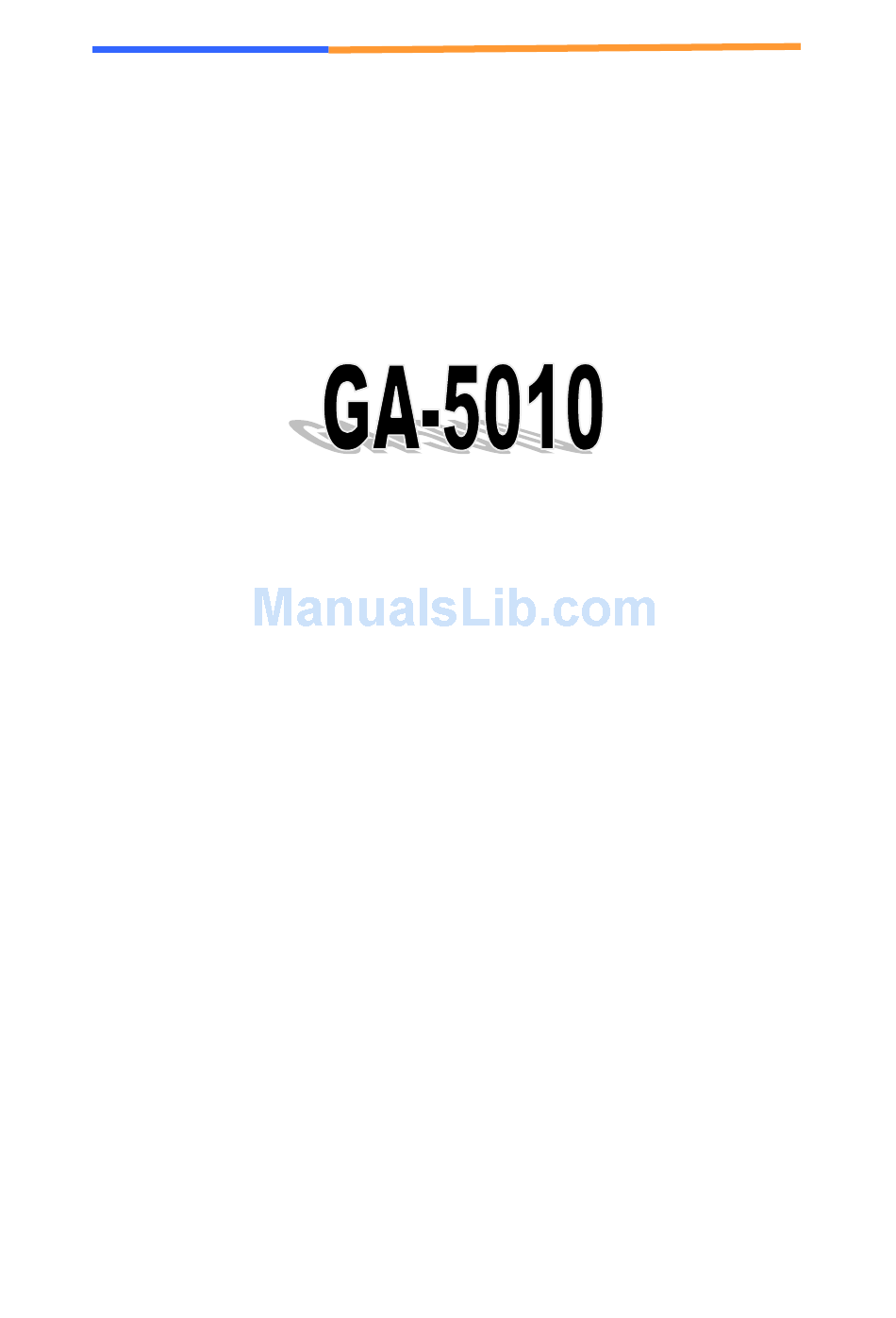

- Page 1 User’s Manual Embedded Gaming Board support AMD® R-Series APU, 4 displays, 2 GbE, 4 COMs, NVRAM, Gaming I/O 72-pin golden finger User’s Manual AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 2 For more information on GA-5010 or other AEWIN products, please visit our website http://www.aewin.com.tw. For technical supports or free catalog, please send your inquiry to info@aewin.com.tw...
-
Page 3: Table Of Contents
3.3 Menu Options....................32 3.4 Advanced Menu ..................... 33 3.5 Chipset Menu ....................43 3.6 Boot Menu ..................... 51 3.7 Security Menu ....................54 3.8 Exit ......................... 55 Appendix A: Development Kit (optional) ..............56 AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 4: Chapter 1. General Information
5+1 channel audio jack on rear edge 2x amplified speaker out through golden finger ■ Ethernet Ethernet Interface 2x Gigabit Ethernet ■ Storage One CF socket Or 2GB PATA NANDrive (onboard optional); Pin header for write protection AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 5 Pin header for optional gaming I/O & NVRAM expansion module ■ Expansion Expansion slot One PCI-E x16 slot (PCIe x8 signal), One mini-PCIe socket for PCIe x1 Or one mSATA (default mSATA) LPC, I2C, SPI header ■ System I/O AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 6 Relative Humidity: 10-85 % RH, non-condensing Compliant FCC/CE Class A Dimension 170mm x 210mm ■ Applications Main Application Multi-display video slot/poker machine Multi-display amusement machine Multi-player Roulette/Baccarat system Multi-player Racing/Shooting game Bingo room island system AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 7: Order Information
GA-5010. Keep the box and carton when you probably ship or store GA-5010 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the appliance of GA-5010 if you already find it appears damaged. -
Page 8: Precautions
Please make sure you properly ground yourself before handling the GA-5010 board or other system components. Electrostatic discharge can be easily damage the GA-5010 board. Do not remove the anti-static packing until you are ready to install the GA-5010 board. Ground yourself before removing any system component from it protective anti-static packaging. -
Page 9: Board Placement
User’s Manual 1.6 Board Placement AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 10: Board Dimension
User’s Manual 1.7 Board Dimension AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 11: Chapter 2. Connector/Jumper Configuration
2.1 Connector/Jumper Location and Definition Connector: HDMI Connector COM 1/2 Connector (DB9*2) DVI-D Port 2/3 Audio Jack DVI-D Port 1 LAN1 & USB 0/1(USB 3.0) LAN2 & USB 2/3(USB 3.0) MINI-PCIE LED Connector.(WLAN) AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 12 CN21 R283 daughter board expansion CN22 LPC Pin Header CN23 SATA Port 0 CN24 R283 daughter board expansion CN25 SATA Port 1 CN26 COM4(Simple RS232) CN27 CF Socket CN28 COM3(Simple RS232 / CCTALK) AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 13 (1-2: +5V ; 2-3: +12V) GPO Port Power Level Select (1-2: +5V ; 2-3: +12V) GPO Port Power Level Select (1-2: +5V ; 2-3: +12V) FPGA RESERVED GPI Port Power Level Select (1-2: +5V ; 2-3: +12V) AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 14 EEPROM_WP (1-2:ON 2-3OFF) JP12 NANDrive_WP_N(1-2:ON 2-3:OFF) JP13 COM3 MODE SELECT (1-3short 2-4short: SIM232; 3-5short 4-6short: CCTALK) JP14 AUDIO (1-3short 2-4short: Audio ON; 3-5short 4-6short: Audio OFF) JP15 Clear CMOS (1-2: Hold CMOS; 2-3: Clear CMOS) AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 15: Connector And Jumper Setting
TMDS Data1- SDA (DDC data) TMDS Data0+ DDC/CEC Ground TMDS Data0 Shield +5V Power (power EDID/DDC) TMDS Data0- Hot Plug detect TMDS Clock+ CN2 : COM1 & COM2 Pin Signal Pin Signal Ground Ground AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 16 DP0_TX0_N DP0_TX0_P DP0_AUX_P DP0_AUX_N CK10 DP0_TX1_N DP0_TX1_P CK11 CK12 CK13 CK14 CK15 CK16 DVID_HPD CK17 CK18 DP0_TX2_N DP0_TX2_P CK19 CK20 CK21 CK22 CK23 CK24 DP0_TX3_N DP0_TX3_P CN4A:AUDIO Connector Define Define MIC_L MIC_JD MIC_R AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 17 Define 22 SPKR_OUT_L 23 FRONT_JD 25 SPKR_OUT_R CN4C:AUDIO Connector Define Define LINE_L 34 LINE_JD 35 LINE_R CN5: DVI-D Port 1 Define Define CASE GND CASE GND DP0_TX0_N DP0_TX0_P DP0_AUX_P DP0_AUX_N CK10 DP0_TX1_N DP0_TX1_P AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 18 CK23 CK24 DP0_TX3_N DP0_TX3_P CN6/7 : USB and 1000/100 LAN RJ45 Jack Signal Signal 5VUSB0 USBDT0- USBDT0+ Ground Ground 5VUSB0 Ground USBDT1- USBDT1+ Ground CN8 : MINI-PCIE LED Connector.(WLAN) Define Define MINIPCIE_LED1 MINIPCIE_WLAN_N AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 19 SMB_DATA CLKREQ# PETP0 RESERVED RESERVED USB_D- REFCLK- RESERVED RESERVED USB_D+ REFCLK+ RESERVED RESERVED - RESERVED RESERVED LED_WWAN# RESERVED RESERVED LED_WLAN# RESERVED RESERVED RESERVED LED_WPAN# RESERVED PERST# +1.5V PERN0 RESERVED +3.3VAUX PERP0 RESERVED +3.3V AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 20 User’s Manual USB pin header CN10/11/12 : Define Define USBDATA- USBDATA- USBDATA+ USBDATA+ Reserved SPI Flahs Download Pin Header(For Debug Purpose) CN13 : Define Define +V3P3_SPI FCH_SPI_CS_N FCH_SPI_CLK FCH_SPI_DATAIN FCH_SPI_DATAOUT N.C. N.C. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 21 B30/H IN21 A30/7 B29/J IN22 A29/8 B28/K IN23 A28/9 B27/L IN24 A27/10 B26/M Door 0 (opt.) A26/11 B25/N Door 1 (opt.) A25/12 B24/P Door 2 (opt.) A24/13 B23/R Guide Pin A23/14 Guide Pin AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 22 A7/4 B6/D +12V A6/5 +12V B5/F +12V + R A5/6 +12V + R B4/H PWM & GPO 0 A4/7 PWM & GPO 1 B3/J Guide Pin A3/8 Guide Pin B2/K A2/9 B1/L A1/10 AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 23 User’s Manual CN16 : PCIE x16 Socket(Support x8 Only) As standard. CN17 : USB Port 1(USB 2.0) Define Define DATA0+ DATA0- CN18 : SATA Power Connector Define +12V AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 24 User’s Manual CN19 : USB Port 0(USB 2.0) Define Define DATA0+ DATA0- DOOR CN20 : Connector Define Define DOOR0 DOOR1 DOOR2 DOOR4 DOOR5 CN21 : expansion board connector for R283 AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 25 User’s Manual LPC Connector CN22 : Define Define +3.3V AD 0 AD 1 AD 2 AD 3 Frame# PCIERST# CLOCK PME# SERIRQ LDRQ SATA Port 0/1 Connector CN23/25 : Define AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 26 CN26 : COM4(Simple RS232) Define CF SOCKET CN27 : Define Define CF_CD-1 IDE_PDD3 IDE_PDD11 IDE_PDD4 IDE_PDD12 IDE_PDD5 IDE_PDD13 IDE_PDD6 IDE_PDD14 IDE_PDD7 IDE_PDD15 IDE_PDCS1_N IDE_PDCS3_N IDE_PDIOR_N IDE_PDIOW_N CF_PIN36 IDE_IRQ IDE_RST_N IDE_PDIORDY IDE_PDA2 IDE_PDDREQ IDE_PDA1 IDE_PDDACK_N IDE_PDA0 IDE_ACTP_N AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 27 User’s Manual IDE_PDD0 IDE_PDIAG_N IDE_PDD1 IDE_PDD8 IDE_PDD2 IDE_PDD9 IDE_CS16_N IDE_PDD10 COM3(Simple RS232 / CCTALK) CN28 : Define +12V CCTALK SOUT AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 28: Compact Flash™Card Socket Pin Define
Thus, it provides users with much greater protection of the data than conventional magnetic disk device. Assignment Assignment Assignment Assignment Assignment Ground Ground RESET Ground ORDY DREG Ground DACK Ground Ground Ground RDY/BSY Ground Ground SCSE Ground Ground AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 29: Chapter 3. Bios Setup
User’s Manual Chapter 3. BIOS Setup The ROM chip of your GA-5010 board is configured with a customized Basic Input/Output System (BIOS) from AMI BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics. -
Page 30: Entering The Cmos Setup Program
1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 31 Press <ESC> (“Exit”) to ignores your changes and exits the program. 3. Choose a setup option with the arrow keys and press <Enter>. See the following sections for a brief description of each setup option. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 32: Menu Options
System Date [Day mm/dd/yyyy]: This item allows you to set the system date. SystemTime: [hour:min:sec]: This item allows you to set the system time. Access Level: This item allows you to set the authority to access system. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 33: Advanced Menu
2. Use the arrow keys to move between fields. Modify the selected field using the PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. 3. After you have finished with the Advanced setup, press the <ESC> key to return to the main menu. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 34 Maximum Read Request [Auto] This item allows you to Set Maximum Read Request of PCI Express Device or allow System BIOS to select the value. Extended Synch [Disable] This item allows you to Enable/Disable Extended Synch. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 35 [Note]: Your computer will reboot during restart in order to change state of the device. Pending operation: [None] Current Status Information This information shows current status of TPM with following items. TPM Enabled Status: [Disabled] TPM Active Status: [Deactivated] TPM Owner Status: [UnOwned] AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 36 BIOS. CPU Information This information shows CPU information which using in the system. CPU information includes messages like processor type, power consumption under running frequency, operating speed as well as cache size. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 37: Ide Configuration
User’s Manual 3.4.4 IDE Configuration This sub menu shows the IDE/SATA device information which is automatically detected by BIOS. IDE Configuration AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 38: Usb Configuration
User’s Manual 3.4.5 USB Configuration This sub-menu allows you to set the parameters to support USB devices you are going to use. Mass storage will be detected automatically by system. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 39 User’s Manual 3.4.6 Platform Function This menu allows you to setup Watch-Dog, the timer can be set in second or minute mode. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 40 User’s Manual 3.4.7 Super IO Configuration AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 41 Super IO function provides 4 ports IO for various control. Those ports can be configured respectively. 3.4.8 Board Setting PCI-E Port This menu allows you to Enable/Disable specific card or device in system. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 42 User’s Manual 3.4.9 UEFI PXE UEFI PXE Driver This menu allows you to Enable/Disable PXE Driver. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 43: Chipset Menu
PgUP/PgDN keys. For information on the various options, press <F1> key. After you have finished with the Chipset Setup, press the <ESC> key to return to the main menu. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 44: South Bridge
User’s Manual 3.5.1 South Bridge It allows you to configure the parameters of South Bridge, includes SATA, USB and Audio etc… AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 45 User’s Manual In this submenu, it allows you to enable/disable SATA and change SATA type. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 46 User’s Manual In this submenu, it allows you enable/disable to support XHCI. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 47 User’s Manual In this submenu, it allows you to enable/disable the audio device. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 48: North Bridge
User’s Manual 3.5.2 North Bridge It allows you to configure the parameter of North Bridge, includes clock, timing, VGA frame buffer and etc.. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 49 User’s Manual In this submenu, it allows you select video device in system for output. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 50 User’s Manual In this submenu, it allows you setup memory parameters for specific memory, like clock, operation method. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 51: Boot Menu
PnUP/PgDN Keys. For information on the various options, press <F1> key. 3. After you have finished with the Boot setup, press the <ESC> key to return to the main menu. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... - Page 52 User’s Manual In this submenu, it allows you to setup CSM. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
- Page 53 User’s Manual In this submenu, it allows you to setup the system boot order. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014...
-
Page 54: Security Menu
PgUP/PgDN keys. Please press the <F1> key for information on the various options. 3. After you have finished with the Security setup, press the <ESC> key to return to the main menu. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 55: Exit
PgUP/PgDN keys. For information on the various options, please press <F1> key. 3. Please press the <ESC> key to return the main menu after finishing with the Exit Options. AEWIN Technologies Co., Ltd Rev1.1 Jan. 2014... -
Page 56: Appendix A: Development Kit (Optional)
User’s Manual Appendix A: Development Kit (optional) The GA-5010 offers R217A Gaming I/O testing board and some cables for development use. DK-GA5010-01 Item & Description Part No. Gaming I/O testing board R217A-01 72 pin golden finger cable w/ fool-proof 46L-G00028-00 小...
