Aewin AW-BS610 User Manual

Som-etx cpu board

Advertisement

Quick Links

SOM-ETX CPU Board
Model Number AW-BS610
VIA Eden CPU card with VGA/LCD/LVDS, LAN, TV-Out & Audio
User's Manual
Version 1.0
We embed your need!
©Copyright 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-BS610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aewin AW-BS610

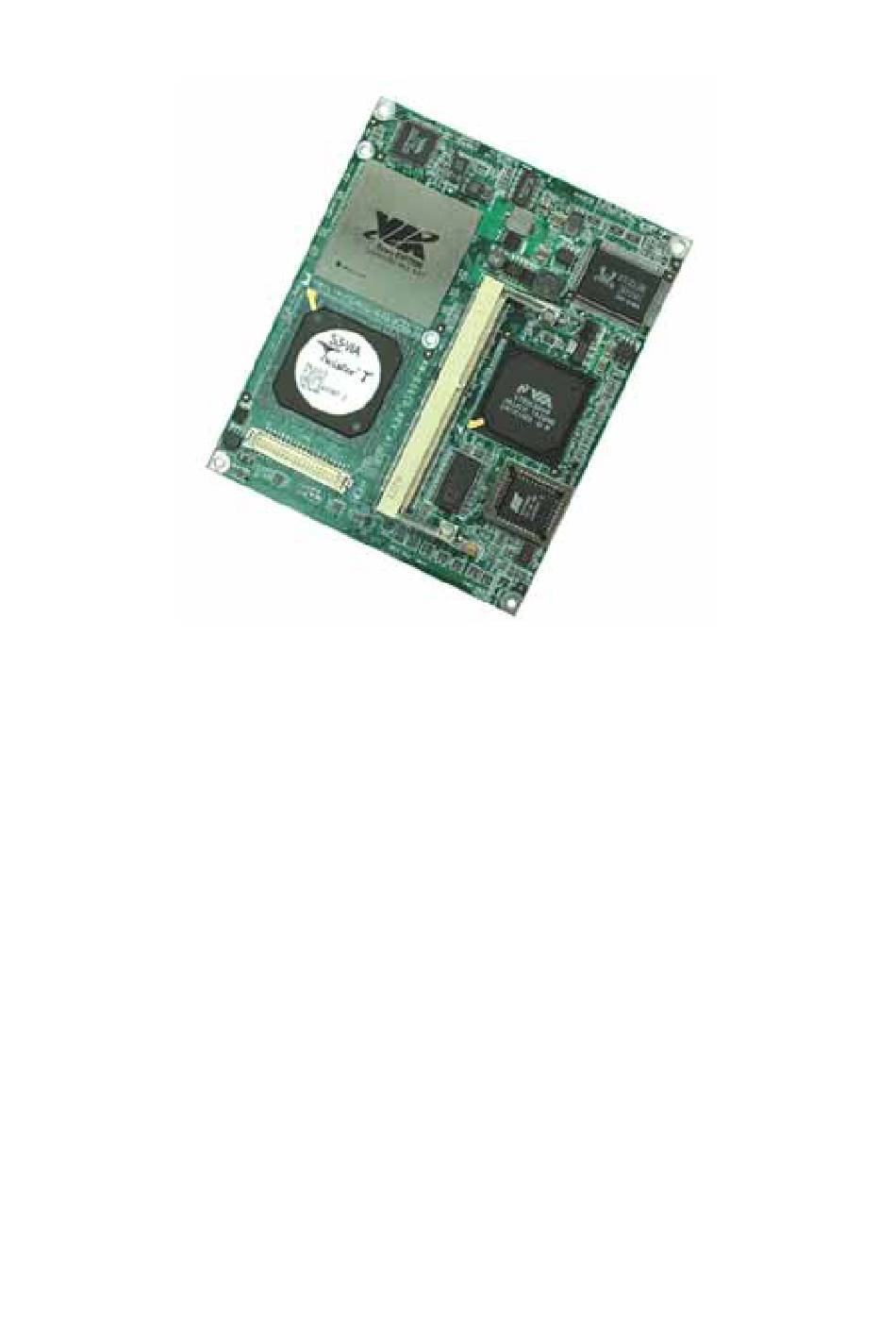

  • Page 1 SOM-ETX CPU Board Model Number AW-BS610 VIA Eden CPU card with VGA/LCD/LVDS, LAN, TV-Out & Audio User’s Manual Version 1.0 We embed your need! ©Copyright 2002...
  • Page 2 While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 3: Table Of Contents

    Chapter 4. Drivers and Utility------------------------------------------------------------------32 4.1 System Driver Installation -----------------------------------------------------------------32 4.2 VGA Driver Installation----------------------------------------------------------------------35 4.3 Ethernet Driver Installation ----------------------------------------------------------------37 4.4 Audio Driver Installation --------------------------------------------------------------------42 Appendix A. Optional Cable List---------------------------------------------------------------43 ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 4: Chapter 1. General Information

    1.1 Introduction The AW-BS610 is a VIA EBGA low power consumption processor System On Module (SOM). Using a VIA EDEN processor up to 733MHz, the AW-BS610 achieves good performance on the SOM-ETX CPU module. On-board features include two TTL (16550 compatible) serial ports, one bi-directional parallel (ECP/EPP/SPP) port, four USB ports, one FPC type floppy disk connector, SIR IrDA 1.1 compliant and a...
  • Page 5 TV format Provides RCA (Composite) video and S-video connector on base board Output connector Audio Interface Realtek® ALC650 AC97 codec Chipset Audio connectors on base board Output connector ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 6: Aw-Bs610 Package

    If any of these parts are missing or damaged, please contact your distributor or sales representatives immediately. Note: for detailed contents of the AW-BS610, please refer to the attached CD-ROM. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 7: Board Layout

    User’s Manual 1.4 Board Layout 1.5 Board Dimension ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 8: Installing Memory

    Chapter 2. Installing Process 2.1 Installing Memory: To insert a SDRAM Memory: The AW-BS610 onboard with one 144-pin DDR DIMM sockets supports up to 512Mbytes DDR SDRAM. To Insert a DIMM Memory: Please align the module with the socket key and press down until the levers at each end of the socket snap close up.
  • Page 9 User’s Manual ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 10 There is only one direction for installing a module in the socket. Do not attempt to force the module into the socket incorrectly. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 11: Chapter 2. Bios Setup

    3. In the main menu, press F10 (“Save & Exit Setup”) to save your changes and reboot the system. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 12: Entering The Cmos Setup Program

    1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 13: Menu Options

    Configure Plug & Play IRQ assignments and PCI slots PC HEALTH STATUS: Configure the CPU speed and, if the optional Winbond W83627HF system monitor IC is installed, view system information ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 14: Standard Cmos Features

    Abandon all CMOS changes and exit the CMOS setup program Standard CMOS Features Setup Use the Standard CMOS Setup option as follows: 1. Choose “Standard CMOS Features” from the main menu. The following screen appears: ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 15 CGA 40 Color Graphics adapter, power up in 40 columns mode CGA 80 Color Graphics adapter, power up in 80 columns mode Mono Monochrome adapter, includes high resolution monochrome adapters ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 16: Advanced Bios Features

    2. Use the arrow keys to move between items and to select values. Modify the selected fields using the PgUP/PgDN keys. Press the <F1> “Help” key for information on the available options: ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 17 If your boot device is not included the following devices Floppy, LS120, HDD0/1, SCSI, CDROM, you may set First/Second/Third boot devices to disable and enable the boot other device function, the system will automatically boot the other device. Choose: Enabled, Disabled ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 18 This function is let you to connect the Server by hyper terminal to monitor Client, it has to be worked under DOS mode. The Client terminal doesn’t need the graphic function. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 19: Advanced Chipset Features

    It lets you select the value in this field, depending on the board paged DRAMs or EDO (Extended Data Output) DRAMS. Choose: Enabled / Disabled DRAM Clock: It lets you control the DRAM speed. Choose: Host Clock, HCLK-33M, HCLK+33M ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 20 USB keyboard. When disabled, the system will not be able to access USB keyboard. Choose: Enabled / Disabled USB Keyboard/Mouse Support: You could enable this function if the system contains USB controller and USB keyboard/mouse Choose: Enabled / Disabled ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 21 AGP Master 1 WS Read: System will run single wait state delay before read data from buffer, the system will run twice wait states if set to disable ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 22: Integrated Peripherals

    The onboard IDE interface supports IDE Prefetch Mode, for faster drive accesses. If you install a primary and/or secondary add in IDE interface, set the field to Disabled if the interface doesn’t support prefetch. Choose: Enable/Disable ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 23: Power Management Setup

    Use the Power Management Setup option as follows: 1. Choose “Power Management Setup” from the main menu. The following screen appears. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 24 Suspend: Off monitor is blank when the Standby-off: System is in either suspension or standby mode. All modes-off: Monitor is blank when the system is in any power saving mode. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 25: Pnp/Pci Configuration

    This option is used to configure Plug and Play assignments and route PCI interrupts to designated ISA interrupts. Use the PNP/PCI Configuration Setup option as follows: 1. Choose “PNP/PCI Configuration Setup” from the main menu, the following screen appears. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 26 This option specifies whether resources are controlled by automatic or manual configuration IRQ Resources: IRQ-3 Assigned to <PCI Device> IRQ-4 Assigned to <PCI Device> IRQ-5 Assigned to <PCI Device> ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 27: Pc Health Status

    3. Please press the <ESC> key to return the main menu after finishing with the PNP/PCI Configuration Setup. PC Health Status Configuration Setup Choose “PC Health Status Configuration Setup” from the main menu, the following screen appears: ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 28: Load Fail-Safe Default

    BIOS default values. Pres the <Y> key and then press <Enter> if you want to load the BIOS default. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 29: Load Optimized Default

    Optimized Default Values. Press the <Y> key and then press <Enter> if you want to load the SETUP default. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 30: Set Supervisor & User Password

    After you use this option to enable a password function, use the “Security Option” in “BIOS Feature Setup” to specify whether a password is required every time the system boots or only when an attempt is made to enter the CMOS Setup program. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 31 Save and Exit Setup This function automatically saves all CMOS values before exiting Setup. Exit Without Saving Use this function to exit Setup without saving the CMOS value. ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 32: Chapter 4. Drivers And Utility

    Chapter 4. Driver Utility The system driver installation procedure must be performed first. 4.1 System Driver Installation 1. Insert the AW-BS610 CD-ROM driver into the CD-ROM Drive 2. Select the Drivers/system file to click the Setup icon. 3. Click Next 4.
  • Page 33 User’s Manual 5. Select Normally Install, and then click Next 6. Remain the default setting, and then click Next ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 34 User’s Manual 7. Click Next 8. As the following picture, click Install VIA AGP 4X/133 driver, and click Click ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 35: Vga Driver Installation

    Installation process is completed and allowed the system to reboot. 4.2 VGA Driver Installation 1. Install the AW-BS610 CD ROM into the CD-ROM Drive 2. Select the Twister Drivers Setup file A driver installation screen will appear, please follow the onscreen instruction to install the driver in sequence ©2002 AEWIN Technologies Co., Ltd.
  • Page 36 User’s Manual 3. At last, click Next 4. Click Next ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 37: Ethernet Driver Installation

    The AW-BS610 supports four Ethernet Controller by using Realtek RTL8139C 4.3.1 Realtek 8139C Ethernet Installation 1. Insert the AW-BS610 CD ROM into the CD-ROM Drive 2. Click the Start button 3. Select the Setting item 4. Click the Control Panel item 5.
  • Page 38 Another file will appear below this file, and then click on the file 8. Click the Driver Tab 9. Click the Update Driver Button The Update Device Driver Wizard will appear ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 39 User’s Manual 10. Click Next ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 40 User’s Manual 11. Select “Specify a location” and click “Next” 12. Select “Driver’s place”and click “open” ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 41 User’s Manual 13. Select “Next” 14. Click “Finish” Installation process is completed shutdown the computer and will allow the system to reboot ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 42: Audio Driver Installation

    1. Select the Realtek AC 97 Audio file and click Setup icon A driver installation screen will appear, please follow the onscreen instruction to install the driver in sequence 2. Click “Next” ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 43: Appendix A. Optional Cable List

    Connector Connector 46-ICOM00-00 COM Port Cable CN11 2.54mm,22cm, COM2 D-Sub Cable 46-ATA660-00 IDE Cable CN12 2.54mm, 46cm, ATA-66/100 IDE Cable 46-IUSB04-00 Two-channel USB 2.54mm, 2-channel USB Cable Cable ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
  • Page 44 User’s Manual AW-BS610 Cable ©2002 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Feb. 2005...
