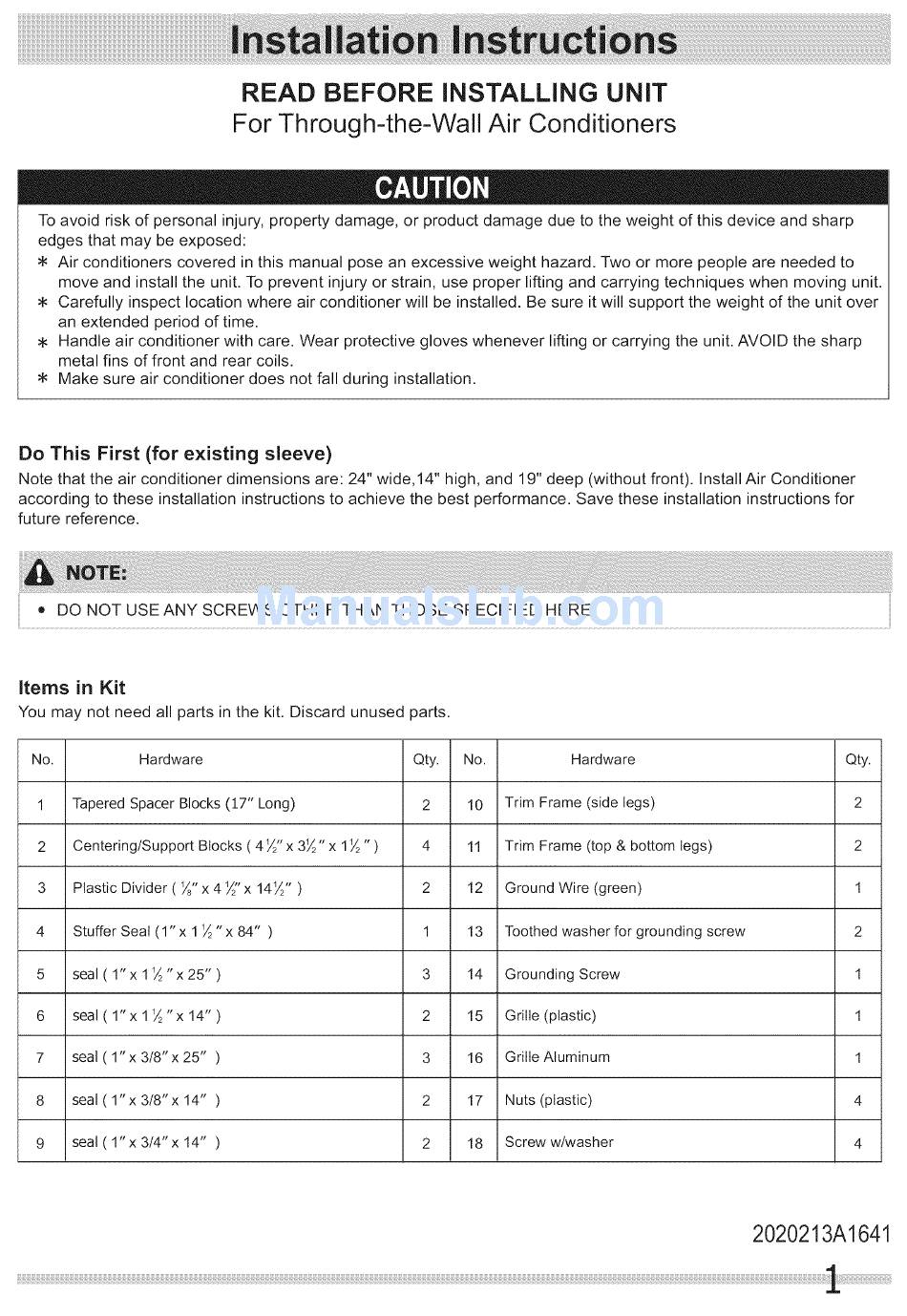

Kenmore 25376085410 Installation Instructions Manual

READ BEFORE INSTALLING UNIT
For Through-the-Wall Air Conditioners
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp
metal fins of front and rear coils.
Make sure air conditioner does not fall during installation.
Do This First (for existing sleeve)
Note that the air conditioner dimensions are: 24" wide,14" high, and 19" deep (without front). Install Air Conditioner
according to these installation instructions to achieve the best performance. Save these installation instructions for
future reference.
• DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE
Items in Kit
You may not need all parts in the kit. Discard unused parts.
No.
1
2
3
4
5
6
7
8
9
Hardware Qty.
Tapered Spacer Blocks (17" Long) 2
Centering/Support Blocks ( 4 _" x 3_" x 1_" ) 4
Plastic Divider ( _" x 4 _" x 14_" ) 2
Stuffer Seal ( 1" x 1 _ "x 84" ) 1
seal ( l" x 11/,"x25" ) 3
seal ( l"x 1_ "x 14" ) 2
seal ( 1" x 3/8" x 25" ) 3
seal ( l"x 3/8"x 14" ) 2
seal ( l"x 3/4"x 14" ) 2
No.
10
11
12
13
14
15
16
17
18
Hardware
Trim Frame (side legs)
Trim Frame (top & bottom legs)
Ground Wire (green)
Toothed washer for grounding screw
Grounding Screw
Grille (plastic)
Grille Aluminum
Nuts (plastic)
Screw w/washer
Qty.
2
2
1
2
1
1
1
4
4
2020213A1641
