Stand-Alone Access Control Keypad

FEATURES

•
Timer can be set from 1 second to 60 minutes
•
Outdoor, water resistant
•
Built-in EM Reader; Card / Code / Combined access
•
IP65 Rating
•
125KHz Frequency
•
1.97 inch / 5 cm Effective distance
•
Up to 1000 password & card holders for Zone 1
•
Digital keypad operation
•
Built-in pickproof function
•
Watchdog timer, powerful reboot & self-recovery watchdog
•
Dual relay outputs, 0~99 sec unlock output delay time
•
12V~15V DC, 150 mA
•
3" x 4.57" x 0.87"
Copyright © 2010-2014. All Rights Reserved.
www.sentryus.com
with Built-in EM Reader
Please read the Manual before attempting to use this product.
ACSK-EM

User Manual

R201408-V25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACSK-EM and is the answer not in the manual?

Questions and answers

Related Manuals for Sentry US ACSK-EM

Summary of Contents for Sentry US ACSK-EM

  • Page 1: Features

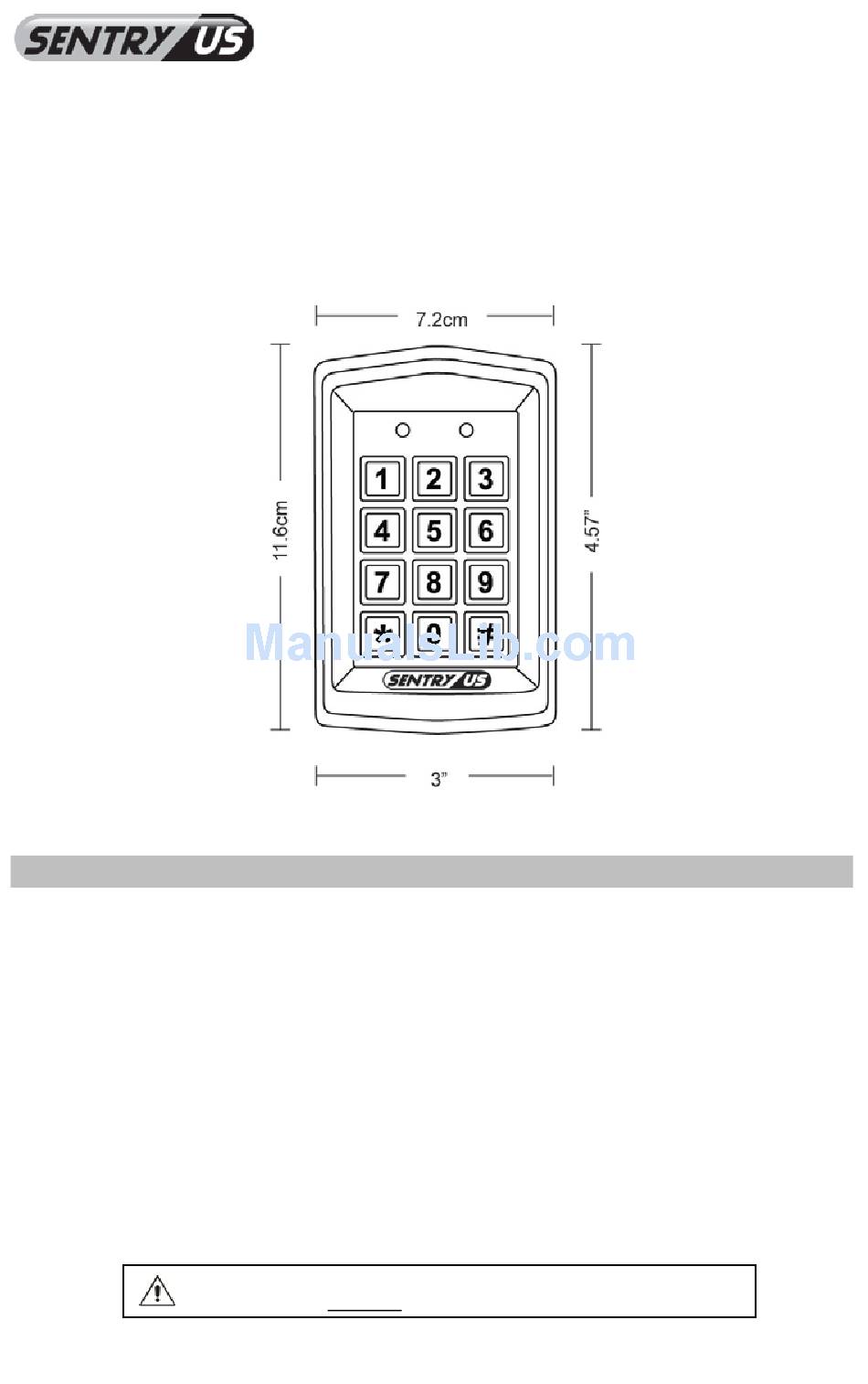

    User Manual Stand-Alone Access Control Keypad with Built-in EM Reader ACSK-EM FEATURES • Timer can be set from 1 second to 60 minutes • Outdoor, water resistant • Built-in EM Reader; Card / Code / Combined access • IP65 Rating •...

  • Page 2: Safety Warnings

    Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

  • Page 3: Table Of Contents

    INDEX FEATURES ............................. 1 SAFETY WARNINGS ........................2 PACKAGE CONTENTS ........................4 KEYPAD DESCRIPTION ........................4 MOUNTING INSTALLATION ......................5 SYSTEM WIRING DIAGRAM ......................6 SYSTEM WIRING CONNECTION ....................7 PROGRAMMING & OPERATION ....................7-8 CHANGING PROGRAMMING/ADMIN CODE ................ 8 RESTORING PROGRAMMING/ADMIN CODE TO FACTORY DEFAULT ........

  • Page 4: Package Contents

    PACKAGE CONTENTS One (1) Access Control Unit One (1) Mounting Plate One (1) Short Screw Four (4) Long Screws Four (4) Wall Anchors One (1) Torque Wrench One (1) Manual *For any returns, please include all components listed above with original packaging in Resalable Condition.

  • Page 5: Mounting Installation

    MOUNTING INSTALLATION Note: Before mounting, decide first where to mount the keypad. Open the control keypad by removing the screw at the bottom using the provided torque wrench. Push the front cover up a few millimeters and then lift the lower edge (no more than 20 degrees and remove the front cover gently.

  • Page 6: System Wiring Diagram

    SYSTEM WIRING DIAGRAM Note: White NO 1: For Electric Strike Lock Aqua NC 1: For Electric Magnetic Lock DC Input: +12V ~ +24V Black AC Input: ~9V ~ 18V Normally Open: N/O White Electric Door Strike Lock Pink Common - Relay Normally Close N/C Aqua Magnetic Lock...

  • Page 7: System Wiring Connection

    SYSTEM WIRING CONNECTIONS Connecting to Power: Connect the Red to power positive (+). Connect the Black to power negative (-). Connecting to Locks (two options): Option1: Using a Strike Lock Connect the White to power positive (+). Connect the Pink to the Strike lock power positive (+) or the normally open (NO). Connect the Strike lock power negative (-) to the power negative (-).

  • Page 8: Changing Programming/Admin Code

    The Factory Default Programming/Admin Code is 1 2 3 4. To enter Setup Mode press Programming Code twice. (ex: 1 2 3 4 1 2 3 4) The mode LED indicator will turn yellow. To exit or quit from the Setup Mode, press # key.

  • Page 9: Adding A Master Card (Zone 1)

    ADDING A MASTER CARD (ONLY FOR ZONE 1) Note: It is advisable to install the Master Card first before installing any User Cards To Add a Master Card: Setup Mode, press * key and 7. The mode LED indicator will flash green indicating there is no master card.

  • Page 10: Modifying The User Code (Zone 1)

    ZONE 2: Setup Mode, press * key and 4. Input a 2-digit number from 00-99 data storage unit. Yellow LED indicator will flash. At the same time, if red LED indicator is flashing, this means the number data storage unit existed. Press * key twice to clean up. If green LED indicator is flashing, this means the number data storage unit can add card(s) and password(s).

  • Page 11: Removing All User & Codes

    REMOVING ALL USER & CODES Setup Mode, press * key and 8. The mode LED indicator will flash yellow. Press 8 twice. A long beep means all users and their codes were removed (except for Programming/Admin Code). Press # key to exit Setup Mode.

  • Page 12: Door Bell

    DOOR BELL To turn on: Setup Mode, press * key and 2. The mode LED indicator will flash yellow. Press 0 and 2. A long beep will sound and the mode LED indicator will turn yellow to indicate that door bell was turned on. Press # key to exit Setup Mode.

  • Page 13: Specifications

    SPECIFICATIONS Model ACSK-EM Capacity 1000 passwords & card holders (Zone 1) 10 passwords or card holders (Zone 2) EM Reader Frequency 125 KHz Card Effective Distance 1.97 inch / 5 cm Power Consumption 12V~15V DC, 150mA DC Input +12V ~ +24V...

  • Page 14: Other Related Products

    OTHER RELATED PRODUCT OPTIONS Buzzer • Can be programmed 1~10 sec, recommend 5 sec. • 5V~14V DC Buzzer Connection: 1. Connect the buzzer positive (+) to lock (magnetic or strike) positive (+) 2. Connect the buzzer negative (-) to power negative (-) B-1.
