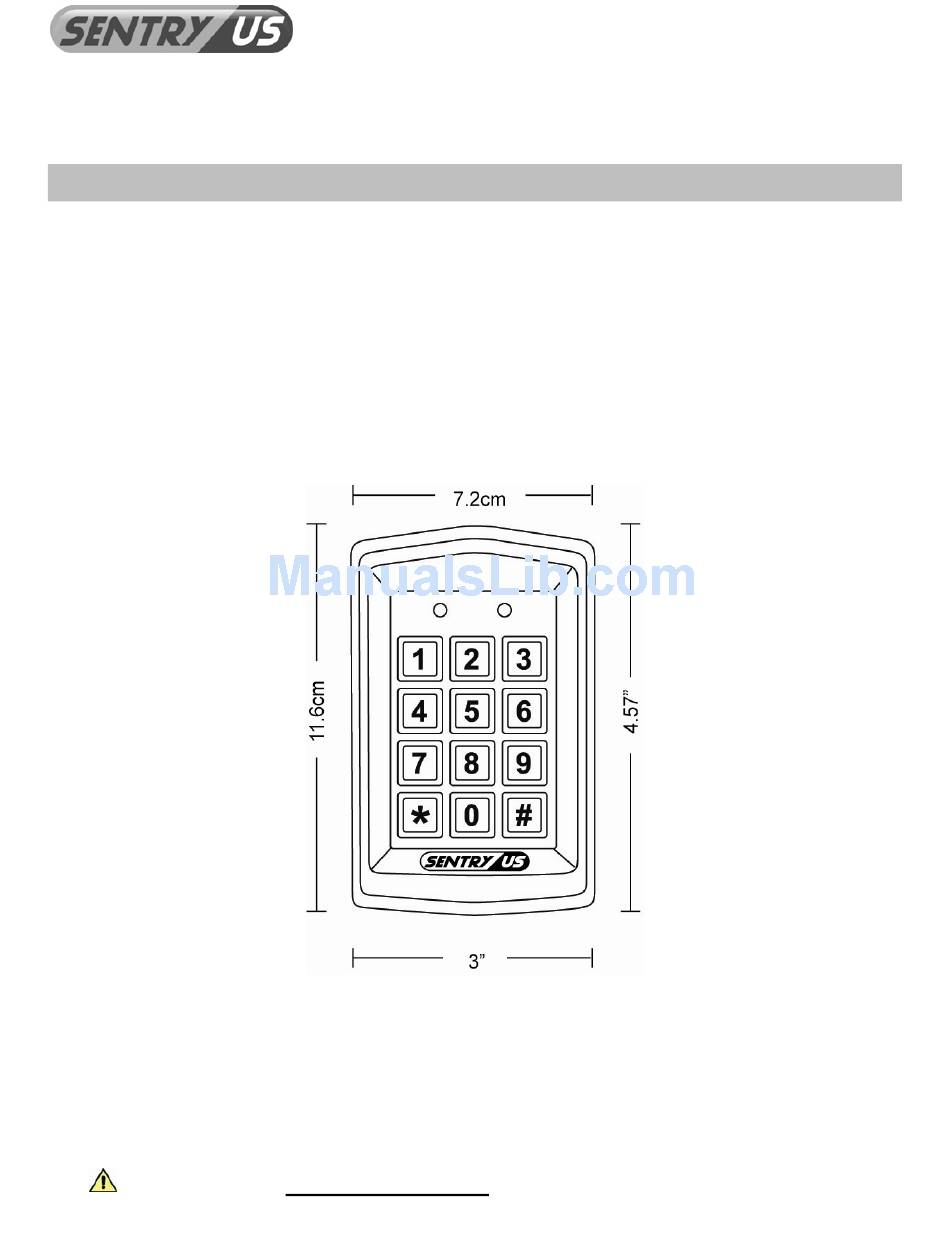

- Page 1 Instruction Manual Stand-Alone Access Control Keypad with Built-in EM Reader ACSK-EM Please read the Operational Manual before attempting to use this product. Instruction manual subject to change without prior notice from the manufacturer. Locks, cards, sensor and power adaptor not included.
-
Page 2: Table Of Contents
Index Features …………………………………………………………………... Keypad Description ………………………………………………..…….. Mounting Installation …………………………………………….….…... System Wiring Diagram …………………………………………………. System Wiring Connection ……………………………………..………. Programming & Operation ………….……………………………..… Changing Programming/Admin Code ……………………...……. Restoring the Programming/Admin Code to factory default …... Access Mode Setting ……………………………………………… Length of Password Setting ……………………………..……….. Adding a Master Card (ZONE 1) …………………………………. -
Page 3: Keypad Description
Keypad Description Description Mode Indicators Yellow, Red, Green Door Indicators Antenna Matrix Keypad Vandal Proof Case Screw Mounting Installation (Note: Before mounting, decide first where to mount the keypad.) 1. Open the control keypad by removing the screw at the bottom using the provided torque wrench. -
Page 4: System Wiring Diagram
System Wiring Diagram White NO 1: For Electric Strike Lock Note: Aqua NC 1: For Electric Magnetic Lock = DC Input: +12V ~ +24V Black = AC Input: ~9V ~ 18V Normally Open: N/O White Electric Door Strike Lock Pink = Common - Relay Normally Close N/C Aqua... -
Page 5: System Wiring Connection
System Wiring Connections Connecting to Power: Connect the Red to power positive (+). Connect the Black to power negative (-). Connecting to Locks (two options): Option1: Using a Strike Lock Connect the White to power positive (+). Connect the Pink to the Strike lock power positive (+) or the normally open (NO). -
Page 6: Changing Programming/Admin Code
Programming & Operation * All programming need to go to Setup Mode first. Two-zone relays can be programmed for opening the lock. Up to 1000 user cards and correlative codes can be stored into ZONE 1 and up to 10 user cards or codes can be stored into ZONE 2. -
Page 7: Access Mode Setting
Access Mode Setting: Card access only Setup Mode, press . The mode indicator will flash yellow. Press twice. The mode indicator will turn yellow and a long beep will sound. Card & code access Setup Mode, press . The mode indicator will flash yellow. Press . -
Page 8: Adding A User Card And Code
Adding a Master Card (Only for ZONE 1): Note: It is advisable to install the Master Card first before installing any User Cards To add a Master Card: 1. In Setup Mode, press . The mode indicator will flash green indicating there is no master card stored. - Page 9 To add card and passwords: 1. Enter Setup Mode. The yellow LED indicator light will flash. 2. Input a 3-digit number from 000 to 999 data storage units and the green LED indicator light will also flash. 3. Swipe card and a sound “BI” means the card has successfully been added. Then input the correlative passwords.
-
Page 10: Group Cards Added In Zone 1
Group Cards Added in ZONE 1: Setup Mode, press . The mode indicator will flash yellow. Press Input the 3-digit numbers from 000 to 999 for data storage unit starting number and then another 3-digit number for the whole cards account you want to add.. For example, Input 005 060 –... -
Page 11: Pickproof Alarm
ZONE 2 Setup Mode, press . The mode indicator will flash yellow. Enter unlocking delay time from 00 to 99 (ex: means ten seconds delay time before it locks). A long beep means unlock delay time was adjusted. If setting lock-time is 00: swipe card or input password once and open the door, then swipe card or input password again and close the door. -
Page 12: Pickproof Alarm
Note: If the photoresistor is directly exposed into the light, a buzzing sound will be heard. It will only stop upon removing the light exposed directly to the photoresistor, the Programming/Admin Code was pressed or after 60 seconds. Photoresistor Sensor Door Bell: To turn on: Setup... -
Page 13: Restoring Factory Default
Restoring Factory Default: Setup Mode, press . The mode indicator will flash yellow. Press twice. A continuous long beep means all user cards and codes have been cleaned out. factory default was restored. Setup Mode, press . The mode indicator will flash yellow. Press twice. -
Page 14: Specifications
Specifications Model ACSK-EM 1000 passwords & card holders (Zone 1) Capacity 10 passwords or card holders (Zone 2) EM Reader Frequency 125 KHz Card Effective Distance 1.97 inch / 5 cm Power Consumption 12V~15V DC, 150mA DC Input +12V ~ +24V... -
Page 15: Other Related Product Options
Other Related Product Options A. Buzzer • Can be programmed 1~10 sec, recommend 5 sec. • 5V~14V DC Buzzer Connection: 1. Connect the buzzer positive (+) to lock (magnetic or strike) positive (+) 2. Connect the buzzer negative (-) to power negative (-) B-1. -
Page 16: Recommended Lock Systems
Recommended Lock Systems A. Magnetic Lock with LED • Available in 600 lbs and 1200 lbs B. Electric Door Strikes for Metal Door • • Jaw Strength: 2000 lbs • 12V DC C. Electric Door Strikes for Wood Door • Jaw Strength: 2000 lbs •...
