- Page 3 As a result, we are confident that your new Profoto product will stay with you for years and help you grow as a photographer. But getting the product is only the beginning of that journey.
-
Page 4: General Safety Instructions
Equipment contains electrical and electronic components that could be harmful to the environment. Equipment may be returned to Profoto distributors free of charge for recycling according to WEEE. Follow local legal requirements for separate disposal of waste, for instance WEEE directive for electrical and electronic equipment on the European market, when product life has ended! www.profoto.com... -
Page 5: Table Of Contents
Table of Contents General safety instructions ..................4 System description & compatible products ...............7 General notes on wireless operation with Profoto Air ..........8 Nomenclature ......................9 Operating instructions .....................10 Quick guide ....................10 Power on/off ....................10 Channel selection ..................10 Sync selection ...................11 Mode selection (TTL or Manual) ..............11 Operation in TTL mode (Automatic mode) ..........11... - Page 6 www.profoto.com...
-
Page 7: System Description & Compatible Products
• The Air Remote TTL-N operates with Profoto flash units and generators, with built-in Profoto Air functionality according to the table below. • The Air Remote TTL-N can also be used to trigger the Air Remote and Air Sync Profoto Air transceivers. -
Page 8: General Notes On Wireless Operation With Profoto Air
• Keep cables and cords away from antennas. • Maintain line of sight between the Air Remote TTL-N and the flash unit whenever possible • When hiding the flash from view, try to not hide it behind or against metal or water-filled objects as this will affect the radio range. -
Page 9: Nomenclature

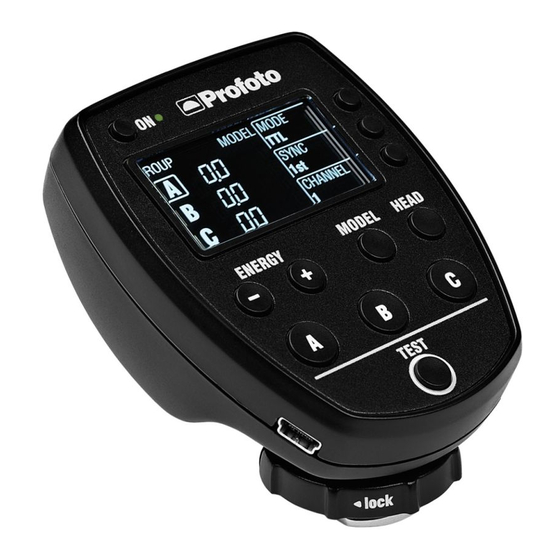

2. Display 7. Channel button 3. Energy buttons 8. Head button 4. Group buttons (A, B, C) 9. Model button 5. Test button 10. Battery compartment 12. USB port (for service only) 11. Hot shoe connector 13. Locking mechanism www.profoto.com... -
Page 10: Operating Instructions
3. Select the same group (A, B or C) for all lamp heads to be controlled simultaneously. Air remote TTL-N 4. Slide the hot shoe connector on the Air Remote TTL-N into the hot shoe of the camera. Turn the Locking mechanism [13] to secure the device. -
Page 11: Sync Selection
‘--’) • When changing from MAN mode to TTL mode, the previous TTL relation value is displayed. Example of remote Display[2] settings in TTL mode operation www.profoto.com... - Page 12 • If a Profoto AirTTL compatible flash is set to group D, E or F, it will be synchronized but not be part of the TTL calculation. The flash outputs of these flashes are added to the total flash exposure and can for instance be used to manually set the exposure on the background.
-
Page 13: Operation In Man Mode
• In MAN mode, the Air Remote TTL-N can also be used as to remote control Profoto flashes that support Air but not AirTTL (further info on compatible products are found in section System Description and Compatible Products) •... -
Page 14: Test Sync
Check firmware version Press and hold the MODE button [6] for 10 seconds when turning the remote on. Change firmware version Create a free user account at profoto.com/myprofoto to register your product and download the latest upgrades. www.profoto.com... -
Page 15: Technical Data
TTL with group control for all Profoto flashes labelled AirTTL. Measurements Dimensions 75x60x35 mm / 2.9x2.3x1.4 in Weight 75 g / 2.6 oz including batteries All figures are to be considered as nominal and Profoto reserves the right make changes without further notice. www.profoto.com... -
Page 16: Regulatory Information
SRD (Short Range Devices). This band may be used in most parts of the world. Regional restrictions may apply. Note: Refer to national regulations for the region where the Air Remote TTL-N shall be operated and make sure that they are followed. Unites States and Canada f.C.C. -
Page 17: Japan
2.4 GHz Wide Band Low Power Data Communication 上記のとおり、電波法第 38条の 24第 1項の規定に基づく認証を行ったも のであることを証する。 This is to certify that the above-mentioned certification by type has been granted in accordance with the provisions of Article 38-24, Paragraph 1 of the Radio Law. R 202WW08109202 R 202WW08109203 R 202WW08109204 www.profoto.com... - Page 18 www.profoto.com...
- Page 19 www.profoto.com...
- Page 20 Profoto AB P.O. Box 1264 SE-172 65 Sundbyberg, SWEDEN Visiting address: Landsvägen 57, Sundbyberg Phone +46 8 447 53 00 info@profoto.com www.profoto.com...
