Summary of Contents for Profoto ProHead

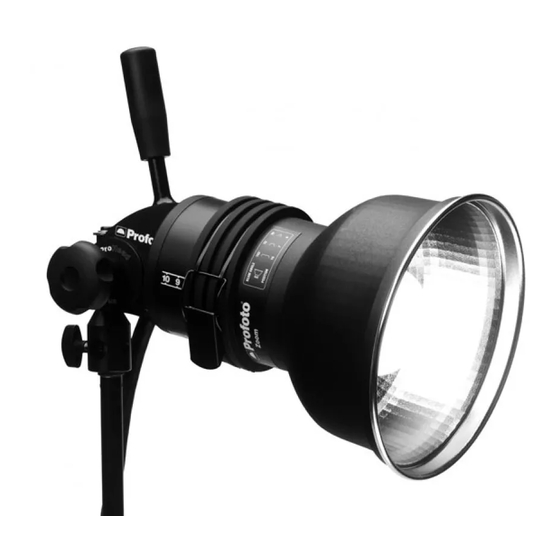

- Page 1 ProHead User´s Guide...
- Page 2 www.profoto.com...
- Page 3 Shaping Tools offers photographers unlimited possibilities for creating and adjusting their own light. Every single reflector and accessory creates its special light and the unique Profoto focusing system offers you the possibility to create your own light with only a few different reflectors. Enjoy your Profoto product!
-
Page 4: Safety Instructions
Equipment contains electrical and electronic components that could be harmful to the environment. Equipment may be returned to Profoto distributors free of charge for recycling according to WEEE. Follow local legal requirements for separate disposal of waste, for instance WEEE directive for electrical and electronic equipment on the European market, when product life has ended! www.profoto.com... -
Page 5: Table Of Contents
Brief Instructions ......................6 Mounting Reflector ....................6 Connecting Lamp Head .....................7 Changing Fuse ......................7 Changing Glass Cover ....................7 Changing Modeling Lamp ..................8 Changing Flash Tube ....................8 Color Control and Consistency...................8 Compatibility......................9 Warranty ........................9 Accessories ......................9 Technical Data ......................10 Declaration of Conformity ..................11 www.profoto.com... -
Page 6: Brief Instructions
Mounting Reflector The unique rubber collar fastening system provides secure and rapid handling and allows the reflectors to fit all of the Profoto flashes, HMI’s and Tungsten heads. The rubber collar allows the reflectors to be handled when hot. • Unlock the clasp. -
Page 7: Connecting Lamp Head
Lock glass cover safety pin and fit under pin to release the screw to lock 2: Push the safety pin in 2: Pull the safety pin out 1: Fit the safety pins in existing holes located on the glass cover www.profoto.com... -
Page 8: Changing Modeling Lamp
The flash tube is made of high quality color stable hard glass making it suitable for demanding digital and analog photography with a high level of f-stop and color stability from flash to flash. In order to change the color temperature of the the head, Profoto offer a range of different coated glass covers. -
Page 9: Compatibility
The ProHead can be used with Pro and D4 generators. Warranty All Profoto generators and heads are individually tested before they leave the company and guaranteed for a period of two years with the exception of flash tubes, glass covers, modeling lamps and cables. -
Page 10: Technical Data
Flash Tube: Hard Glass, max 600 J Glass Cover Frosted UV-coated Fan: Yes, thermostatically controlled 2 speed fan Cable Length: Fuse: T 6.3 AH/250 V Measurements Diameter: 10 cm (4”) Size: 27 cm depth (10.5”) Weight: 2.2 kg (4.8 lbs) www.profoto.com... -
Page 11: Declaration Of Conformity
PO Box 2023 SE-128 21 Skarpnäck, Sweden hereby declare that the following product Profoto ProHead to which this declaration relates is in conformity with the appropriate standards IEC 60598-2-9/17 and IEC 60065, following the provisions of, EMC Directive 89/336/EEC, and Low Voltage Directive 73/23/EEC. - Page 12 Profoto AB P.O. Box 2023 SE-128 21 Skarpnäck SWEDEN Phone +46 8 447 53 00 info@profoto.com www.profoto.com...
