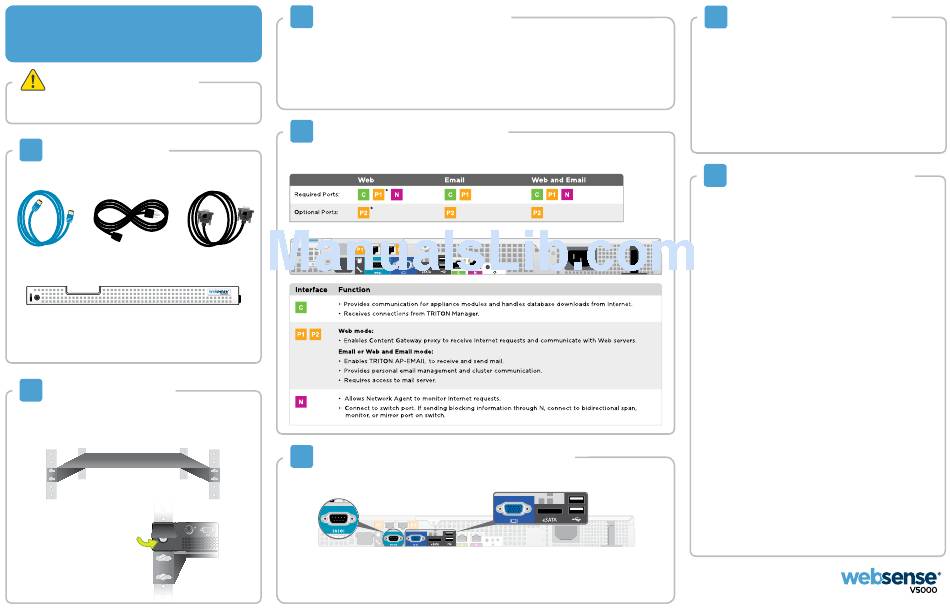

Quick Start Guide
Websense V5000
Web & Email Protection Appliance

Before you begin...

Plan your deployment before setting up the appliance. See the
back of this guide for a deployment overview and reference sheet.
1 Verify Contents
Ethernet Cables (4) Power Cable
Bezel (faceplate)
Contact Websense Technical Support if any items are missing.
2

Rack Installation

To rack the V5000 appliance, use a rack tray (not included).
1. Obtain a rack tray and install into desired server rack.
2. Place appliance on tray
and secure to server rack
using mounting screws on
front of appliance.
3 Determine Security Mode
The appliance supports the following security modes:
• Web (Web Filter & Security or TRITON AP-WEB)
• Email (TRITON AP-EMAIL)
• Web and Email (Web Filter & Security plus TRITON AP-EMAIL)
Based on your subscription and deployment plan, determine the appropriate security mode for this
appliance.
4 Connect Network Cables
Connect the appliance interfaces required by the security mode for this appliance. Cat 5E cables (or
better) are required. Do not use crossover network cables.
*Not used for Not used for Web Filter & Security.
Serial Cable
Connect Input Device & Power On
5
Serial Port Connection
Connect a computer to serial port using null
modem cable (provided). Or, connect a terminal
server to serial port using a straight-through
cable (not provided). Serial port settings are:
9600 baud, 8 bits, no parity.
OR
Keyboard/Monitor Connection
Connect a monitor and keyboard to appliance,
either directly or through a KVM (keyboard/
video/mouse) switch.
6 Power On Appliance
Power on the appliance and check the following indicators:
Front
• Power button is illuminated.
Rear
• LEDs for connected interfaces (NICs) are green.
• System status indicator (LED left of power supplies) is solid
blue.
Contact Websense Technical Support if any indicators are not
illuminated correctly.

Configuration Overview

7
Please refer to the V-Series Appliance Getting Started guide for
more details.
Initial Configuration
Appliance Command Line (firstboot script)
• Configure security mode.
• Configure Appliance Controller interface (C).
Appliance Manager
• Access the Appliance Manager via the Logon Portal.
• Configure NTP servers/system time.
• Configure applicable network interfaces.
Web Mode
TRITON Manager
• Enter subscription key, update Master Database, configure
Network Agent, and configure policies in TRITON Manager.
• Requires Windows Server 2008 R2 or Windows Server 2012.
Content Gateway Manager (proxy)
• If your site uses the Websense proxy, configure user
authentication and select protocols.
Email Mode
TRITON Manager
• Complete configuration wizard, enter subscription key, and
configure policies in the Email module. Configure email DLP
policies in the Data module.
• Requires Windows Server 2008 R2 or Windows Server 2012.
Web and Email Mode
Perform steps above for Web mode followed by Email mode,
skipping the Content Gateway Manager configuration.
QSG210-100_RevF
