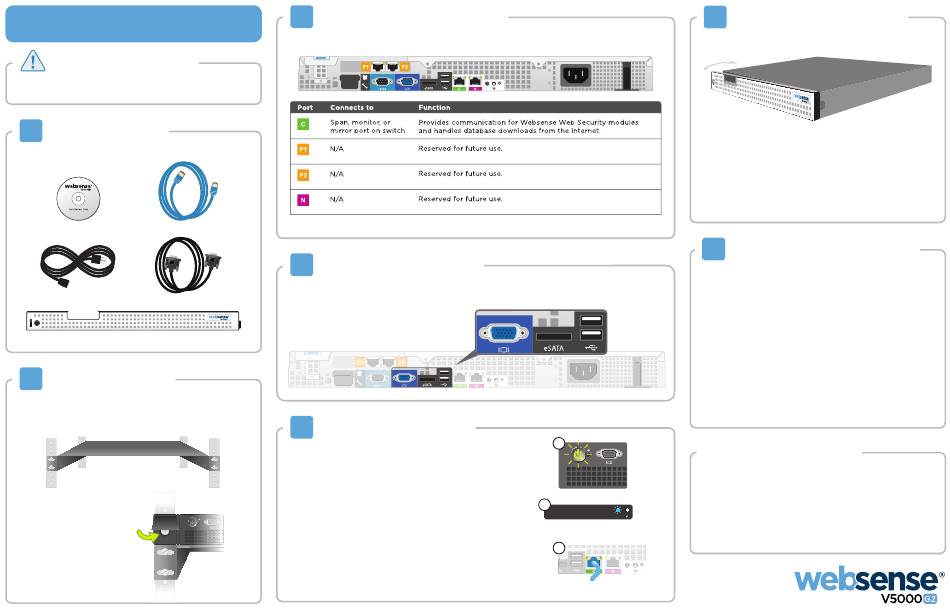

websense V5000 G2 Quick Start Manual

Quick Start Guide
V5000 G2 - Websense Web Security
Before you begin...
Plan your deployment before setting up the appliance. See the
back of this guide for a deployment overview and reference sheet.
Verify Contents
1
Accessory Kit
Installation Disk Ethernet Cables (4)
Power Cable Null Modem Cable
Bezel (faceplate)
Rack Installation
2
Use a rack tray to rack the appliance (not included).
1. Obtain a rack tray and install into desired server rack.
2. Place appliance on tray
and secure to server rack
using mounting screws on
front of appliance.
Connect Network Cables
3
Connect the appliance C port to span port on switch or router on your network.
Refer to the Web Security v7.5 Installation Guide at www.websense.com/library for more details.
Connect Input Device
4
Connect a keyboard, monitor and mouse to appliance, either directly or through a KVM (keyboard/
video/mouse) switch.
5 Power On Appliance
1. Plug power cable into an appropriate power source.
2. Press power button on front of appliance (a).
3. Check the following indicators:
a) Power button is illuminated (front).
b) System status indicator is solid blue (front).
c) LEDs for connected interface (C) are illuminated (back).
Contact Websense Technical Support if any indicators are not illuminated correctly.
6
1. Insert right tab into slot on appliance.
2. Press left tab in firmly until bezel snaps into place.
3. Appliance can be locked using keys included with bezel.
(optional)
7
Before installing Websense software on the appliance, please
ensure the following:
• Database management system is installed and running on
another server.
• Integration product (if applicable) is installed.
• IP address for C interface has been assigned. Use static IP
addressing.
Refer to the Web Security v7.5 Installation Guide at
www.websense.com/library for more details.
a
Support & Resources
Websense Technical Library
www.websense.com/library
b
Online Support
www.websense.com/support
c
QSGWINPH2-100 Rev. A
Install Bezel (optional)
Pre-Installation Checklist
