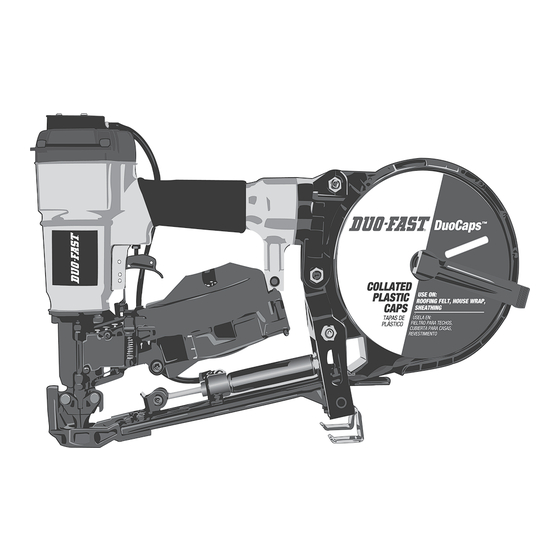

- Page 1 Part No. 511300 MODEL DF175-CN Cap Nailer IMPORTANT! OPERATING MANUAL AND DO NOT DESTROY SCHEMATIC It is the customer’s responsibility to have all operators and service personnel read and understand this manual. © 2012, Illinois Tool Works Inc. 219378-1 01/12...
-
Page 2: Table Of Contents
90-DAY LIMITED WARRANTY Duo-Fast's sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific A 90-day warranty will apply to all parts, except time period. -
Page 3: Tool Specification And Features
TOOL SPECIFICATIONS AND FEATURES DIMENSIONS (LENGTH X HEIGHT X WIDTH) ………………………… 17 3/4” X 11 3/8” X 5” (450.8mm x 288.9mm x 127mm) WEIGHT (WITHOUT FASTENERS) ……………………………………………8.24 lbs (3.74 kgs) AIR INLET ………………………………………………………………………….1/4” NPT COMPRESSED AIR: MAXIMUM PERMISSIBLE OPERATING PRESSURE ……………….……120 psi (8.3 bar) RECOMMENDED OPERATING PRESSURE RANGE ……………….…….90-110 psi (4.8 –... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT: - Failure to observe basic safety rules or precautions are the cause of most accidents related to the operation and maintenance of the nailer. NOTE: - Accidents can be avoided by recognizing a potentially hazardous situation before it occurs and by observing the safety procedures. -
Page 5: Preparations
PREPARATION PROTECT YOUR EYES AND EARS. WEAR ANSI Z87.1 SAFETY GLASSES WITH SIDE SHIELDS. WEAR HEARING PROTECTION. EMPLOYERS AND USERS ARE RESPONSIBLE FOR ENSURING THE USER OR ANYONE NEAR THE TOOL WEARS THIS SAFETY PROTECTION. This roofer is supplier with a Milton 727 type air coupler. If another type coupler is required, use a free flow quick connect fitting on the tool. -
Page 6: Loading And Operation
LOADING AND OPERATION LOADING THE NAIL COIL: Disconnect the tool from air supply. WARNING Check to make sure there is no nail in the outlet site before loading a new nail coil. Pull down door latch and open the door. Swing magazine cover open. The tool must be set for the length of nail to be used. -
Page 7: Maintenance
1. Disconnect the air supply from the tool. 2. Remove tar buildup with kerosene, #2 fuel oil or diesel fuel. Do not allow solvent to get into the cylinder or damage may occur. Dry off tool completely DUO-FAST before use. -
Page 8: Troubleshooting
TROUBLESHOOTING WARNING STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS OCCUR. SERIOUS PERSONAL INJURY COULD OCCUR. ANY REPAIRS OR REPLACEMENTS MUST BE DONE BY A QUALIFIED PERSON OR AN AUTHORIZED SERVICE CENTER ONLY. SYMPTOM POSSIBLE PROBLEMS SERVICE Air leaking at trigger valve O-rings in trigger valve O-rings must be replaced &... - Page 9 TROUBLESHOOTING WARNING STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS OCCUR. SERIOUS PERSONAL INJURY COULD OCCUR. ANY REPAIRS OR REPLACEMENTS MUST BE DONE BY A QUALIFIED PERSON OR AN AUTHORIZED SERVICE CENTER ONLY. SYMPTOM POSSIBLE PROBLEMS SERVICE Tool runs slow or has loss of Tool not lubricated Tool needs to be lubricated.
-
Page 12: Accessories
2400 plastic collated caps per carton, Part No. 670020 240 plastic collated caps per spool. An Illinois Tool Works Company 955 National Parkway Schaumburg, Illinois 60173-5172 www.duo-fastconstruction ® Duo-Fast is a registered trademarks of ITW. All other trademarks are property of their respective owners.
