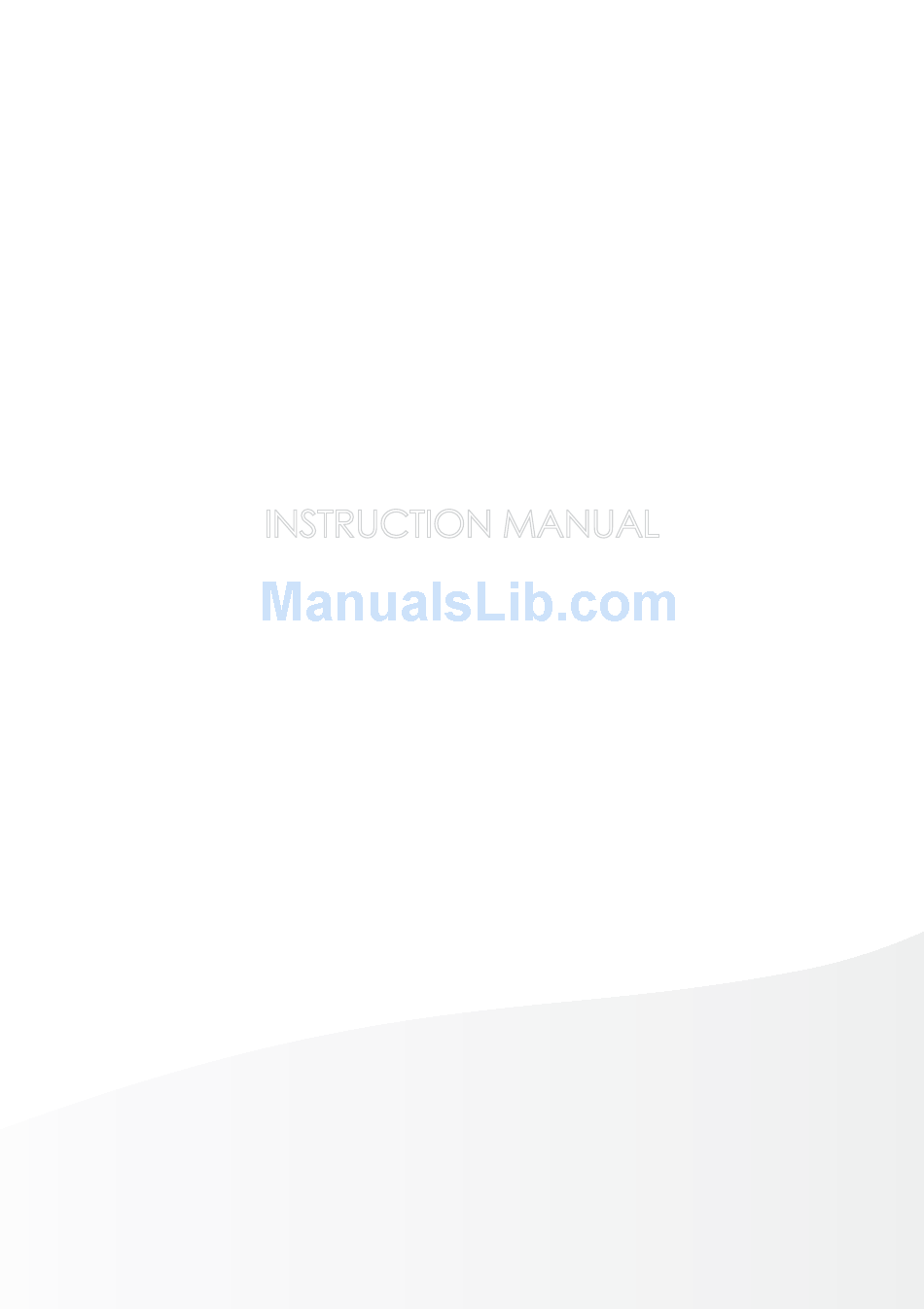

- Page 1 INSTRUCTION MANUAL Tel. +49 (0) 4154 / 80 83 - 0 Fax. +49 (0) 4154 / 80 83 - 20 E-mail info@camos-multimedia.com Internet www.camos-multimedia.com Address CAMOS Europe GmbH Carl-Zeiss-Str. 3 D-22946 Trittau...
- Page 2 INSTRUCTION MANUAL Thank you for purchasing this product. For proper usages and application, Please read this instruction manual thoroughly. CM-116FS / CM-116F SHUTTER CAMERA FOR VEHICLE PRINTED IN KOREA * Design and Specifications are subject to change without notice. ver. 1.0...
-
Page 3: Table Of Contents
CONTENTS SHUTTER CAMERA FOR VEHICLE SAFEGUARD INSTRUCTIONS ............3 FEATURE .....................4 BOX CONTENTS ..................4 INSTALLATION ..................5 CONNECTION ..................6 CLEANING and GENERAL MAINTENANCE ....... 7 SPECIFICATIONS ..................8... -
Page 4: Safeguard Instructions
SAFEGUARD INSTRUCTIONS SHUTTER CAMERA FOR VEHICLE Please pay attention to the warnings and cautions listed in order to prevent the poten- tial risks. “WARNING” and “CAUTION” symbols are divided according to the different level of risk. May cause bodily harm or even death if user ignores WARNING cautions in the safety rules. -
Page 5: Feature
• Aluminum die-casting housing Open Shutter Shutter is opening while • Night vision using the CdS sensor. putting into rear gear. • Automatic shutter open(close) while moving reverse(forward). * only CM-116FS BOX CONTENTS SHUTTER CAMERA FOR VEHICLE CM-116FS CM-116F Sun Visor Camera Bracket... -
Page 6: Installation
* When you install the sun visor, please be careful not to touch with shutter moving area. CM-116FS Camera Connector 1. CAMERA B+ (DC +12V) 2. HEATING B+ (DC +12V) 3. STAND BY 4. VIDEO OUT 5. AUDIO OUT(OPTION) 6. N.C 7. GND INSTALLATION EXAMPLE * The installation is same way with CM-116FS/CM-116F. -
Page 7: Connection
CONNECTION SHUTTER CAMERA FOR VEHICLE CM-116FS CM-116F Monitor (Option) Extension Cable Before making the connection, disconnect the ground terminal of the car battery to avoid short circuiting. Before inserting plug, should check pin specification and the plug should insert to jack or connector firmly. If forced insert wrong direction, it may cause malfunction. -
Page 8: Cleaning And General Maintenance
CLEANING and GENERAL MAINTENANCE SHUTTER CAMERA FOR VEHICLE • If your vehicle has been parked in direct sun light resulting in a considerable rise in temperature inside the vehicle, allow the unit to cool off before operating. • Clean the unit with a slightly damp soft cloth. Use a mild household detergent. Never use strong solvents such as thinner or benzine as they might damage the finish of the unit.
