Page 1: Dear Customer

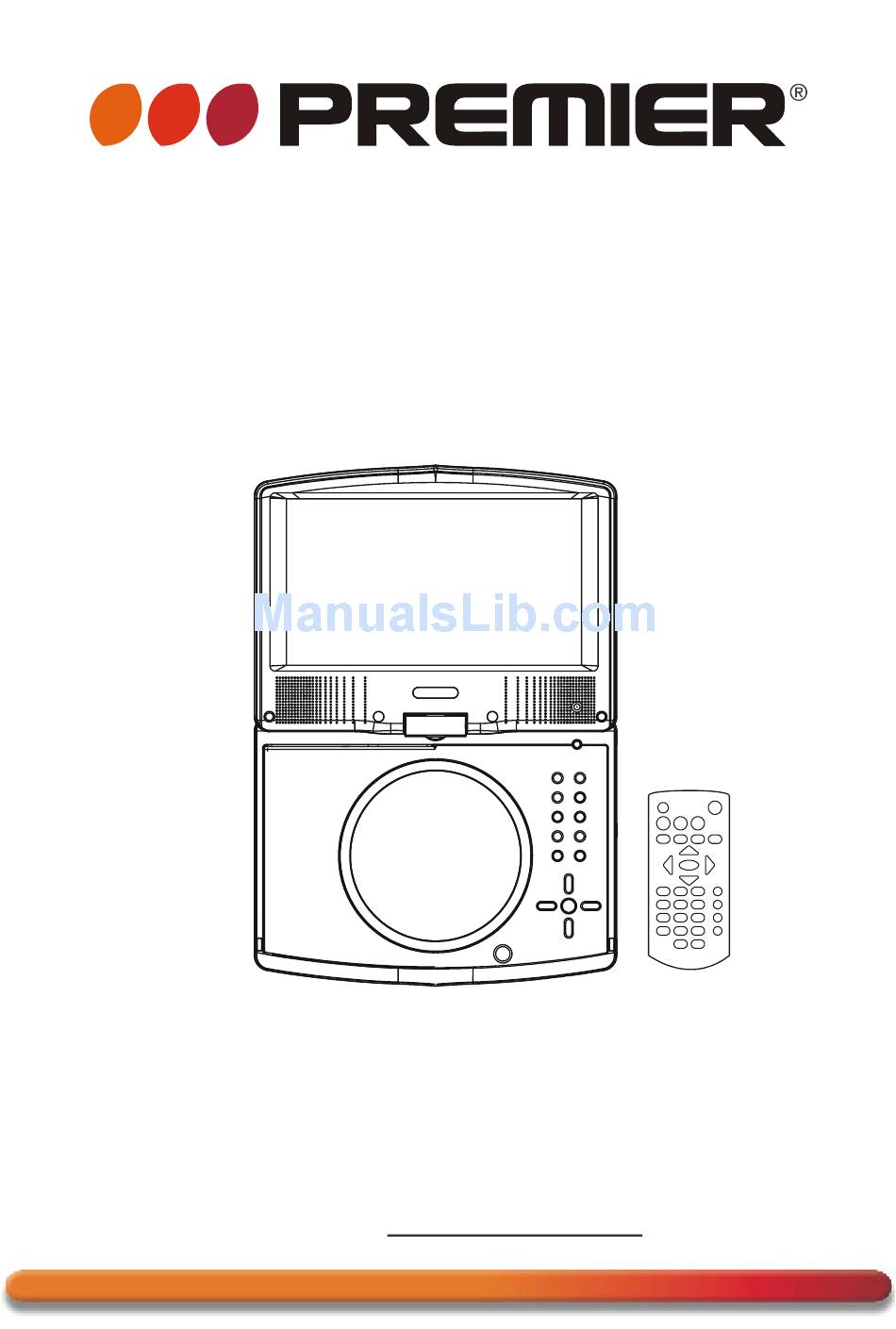

INSTRUCTION MANUAL PORTABLE LCD DVD PLAYER & TV RECEIVER SX-3521TVD DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to info@premiermundo.com... - Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Colombia:...
-
Page 3: Overview Of The Dvd Player
OVERVIEW OF THE DVD PLAYER: 1. ANT JACK 2. TFT SCREEN 3. DVD/TV & SETUP KEY 4. DISPLAY KEY 5. TITLE KEY 6. SKIP&SEARCH FORWARD KEY 7. PLAY/PAUSE KEY 8. REPEAT KEY 9. CH+/NAVIGATION UP KEY 10. VOLUME +/NAVIGATION RIGHT KEY 11. -
Page 4: Charge The Built-In Battery
CONNECT DVD PLAYER TO OTHER CONNECTING TO A CAR ADAPTOR APPLIANCES The car power adaptor is designed for use with vehicles that have a 12V, negative ground electrical system. It is recommended you connect the player to a WARNING: multi-system TV. Disconnect the car power adaptor when not in use. - Page 5 OPERATIONS SEARCH FOR PREFERRED SCENE 1. Press SEARCH button during play and highlight the PREPARATION item to be played (Title, Chapter, or Chapter time) by Power on the TV set and select video input mode. navigation buttons. Power on the audio system which is connected to the 2.
- Page 6 Press AUDIO button during DVD disc play, the sound 4. Press NEXT and PREV button to select track track language changes with the current sound track directly. number shown on the TV screen. 5. Press REPEAT button change play mode. NOTE: When no soundtrack languages are recorded, pressing this button will not work.
-
Page 7: Initial Settings
Press VOLUME+/- button on the remote or long Fine tune press these two buttons on the unit to increase or Scroll to FINE TUNE option and press navigation right reduce the volume respectively. button to enter the submenu. Highlight FINE TUNE option and press navigation left/right button to tune SEARCH A PROGRAM forward or backward respectively. -
Page 8: Disc Handling Precautions
1.4.2 Input user's password "0000" to unlock it, in this 4. SPEAKER SETUP case, select the input box again to change the SPEAKER SETUP password by inputting another new four numeric DOWNMIX numbers and then press OK button to confirm. When the password is changed, you are needed to input the new one to unlock the system. -
Page 9: Troubleshooting
TROUBLESHOOTING If your DVD player does not seem to be functioning properly, check the items below before you contact an authorized service center Symptom Check Power does not turn on or Make sure the AC adapter is securely plugged into an AC outlet. suddenly turns off. -
Page 10: Specifications
SPECIFICATIONS: Power source: AC 100-240V ~ 50/60Hz DC: 12V 1A Power consumption: 12W TV Output (DVD): NTSC/PAL/AUTO Operating Temperature Range: +5°C to +35°C Continuous playing time: 120 minutes Dimensions: 242 (L)X180(W)X42.6(H) mm Operating Humidity Range: 10 % to 75 % Disc supportable: 1. -
Page 13: Schematic Diagram
SCHEMATIC DIAGRAM MODEL NO.: SX-3521TVD KEYS SCH IN4148 IN4148 CN16 D10A IN4148 NOTE: subject to change without notice for improvement!
