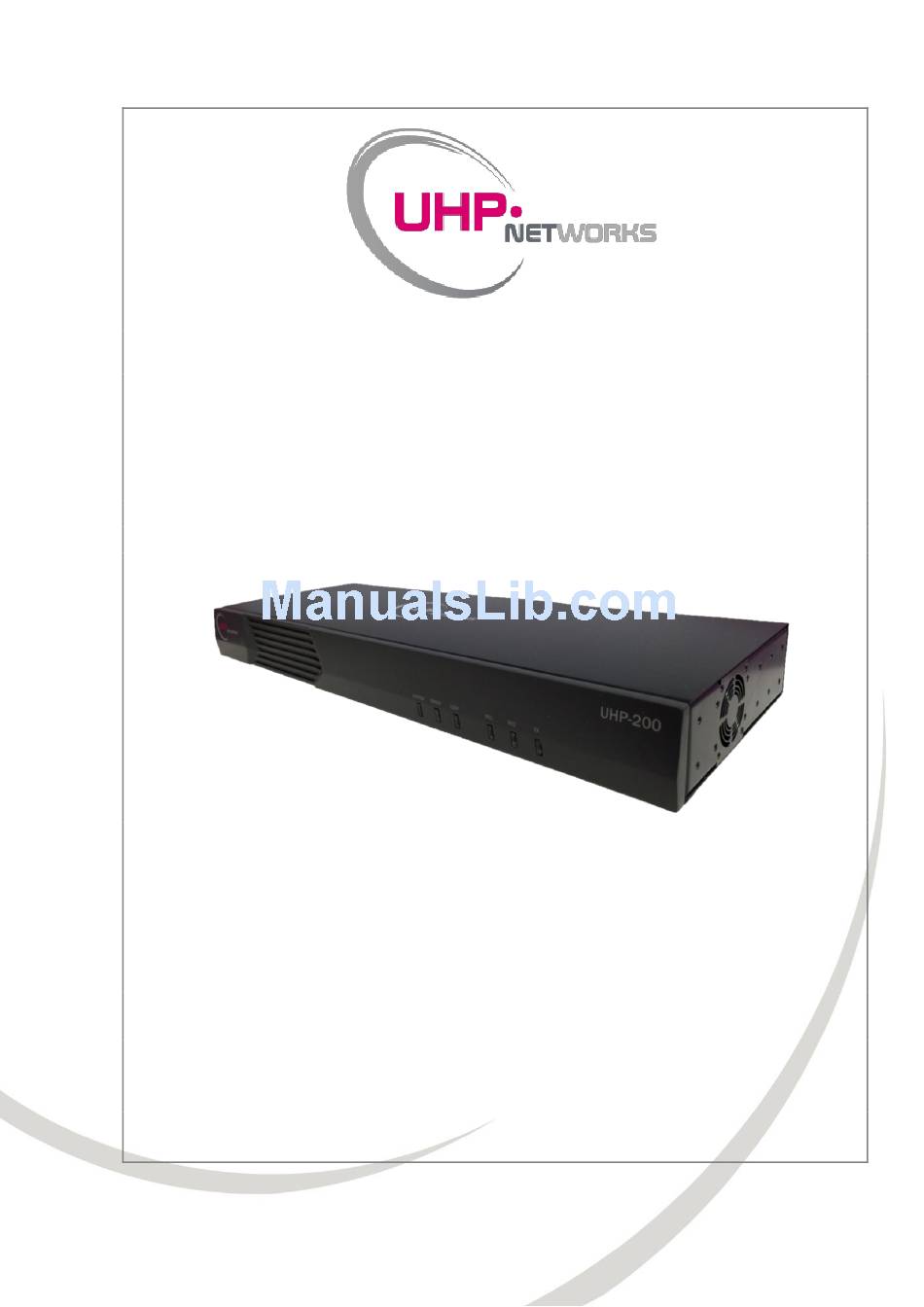

- Page 1 HIGH-THROUGHPUT SATELLITE ROUTER UHP-200 GENERAL DESCRIPTION AND INSTALLATION GUIDE DOCUMENT RELEASE 3.2 [UHP.2R32.EN] JULY 2015...
-
Page 2: Table Of Contents
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 CONTENT Acronyms and Abbreviations ......................4 Introduction ............................. 6 Required level of qualification ........................6 Document version and applicability ......................6 Copyright ..............................6 General description ......................7 System overview ........................7 Measurement equipment, tools and accessories .............. - Page 3 Figure 4 UHP-200 router structure ....................... 8 Figure 5 UHP-200 router – rear view ......................9 Figure 6 Satellite Router UHP-200 series - front view ................10 Figure 7 Standard interconnection of the router ..................13 Figure 8 Router resetting to default procedure ..................17 TABLES Table 1 Operational limits ...........................
-
Page 4: Acronyms And Abbreviations
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 ACRONYMS AND ABBREVIATIONS 16APSK 16 Amplitude and Phase-shift keying or Asymmetric Phase-shift keying, (APSK), is a digital modulation scheme that conveys data by changing, or modulating, both the amplitude and the phase of a reference signal (the carrier wave). - Page 5 UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 SCPC Single Channel Per Carrier Short frames DVB-S2 frames 16200 bits long (including FEC). Advisable to use at lower symbol rates. Produce less delay than Long frames. SNMP Simple Network Management Protocol...
-
Page 6: Introduction
Router functional capabilities and its operating modes are determined by the installed software and its configuration. This manual is applicable to all UHP-200 series satellite routers with software release 3.2 or higher. When ordering this document, please specify its ID: [UHP.2R32.EN]. -
Page 7: General Description
Technical characteristics are given in the appropriate product specification sheets. Measurement equipment, tools and accessories Standard computer (notebook) is required to configure and monitor status of UHP-200 satellite router. The computer must be equipped with a LAN interface and USB, and also have the following software installed: ... -
Page 8: Packaging And Content
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 Figure 3 Standard labeling of UHP-200 satellite router Packaging and content Standard UHP-200 package includes: 1. Satellite router UHP-200 2. AC Power Cord It is recommended to keep original packaging throughout the entire lifetime. Conservation, storage and transportation of the terminal must be in original packaging. -
Page 9: Overview
Figure 5 UHP-200 router – rear view 1.5.3 Power connector (AC IN) UHP-200 router is powered with 110-240 VAC. Built-in power supply can be used to power the RF equipment (BUC, LNB) with maximum power consumption according to the specifications of the router. 1.5.4 Expansion slots (AUX1 and AUX2) These slots are purposed for interfaces of the optional expansion modules. -
Page 10: Reset Button
IF switch inputs (RX1 and RX2) UHP-200 router can be connected to one or two LNB via respective inputs of the built-in IF switch. These inputs are software-switchable to any of the demodulators (See Figure 4). Each of the interfaces can power attached LNB with 13 or 18 VDC. -
Page 11: Lock" Indicator
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 3 - Router cannot calculate time shift with respect to the HUB. The reason can be in the non-availability of reception or a large number of CRC errors during reception. -
Page 12: Operations
2.2.2 Installation UHP-200 Router is designed for installation into a standard 19 inch telecommunication rack. Movable rack mounts allow installing the router its indicators’ or interfaces’ panel facing forward. When installing the router in a rack or on a flat surface, make sure you have enough free space for ventilation of the router. -
Page 13: Powering On
(Hyperterminal) or third-party terminal programs. With the fist connection of UHP-200 Router to PC the operating system may request the device driver. UHP.INF driver can be downloaded from our web site. The system will request confirmation for using a non-certified driver. -
Page 14: Remote Telnet Access
Remote access to the configuration can be performed using Telnet protocol. The connection can be provided to any of IP addresses that are set on the router. UHP-200 supports simultaneously only one Telnet session. In order the hang session does not block access to the device forever in case on non-activity (pressing ENTER key), the router auto-terminates the session after a certain time of inactivity. -
Page 15: Operations
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 3. OPERATIONS UHP Routers belong to the class of unattended equipment and during its operation does not require any special staff exploitation. When operated as SCPC station or TDM/TDMA terminal the satellite router does not require any changes of settings or it is configured remotely from the Hub. -
Page 16: Troubleshooting
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 4. TROUBLESHOOTING Table 2 Troubleshooting guide Symptoms Possible reasons Actions Router doesn’t work AC power beyond the limits of allowed Check AC power voltage values Power cord is broken Check AC cable. -
Page 17: Resetting To Default Settings
Successful reset will be evidenced by fast and simultaneously flashing indictors ERROR and SYSTEM. By default, UHP-200 router is provided with IP-address 192.168.222.222 with mask 255.255.255.248 (/29). Respectively, the computer should be provided with an address, e.g. 192.168.222.217 with the same mask. -
Page 18: Storage, Transportation And Disposal
UHP-200 HIGH-THROUGHPUT SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 5. STORAGE, TRANSPORTATION AND DISPOSAL Storage and transportation of satellite routers must be performed in original packaging. Equipment can be stored and transported in pallet with height not more than 10 devices.
