Amrel Rocky DF7A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rocky DF7A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amrel Rocky DF7A

Summary of Contents for Amrel Rocky DF7A

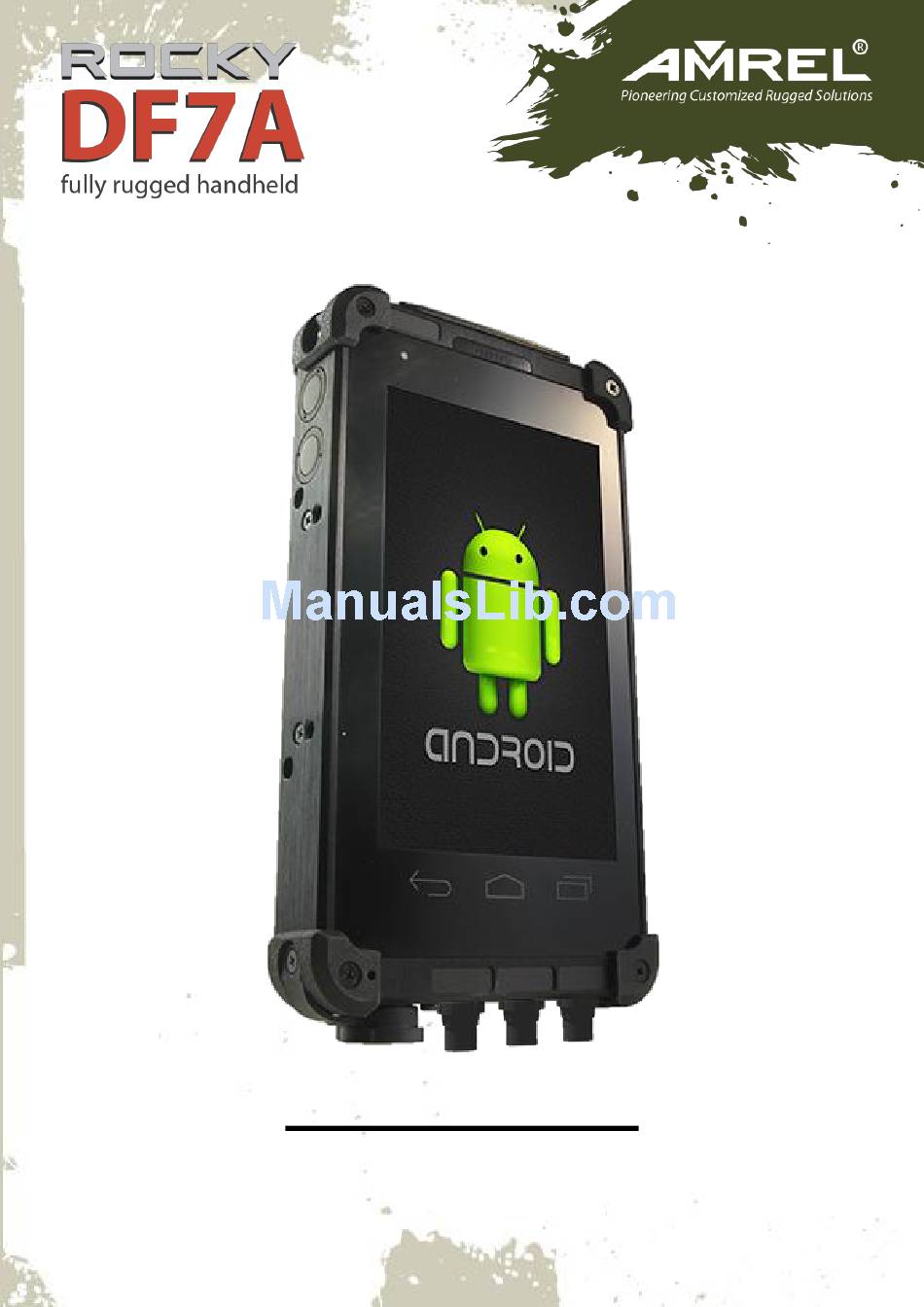

  • Page 1 USER’S GUIDE...
  • Page 2 No part of this publication may be reproduced and modified without the written permission of AMREL AMREL reserves the right to make changes in the products or the product specifications without any prior notice. Customers are advised to contact AMREL for updated product information.
  • Page 3 Revision History: Revision Date Changes Author 1.0.0 2015/04/10 Official release Pablo Tseng...
  • Page 4 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Regulatory Information/ Disclaimers Installation and use of this computer must be in strict accordance with the instructions included in the user documentation provided with the product.
  • Page 5 FCC (Federal Communications Commission) Statement This equipment has been tested and found to comply with the limits for a Class-B digital device pursuant part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and radiates radio frequency energy.
  • Page 6 Products with the CE Marking comply with both the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EN55022 CISPR 22 Radio Frequency Interference EN55024 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN61000-3-2, EN61000-3-3,...
  • Page 7 CE Declaration of Conformity It is confirmed to comply with the requirements set out in the Council Directive on the approximation of the laws of the member states relating to Electromagnetic Compatibility Directive (2004/108/EC), Low-voltage Directive (2006/95/EC) and the procedures given in R&TTE Directive (99/5/EC).
  • Page 8 Power Conservation This handheld computer consumes less power compared to conventional consumer computers. The power consumption may be further reduced by properly configuring the Power Management Setup. It is recommended that the power saving features be enabled even when not running on battery power.
  • Page 9 Battery Precautions  Only use batteries designed for this handheld computer. Using incompatible battery types may cause explosion, leakage or damage to the computer.  Do not remove the battery from the computer while the computer is powered on.  Do not continuously use a battery that has been dropped, or that appears damaged (e.g.
  • Page 10 Environmental Information, Material Safety & Recycling All materials used in the manufacturing of this equipment are recyclable or environmentally friendly. Please recycle the packing materials in accordance with local regulations at the end of the product's service life. Notice:  The equipment may contain insignificant amount of hazardous substances for health and environment below control level.

  • Page 11: Table Of Contents

    TABLE OF CONTENTS Chapter 1 - Getting Started ................1 Unpacking ......................... 1 Workplace ......................... 2 Ruggedness ......................2 Appearance Overview .................... 3 Ready for Use ......................7 Chapter 2 - Operating Information ..............10 Start Using Your Handheld Computer ..............10 Suspend Mode .......................
  • Page 12 Memory ........................29 External Storage ....................29 OS ..........................29 Audio ........................29 Display........................30 Wireless Communication Devices ..............30 Sensors ........................30 Camera (Option) ....................30 I/O Ports ........................31 Battery ........................32 Double Capacity Battery (Option) ............... 32 AC Adapter ......................

  • Page 13: Chapter 1 - Getting Started

    Chapter 1 - Getting Started Unpacking The following list of items are packaged and shipped along with your handheld computer. If any of these items is missing or damaged, please notify your dealer immediately.  Handheld Computer Unit  20W AC Adapter ...

  • Page 14: Workplace

    Workplace A clean and moisture-free environment is preferred. Make room for air circulation. Remember to avoid areas from:  Sudden or extreme changes in temperature.  Extreme heat.  Strong electromagnetic fields (Near television set, motor rotation area, etc.).  Dust or high humidity.

  • Page 15: Appearance Overview

    Appearance Overview Before starting to use your handheld computer, it is advisable that you take a quick glance to familiarize yourself with the locations of your device’s external buttons and components. Note, the following illustrations show optional devices which may not on your device. Front View Feature Functional Description...
  • Page 16 Rear View Feature Functional Description Remark Battery Lock Slot-type head for locking the battery. Speaker Mono Speaker for audio output. Battery Pack Provides power source to your device. Optional Camera 5MP camera Chapter 1 - 4...
  • Page 17 Right View Feature Functional Description Remark Turn the device ON/OFF. Power Button Put the device to suspend mode. Micro SD Card Slot Removable mass storage media. Optional Expansion For expanding functions POGO Connector Left View Feature Functional Description Remark Volume up control Increases device audio volume.
  • Page 18 Top View Feature Functional Description Remark Optional Embedded Embedded ANT. for GPS ANT. SMA ANT. function: Refer to Optional SMA ANT. WiFi & Bluetooth, GPS Appendix SMA ANT. function: Refer to Optional SMA ANT. WiFi & Bluetooth, GPS Appendix Bottom View L5-2 L5-1 L5-3 Feature...

  • Page 19: Ready For Use

    Ready for Use After taking a quick look at your handheld computer, the following illustrations will help you setup your handheld computer ready for operations. Mounting the Battery Mount the battery into the battery bay. Turn clockwise and lock firmly with a slot screwdriver or a coin.
  • Page 20 Connecting the AC Adapter Plug the AC cord into the AC Insert the end of LEMO connector to adapter, and firmly lock the connect the DC-in connector. clockwise. Plug the AC power plug into an electrical outlet. Turning ON the Power Make sure the battery is securely mounted, or connect all power cords properly.
  • Page 21 Turning Off the Power To power off your handheld computer, follow the steps blow: 1. If the display is off, please press the Power Button to turn on the backlight, and then unlock the screen. 2. Press and hold the Power Button for about 2 seconds. 3.

  • Page 22: Chapter 2 - Operating Information

    Chapter 2 - Operating Information Start Using Your Handheld Computer Turn on your handheld computer by pressing the power button few seconds until the display lights up. After turning on the power of your handheld computer, the device will boot up with Android system.

  • Page 23: Suspend Mode

    Suspend Mode In order to conserve your device battery life, you may place your device into Suspend mode. By pressing the power button, the display of your handheld computer will be turned off, and the device will enter into Suspend mode. Suspend mode is an ideal state for your device when you want to conserve more battery life, do not need to stop wireless connectivity, and keep your device ready to resume back to work on a moment’s notice.

  • Page 24: Using The Touchscreen

    Using the Touchscreen Basic Operation Your handheld computer is equipped with a highly sensitive touch screen, allowing you to navigate on the touch screen easily without using other external devices. A list of operating tips is provided below to help you operate the touch screen more effectively. Desired Operation Action Tap the screen with your finger when you want to select...

  • Page 25: Brightness Adjustment

    Brightness Adjustment Brightness can be adjusted to suit the environment by dragging the bar in the Display setting, as the image shows below. DF7A provides an alternative way to adjust the brightness by pressing volume up/down buttons. Please follow the steps below to set up: Settings =>Tap Additional device control =>...

  • Page 26: Usb Mode Switch

    USB Mode Switch USB mode switch is convenient for users to switch between client and host mode. Client mode allows users to transfer data or files from your DFTA to other host devices, such as a notebook computer. Please follow the steps to set up: Settings =>Tap Additional device control =>...

  • Page 27: Using Function Keys

    Using Function Keys DF7A equips three function keys: Back, Home, and Menu. The following table shows basic features of using function keys. Function Keys Functions Back Press to return to the previous screen. - Press to return to the Home screen. Home - Press and hold to show applications recently used.

  • Page 28: Audio Features

    Audio Features Your handheld computer is equipped with an audio codec for sound playback. To adjust the volume of your device, please use the volume up/down button located at the upper left side of your device (as the image below). By pressing the volume up/down button, you can increase/lower the volume, or adjust to silent mode and vibration mode to suit your preference.

  • Page 29: Manage Micro Sd Card

    Manage Micro SD Card Your handheld computer has a Micro SD card slot for storage expansion. The Micro SD card slot supports card capacity up to 32 GB with SDHC format. The card slots are located at the bottom-right side of your handheld computer. To remove the card slot cover, please use a slot head screwdriver or a suitable sized coin.
  • Page 30 Inserting Micro SD Card The design of micro SD card slots is foolproof; if you encounter difficulty in inserting the cards, please turn/reverse the cards and try again. When insert micro SD card, the connector pins of your cards should be facing up. Note: Insert Micro SD card into the bottom card slot with pins facing up.

  • Page 31: Usb Connection

    USB Connection You can connect your handheld computer to a computer by the optional LEMO to USB cable to transfer files. Before using the function, please follow the steps below to set up the connection. Connect the device to a computer with LEMO to USB cable. Go to Settings =>Tap Additional device control =>...
  • Page 32 Then, tap Settings => Storage => Press Menu key => Tap USB computer connection => Tap Mount SD card Now, the setting is completed and your handheld computer is connected to the other computer, and you can transfer files and data between the two devices. Note: ...

  • Page 33: Wi-Fi

    Wi-Fi The Wi-Fi module of your handheld computer supports IEEE 802.11 b/g/n. To activate your Wi-Fi function, please follow the steps below: Tap Settings Slide the bar to the ON position to turn on Wi-Fi connection. Tap Wi-Fi to select a network for connection You may be required to insert passwords to set up and enable the connection, especially if you select a secured network.

  • Page 34: Bluetooth

    Bluetooth Bluetooth® v3.0 + EDR system with A2DP is supported on your handheld computer. This module is backward compatible with v1.1/1.2/2.0/2.1 devices and provides your handheld computer with a short-range wireless communication protocol to connect with other compatible devices. To activate your Bluetooth functions, please follow the instructions below.
  • Page 35 Tap the name of the available device that you would like to pair with. Then, the pairing will be processing. Note: Please make sure that the device you would like to pair with is discoverable. Otherwise, it will not show on the available device list. DF7A will automatically pair with the device.

  • Page 36: Gps (Option)

    GPS (Option) GPS is an optional module for your handheld computer. The GPS module allows you to locate your position through satellites. To make sure that it can function normally, please use the device outside with a clear view of the sky and do not cover the antenna. To activate your GPS functions, please tap the GPS APP, and the device will search the satellite automatically.

  • Page 37: Chapter 3- Managing Power

    Chapter 3- Managing Power AC Adapter The AC adapter performs two functions:  It powers the computer from an external AC source.  It charges the computer battery. The adapter automatically detects the AC line voltage (100V or 240V) and adjusts accordingly.

  • Page 38: Battery

    Battery The power source of your handheld computer will automatically switch to battery when external power source (such as AC adapter or optional vehicle adapter) is disconnected. The following section provides battery related information, operation, as well as power-saving tips. Battery Low When the battery is nearly exhausted, “Battery Low”...
  • Page 39 Battery Gauge For checking battery status, please do the following step: Tap Settings => Tap About phone => Tap Status Then, the remaining battery capacity will be shown. Battery Power Saving Tips You may extend the battery life of your handheld computer by: ...
  • Page 40 Replacing Battery When the battery is nearly exhausted, you can continue operating your device by either connecting to an external power source (such as AC adapter), or replacing the battery. Turn counterclockwise with a slot screwdriver or a coin to unlock the Battery Lock, and then replace the battery.

  • Page 41: Chapter 4 - Specifications

    Specifications Chapter 4- Specifications Processor  Qualcomm MSM8225Q™  Quad-Core Cortex™-A5 1.2GHz Memory  RAM: 1GB LPDDR2 RAM  ROM: 8 GB (eMMC on board) External Storage Micro SD Card (support SDHC up to 32G) Android 4.1.2 (Jelly Bean) Audio ...

  • Page 42: Display

    Specifications Display  5” WVGA (480 x 800 pixel) with LED B/L  Capacitive Multi Touch +Sunlight Readable screen  Anti-glare screen treatments  Optical bonding  Brightness (min.~typ.): 400~450 nits Wireless Communication Devices Wi-Fi:  IEEE 802.11b/g/n (2.4GHz) Bluetooth: ...

  • Page 43: I/O Ports

    Specifications I/O Ports Right:  Micro SD card slot  Optional Expansion POGO 20 pin (L3) Left: Optional Cradle POGO 20 pin (L4) Top:  Optional SMA ANT for WLAN/BT, GPS. Bottom:  DC-in/USB client: - Standard: Sealed DC-in 5V with LEMO Conn. (8 pin) - Optional: Sealed DC-in 10~32V (BVA) with LEMO Conn.

  • Page 44: Battery

    Specifications Battery  3.7V 3520 mAh Lithium-ion Battery (BD61A)  Weight: 0.22 lbs (100g)  4.5 hours Battery life (Depends on your usage and device settings) Double Capacity Battery (Option)  3.7V, 7040mAh Li-ion battery pack (BD61B)  Weight: 0.39 lbs (175g) ...

  • Page 45: Dimensions & Weight

    Specifications Dimensions & Weight  6.65” (W) x 3.54” (D) x 0.91” (H) [ 169 mm (W) x 90 mm (D) x 23 mm (H) (w/o bumpers)]  6.73” (W) x 3.70” (D) x 1.04” (H) [171 mm (W) x 94 mm (D) x 26.5 mm (H) (with bumpers)] ...

  • Page 46: Certification

    Specifications Certification    WEEE  REACH  IP66  MIL-STD-810G  MIL-STD-461F Accessories  20W AC Adapter  Optional 1M USB Cable (LEMO 8p to USB)  Optional Carry Bag (Same as DB6)  Optional 1M VGA Test Cable (Fischer 9p to DB15) ...

  • Page 47: Multi-Charger Mcdf (Option)

    Specifications Multi-Charger MCDF (Option) INDICATORS AND PORTS  Indicators:  Power Indicator: Show green light when attaching 90W AC Adapter.  Charger Indicator: Show orange light when charging battery, or OFF for fully charged.  Battery Charging Ports x 4 ...

  • Page 48: Chapter 5 - Maintenance And Service

    Maintenance and Service Chapter 5 - Maintenance and Service Cleaning ALWAYS turn off the power, unplug the power cord and remove the battery before cleaning. The exterior of the device and display may be wiped with a clean, soft, and lint-free cloth. If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to the cloth and wipe clean.
  • Page 49 Maintenance and Service Networking Problems I cannot connect to a wireless Wi-Fi network  Make sure that: Wi-Fi Your handheld computer is within the range of a wireless access point.. Check if the Wi-Fi has been turned on. I cannot connect to another device with Bluetooth network ...

  • Page 50: Rma Service

    10. Unless prior arrangements have been made, the customer is responsible for all shipping costs. Unauthorized use of the company’s shipping accounts is not permitted. If you require support please contact AMREL Service department: Phone: 800.882.6735 E-mail: cdinfo@amrel.com...

  • Page 51: Appendix

    Appendix Appendix: Options for the expansion of your handheld computer DC-in/USB L5-3 L5-2 L5-1 client Location Feature Functional Description □Standard sealed DC-in 5V with LEMO DC-in/USB client □Optional sealed DC-in 10~32V (BVA) with LEMO Conn. Select one: □WiFi & BT □GPS Select one: □WiFi &...
  • Page 52 Appendix Note:  L3, L4, and L5 are trade-off with each other.  If Fischer Connector is chosen for L5-1, .it will be a little extended than the other two Fischer Connectors, as the following illustration shows. Appendix - 40...
