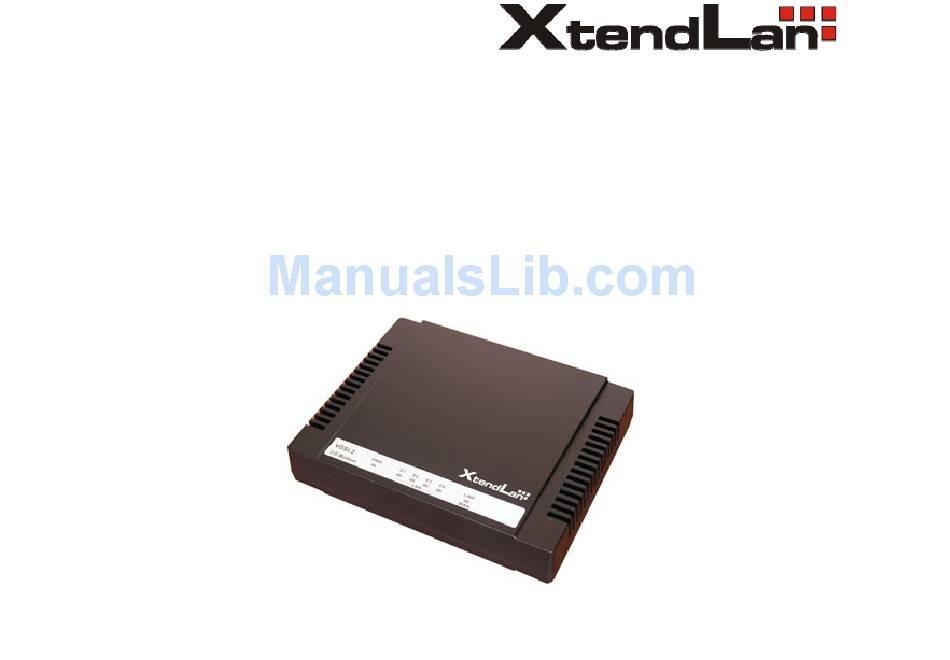

  • Page 1     XL-VCF104M (CO) XL-VCF104S (CPE) VDSL2 CO/CPE modem User’s Guide...
  • Page 2 VDSL2 Point to Point Solution VDSL2 (Very-High-Bit-Rate Digital Subscriber Line 2, ITU-T G.993.2 Standard) is an access technology that exploits the existing infrastructure of copper wires that were originally deployed for POTS services. It can be deployed from central offices, from fibre-fed cabinets located near the customer premises, or within buildings. ITU-T G.993.2 VDSL2 is the newest and most advanced standard of broadband wireline communications.

  • Page 3: Table Of Contents

    CONTENT 1.Unpacking Information ................... 3 Check List......................3 2. Installation ..................... 4 Hardware Installation..................4 2.1 Pre-installation Requirements..............4 General Rules ....................5 Connecting the VDSL2 CO&CPE Modem ............ 5 3. Hardware Description ..................7 4. Setup the VDSL2 CO&CPE Modem by Web Browser ........ 10 4.1 Login.

  • Page 4: Unpacking Information

    1.Unpacking Information Check List Carefully unpack the package and check its contents against the checklist. Package Contents ● VDSL2 Modem (VDSL2 CO Modem / VDSL2 CPE Modem) ● Two plastic feet ● User’s Manual ● AC to DC 12V Power Adapter ●...

  • Page 5: Installation

    2. Installation Hardware Installation This chapter describes how to install the VDSL2 CO&CPE MODEM and establishes network connections. You may install the VDSL2 CO&CPE MODEM on any level surface (e.g, a table or shelf). However, please take note of the following minimum site requirements before you begin. 2.1 Pre-installation Requirements Before you start actual hardware installation, make sure you can provide the right operating environment, including power requirements, sufficient physical space, and proximity to other network devices that are to be connected.

  • Page 6: General Rules

    General Rules Before making any connections to the VDSL2 CO&CPE MODEM, note the following rules: ●Ethernet Port (RJ-45) All network connections to the Modem Ethernet port must be made using Category 5 UTP for 100Mbps; Category 3,4 UTP for 10Mbps No more than 100 meters of cabling may be use between the MUX or HUB and an end node.
  • Page 7 Figure 2.1 VDSL2 Point to Point application...

  • Page 8: Hardware Description

    3. Hardware Description This section describes the important parts of the VDSL2 CO&CPE MODEM. It features the front indicators and rear connectors. Front Indicators The following figure shows the front panel. Figure Chapter 3.1 VDSL2 CO Modem Figure Chapter 3.2 VDSL2 CPE Modem...
  • Page 9 Six LED indicators. At a quick glance of the front panel, it will be easy to tell if the Modem has power, signal from its Ethernet RJ-45 port or there is phone line signal RJ-11port Front Indicators LED Description and Operation The Modem has three LED indicators.
  • Page 10 Rear Panel The following figure shows the rear connectors Figure Chapter 3.3 Rear Connectors VDSL2 CO&CPE MODEM Rear Connectors Connectors Description Type For connecting to the VDSL Modem Using Line RJ-11 a RJ-11 cable For connecting to the telephone or FaxISDN Phone RJ-11 Modem...

  • Page 11: Setup The Vdsl2 Co&Cpe Modem By Web Browser

    4. Setup the VDSL2 CO&CPE MODEM by Web Browser The VDSL2 CO&CPE MODEM provides a built-in web browser. You can use Web browser to configure the VDSL2 CO&CPE Modem. First please input the IP address 192.168.16.249 (VDSL2 CO Modem) and 192.168.16.250 (VDSL2 CPE Modem) in the Web page.

  • Page 12: Select The Menu Level

    4.2 Select the Menu Level There is a simple Setup Wizard for end users and an Advanced Setup. The focus of this manual is on the Advanced Setup. Figure 4.2 Select the Advanced Setup in the Entry Screen...

  • Page 13: Select Advanced Setup

    4.3 Select Advanced Setup Select the Advanced Setup. The menu below will be used frequently. As an exercise and an example now the IP address will be set. Figure 4.3 Advanced Setup Attention: The settings in the following Chapter 4.4 only need to be performed in order to change LAN settings.

  • Page 14: Select Lan

    4.4 Select LAN The menus below will not be used very often. But when connecting the VDSL2 CO&CPE Modem to a new control PC, you may want to go through the following steps in order to make the IP address previously set by ifconfig in the terminal console permanent.
  • Page 15 4.4.1 Select LAN Settings and set the IP Address The form below is used to change the IP address of the LAN port “adm0” in the VDSL2 CO&CPE Modem. The proposed IP address either is the default address of adm0 or it is the address changed by an ifconfig command via the shell running in the terminal.
  • Page 16 Now the IP address either may be changed or left as it is. If it has been changed in the form or after it has been changed using the ifconfig command via the shell running in the terminal, it needs to be stored permanently Hit the “APPLY”...

  • Page 17: Building A Vdsl2 System

    5. Building a VDSL2 System First a quick overview over a complete setup: Figure 5 VDSL2 Application 5.1 Connect the VDSL2 CO Modem and the VDSL2 CPE Modem to the Line The objective for VDSL2 is passing data over a twisted pair cable at high speed. In the setup, either such a cable connects the VDSL2 CO Modem and the VDSL2 CPE Modem, or a line simulator or any other hardware representation of a cable network, with or without noise injection and crosstalk simulations.

  • Page 18: Connect The Cpe And The Co To Lan Devices

    5.2 Connect the VDSL2 CO Modem and the VDSL2 CPE Modem to LAN Devices In the setup, usually a Ethernet tester serves as representation of the LAN side as well as representation of the WAN side. 5.3 Run Demos and Tests The Ethernet tester may send data downstream as well as upstream.

  • Page 19: Operating The Vdsl2 System

    6. Operating the VDSL2 System After the VDSL2 system has been set up, you may want to configure the settings which are related to VDSL2. Configuration of operation modes, test modes (loop back) and the display of status information is supported by an graphical user interface.
  • Page 20 6.1.1 Channel Configuration Figure 6.1.1 Channel Configuration Menu...
  • Page 21 Channel Configuration Settings Setting Description Channel Number To which bearer channel number shall the settings apply? Channel 0 Direction To which direction shall the settings apply? Upstream Downstream Min Data Rate Minimum Payload Data Rate Max Data Rate Maximum Payload Data Rate Max Int Delay Maximum Interleaver Delay...
  • Page 22 6.1.2 Line Configuration Figure 6.1.2 Line Configuration Menu for SNR Margin Selection Line Configuration Setting Description Direction Select the target direction. Target SNRM Set the required SNR Margin *10 (50=5dB)
  • Page 23 6.1.3 Profile Configuration Figure 6.1.3 Profile Configuration...
  • Page 24 6.1.4 Band Configuration Figure 6.1.4 Band Configuration...
  • Page 25 6.1.5 Loop Back Figure 6.1.5 xTC Loop Back Activation/Deactivation Menu Loop Back Setting Description Channel To which bearer channel number shall the settings apply? Number Channel 0 Activate or deactivate loopback within the Transmission Convergence layer.
  • Page 26 6.1.6 Line Activation Figure 6.1.6 Activation and Deactivation of the Line Line Activation/Deactivation Setting Description Line Activate or deactivate the line. (Select the activity and the press the APPLY button.)

  • Page 27: Status Displays

    6.2 Status Displays 6.2.1 Line Status Figure 6.2.1 Line Status Display: Actual SNR The following status messages may occur: not_initialized, exception, idle request, idle, silent request, silent, handshake, full init, discovery, training, analysis, exchange, showtime no sync, showtime tc sync, fast retrain, lowpower l2, loopdiagnostic, loopdiagnostic complete, resync, test, lowpower l3, unknown...
  • Page 28 6.2.2 Channel Status Figure 6.2.2 Channel Status Display: Data Rate, Delay, Error Counters and Impulse Noise Protection...
  • Page 29 6.2.3 XTC Status Figure 6.2.3 Display of xTC Status...
  • Page 30 6.2.4 Version Info Figure 6.2.4 Display of Version Data...
  • Page 31 6.2.5 Graphs Figure 6.2.5 Display of SNR per Carrier...

  • Page 32: Configuration Interface Of The Router

    7. Configuration Interface of the Router This section explains how to configure the router section of the VDSL2 CO&CPE Modem using its web-based configuration. The parts of the circuitry as well as the router configuration menu has been ported from that of the reference kit to the VDSL2 CO&CPE Modem reference board.

  • Page 33: Configuration Menu For Administrators

    In the USER LOGIN window: 1. Enter the password in the Password text box. For an Admin user, the default password is “admin”. 2. Click LOGIN to begin the configuration or click CANCEL in the USER LOGIN window to cancel this log on operation. 7.2 Configuration Menu for Administrators This chapter is only for Administrators.
  • Page 34 7.2.2 Advanced Setup Click on the Advanced Setup link in the homepage in case you want to configure a wider range of settings. The following configuration options are displayed in the left navigation bar, as shown in Figure 7.2.2: • System •...
  • Page 35 7.2.3 System The System link can be viewed in the left navigation bar. The following are the options available under System, as shown in Figure 7.2.3 • Host Name • System Time • Administrator Settings • Firmware Upgrade • System Status •...
  • Page 36 7.2.3.1 Host Name To configure System settings, the user has to enter host and domain name. Click on the Host Name config link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.1: Figure 7.2.3.1 Host Name Configuration The screen contains the following details: Fields in Hostname Field...
  • Page 37 Click CANCEL to exit from this page without saving the changes. Click APPLY to save the information that has been entered. 7.2.3.2 System Time To configure the system time zone, click on the System Time link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.2:...
  • Page 38 7.2.3.3 Administrator Settings To add a user or change user’s password, click on the Administrator Settings link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.3. Figure 7.2.3.3 Administrator Settings Configuration While adding a user, each user must be assigned a separate port. Hence the number of users that can be added to the system depends on the number of ports available on the VDSL2 CO&CPE Modem.
  • Page 39 The screen contains the following details: Fields in User Setting Field Description Current This is the password associated with the administrator. This is enabled only for the Password user Administrator login. Password This is the password of the login administrator. Re-type This is the password verification.
  • Page 40 7.2.3.4 Device Mode The ADM5120 network processor used in the reference system is able to act as either a switch or a router. Clicking on Device Mode on the left navigation bar allows the user to change the mode of operation, as shown in the following figure. Figure 7.2.3.4 Device Mode...
  • Page 41 7.2.3.5 Firmware Upgrade To update the system firmware, click on the Firmware Upgrade link in the left navigation bar. A screen is displayed as shown in Figure 34. NEW Image JTC Figure 7.2.3.5 Firmware Update The screen contains the following detail: Click Browse to select a specified file name to change the File Name.
  • Page 42 7.2.3.6 System Status To view system status, click on the System Status link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.6. NEW IMAGE JTC Figure 7.2.3.6 Status Window This screen displays the status of certain important system parameters. It also offers control over the current DHCP lease for the IP Address.
  • Page 43 7.2.3.7 System Log To view the system logs, click on the System log link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.7. Figure 7.2.3.7 Security Logs The screen contains the following details: Fields in Security Logs Field Description Log File...
  • Page 44 Click Clear to clear this page. Click Refresh to retrieve system event and update the log file. 7.2.3.8 Reset To restart the system, click on the Reset link in the left navigation bar. A screen is displayed as shown in Figure 7.2.3.8.
  • Page 45 7.2.4 WAN The WAN settings can be viewed in the left navigation bar. The following are the options available under WAN, as shown Figure 7.2.4: • Dynamic IP • Static IP • PPPoE • DNS Figure 7.2.4 WAN Setting in Left Navigator Bar...
  • Page 46 7.2.4.1 Dynamic IP To configure the WAN interface to dynamically obtain an IP Address, click on the Dynamic IP link in the left navigation bar. A screen is displayed as shown in Figure 7.2.4.1. Figure 7.2.4.1 Dynamic IP Configuration The screen contains the following details: Click APPLY to save the information that has been entered.
  • Page 47 7.2.4.2 Static IP To configure the WAN interface to use a Static IP Address, click on the Static IP link in the left navigation bar. A screen is displayed as shown in Figure 7.2.4.2. Figure 7.2.4.2 Static IP Configuration The screen contains the following details: Fields in Static IP Field Description...
  • Page 48 Fields in Static IP (cont’d) Field Description ISP Gateway Address Enter the Gateway address of the VDSL2 CO&CPE MODEM. Does ISP provide more IP Provides more IP Addresses of the WAN Address interface. Select the check box to enable this option.
  • Page 49 7.2.4.3 PPPoE To configure the WAN interface to use PPPoE, click on the PPPoE link in the left navigation bar. A screen is displayed as shown in Figure 7.2.4.3. Figure 7.2.4.3 PPPoE Configuration The screen contains the following details: Fields in PPPoE Field Description User Name...
  • Page 50 Fields in PPPoE (cont’d) Field Description Enter the maximum connection units of the PPPoE. The MTU range is 1400 to 1492 bytes. By default, it is 1492. Maximum Idle Time This is the period of time required to keep the connection alive if no packets are transmitted.
  • Page 51 7.2.4.4 DNS To configure the DNS address, click on the DNS link in the left navigation bar. A screen is displayed as shown in Figure 7.2.4.4: Figure 7.2.4.4 DNS Configuration The screen contains the following details: Fields in DNS Field Description Domain Name Server(DNS) Address Enter the DNS address of the primary DNS server.
  • Page 52 7.2.5 LAN The LAN Setting can be viewed in the left navigation bar. The following are the options available under LAN, as shown in Figure 7.2.5: • LAN Settings • DHCP Client List Figure 7.2.5 LAN in Left Navigator Bar...
  • Page 53 7.2.5.1 LAN Settings Attention: For the VDSL2 CO&CPE MODEM it is recommended to select a simple IP setting suitable to controlled lab environments. Set a static IP address and don’t use DHCP. The required steps are explained in Chapter 4.4 Page To configure the LAN interface, click on the LAN Settings link in the left navigation bar.
  • Page 54 Click CANCEL to exit from this page without saving the changes. Click APPLY to save the information that has been entered. 7.2.5.2 DHCP Client List To view the DHCP client list, click on the DHCP Client List link in the left navigation bar. A screen is displayed to list all DHCP client connection with IP Address and MAC Address as shown in Figure 7.2.5.2.
  • Page 55 7.2.6 NAT The NAT Settings can be viewed in the left navigation bar. The following are the options available under NAT, as shown in Figure 7.2.6: • Virtual Server • Port Mapping • DMZ Figure 7.2.6 NAT in Left Navigator Bar...
  • Page 56 7.2.6.1 Virtual Server To configure virtual server, click on the Virtual Server link in the left navigation bar. A screen is displayed as shown in Figure 7.2.6.1: Figure 7.2.6.1 Virtual Server Configuration The screen contains the following details: Fields in Virtual Server Field Description Private IP...
  • Page 57 7.2.6.2 Port Mapping To configure Port Mapping, click on the Port Mapping link in the left navigation bar. A screen is displayed as shown in Figure 7.2.6.2: Figure 7.2.6.2 Port Mapping Configuration The screen contains the following details: Fields in Port Mapping Field Description Server IP...
  • Page 58 7.2.6.3 DMZ To configure the DMZ, click on the DMZ link in the left navigation bar. A screen is displayed as shown in Figure 7.2.6.3: Figure 7.2.6.3 DMZ Configuration The screen contains the following details: Fields in DMZ Field Description Enable Enable or disable the DMZ setting of VDSL2 CO&CPE MODEM.
  • Page 59 7.2.7 Firewall The Firewall Settings can be viewed in the left navigation bar. The following are the options available under Firewall, as shown in Figure 7.2.7: • Firewall Options • MAC Control • Client Filter Figure 7.2.7 Firewall in Left Navigator Bar...
  • Page 60 7.2.7.1 Firewall Options To enable the firewall options, click on the Firewall Options link in the left navigation bar. A screen is displayed as shown Figure 7.2.7.1: Figure 7.2.7.1 Firewall Options Configuration The screen contains the following details: Fields in Firewall Options Field Description Enable Hacker Attack Protect Select the check box to log and drop all the hacker attack events.
  • Page 61 7.2.7.2 MAC Control To configure MAC Control, click on the MAC Control link in the left navigation bar. A screen is displayed as shown in Figure 7.2.7.2: Figure 7.2.7.2 MAC Control Configuration The screen contains the following details: Fields in MAC Control Field Description MAC Address Control...
  • Page 62 7.2.7.3 Client Filter To enable Client Filter, click on the Client Filter link in the left navigation bar. A screen is displayed as shown in Figure 7.2.7.3. Figure 7.2.7.3 Client Filter Configuration...
  • Page 63 The screen contains the following details: Fields in Client Filter Field Description Enable Client Filter Enable or disable the Client Filter feature of VDSL2 CO&CPE MODEM. Select the check box to enable this option. Enter the filter IP Address range of the local machines under VDSL2 CO&CPE MODEM.
  • Page 64 7.2.8 Route Settings The Route Settings can be viewed in the left navigation bar. The following are the options available under Route, as shown in Figure 7.2.8: • Static Routing • Routing Table List Figure 7.2.8 Route in Left Navigator Bar...
  • Page 65 7.2.8.1 Static Routing To setup Static Routing, click on the Static Routing link in the left navigation bar. A screen is displayed as shown in Figure 7.2.8.1. Figure 7.2.8.1 Static Routing Configuration The screen contains the following details: Fields in Static Routing Field Description Destination LAN IP...
  • Page 66 7.2.8.2 Routing Table List To view the Routing entry table list of VDSL2 CO&CPE MODEM, click on the Routing Table by link in the left navigation bar. A screen is displayed as shown in Figure 7.2.8.2. Figure 7.2.8.2 Routing Table List The screen contains the following details: Click Refresh to update currently routing list of the VDSL2 CO&CPE MODEM.
  • Page 67 7.2.9 UPnP Settings The UPnP Settings can be viewed in the left navigation bar. The following are the options available under UPnP, as shown in Figure 7.2.8: Settings Figure 7.2.9 UPnP in Left Navigator Bar...
  • Page 68 7.2.9.1 Settings To enable or disable the UPnP Settings, click on the Settings link in the left navigation bar. A screen is displayed as shown in Figure 7.2.9.1. Figure 7.2.9.1 UPnP Configuration The screen contains the following details: Table 22 Fields in UPnP Settings Field Description Enable UpnP...

  • Page 69: Appendix A: Product Features & Specification

    Appendix A: Product Features & Specification Product NameVDSL2 CO&CPE MODEM( VDSL2 Modem) Features: Compliant with IEEE 802.3 & 802.3u Ethernet Standards Compliant with ETSI, ITU, ANSI VDSL standards Provides 4 x 10/100M auto-sensing RJ-45 Ethernet ports Supports Bandwidth setup with 100 Mbps VDSL RJ-11 ports POTS / ISDN Splitter port RJ-11 x 1 (Splitter on board) Supports auto speed for VDSL2 port Supports Web management(HTTP)
  • Page 70 Half duplex : Back pressure Driver capable : 100 M: 0.3 Km Indication LED x 6: Power LED x1 Ethernet Link/Active LED x 4 VDSL Link LED x 1 Console port : RS-232C/115200bps Dimension: L x W x H = 184mm x 146mm x 40mm(7.2" x 5.74" x 1.57") Operating temperature: 0°C to 50°C (32 to 122F) Operating humidity: 10% to 90% (non-condensing) Storage temperature: -20 to 65°C (-4F to 149F)

  • Page 71: Appendix Bcompliance And Safety Information

    Appendix BCompliance and Safety Information FCC Radio Frequency Interference Statement This equipment has been tested to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 72 The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service. This equipment may not be used on coin service provided by the telephone company.
  • Page 73 CE Mark Warning This is a CE class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Warranty The original owner of this package will be free from defects in material and workmanship for one-year parts after purchase.
