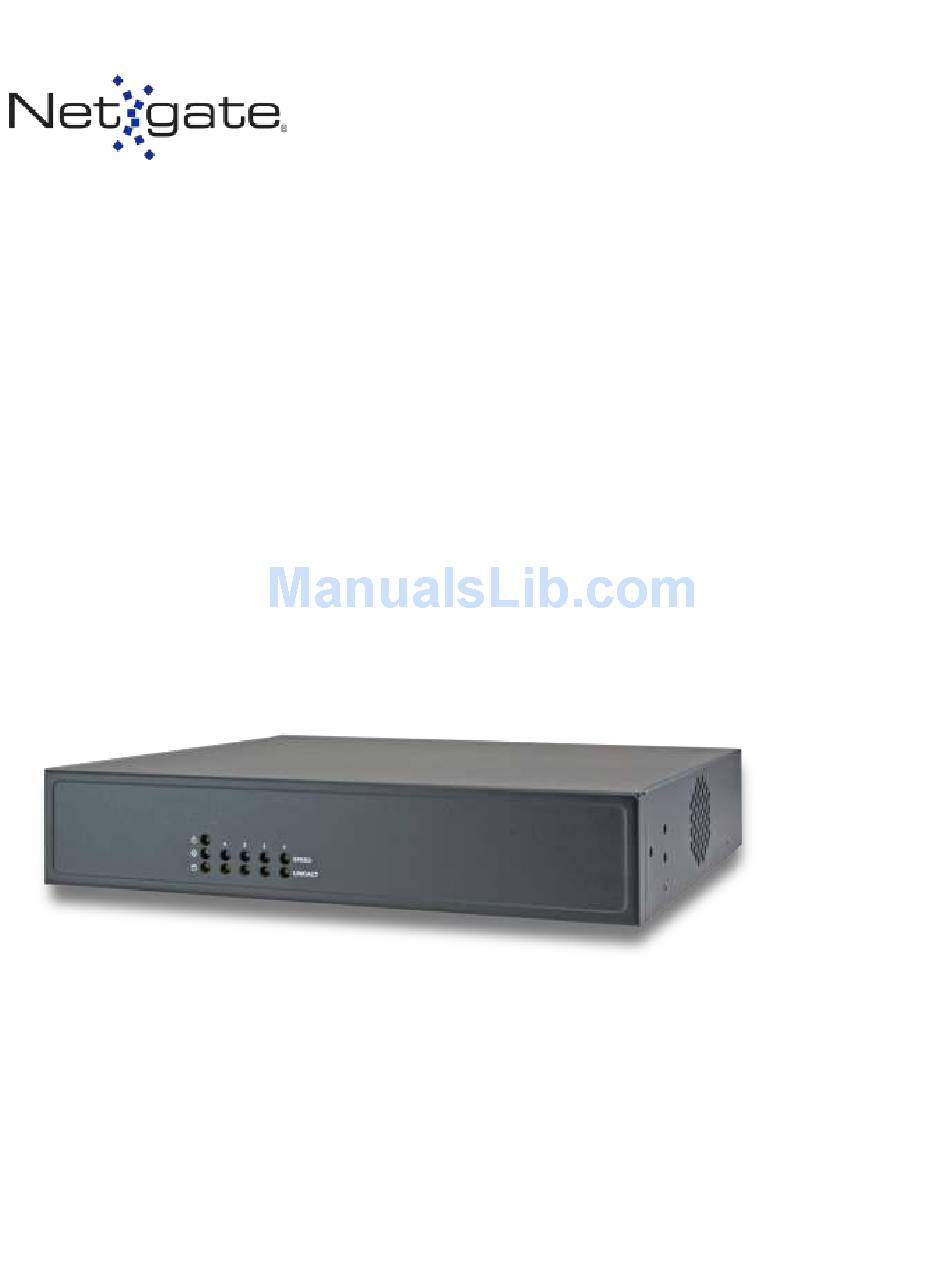

  • Page 1 Netgate® FW-7551 with pfSense® Version 2.1.X Basic Installation Guide...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........................ 2 Introduction ........................3 Product includes ......................... 3 Key features ........................4 Specifications ........................4 Plugging everything in ......................5 Initial Configuration ......................5 Logging into the web interface ................... 5 Setup Wizard ........................6 Hostname ..........................
  • Page 3: Introduction

    This Quick Start Guide will help you get up and running with a basic configuration on your FW-7551. Product includes Figure 1 1 Netgate FW-7551 preloaded with pfSense 2.1...
  • Page 4: Key Features

    Key features  Intel Dual-core Atom C2000 SoC CPU (codenamed "Rangeley")  Compact desktop design  4 built-in GbE LAN ports  Supports Intel QuickAssist crypto acceleration  Supports up to 8 GB ECC DDR3 Memory  Intel i210AT LAN controller ...
  • Page 5: Plugging Everything In

    Plugging everything in Figure 3 shows the location of the Reset button, power input, power button, serial console, USB, 4 x GbE ports. Figure 3 If you are replacing an existing firewall on a production network, you will want to go through the initial configuration with the device not plugged into your production network.
  • Page 6: Setup Wizard

    Figure 4 You will be prompted for username and password, the default username is admin and password is pfsense. Figure 5 Setup Wizard After logging in, the setup wizard will run. This will walk you through a few steps to get up and running with a basic configuration.
  • Page 7: Hostname

    Hostname For hostname, choose a name for the host. This does not affect functionality. Domain If you have an existing DNS domain in use inside your network (such as a Microsoft Active Directory domain), use that domain here. This is the domain suffix assigned to DHCP clients, which you will want to match your internal network.
  • Page 8: Wan Configuration

    Figure 8 Click Next. WAN Configuration This page is where your Internet connection is configured. You will need information from your ISP to configure this screen appropriately. A few notes to assist you: MAC address – if replacing an existing firewall, you may want to enter the old firewall’s WAN MAC address here, if you can easily tell what that is.
  • Page 9: Configure Lan Interface

    Enter the admin password for your firewall and again to confirm. You should choose a strong password, with a combination of letters, numbers and symbols. Should you forget your password, you can reset it using a serial console on your FW-7551. Figure 10 After entering your password and confirming it, click Next.
  • Page 10: Introduction To The Web Interface

    Yes, you can configure your FW-7551 from your iOS devices. The default theme does function properly in the Android browser, but is difficult to navigate due to the screen size, so it also will switch to the plainer theme.
  • Page 11: Console Access By Serial Interface

    Accessing the Console Connect one end of the null modem cable to the serial port on the FW-7551 and the other to a serial port on the computer with a terminal emulation program installed. USB to serial adapters should work for systems that don’t have a standard 9 pin serial port...
  • Page 12 Match the COM Port with what was reported in Windows Device Manager. We will use COM3 for this example. The FW-7551 serial port speed is 115200 bits per second. The speed of the BIOS and the speed of the console must match so change the speed in PuTTy to 115200 bps.
  • Page 13: Additional Support

    Figure 14 Select Serial as shown in Figure 14 and configure the Com Port and Serial Speed as displayed. Select Open strike the enter key and following will be displayed. Figure 15 Additional Support Newly-purchased eligible firewall products come with one year of support provided by Electric Sheep Fencing, the company behind the pfSense project.
  • Page 14: Pfsense University

    Other Support Options https://www.pfsense.org/get-support/#community-support Additional Documentation This guide illustrates the basics for getting up and running with your FW-7551. There is much more that can be accomplished with pfSense software. The best source of information is...
  • Page 15 the book pfSense 2.1: The Definitive Guide available to Gold pfSense subscribers at https://portal.pfsense.org There is also community documentation freely available on the pfSense site at https://doc.pfsense.org...
