Table of Contents
Advertisement
Quick Links

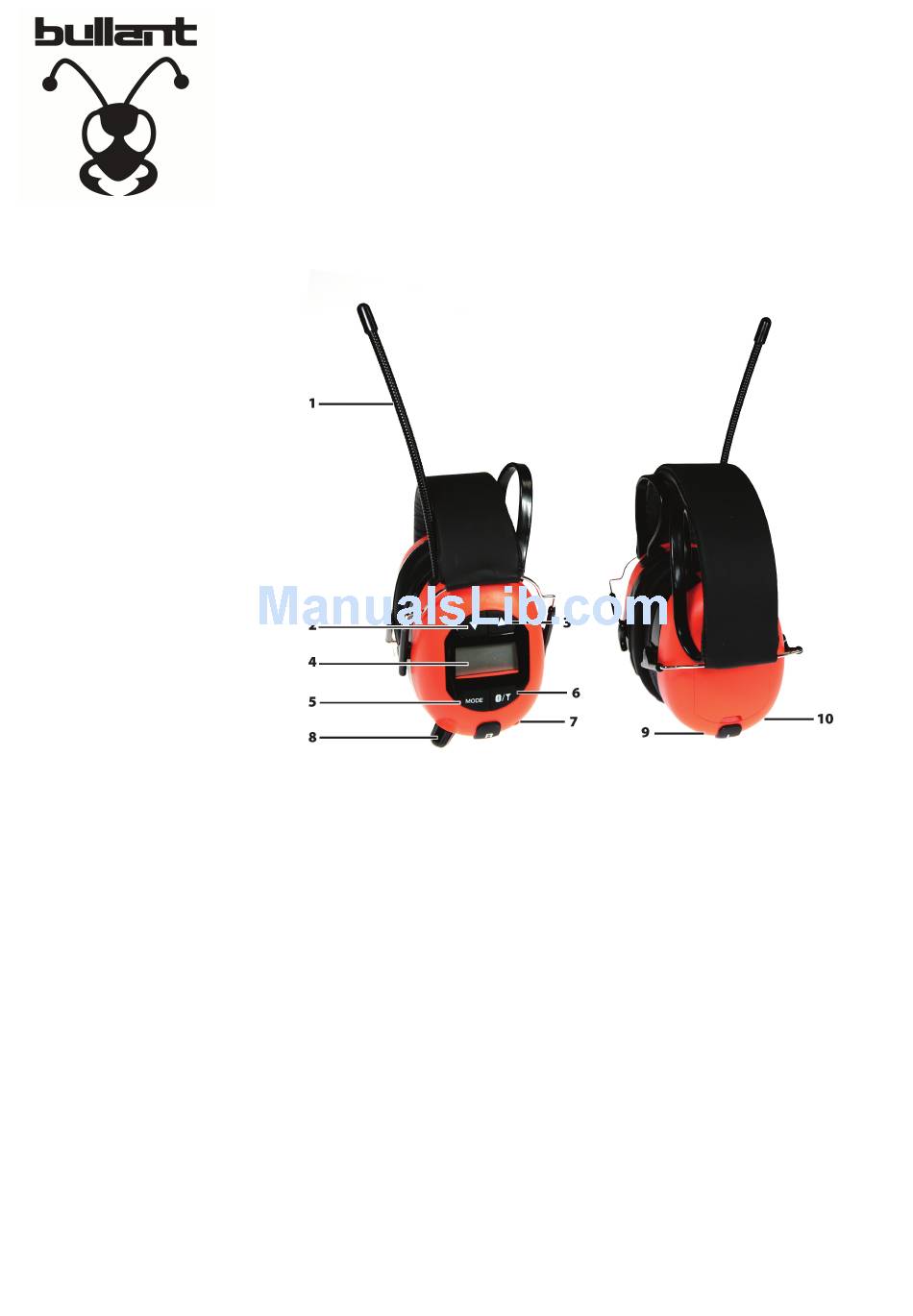

1.
Antenna
2.
Down Button
3.
Up Button
4.
LCD
5.
Mode Button
6.
Bluetooth/Band Selector
7.
Auxiliary Jack
8.
Volume On/Off Knob
9.
Microphone
10. Micro USB Recharge Port
When the headset is turned on, all settings are resumed to the last (previous) settings.
For Australian users, 9 kHz is recommended.
To select 9 or 10 kHz for AM, the procedure is as shown here below:
!
Keep unit in OFF position.
!
During time setting mode, press BT/Band button (6) for 2 seconds.
!
9 kHz will be shown on the display.
MODEL NUMBER: ABA840
DIGITAL AM / FM STEREO HEADPHONE RADIO WITH BLUETOOTH
& AUX-IN JACK
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Bullant ABA840
Summary of Contents for Bullant ABA840
- Page 1 MODEL NUMBER: ABA840 DIGITAL AM / FM STEREO HEADPHONE RADIO WITH BLUETOOTH & AUX-IN JACK USER MANUAL Antenna Down Button Up Button Mode Button Bluetooth/Band Selector Auxiliary Jack Volume On/Off Knob Microphone 10. Micro USB Recharge Port When the headset is turned on, all settings are resumed to the last (previous) settings.
- Page 2 Press Down (2) or Up (3) button to select 10 kHz. After selection, press BT/Band (6) button to confirm the setting. Insert Battery Turn off the headset. Open the battery door, insert 3 “AAA” sized batteries. Close the battery door. *Lithium Batteries are also compatible allowing you to recharge your device.
- Page 3 Hold BT/Band (6) button for 2 seconds, breaks the current BT connection (this function is disabled during phone call). After paired, user still receives and answers call while in Radio and Aux-in mode. BT + Radio After paired the Bluetooth device, tap the BT/Band (6) button to select AM or FM. When there is an incoming call, a telephone ring tone is heard.
- Page 4 WARNING If the recommendations given above are not adhered to, the protection provided by the ear-muffs will be severely impaired. PLEASE NOTE The ear-muff provides audio signal sound pressure level limitation and limits the entertainment audio signal to 82 dB(A); Radio reception quality may be slightly distorted depending on surroundings;...
- Page 5 TROUBLESHOOTING If the radio stops working: Check for correct battery installation. Ensure the hearing protector is dry. Install new batteries. TECHNICAL DATA Weight Approx. 386 g without batteries Operating temperature Between 50 °C to 0 °C Power Supply DC 3.6 - 4.5V (3 x AA sized battery) Frequency Range Radio AM 540 1700 kHz;...
- Page 6 AM/FM RADIO Sound Pressure Mean (dB) : 73.2 Standard Deviation (dB): 0.8 Mean + Standard: 74.0 AUDIO INPUT 75 dB(A) at -24 dBm (49mV) input voltage NOTES This product may be adversely affected by certain chemical substances. Further information should be sought from the manufacturer or authorized representative; The fitting of hygiene covers to the cushions may be affected the acoustic performance of the ear- muffs;...
