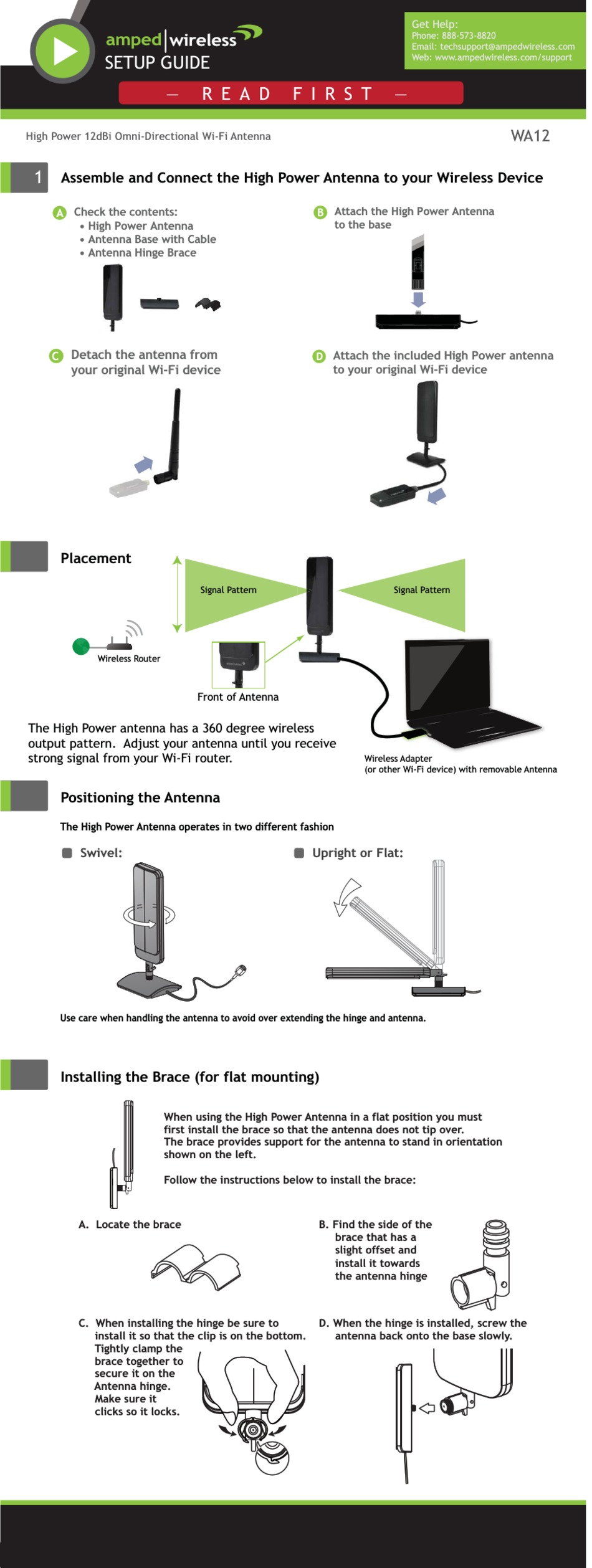

Amped Wireless WA Setup Manual

SETUP GUIDE
High Power 12dBi Omni-Directional Wi-Fi Antenna
1
Assemble and Connect the High Power Antenna to your Wireless Device
Check the contents:
A
‡ +LJK 3RZHU $QWHQQD
‡ $QWHQQD %DVH ZLWK &DEOH
‡ $QWHQQD +LQJH %UDFH
Detach the antenna from
C
your original Wi-Fi device
Placement
Wireless Router
The High Power antenna has a 360 degree wireless
output pattern. Adjust your antenna until you receive
strong signal from your Wi-Fi router.
Positioning the Antenna
The High Power Antenna operates in two different fashion
Swivel:
Use care when handling the antenna to avoid over extending the hinge and antenna.
,QVWDOOLQJ WKH %UDFH IRU IODW PRXQWLQJ
A. Locate the brace
C. When installing the hinge be sure to
install it so that the clip is on the bottom.
Tightly clamp the
brace together to
secure it on the
Antenna hinge.
Make sure it
clicks so it locks.
— R E A D
Signal Pattern
Front of Antenna
When using the High Power Antenna in a flat position you must
first install the brace so that the antenna does not tip over.
The brace provides support for the antenna to stand in orientation
shown on the left.
Follow the instructions below to install the brace:
F I R S T —
Attach the High Power Antenna
%
to the base
Attach the included High Power antenna
D
to your original Wi-Fi device ur original Wi Fi de
Signal Pattern
Wireless Adapter
(or other Wi-Fi device) with removable Antenna
Upright or Flat:
% )LQG WKH VLGH RI WKH
brace that has a
slight offset and
install it towards
the antenna hinge
D. When the hinge is installed, screw the
antenna back onto the base slowly.
Get Help:
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
WA12
