Amped Wireless AD14EX Setup Manual

SETUP MANUAL
What you'll need to get started:
802.11b/g/n Wireless Router,
Access Point, Bridge, Repeater
or Wireless Device with RJ-SMA
or N-Type female connector
Premium 25ft Outdoor WiFi
Antenna Cable APC25EX
(Sold Separately)

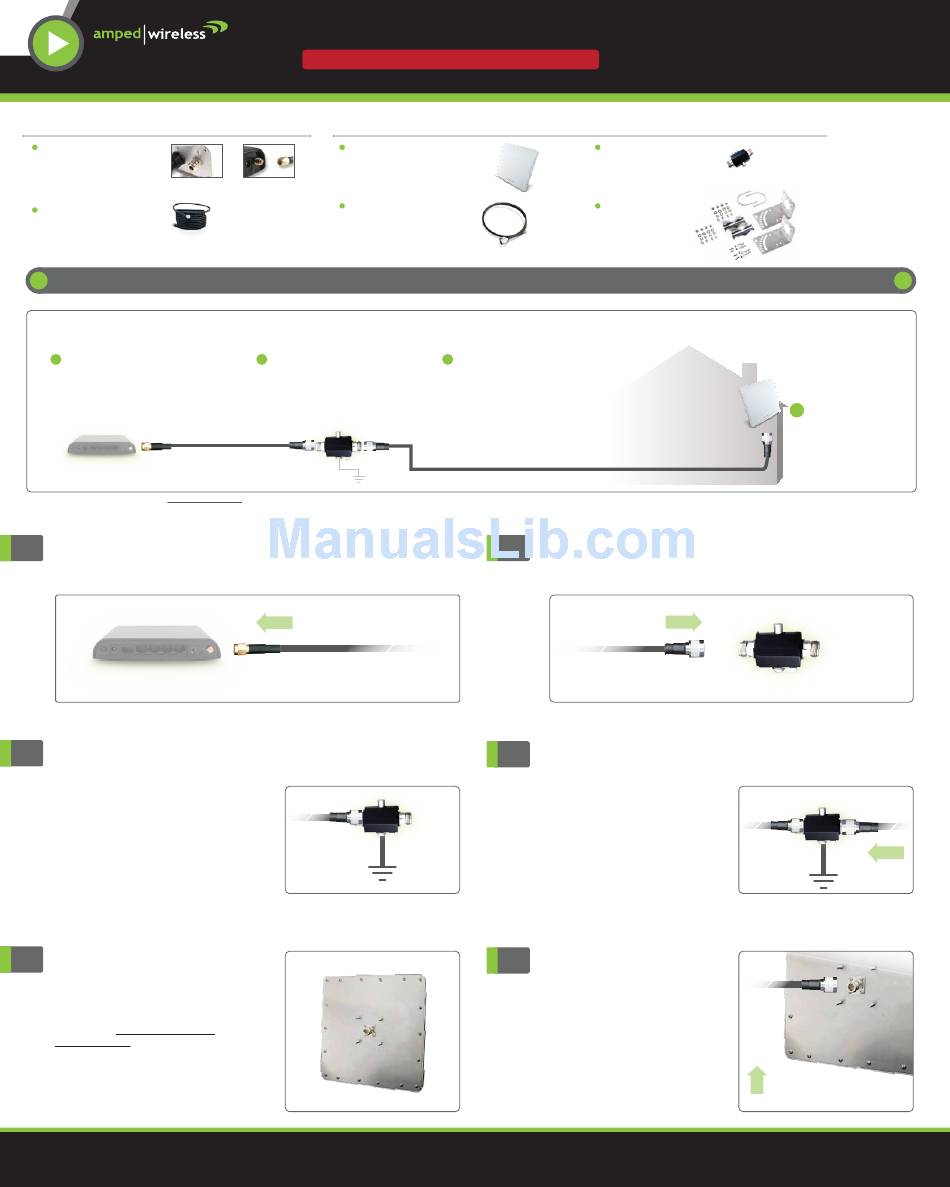

Installation Instructions

Installation Overview

1
Using the included 3ft Jumper Cable, attach
the SMA Plug to the RJ-SMA antenna
connector on your wireless device.
Jumper Cable
1
Wireless Device*
(Sold Separately)
* Note: If you have a wireless device with an N-Type Female connector, then simply connect the Premium 25ft Outdoor WiFi Antenna Cable APC25EX between your wireless device and the High Power Antenna.
The Premium Surge Protector and Jumper Cable are not required, but are used with your wireless device for safety precautions to prevent damage from electrical surges.
1
Remove the antenna from you wireless device
Attach the Jumper Cable to the antenna connector using the side with the RP-SMA connector.
Wireless Device
(Sold Separately)
3
Ground the Premium Surge Protector
Fasten a standard copper wire to the ground
wire connector on the Premium Surge Protector.
Ground or fasten the opposite end of the copper
wire to a metal stake that is fastened to the
earth. Properly grounding the Surge Protector
will protect your equipment from high voltage
electrical surges by allowing the earth to absorb
the electrical surge.
5

Mount the Antenna

Before you attach the other end of
the Outdoor Antenna Cable to the
High Power Antenna, it is important
that you first mount the High Power
Antenna securely. Use the antenna
mounting instructions on the back to
securely mount the High Power
Antenna.
Amped Wireless
A Division of Newo Corporation
Copyright © 2011 Amped Wireless / Newo Corporation. All rights reserved.
Amped Wireless, Newo Corporation, the Amped Wireless Logo are registered trademarks or trademarks of Newo Corporation.
All other trademarks herein are the property of their respective owners. No affiliation is expressed or implied.
High Power Outdoor 14dBi Directional WiFi Antenna Kit
AD14EX
— R E A D
Check your package contents:
High Power 14dBi Outdoor
Directional WiFi Antenna
or
AD14EX
Premium Indoor Jumper Cable
(N-Type Male to RP-SMA Connectors)
2
Connect the other end of the Jumper
cable to the included Premium Surge
Protector.
Premium Surge Protector
2 3a
Ground
Jumper Cable
Ground
F I R S T —
Premium Surge Protector
Antenna Mounting Kit
3
Use the Premium 25ft Outdoor Antenna cable
a) Connect one end to the Surge Protector and
b) Extend your installation outdoors
3b
2
Connect the Jumper Cable to the Premium Surge Protector
Find the N-Type connectors on the Premium Surge Protector.
Jumper Cable
Connect the Premium Outdoor Antenna Cable to
4
the Surge Protector
Find the N-Type female connector on
the Surge Protector and attach either
end of the Premium Outdoor Cable to
the Surge Protector. Run the other
end of the cable to the location
where you plan on installing the High
Power Antenna.
Attach the Outdoor Antenna
6
Cable to the High Power
Antenna
Locate the N-Type male connector
from the Outdoor Antenna Cable and
fasten it tightly to the N-Type female
connector of the High Power Antenna.
to:
(Sold Separately)
AD14EX
4
PreConnect the Premium 25ft
Outdoor WiFi Antenna Cable
(Sold Separately)
4
14dBi Outdoor Directional Wi-Fi
Antenna.
Surge Protector
APC25EX
(Sold Separately)
to the High Power
APC25EX
(Sold Separately)
Ground
