Summary of Contents for Majestic Appliances mj9050v

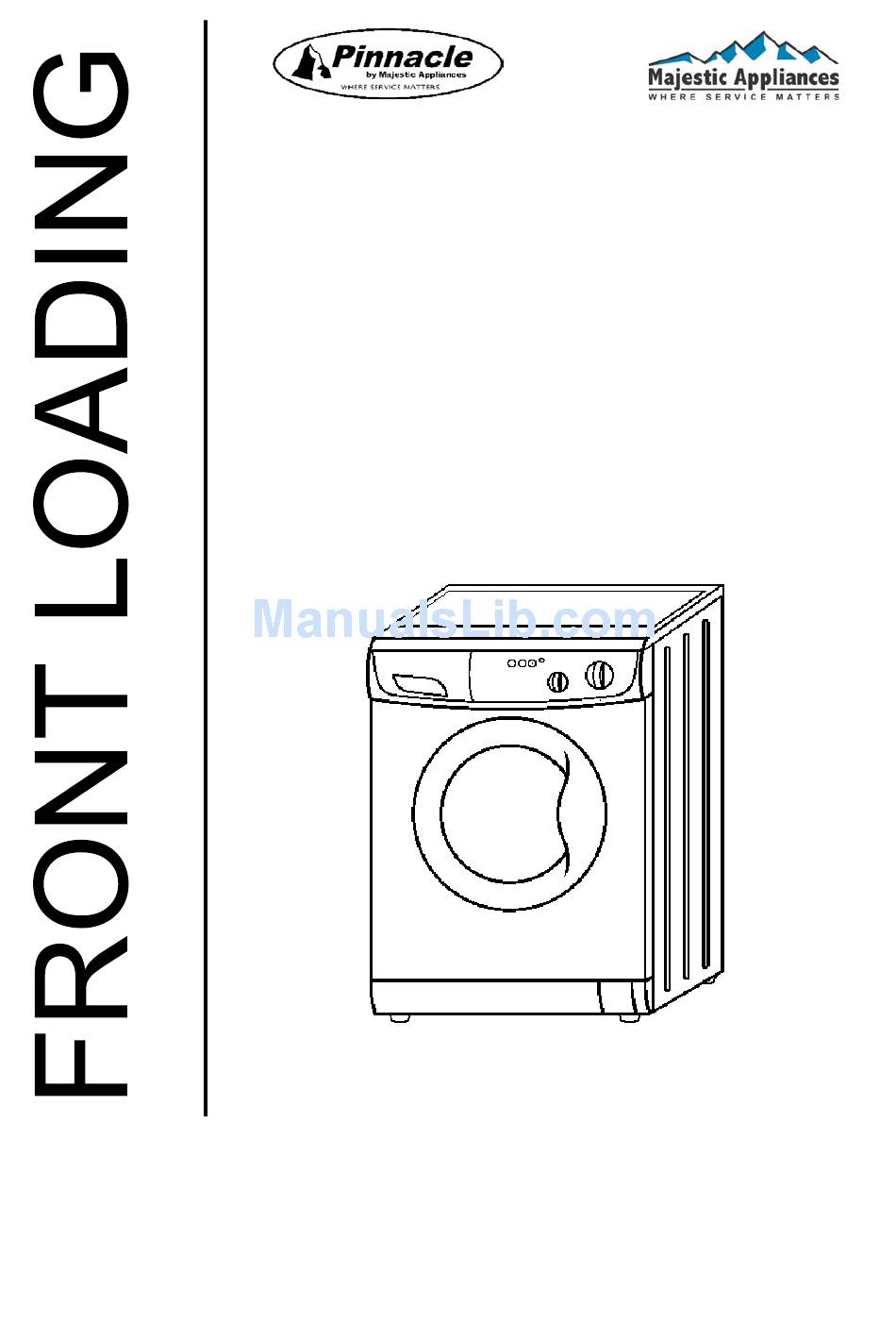

- Page 1 Combo Washer-Dryer MJ9950 MJ9050V Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warranty……………………………………………………………………………2-4 Introduction ………………………………………………………………………….5 Important Safety Instructions ………………………………………………………6 Picture of the Combo Washer-Dryer ……………………………………………9 Installation ……………………………………………………………………….9-11 Control Panel……………………………………………………………………12-13 Operating Instructions …………………………………………………………….14 Program Selection Chart ………………………………………………………….15 How to dry ………………………………………………………………………….16 Stain removal Chart ………………………………………………………….17-18 Maintenance ……………………………………………………………………….20 Technical Data …………………………………………………………………….20 Troubleshooting. -
Page 3: Warranty Information
WARRANTY INFORMATION Your Pinnacle by Majestic appliance is protected by this warranty under normal, personal, family or household use (1 Year), and limited commercial use (90 days) in the USA and Canada. WARRANTY Your Majestic™ Appliance is covered by this limited warranty on its mechanical parts under normal personal, family, household or RV use in the US and Canada. - Page 4 EXCLUSIONS In no event shall Majestic Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls, which do not involve defective workmanship or materials covered by this warranty.
-
Page 5: Warranty & Service
Since it is responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Majestic Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. Remember to send in your Warranty Registration Card so that a proof of your purchase exists with Majestic. -
Page 6: Introduction
Congratulations on your new Pinnacle by Majestic Combo Washer-Dryer. In addition to its award winning design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are 10 of the best reasons for buying your Pinnacle Combo Washer-Dryer Energy Savings This appliance is engineered to provide valuable energy savings when compared to other washer-dryers. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and that of you children Your washing machine has been built in compliance with safety regulations, to protect you and all your family. WARNING o reduce the risk of fire, electric shock, or injury to persons when –... -
Page 8: Helpful Hints
[MJ9950 only] and clogging the fan blower mechanism [MJ9950 & MJ9050V] with lint. If you have any problem obtaining High Efficiency (HE) detergent, please order Majestic high efficiency detergent available online at www.majesticappliances.com. -
Page 9: Pre-Installation
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER BACK). SERVICABLE PARTS INSIDE. SERVICING QUALIFIED PROFESSIONALS. Your new appliance is carefully engineered product. Many times what appears to be a reason to call service, the problem may require nothing more than a simple adjustment you can easily make in your own home. -
Page 10: Picture Of The Combo Washer-Dryer
PICTURE OF THE COMBO WASHER-DRYER Control panel Dryer knob Washer knob Detergent dispenser Door Adjustable feet Coin trap Combo Washer-Dryer Owner’s Manual... -
Page 11: Installation
INSTALLATION UNPACKING, LEVELING, & POSITIONING Remove the packing and check that the Washer-Dryer is undamaged. If you have any doubt, do not use the Washer-Dryer and call Majestic Customer Service. Keep all packing parts (plastic bag, foam rubber, screws, etc.) out of the reach of children since they could be dangerous. -
Page 12: Connecting The Drain Hose
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding plug. - Page 13 Connection the vent hose For MJ9050V, the machine vents the moist hot air out of the unit and requires a vent hose to be installed. To install the vent hose, attach the vent hose 2 into the connector 1(Fig.5). Fig.5 RECESSED, CLOSET AND INSTALLATION (Instructions) The machine may be installed in a recessed area, closet or alcove.
-
Page 14: Control Panel
A Washer knob B Dryer knob C Detergent dispenser D Power button Combo Washer-Dryer Owner’s Manual CONTROL PANEL E ½ load button F ½ heat button G Power indicator light Turn washer knob clock-wise, to choose wash cycle. Turn dryer knob to set minutes for drying. Important Note: 1. - Page 15 D Power button. Pressed in for ON Not pressed for OFF E ½ Load button. If you have half a load or a light load, press this button. F ½ Heat button. When you dry cotton fabric, not press this ½ Heat button, the dry temperature is at 250°...
-
Page 16: Operating Instructions
Warning — to reduce the risk of fire, electric shock, or injury to person, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. OPERATING INSTRUCTIONS 1. Make sure Washer-Dryer is turned off. (Power Indicator light should be off). 2. Separate clothes into cottons, permanent press and delicates. 3. -
Page 17: Program Selection Chart
PROGRAM SELECTION CHART Description of Program load Heavy, soiled 1 - Pre-wash clothing Thick cottons 2 - Heavy (towels, jeans) Mixed cottons 3 - Towels/Sheets (t-shirts, jeans) 4 - Active Wear Delicate colors 5 - Easy Care Mixed cottons Cotton blends, light 6 - Normal fabrics Cotton blends, light... -
Page 18: How To Dry
Combined (Wash & Dry) • Look at table A to the side and follow the instructions provided for MAX load to have an automatic washing and drying cycle. • Follow the instructions for wash only (see page14, the section "Starting the Washer-Dryer") •... -
Page 19: Stain Removal Chart
prevent unpleasant odors. STAIN REMOVAL CHART Blood Rinse or soak fresh stain in cold water. Work detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on stain and repeat detergent treatment. Rinse. If necessary bleach. Candle Wax Scrape off excess. -
Page 20: Understanding Fabric Care Labels
Grease or Oil Scrape away excess. Rub detergent paste or a general-purpose liquid household cleaner into stain, rinse with hot water. If stain remains, sponge thoroughly with a grease solvent. Dry. Repeat if necessary. To remove yellow stain, use chlorine or oxygen bleach. Ink. - Page 21 WINTERIZING YOUR WASHER-DRYER To winterize your Washer-Dryer please, follow the instructions below to avoid damage to your unit due to freezing: 1. With the unit off, remove wash filter. This will allow the water remaining in the pump and drain hose to be evacuated. Replace filter. 2.
-
Page 22: Maintenance
TECHNICAL DATA 110-120V/60Hz 0.05-1(Mpa) 33.5 x 23.5 x 23.2 (inches) 110-120V/60Hz 0.05-1(Mpa) 33.5 x 23.5 x 23.2 (inches) MJ9950 560 W 1050 W 14 lbs. 900 rpm 167 lbs. MJ9050V 560 W 1050 W 14 lbs. 900 rpm 167 lbs. -
Page 23: Troubleshooting
In most cases, when your washer-dryer fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points. The washer-dryer fails to start Is the plug correctly inserted into the socket? Is there electricity in the house? Is the door closed properly? Is the power button pressed? -
Page 24: Contact Information
PARTS, ACCESSORIES & DETERGENT ORDERING: parts@majesticappliances.com TECHNICAL SUPPORT: tech@majesticappliances.com Majestic Appliances, division of MSI Group Vancouver, WA 98660-7078 Phone (360) 690-4499 • Fax (360) 360-4488 Manual subject to change without notice Combo Washer-Dryer Owner’s Manual SERVICE: (800) 678-8002...
