Summary of Contents for Majestic Appliances MJ9900

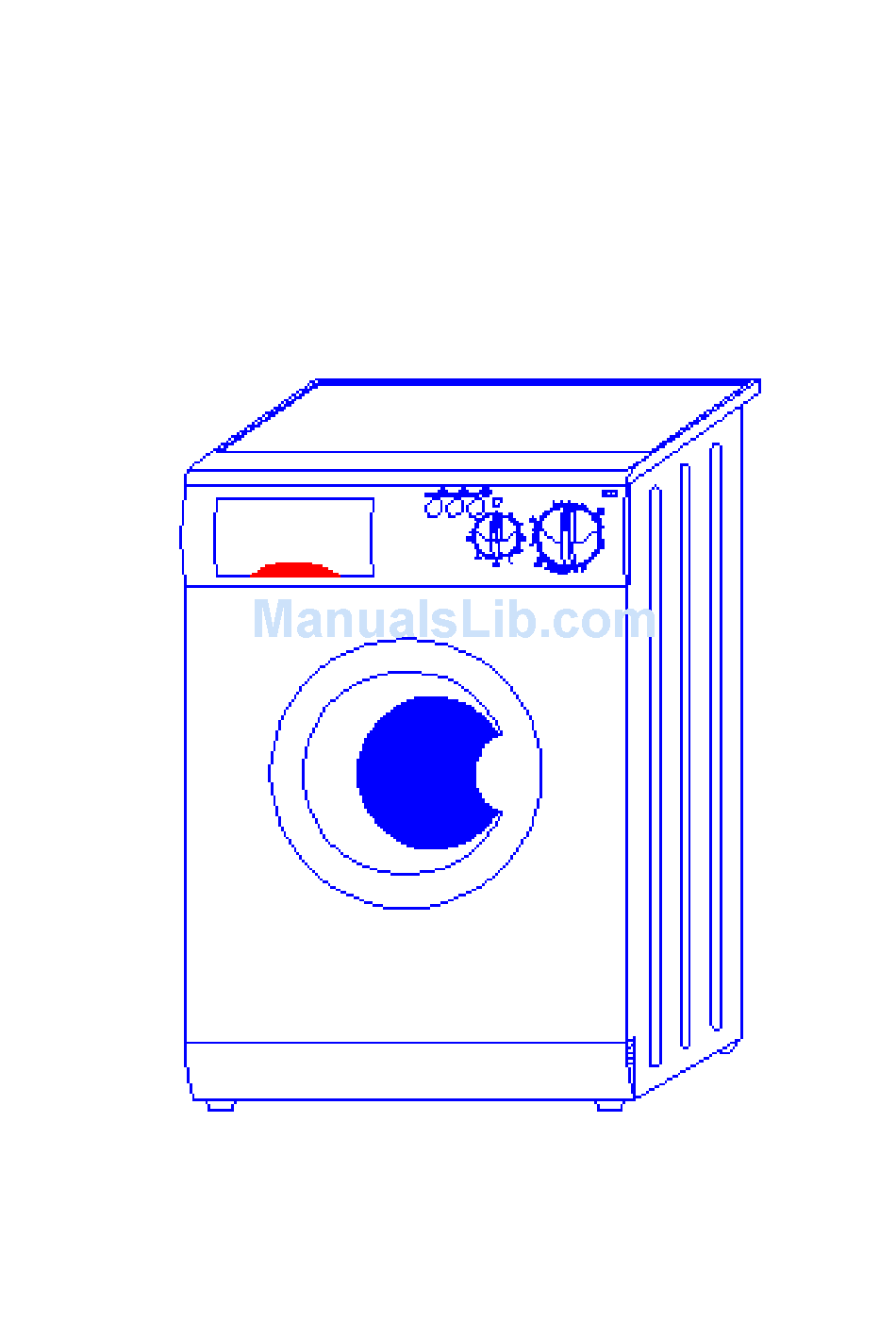

- Page 1 MJ9900 TECHNICAL MANUAL MJ9900 installation dimension...
- Page 2 Your machine, has a solution to every problem What to do if We have put together here a few questions which may come to mind when you start using your machine, you will see for yourself that your new washer dryer can give a convincing and state of the art reply to all of them.
- Page 3 This machine has been designed to adapt the washing 1. Can washing process to all types of fabric and to treat your washing in damage my the most delicate way possible. In any case, we would clothes? advise you to take certain basic precaution: ...
- Page 4 We would also advise you to place your washer-dryer in such a way that there is some space-even a fraction of an inch-all sides. (Fig.1) First of all, remember to switch off the electricity. Then, to 6.How shoulder I clean the body and any rubber parts use a damp cloth clean my washer- and a little soap.
- Page 5 easier. Just pull it upwards and out, as shown in Fig.2 (Fig.2) 3. Your washer-dryer is equipped with a self-cleaning pump. It is therefore not necessary to carry out cleaning and maintenance operation. Some objects however, (such as buttons, coins, etc), may sometimes accidentally drop into the pimp.
- Page 6 Check that: The washer-dryer The inlet pipe is not blocked; will not drain the The inlet pipe is not connected at a height more then water 1 metre/40 inches above ground level. There is too much Check that: foam in the tub ...
- Page 7 WASHING MACHINES REF.MODELS MJ9900 DESCRIPTION...
- Page 8 Back panel Cabinet assembly Top panel assembly Rest for hose and cable Board panel Switch cover Lamp cover Timer (washing) knob Timer (drying) knob Dispenser handle Micro delaying device Porthole catch Porthole catch pin Porthole catch spring Porthole handle Porthole inner frame Porthole glass Porthole frame Support for porthole hinge...
- Page 10 WASHING MACHINES REF.MODELS MJ9900 DESCRIPTION Drum Tub cover gasket Tub front flange “U” bolt Porthole gasket Front counterweight Detergent recovery hose Hose tub to pump Hose dispenser to tub Shock absorber Shock absorber support Tub suspension spring Spring rest Upper counterweight...
-
Page 12: Washing Machines
WASHING MACHINES REF.MODELS MJ9900 DESCRIPTION Dry timer 02-05-45 Pressure switch hose 1level Pressure switch with over flow 2 level pressure switch Wash timer “Y” coupling Transmission to detergent tray Cam follower Bush to timer cam Timer cam Cable assembly Pump... - Page 14 WASHING MACHINES REF.MODELS MJ9900 DESCRIPTION Fan motor The wire with fuse Thermostat 2TT NC 125/85 04-16 Upper body of blower Reflecting screen WDM Heating element Gasket of blower bode WDM Lower body of blower Zipper for porthole gasket and blower...
- Page 17 Timer removal and installation Removal Disconnect power from machine. Remove the top panel assembly by unfixing the two screws ST3.5x13. Motor check and how to change it...
- Page 18 8P socke t M4 ground connection...
- Page 19 Terminal Description Resistance 5.3-5.8_ 7.7-8.01_ 23.3-24.1_ 1_ Disconnect power and water supply from machine. 2_ Move the machine to an open space for repair. 3_ Remove back panel by removing three size SD3.5x13mm screws. 4_ Tilt the machine, wrest the two front feet two rounds anticlockwise.
- Page 20 Micro delaying device Micro switch Hose dispenser to tub (9000V\9900) picture...
- Page 21 2_removal and connection _Disconnect power from machine. 2_Remove the top panel assembly by unfixing the two screws ST3.5x13. Unfix two screw size SD3.5X13 from the back of cabinet ,take off the speed regulator support. pull out all terminals from regulator assembly. 4_take out regulator from regulator support.
- Page 22 Plug terminal RV1 of wiring to 1 terminal of regulator Plug terminal RV2 of wiring to 2 terminal of regulator Plug terminal RVF of wiring to F terminal of regulator Plug terminal RV3 of wiring to 3 terminal of regulator Plug terminal RV4 of wiring to 4 terminal of regulator Plug terminal RV5 of wiring to 5 terminal of regulator Plug terminal RV6 of wiring to 6 terminal of regulator...
- Page 23 A: 2 level pressure switch Disconnect power and water supply from machine. Move the machine to an open space for repair. Remove back panel by removing three size SD3.5x13mm screws. Remove screw SD3.5x13; take out 2 level pressure switch from cabinet.
- Page 24 9_Test machine. 10_Amount top panel assembly. 11_Complete. Double head valve (cold water) and solenoid valve (hot water) picture...
-
Page 25: Fan Motor
Fan motor Connection: Plug terminal MV of wiring to upper terminal of fan motor. Plug terminal TF of wiring to lower terminal of fan motor. Hose dispenser to tub (9000V\9900) - Page 26 1_picture 2_connection to wiring Capacity 1_picture 2_test C1=80uF C2=80uF 3_connect to wiring Connect C1, C1X terminals of wiring to C1.
-
Page 27: Heat Element
Connect C2, C2X terminals of wiring to C2. Heat element... - Page 28 Wire with fuse and Thermostat 2TT NC 125/85 Connection of dryer...
