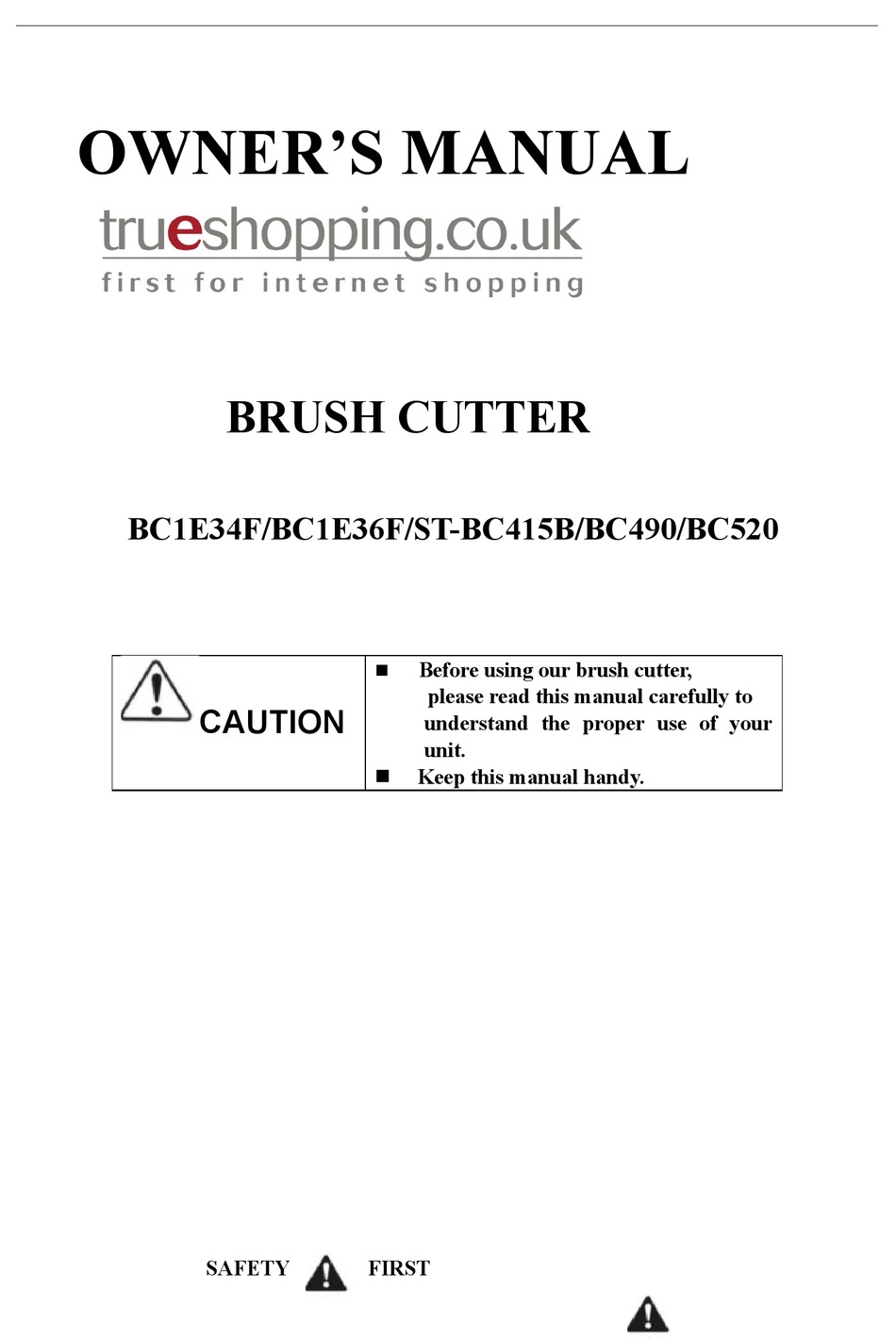

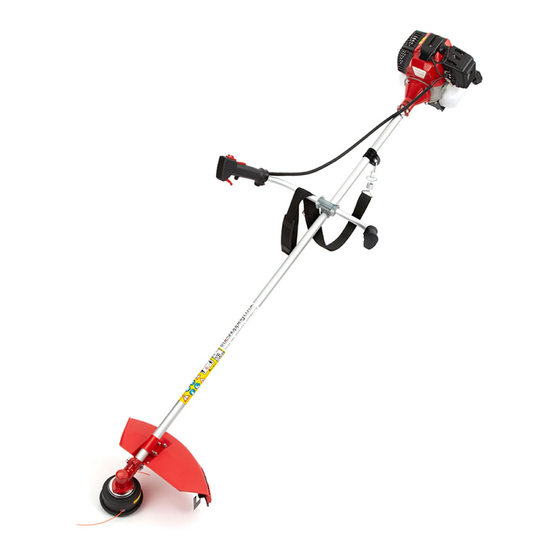

OWNER'S MANUAL
BRUSH CUTTER
BC1E34F/BC1E36F/ST-BC415B/BC490/BC520
CAUTION
SAFETY
Before using our brush cutter,
please read this manual carefully to
understand the proper use of your
unit.
Keep this manual handy.
FIRST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC1E34F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trueshopping BC1E34F

Summary of Contents for Trueshopping BC1E34F

  • Page 1 OWNER’S MANUAL BRUSH CUTTER BC1E34F/BC1E36F/ST-BC415B/BC490/BC520 Before using our brush cutter,  please read this manual carefully to CAUTION understand the proper use of your unit.  Keep this manual handy. SAFETY FIRST...

  • Page 2: Table Of Contents

    Instructions contained in warnings within this manual marked with a symbol concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read such instructions carefully and follow them without fail. ...

  • Page 3: Warning Labels On The Machine

    14. Gear case 15. Blade 2. WARNING LABELS ON THE MACHINE (1) Read owner’s manual before operating this machine (2) Wear head, eye and ear protection (3) Warning/Attention (4) Keep all children, bystanders and helpers 15 metres away from the brush cutter. IMPORTANT If warning seals peel off or become soiled and impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seal in the required location.

  • Page 4: Symbols On The Machine

    3. SYMBOLS ON THE MACHINE For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please take care not to make a mistake (a).Filler for “MIXED FUEL” Position : FUEL TANK CAP (b).The direction to close the choke Position: AIR CLEANER COVER (c).The direction to open the choke Position: AIR CLEANER COVER...
  • Page 5 3. During rain storms, during lightning storms, at times of strong or gale-force winds, or at any other times when weather conditions might make it unsafe to use this product. f. When using this product for the first time, learn to handle the brush cutter from a skilled worker, before beginning actual work, g.
  • Page 6 d. If any fuel spillage occurs during refueling, use a dry rag to wipe up the spill before turning the engine back on again. e. After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the brush cutter to a spot 3 meters or more away from where it was refueled, before turning on the engine.

  • Page 7: Fuel ...................................................................................................................9

    injury. Avoid kickback; observe the safety precautions below strictly: Before beginning work, clear your working area and remove grass from around the obstacles. When using your brush cutter, do not grip parts other than the handle. Be vigilant at all times when using your brush cutter. If you need to stop cutting, place the throttle into the idling position.

  • Page 8: Set Up

    1. Perform the maintenance and checking operations described in this manual at regular intervals. If any parts must be replaced or any maintenance or repair work not described in this manual must be performed please contact a representative from the store or your nearest authorized servicing dealer for assistance.
  • Page 9 (2) Clamp (3) Main pipe (4) Safety guard  THROTTLE WIRE WARNING After fitting the wire, make sure that the throttle cable is put into the throttle lever. If this is not done, it is very dangerous because the engine will rotate after releasing the throttle. 1.
  • Page 10 2. Screw the attached bolt (M8 left) into the gear shaft and secure it with the spanner. 3. Screw the nylon cutter into the bolt by fixing the inner holder with the L-shaped bar and tighten it manually. NOTE Make sure that you keep the bolts and washers needed to install the metal blade in a safe place. (1) Gear Case (2) Bolt (3) Nylon cutter...
  • Page 11  STARTING THE ENGINE WARNING  Before starting the engine, inspect the entire unit for loose fittings, fuel leaks, and that the cutting attachment is properly installed and securely fastened.  Place the unit an a flat, firm surface. Keep the cutting head clear of everything around it.
  • Page 12  EQUIPPING THE SHAWL BAND(F12) 1. Equip the attached shawl band.(F12) 2. Turn on the engine, return the throttle lever to the lowest speed position, and put the shawl band hook to the hanging part of the machine. 3. Adjust the length of the shawl band so that the blade is parallel to the ground in the working position.

  • Page 13: Maintenance

    8. MAINTENANCE  BLADE  Sharpen each cutting edge and make sure the bottom corner is rounded. (F13)  Do not cool the blade with water when using a grinder. It may cause cracks on blade. AFTER 25 HOURS OF USE ...
  • Page 14  INTAKE AIR COOLING VENT Check the intake air-cooling vent and the area around the cylinder cooling fins. Remove  any waste, which has attached itself to the brush cutter. IMPORTANT  Note that failing to do so could cause the muffler to become overheated. And that this in turn could cause the brush cutter to catch fire.

  • Page 15: Specifications

    This is the screw to adjust the engine rotation when the throttle lever is set to the lowest speed position. If you turn right (clockwise), rotation increases, and left (counterclockwise) it decreases. If the blade continues to rotate or engine stops when you return the throttle lever completely to the original position, make a readjustment.
  • Page 16 Owner manual...
  • Page 17   UFFER Owner manual...
