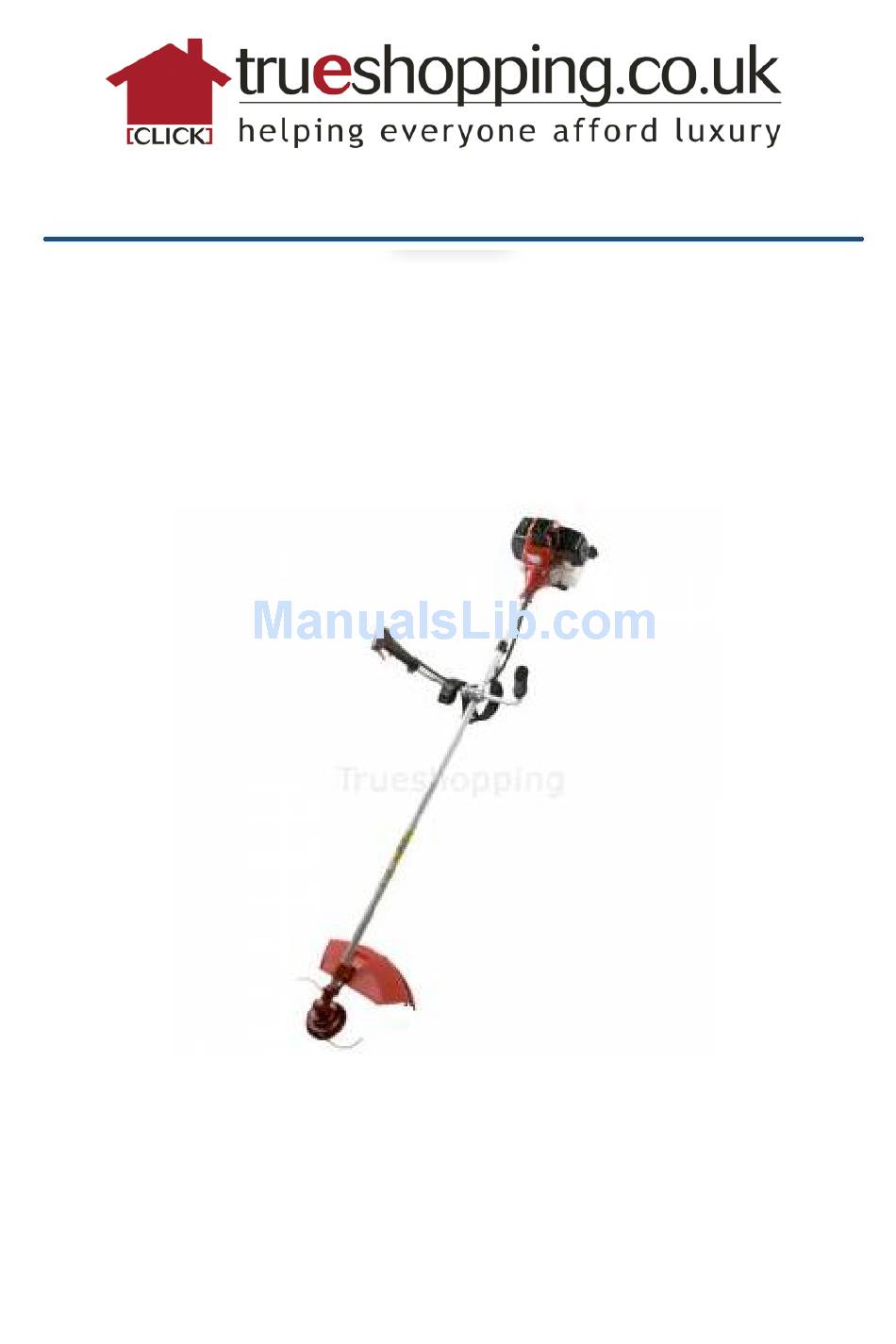

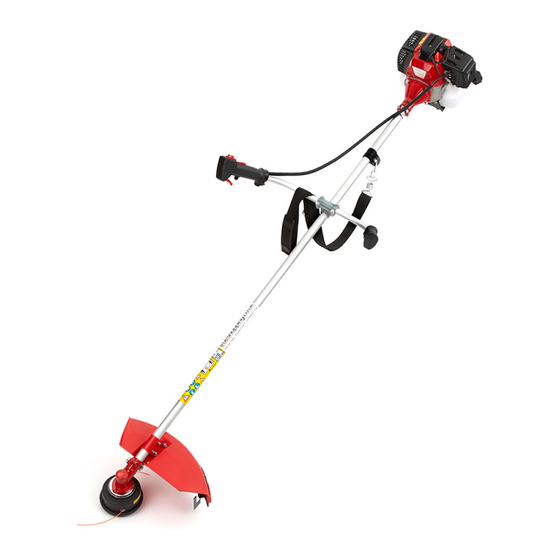

- Page 1 Offering a wide selection of products at competitive prices Trueshopping Petrol Grass Strimmer/Brush Cutter BC1E34F / BC1E36F / ST-BC415B / BC490 / BC520 Instruction Manual...
-
Page 2: Table Of Contents
Trueshopping Before putting the machine into operation, read this instruction manual thoroughly. ONTENTS What’s In The Box ___________________________________ 5 What They Should Look Like __________________________ 7 Putting It All Together _______________________________ 8 Attaching the Engine Unit ..........10 Assembling the Handle ............11 Attaching the Throttle Cable .......... - Page 3 Transportation and Storage __________________________ 34 Trouble Shooting __________________________________ 35 Specifications _____________________________________ 38 Trueshopping Petrol Grass Strimmer Brush Cutter 26cc/33cc38 Trueshopping Petrol Grass Strimmer Brush Cutter 43cc..39 Trueshopping Powerful Heavy Duty Petrol Grass Strimmer Brush Cutter 49cc/52cc ............40 www.TrueShopping.co.uk...
- Page 4 Trueshopping IAGRAMS Figure 1 Handle ................6 Figure 2 What's in the Box ............6 Figure 3 The Strimmer ..............7 Figure 4 Handle and Engine Unit ........... 7 Figure 5 The Brush Cutter .............. 7 Figure 6 The Brush Cutter/Strimmer..........8 Figure 7 Brush Cutter Blade ............
-
Page 5: What's In The Box
Petrol Strimmer is ideal for professional clean-up jobs, including clearing out tough weeds and bushes over a large surface area. In addition, the Trueshopping Petrol Brush cutter has a very high power to weight ratio and easily starts in all weathers. It also boasts maximum efficiency, high torque and rapid acceleration. -
Page 6: Figure 1 Handle
Trueshopping The Handle comes in a separate box. Figure 1 Handle Cutting Blade Handle Handle with throttle Strimmer Spool Nuts Main engine unit Petrol Mixing Bottle Carrying Strap Safety Guard Tool Kit Figure 2 What's in the Box www.TrueShopping.co.uk Page: 6 of 42... -
Page 7: What They Should Look Like
Trueshopping What They Should Look Like Figure 4 Handle and Engine Unit Figure 5 The Brush Cutter Figure 3 The Strimmer www.TrueShopping.co.uk Page: 7 of 42... -
Page 8: Putting It All Together
Trueshopping Putting It All Together Figure 6 The Brush Cutter/Strimmer www.TrueShopping.co.uk Page: 8 of 42... -
Page 9: Figure 7 Brush Cutter Blade
Trueshopping Figure 7 Brush Cutter Blade 12. Blade 13. Fixing screws with spring rings 14. Nut 15. Blade locking nut 16. Blade protection 17. Bracket diameter flange 18. Spacer disc www.TrueShopping.co.uk Page: 9 of 42... -
Page 10: Attaching The Engine Unit
Trueshopping Attaching the Engine Unit These are the parts that you will need: 1. The long handle. 2. Engine unit. 3. The following tools from the kit: spanner. Now attach as follows: 1. Place the bottom of the engine unit onto the top of the... -
Page 11: Assembling The Handle
Trueshopping Assembling the Handle Figure 9 Attaching the Handle These are the parts you need: 1. The long handle. 2. The two short handles. Now attach as follows: 1. Loosen the 4 bolts on the handle bracket. (1) (2) 2. Insert the right handle with the throttle lever attached and the left handle into the bracket. -
Page 12: Attaching The Throttle Cable
Trueshopping 8. Attach the throttle cable to the main engine unit as shown below. 9. Fix the throttle cable on the drive unit and on the handle using the cable ties. Attaching the Throttle Cable You need: 1. The main engine unit 2. -
Page 13: Figure 12 The Main Engine Unit With Cover Removed
Trueshopping Push throttle cable through the brass coloured nut on the side of the engine which is now visible Figure 12 The Main Engine Unit with Cover Removed The round silver piece which resembles a screw is the throttle cable receiver. This is where you put the lug on the end of the cable. -
Page 14: Figure 15 Cable Being Attached
Trueshopping Attach the first cable. Figure 15 Cable Being Attached Here is another view for you. Figure 16 Where Cable Attaches With the throttle screw the correct way round to receive the cable lug, it can now be positioned. Figure 17 Attaching the Cable www.TrueShopping.co.uk... -
Page 15: Attaching The Carrying Strap
Trueshopping There are now 2 red and 2 black cables, these should be attached to their counterpart via push fittings. Black to black, red to red. This diagram shows cable fitted correctly with the lug sitting inside the screw. Figure 18 The Cable Attached... -
Page 16: Attaching The Strimmer Spool
Trueshopping Attaching the Strimmer Spool These are the parts you need: 1. The long handle as shown. 2. The protective cover as shown. 3. The strimmer unit 4. The black, round strimmer cord container (strimmer spool). 5. The following tools from the tool kit: The Allan key, the plug spanner and the screwdriver. - Page 17 Trueshopping 6. Using the plug spanner/screw driver combination, turn the nut anti-clockwise until it comes off. It should be quite easy and take less than two turns. 7. Place the plug spanner on to the large nut. Using the plug...
-
Page 18: Attaching The Brush Cutter Blade
Trueshopping Attaching the Brush Cutter Blade These are the parts you need: The long handle shown which is the same as that used for the strimmer. The protective cover as shown The cutter blade as shown (in comes in a green cover). - Page 19 Trueshopping 6. Using the plug spanner/screw driver combination, turn the nut anti-clockwise until it comes off. It should be quite easy and take less than two turns. 7. Take off the nut and the top part of the bicycle bell like object (it is round like a very small saucer) and keep the both safe as you will need them for the brush cutter.
-
Page 20: Fuelling
Trueshopping Fuelling Fuelling. Always switch the engine off before filling up. Do not smoke whilst fuelling. The use of unleaded petrol is recommended for environment protection reasons. Only use two-stroke engine oil for air-cooled engines. Ratio of mixture 40:1 Open the tank cap carefully so that any overpressure may be let out and the fuel does not splash out. - Page 21 Trueshopping Check that there is no leakage on the tank cap and fuel lines. If there are leaks this product should not be started. Never use a device with damaged ignition cable and spark plug connector as there is a risk of sparks.
-
Page 22: Starting The Brush Cutter/Strimmer
Trueshopping Starting The Brush Cutter/Strimmer Once you have assembled and fuelled the strimmer you are able to start it. To do this you: 1. Open the choke. 2. Switch on the engine using the switch located on right handle. 3. Put engine into “half throttle mode” by pulling the throttle lever and pressing in the button on the same handle. -
Page 23: Figure 19 Engine Primer Bulb
Trueshopping Figure 19 Engine Primer Bulb Figure 20 Idle Adjustment Screw www.TrueShopping.co.uk Page: 23 of 42... -
Page 24: Safety Precautions
Trueshopping Safety Precautions Protecting You All users must be at least 18 years of age. Minors and those with infirmities should not use the brush cutter/strimmer. Wear appropriate protection. Wear safety shoes with steel toes or rough sole. Wear appropriate clothes that is tight fitting. - Page 25 Trueshopping Never work in closed or poorly ventilated areas. After the engine is started, the machine will produce poisonous flue gas. The gas may be invisible and odourless. Contact with the exhaust may cause burns. Beware of poor working conditions. When...
- Page 26 Trueshopping Kickback. When working with metal blades, a kickback of the whole machine or a sudden pull forwards may occur if fixed objects (trees, branches, stones or the like) are hit. Such a kickback occurs abruptly without advance warning and may result in loss of control of the machine and hazards to the operator and bystanders.
-
Page 27: Protecting Others
Trueshopping Protecting Others Keep a safe working area of at least 15 m or 50 feet. Do not let any unauthorised persons approach the machine. While you are working, observe any children very carefully and be aware of their safety. -
Page 28: Protecting The Machine
Trueshopping Protecting The Machine Always use the correct tool for the job to be done. E.g. avoid using small tools and accessories for work that should be done with a heavy tool. Use the tool only for the purposes it was designed for. -
Page 29: Safely Using The Machine
Trueshopping Safely Using The Machine When cutting or strimming, adhere to any regulations about working time, noise etc. Do not work at times of generally recognised rest. Any hard objects – stones, metal parts etc. should be removed before using the machine. - Page 30 Trueshopping This brush cutter/grass trimmer should NOT be used for cutting or chopping: Hedges, shrubs and bushes, flowers or composting items otherwise there is a risk of injury to you or others. Before starting your work make sure that: No other persons, children or animals stay within the working area.
-
Page 31: Maintenance
Trueshopping Maintenance Insufficient maintenance and care may result in emergencies and unforeseen accidents. Always switch the driving unit off when doing maintenance or a repair. CAUTION! The instructions below apply to regular conditions of use. In severe conditions and longer periods of workdays it is necessary to shorten the intervals as appropriate. -
Page 32: Replacing The Spark Plug
Trueshopping Replacing the Spark Plug Do not touch the spark plug or the spark plug connector while the engine is running it is hot and may spark. Check the spark plug and the spark gap on a regular basis. For this proceed as follows: ... -
Page 33: Adjusting The Strimmer Fibre
Trueshopping Adjusting the Strimmer Fibre Warning! The thread spool still runs for a short while after the engine has been turned off. Keep your hands and feet away from the rotation area. Wait until it comes to a dead stop before adjusting the fibre. -
Page 34: Transportation And Storage
Trueshopping Transportation and Storage If the Grass Strimmer/Brush Cutter is to be out of operation for a long period of time, say one month or over winter, take action as follows: Drain the oil and fuel tank. Remove and clean the string coil and the blade. -
Page 35: Trouble Shooting
Trueshopping Trouble Shooting Possible cause Solution Motor does not start Incorrect starting sequence Observe the correct starting sequence. Air filter contaminated Clean or replace the air filter. Fuel filter fouled Clean or replace the fuel filter. No fuel supply Fill the fuel tank. - Page 36 Trueshopping Possible cause Solution Engine starts and is stalled immediately Incorrect idle adjustment Contact the customer service Tool does not work with full power Machine overloaded Do not press down excessively during use. Cutting thread Follow up the cutting thread.
- Page 37 Trueshopping Possible cause Solution Machine vibrates or does not cut correctly Carburettor incorrectly Contact the customer service. adjusted Spark plug fouled Clean or replace the spark plug. Check the spark plug connector. Smoke Incorrect fuel mixture Use two-stroke oil, ratio of mixture 40:1.
-
Page 38: Specifications
Trueshopping Specifications Trueshopping Petrol Grass Strimmer Brush Cutter 26cc/33cc Displacement: 2 stroke 26cc engine/2 stroke 33cc engine Power transmission method: Automatic centrifugal clutch, spiral gear Engine Type: Single Cylinder air cooling 2-cycle gasoline engine Carburettor: Diaphragm, Rotary Valve ... -
Page 39: Trueshopping Petrol Grass Strimmer Brush Cutter 43Cc
Trueshopping Trueshopping Petrol Grass Strimmer Brush Cutter 43cc Engine: 1E40F-5 Displacement: 2 stroke 43cc engine Power transmission method: Automatic centrifugal clutch, spiral gear 2-Cycle oil/petrol mixing ratio: 1:25 Carburettor: Diaphragm, Rotary Valve Ignition: CDI ... -
Page 40: Trueshopping Powerful Heavy Duty Petrol Grass Strimmer Brush Cutter 49Cc/52Cc
Trueshopping Trueshopping Powerful Heavy Duty Petrol Grass Strimmer Brush Cutter 49cc/52cc Displacement: 2 stroke 49cc engine/ 52cc engine Power transmission method: Automatic centrifugal clutch, spiral gear 2-Cycle oil/petrol mixing ratio: 1:25 Carburettor: Diaphragm, Rotary Valve Ignition: CDI ... - Page 41 1. Designation/ function: Garden tools, gasoline powered for cutting of grass/lawn/ hedges and chainsaws 2. Type: BC260A BC1E34F BC1E36F ST-BC415B BC490 BC520 3. Serial number: xxxxxx 4. Applicable EC Directives: - Machinery Directive 2006/42/EC 5.
- Page 42 Trueshopping Caohejing Development Zone, Shanghai 200233,china Tel: 86 21 6495 6565 Fax:86 21 6495 6263 7. Date /place/Name/ Authorized Signature: 8. Title of Signatory : www.TrueShopping.co.uk Page: 42 of 42...
