Summary of Contents for Ortek WPM-900-01

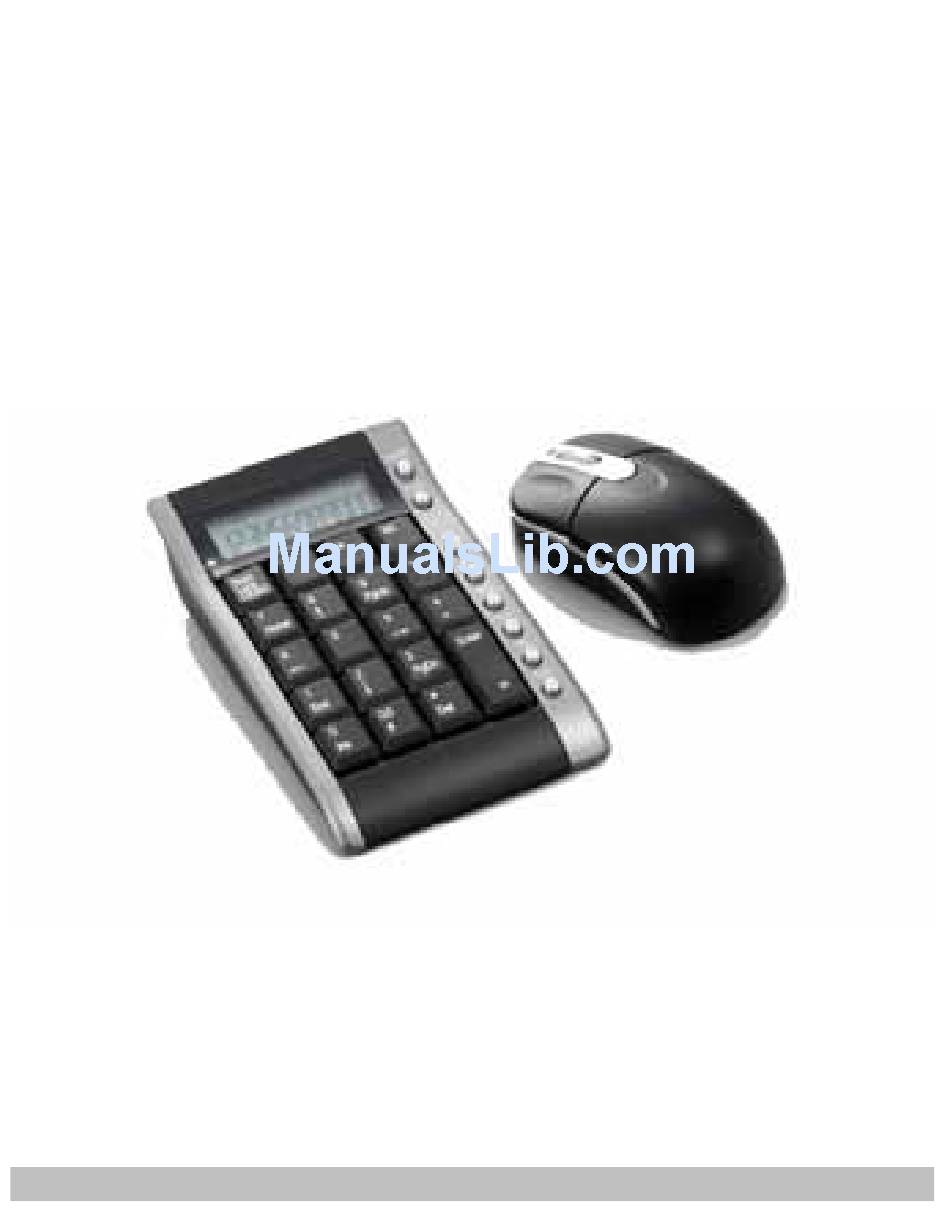

- Page 1 Wireless Calculator Keypad & Mouse Combo User’s Manual Version: 1.0 2005/11 ID NO: PAK-131PME01-00...
- Page 2 EDERAL OMMUNICATIONS OMMISSION TATEMENT Notice 1 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
- Page 3 Introduction Congratulations on your purchase of the Wireless Calculator Mobile Mini Keypad.. It makes the calculation process more easily and more convenient. System Requirements ® ® Microsoft Windows 98/Me/2000/XP and MAC OS X compatible One USB v. 1.1 or 2.0 Compliant Port Installation ®...
- Page 4 Windows 2000/XP Operating System 1. Plug the USB receiver connector to your PC. 2. The Found New Hardware Wizard appears and the OS will install the driver automatically. No other steps are necessary. You are now ready to begin using your wireless keypad MAC OS X 1.
- Page 5 ID setting Plug the receiver into your notebook’s USB port and turn on the wireless keypad. The keypad and the mouse will connect with the receiver automatically. If not, press the ID button at the back of the keypad, then the ID setting is accomplished. Repeat the same step for the mouse ID setting.
- Page 6 Switches the sign of the displayed value between positive (+) and negative (-). I. Use this key in combination with arithmetic operator keys to perform percent. II. Setting TAX rate. Change mode between the calculator and the MODE keypad status. Send the calculation result to PC when the device SEND is in calculator mode or in keypad mode.
- Page 7 Special Function: Normally, when users input numbers from a USB keypad, the notebook’s Num Lock function will be enabled as well. Users have to disable Num Lock function before inputting characters from a notebook. The enable and disable process will always showing every time when users input numbers from a keypad and it is cumbersome for all the users.
- Page 8 ‘ 3-digit separator (apostrophe) CALC Indicate you are in calculator status KEYPAD Indicate you are in keypad status Grant total Rounding Selector & Decimal Place Selector Use Tab key to rounding Selector Specified the rounding system Floating decimal point system, which displays the value without rounding.
- Page 9 Specification Keypad: Operation Force 60±15gm Weight 135 gm Total Travel 2.2 mm 27 MHz/ 1 communication channel/ 1M Operation Frequency distance alkaline Battery type 1 * AAA battery Dimension: L×W×H 135*86*30.6 mm Receiver Connector Working mode: 19mA max Suspend mode: <50 uA Power consumption Working mode: 19mA max Suspend mode: <500uA...
- Page 10 Mouse: Weight 50 gm Operation Frequency 27 MHz/ 1 communication channel/ 1M distance Battery type 2 * AAA Nickel-Metal Hydride rechargeable battery Dimension: L×W×H 88×51×31.6mm Receiver Connector Working mode:40 mA max Power consumption Suspend mode: <800 uA Resolution 800 dpi Agency Approvals FCC, CE Troubleshooting...
-
Page 11: Battery Led Status
Battery LED Status Battery Low: LED flash (0.4 sec ON, 0.4 sec OFF) Battery Power Switch: To save the power of the battery, switch On and Off the battery power switch at the back of the calculator keypad and mouse.
