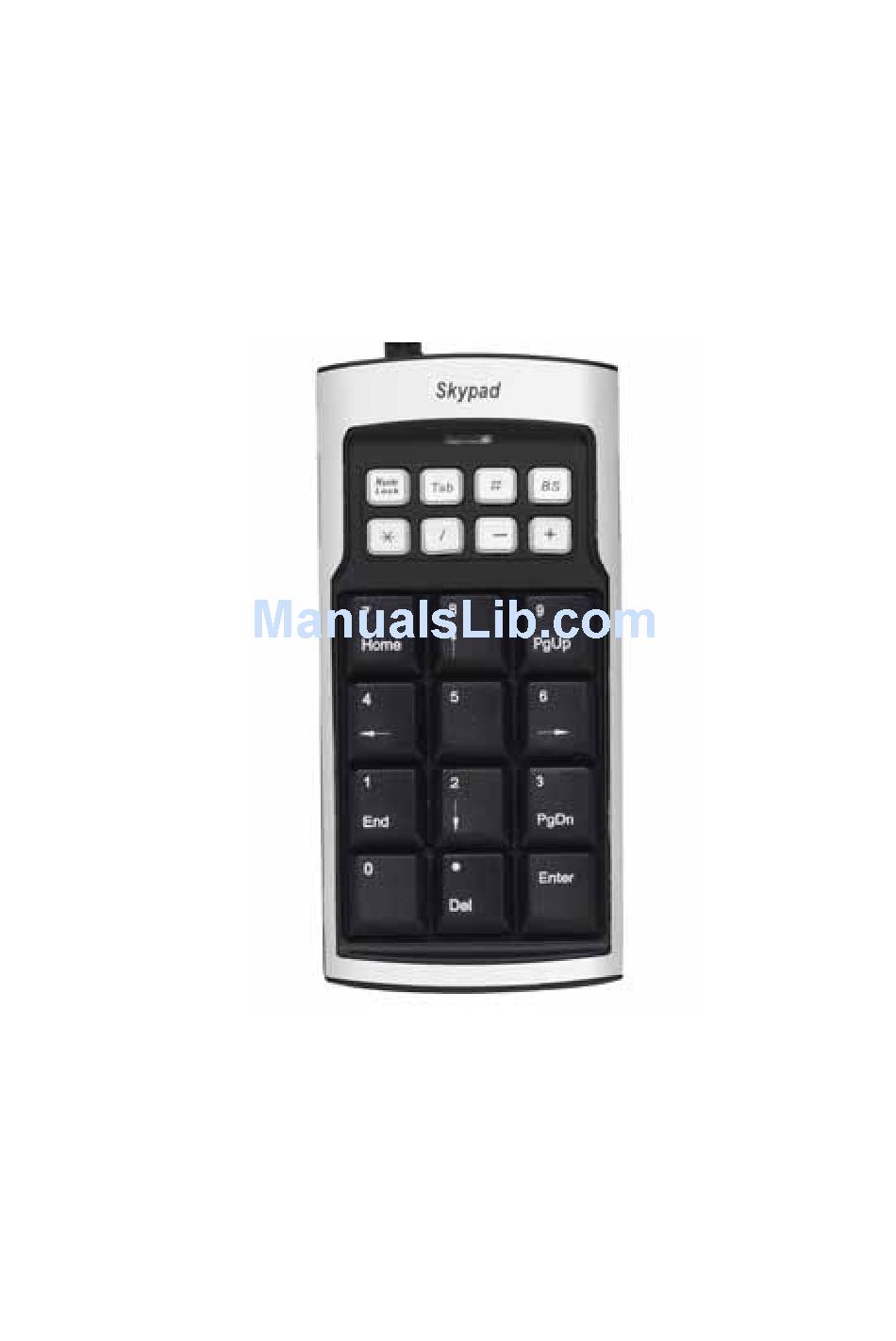

- Page 1 SKYPAD USER’S MANUAL Version 1.1 2006/07 ID NO: PAKL-131PQ301-00...
- Page 2 EDERAL OMMUNICATIONS OMMISSION TATEMENT This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 1. Scope USB Phone is a most effective and easy mode of communication. User can enjoy an Internet phone just as regular phone. So we design the dual function, combine the keypad and USB phone. It embraces the great convenience and big savings. It doesn’t need any driver; fully support plug &...
-
Page 4: System Requirements
3. System Requirements 1. PⅡ with 200 MHz CPU or better with USB interface 2. 64MB of RAM 3. Operating System: Windows 2000/XP 4. Network: LAN, ADSL, ISDN, 33.6K modem or better 4. Use of the USB Phone Run Skype Download Skype software and install it (www.skype.com), the version must be 1.0.0.106 or higher. - Page 5 After the software startup, the icon will appear to the system tray as shown below: That indicates the Skype has successfully connected to Internet. If it hasn’t connected to Internet, the icon will be shown as , now you have to check whether PC is connected to Internet successfully or not. Connect the USB phone to PC Connect the USB phone to your PC.
- Page 6 Call another Skype user (PC to PC) Add "skypemate" to Contacts Assign Speed-Dial for it, example "11" Input number and call out: Press digital "1" and "1" on the USB Phone, this number will be shown on Skype window, then press “Enter” key on USB Phone to call out.
- Page 7 Answer a call When a call in, the USB phone is ringing, press to answer the call, press to refuse the call. After answer the call, just lift the cover to start conversation. Speaker Volume control Microphone...
- Page 8 Function keys Key Location Function Description Keypad 0~9 Keyboard . Keyboard BackSpace Keyboard # Keypad * Keyboard / Keyboard - Switch “Contacts” and “Type number text” Keyboard + Enter After dialing numbers, press the “Enter” key to call out. Volume up Volume down Answer the phone Hang up...
- Page 9 Note: To enable the hotkey “S” and “ ” function, you need to set on Skype. Enable the “ ” key: 1. Run the Skype software, click the “Tools”->”Option” 2. Choose the “Hotkeys” option. 3. Click the “Enable global hotkeys” option. Choose the “Answer Call”...
-
Page 10: Electrical Specification
6. Finally, click the “Enable Hotkey” button. The “ ” hotkey will start to work. 5. Electrical Specification 1. Fully compatible with Windows 2000/XP. 2. Fully Support plug and play and hot swapping. 3. Power consumption: 52mA 4. Key switch: membrane key switch with tactile feeling. 5. - Page 11 Problem 2 There is no voice comes out when play music? Solution Please execute the “Control Panel->Sound and Video ( )->Audio”, set Sound Playback and Sound Recording’s Preferred device to your sound card, it shown as below: Problem 3 I connect the USB phone with USB hub, but it cannot work. Solution You need to connect with a self-power USB hub.
- Page 12 Problem 4 I can’t dial the extension by USB phone. Solution Because the Skype software didn’t support this function by USB phone, so you need to click the extension number onscreen.
