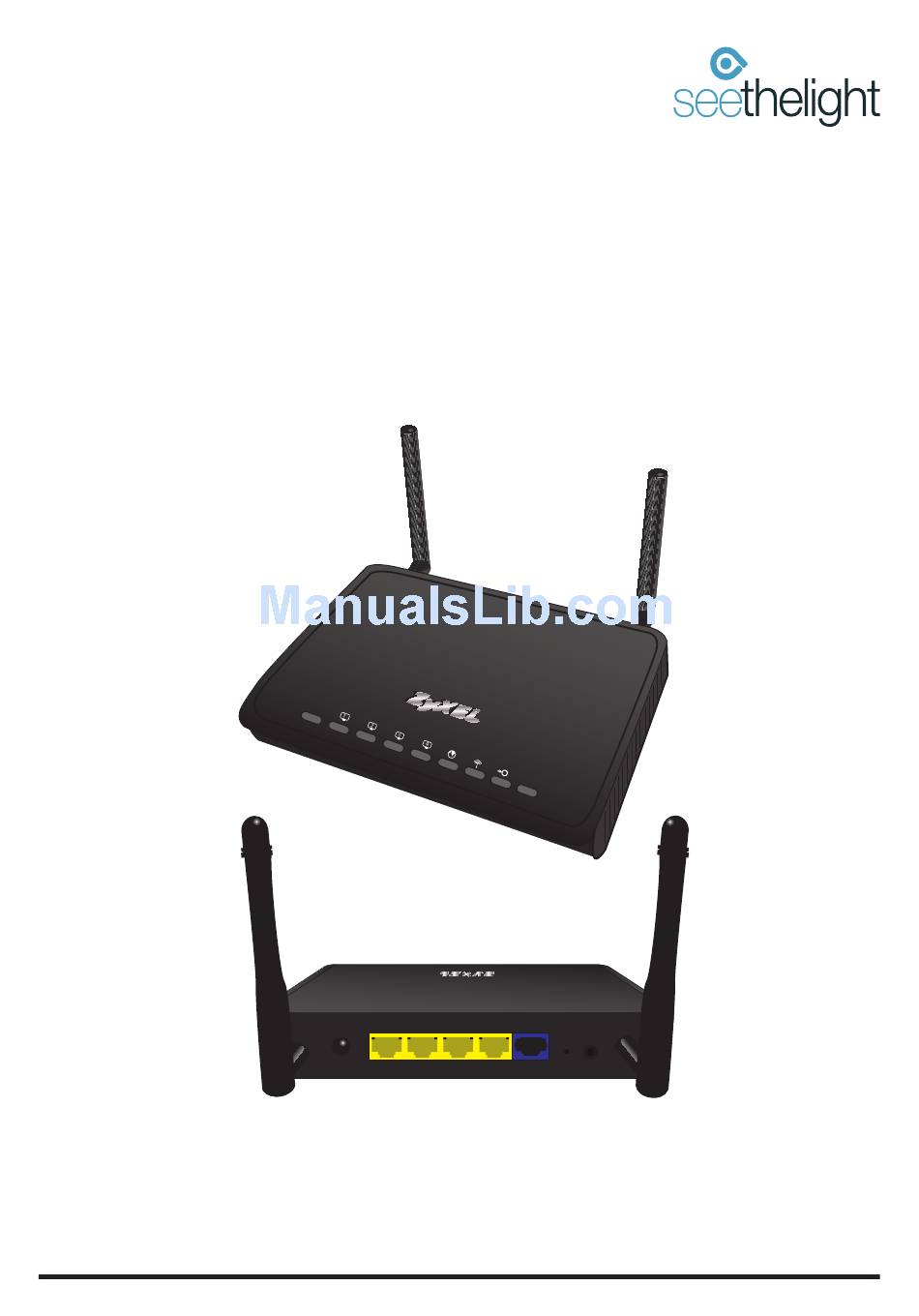

- Page 1 P O W E R L A N 4 L A N 3 L A N 2 L A N 1 R E S E T W P S WA N Internet User Guide, Zxyel NBG4604 seethelight.co.uk 02921 678 544/enquiries@seethelight.co.uk Last amended: 10/10/2014...
-
Page 2: Table Of Contents
3. About Your Router 4. Connecting to Wireless Networks 4.1 Windows Vista 4.2 Windows XP 4.3 MAC OS X-version 10.4 4.4 Windows 7 4.5 Windows 8 4.6 OSX Lion/Mountain Lion 5. Internet Troubleshooting Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 3: Introduction And Your Fibre Equipment
Back-Up Patch Panel Telephone Adaptor *Exact layout of equipment may vary. Your internal wiring is the responsibility of the house owner/landlord. To resolve an internal wiring problem please contact a qualified electrician. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... - Page 4 ONT, you can deliver services wherever they are needed in the home (for more on this see 2.3 A ‘wired’ connection using the patch panel) Telephony Master Socket and Telephone Adaptor Applicable for voice services. Please see Telephone User Guide for more information. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014...
- Page 5 No power* Green Connection OK No connection** Green Connection OK No connection** No connection** Action Check power and other cables are properly connected Check that there are no bends in the fibre connection Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014...
-
Page 6: Setting Up Your Internet Connection
Using the patch-panel, you can deliver services wherever they are needed in the home And remember: Follow these instructions closely and don’t attempt to disassemble any of your seethelight equipment Don’t turn on your power supply until you’re sure everything is connected correctly Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 7: A Wired Connection
P O W E R L A N 4 L A N 3 L A N 2 L A N 1 WA N R E S E T W P S BLUE WAN PORT Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 8: A Wired Connection Using The Patch Panel (Using Your House's Internal Wiring)
With the other end of this cable, connect to your PC/ relevant room that your Internet enabled device internet service has been through its internet port. enabled to. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... - Page 9 L A N 3 L A N 2 L A N 1 WA N R E S E T W P S BLUE WAN PORT Internal Wiring INTERNET PORT Internal Wiring INTERNET PORT Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014...
-
Page 10: About Your Router
Green The NBG4604 is receiving power and functioning properly. The NBG4604 is not receiving power. WLAN Green The NBG4604 is ready, but is not sending/receiving data through the wireless LAN. Blinking The NBG4604 is sending/receiving data through the wireless LAN. -
Page 11: Changing The Admin Password
1. Make sure your router is turned on. 2. Use a pen or paperclip to push the recessed ‘reset’ button, push and hold until the power light turns red (approx. 7 seconds). Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 12: Connecting To Wireless Networks
1. Click on the Start button and then click Connect To. 2. Now click on the network that you want to connect to (your SSID), then click Connect. 3. Now enter your network password (WPA2 PSK) then click Connect’ Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 13: Windows Xp
2. Click on the Turn AirPort On button and select the correct network (your SSID) from the Network Name list. 4. Now enter your network password (WPA2 PSK) then click OK followed by Apply. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 14: Windows 7
1. Move the mouse cursor to the upper right corner of the screen until the charms bar appears. Select ‘Settings’ and then select ‘WiFi’ . 2. Select the wireless network you wish to connect to, and click on connect. You will be asked to enter your password. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 15: Osx Lion/Mountain Lion
1. Click on the AirPort icon in your menu bar and you will be presented with a list of visible wireless networks. Select the correct Network you wish to join. 2. If the network requires a password, you will be promoted to enter it here. If it doesn’t. you should be automatically connected. Internet User Guide, Zxyel NBG4604 Last amended: 10/10/2014... -
Page 16: Internet Troubleshooting
