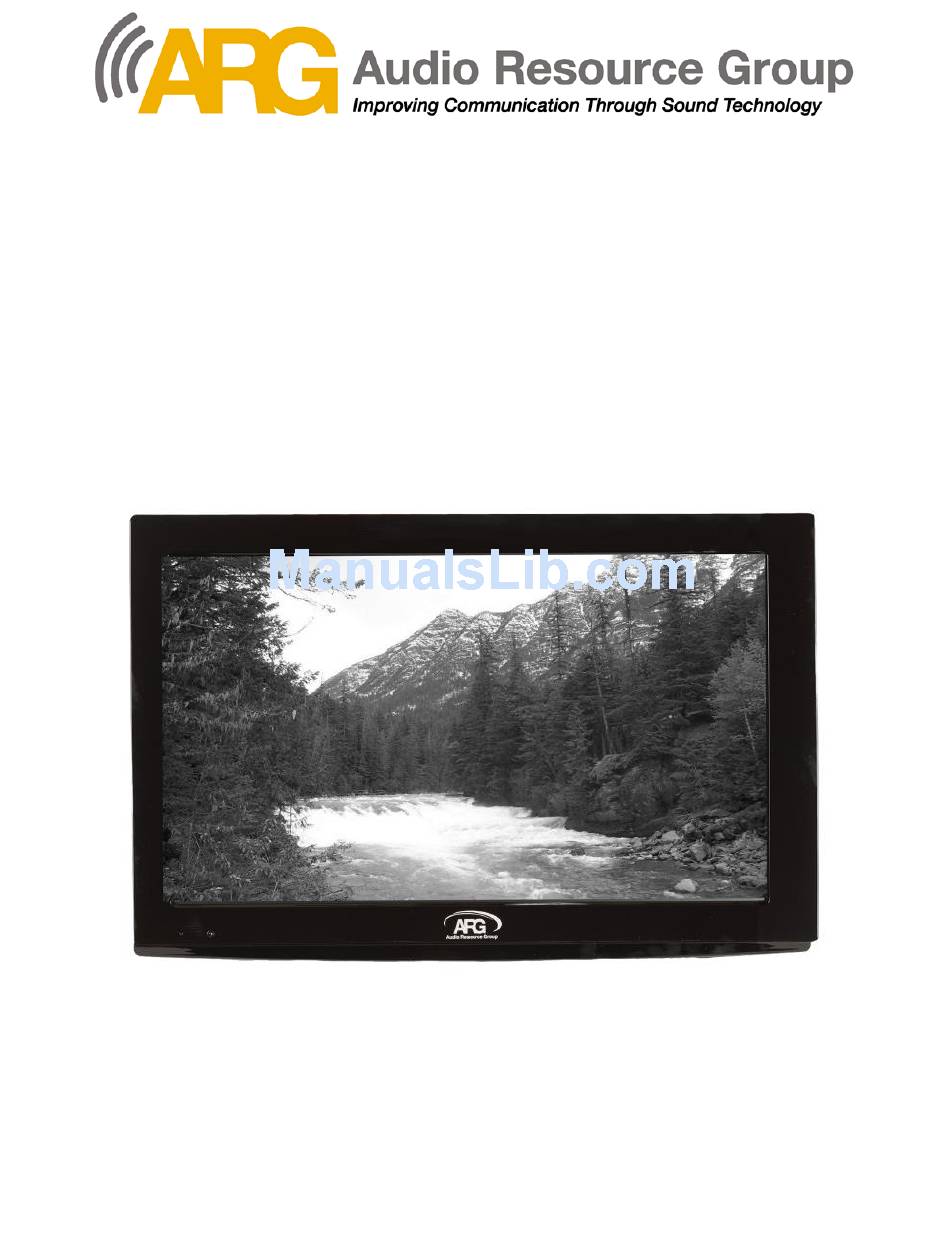

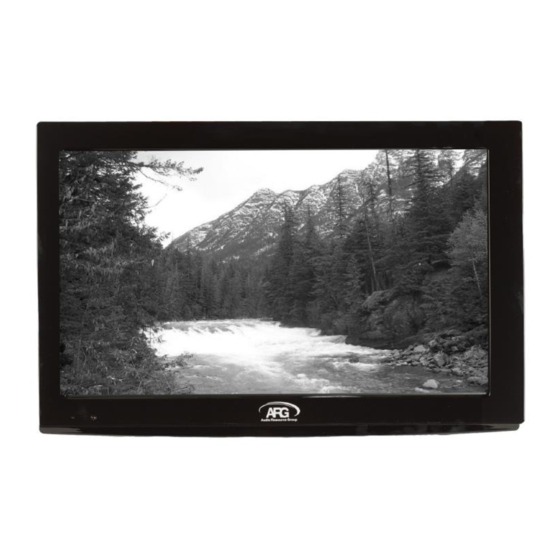

- Page 1 Fitness Entertainment Solutions Personal Viewing Screen Model: ARG-PVS15/ARG-PVS19 Manual and User Guide ARG-OM-015-2014 Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2013 Audio Resource Group, Inc. • All Rights Reserved •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Page 3 Cautions Page 4 Attaching to Stand or Mounting Bracket Page 5 Package Contents Page 5 Set-Up Instructions Page 6 Initial Channel Setup and Operation Page 8 Front View Page 10 Back View Page 11 Wired Controller Page 12... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. To ensure your safety and prolong the service life of your Personal Viewing Screen (PVS), please read the following precautions carefully before using the product. -
Page 4: Cautions
CAUTIONS Lightning Unplug the PVS from the power outlet and disconnect any antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This helps prevent property damage and personal injury from lightning and power line surges. -
Page 5: Attaching To Stand Or Mounting Bracket
Usually 8mm long screws will work; longer screws are often included with the mount or stand. If not, purchase them locally or contact ARG for replacements.) The bolt/screw mounting pattern is VESA 100 mm standard. -
Page 6: Set-Up Instructions
HDMI cable. The RCA component AV connectors are marked Y,Pb,Pr and L/R. The HDMI connector is marked with HDMI. 3. Mount and Connect the Remote Control Unit. The ARG remote control is designed to be mounted with most makes and models of cardio equipment. To mount the control unit, first slide the cable ties through the appropriate holes in the mounting bracket on the underside of the controller. - Page 7 Pull the cable ties tightly around the bar so that the controller does not rotate (figure1). Cut the ends of the ties to eliminate excess (Note: A typical treadmill installation (figure2). is shown below for reference in this manual. Equipment may differ from the one shown here and placement of the remote control unit will vary.) Figure 1 Figure 2...
-
Page 8: Initial Channel Setup And Operation
First select the signal source: Select Air or Cable Next, perform the Auto Scan. If you DO NOT perform this step, the PVS will not recognize the channels you have available; it will only show the ARG logo on the display. ... - Page 9 3. Familiarize yourself with the remote control unit. Check for proper operation of the wired remote control unit. The functions are described below: The channel up and down arrows change the channel up or down. The volume up and down arrows change the volume up or down. ...
-
Page 10: Front View
FRONT VIEW SIDE VIEW INPUT Button: Press to open the PVS Setup Menu MENU Button: Press to select the signal input: TV/Dock/HDMI/VGA Button: Press to increase volume Button: Press to decrease volume Button: Press to go to a higher channel Button: Press to go to a lower channel STANDBY: Press to turn on/off the PVS Page 10... -
Page 11: Back View
BACK VIEW # IN/OUTPUTS PURPOSE 1. USB Port Max. Charging Current is 5V @ 2A. This port functions with a media player as a charging point ONLY. Media files CANNOT be transferred or viewed by connecting to this port. 2. HDMI Input High-definition multimedia interface input receives digital audio and uncompressed digital video from an HDMI device or uncompressed digital video only from a DVI device with... -
Page 12: Wired Controller
WIRED CONTROLLER (Part Number PVSC) 1. Video Button (press to change the input source) 7. Back Button (press to go to the last viewed channel) 2. Power Button (press to turn the PVS on or off) 8. Numbers 0 to 9 (press to enter channel numbers) 3. -
Page 13: General Connections
GENERAL CONNECTIONS Connecting a Digital ATSC signal: Make sure the PVS and the external device are powered off Connect one end of a coaxial cable to the RF TUNER on the back of the PVS and then connect the other end to the satellite TV jack. ... -
Page 14: Setup/Installation Menu
SETUP/INSTALLATION MENU 1) Adjusting the Picture Press Menu button to enter PVS Setup menu. Press Volume UP or Volume DOWN button to access the Picture menu (the picture menu is denoted with the CAMERA icon as highlighted above). Press Channel UP or Channel DOWN button to highlight a setting. Then press Volume UP or Volume DOWN button to adjust the setting or open a setting menu. -
Page 15: Adjusting The Sound
Color Temp – Select Personal, Normal, Cool, or Warm Zoom Mode – Select Wide, Zoom, Cinema, or Normal Mode Noise Reduction – Select Off, Weak, Middle, Strong, or Auto Adaptive Contrast – Select On or Off Press MENU one or more times to return to or close the main menu 2) Adjusting the Sound Press Menu button to enter PVS Setup menu. -
Page 16: Main Setup Menu
Press Channel UP or Channel DOWN button to highlight a setting. Then press Volume UP or Volume DOWN button to adjust the setting or open a setting menu. If another menu opens, press Volume UP or Volume DOWN button to adjust the setting. You can select: Sound Mode –... -
Page 17: Time Setting
b. Time Setting Press Menu button to enter PVS Setup menu. Press Volume UP or Volume DOWN button to access the Main Setup menu. Press Channel UP or Channel DOWN button to highlight Time menu, then press Volume UP or Volume DOWN button to enter into Submenu. Press Channel UP or Channel Down, Volume UP or Volume Down buttons to adjust the setting. -
Page 18: Menu Setting
Press Menu button to enter PVS Setup menu Press Volume UP or Volume DOWN button to access the Main Setup Menu Press Channel UP or Channel DOWN button to highlight Closed Caption menu, then press Volume UP or Volume DOWN button to enter into Submenu Press Channel UP or Channel Down, Volume UP or Volume Down buttons to adjust the setting. -
Page 19: Restore Default
e. Restore Default Press Menu button to enter PVS Setup menu Press Volume UP or Volume DOWN button to access the Main Setup menu Press Channel UP or Channel DOWN button to highlight Restore Default menu and then press Volume UP or Volume DOWN button to enter into Submenu. Display shows, “Are You Sure?”... -
Page 20: Maintenance
Air/Cable – Select Air or Cable Options: Auto Scan – Select Yes or No and press Enter to confirm Favorite – Select your favorite mode and channel number, channel name, and the favorite menu item and press Enter to set Show/Hide –... -
Page 21: Product Specifications
PRODUCT SPECIFICATIONS ITEM DESCRIPTION 15.6” / 18.5” TFT- Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system Panel Max. Resolution 1366 * 768 Contrast Ratio 500:1 Video System NTSC TV(analog) Sound System M, N Receive Channels Air: 2-69;... -
Page 22: Troubleshooting
Check the volume level and mute setting. Replace the headphone jack on the controller. Please contact your dealer or ARG for replacement headphone jack modules. These jacks are designed to be easily replaced. PVS does not Respond to the Commands Operated from the Controller: The PVS and the controller did not synchronize properly. -
Page 23: Warranty
The warranty periods commence on the invoice dates of the original purchase. This warranty applies only against defects discovered within the warranty period and notification to ARG must be given within 30 days after the date of discover of any nonconformity. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only.
