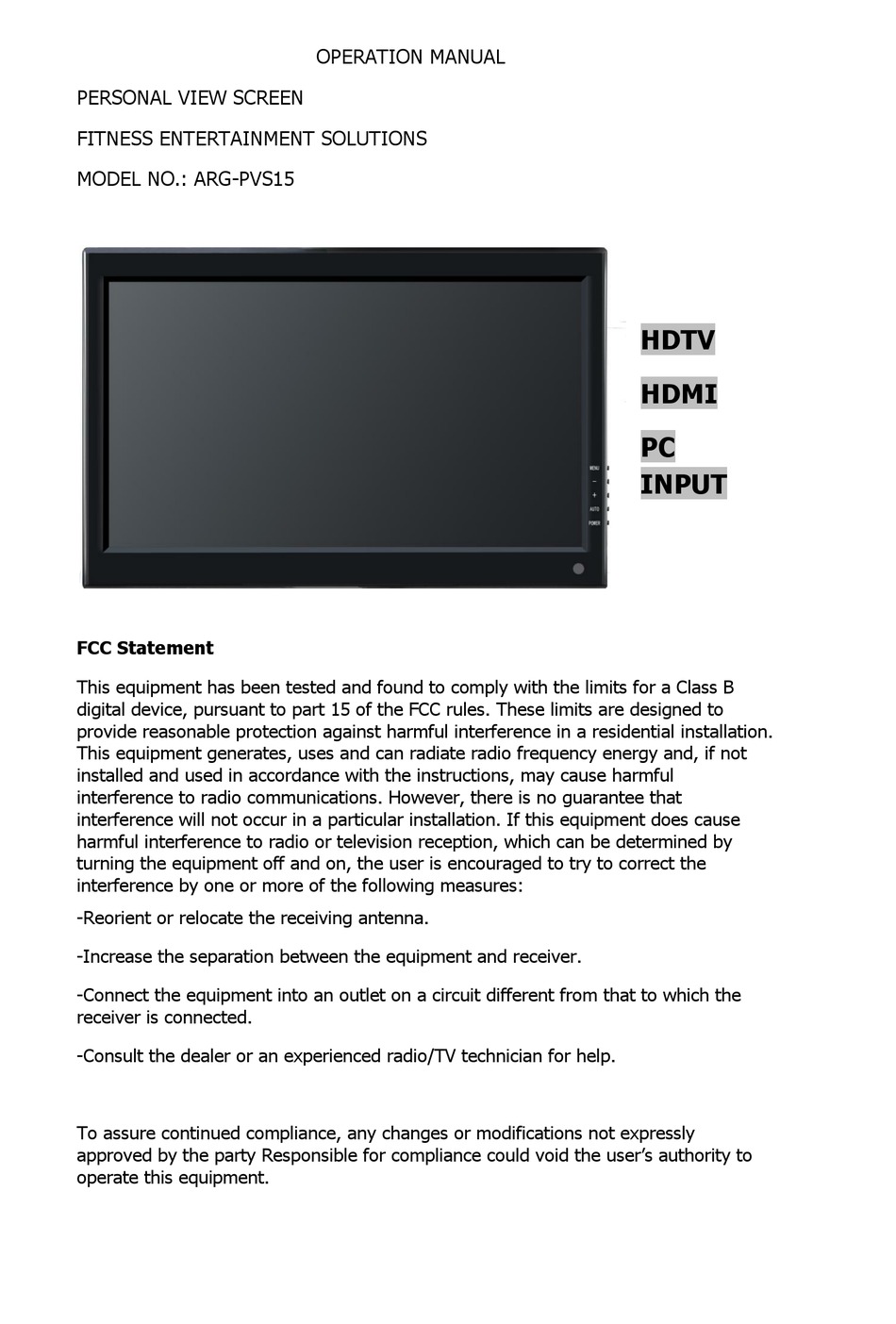

PERSONAL VIEW SCREEN
FITNESS ENTERTAINMENT SOLUTIONS
MODEL NO.: ARG-PVS15
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party
To assure continued compliance, any changes or modifications not expressly
responsible for compliance could void the user's authority to operate this equipment.
approved by the party Responsible for compliance could void the user's authority to
operate this equipment.
OPERATION MANUAL
HDTV
HDMI
PC
INPUT
