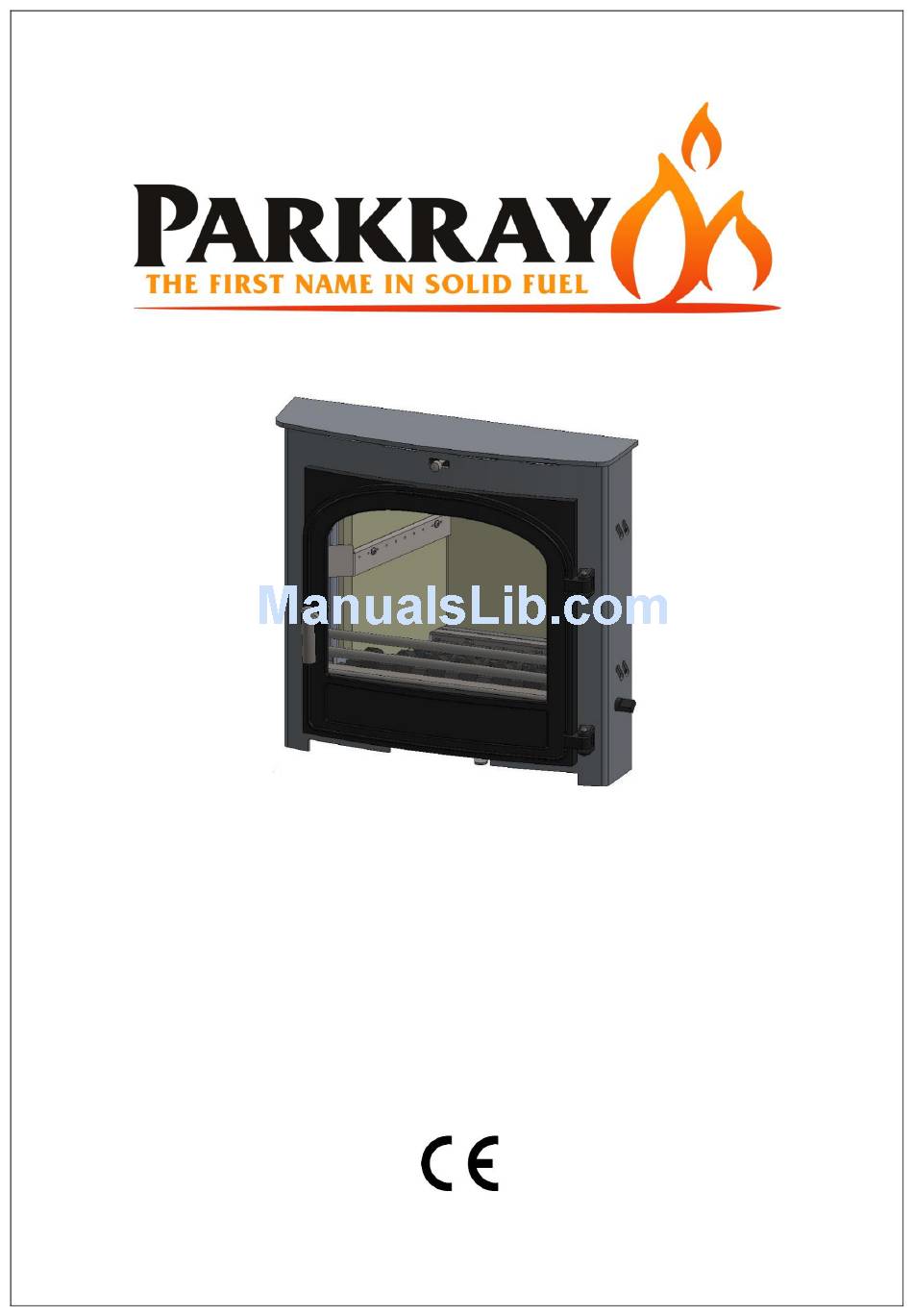

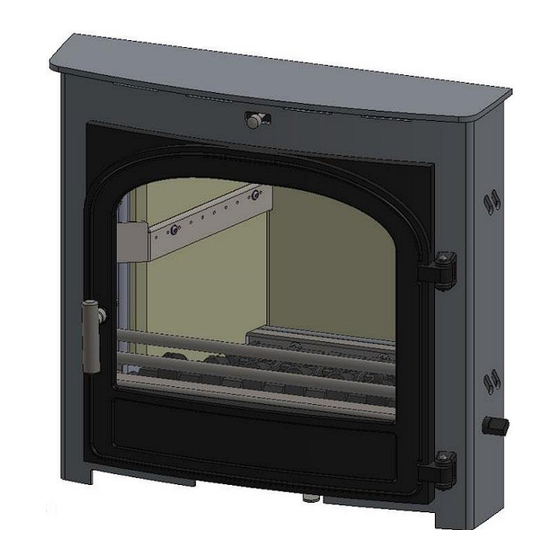

Chevin Inset 5 MKII
Model: CVSCHI05FM
Instructions for:
Installation/Operation/Maintenance/Servicing
Approved for use in the United Kingdom and the Republic of Ireland
1
JINCHI05 REV E. 11/11/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chevin Inset 5 MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Parkray Chevin Inset 5 MKII

  • Page 1 Chevin Inset 5 MKII Model: CVSCHI05FM Instructions for: Installation/Operation/Maintenance/Servicing Approved for use in the United Kingdom and the Republic of Ireland JINCHI05 REV E. 11/11/2014...
  • Page 2: Table Of Contents

    Email info@hunterstoves.co.uuk Website http://www.hunterstoves.co.uk Parkray Stoves will also support an extended 5 year warranty on external Cast Iron components ARRANTY such as Doors, Flue Collars and Covers. Parkray Stoves appliances come with a standard 2 If this appliance is purchased through an un-...
  • Page 3: Important Information

    It is important that your stove is correctly installed Extractor Fans and/or Cooker Hoods must not be and operated as Parkray Stoves cannot accept installed in the same space or room as this can responsibility for any fault arising through cause the appliance to emit fumes into the room.
  • Page 4 ARBON ONOXIDE ETECTOR ROOM AS THIS APPLIANCE. Parkray Stoves recommend a Carbon Monoxide Detector that conforms to the latest issue of BS EN EROSOLS 50292 is placed in the same room as the appliance. Do not use an aerosol spray on or near the stove The installation of such an alarm is not considered when it is alight.
  • Page 5: User Instructions

    USER INSTRUCTIONS Please Read the ‘General Guidance’ Section at the start of these instructions before operating your stove for the first time. Allow sufficient clearance between the stove and pictures, plasma screen televisions or ornaments etc., as these could be damaged and could potentially create a fire hazard (For more information read the ‘Material Clearance’...
  • Page 6 ULTIFUEL RATE IGHTING THE PPLIANCE Your Parkray Stove is fitted with a locomotive First, load the fire with starting fuel, i.e. paper, dry sticks and/or firelighters in the mode chosen, type grate. So that de-ashing can be carried out either wood or solid mineral fuel. Light the fire at cleanly and easily, it is riddled from the outside the base leaving all air controls open.
  • Page 7 de-ash before refuelling and do not let the ash level adding larger pieces of firewood. Do not add reach the underside of the grate bars. firewood above the level of the tertiary air inlets on Solid mineral fuel produces ash, which if allowed to the sides of the stove.
  • Page 8 1993 LEAN AND SMOKE CONTROL REAS Under the Clean Air Act 1993 local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area.
  • Page 9: Techincal Specification

    TECHNICAL SPECIFICATION: Chevin Inset 5 MKII CHEVIN INSET 5 MKII Parkray Stoves, Emperor Way, Exeter Business Park, Exeter, Devon. EX1 3QS BS/EN 13229 UKAS# 0692 Stove Mass: 100 kg NOMINAL OUTPUT: 4.9 KW CO Emission at 13% O : 0.19% Mean Flue Gas Temperature: 292°C...
  • Page 10: Pre Installation Requirments

    Dealer/Stockist Building Regulations Document J. Any connecting or Installation Engineer. flue pipe systems must also meet these regulations. Parkray Stoves cannot be held responsible for any fault arising through incorrect use or installation. JINCHI05 REV E. 11/11/2014...
  • Page 11: Installation Instructions

    INSTALLATION INSTRUCTIONS that obtained following the guidance given in EGAL EQUIREMENTS Parkray Stoves requests that before installation Approved Document J. and/or use of this appliance that you read these instructions carefully to ensure that all the relevant Your local Building Control Officer can advise you requirements are fully understood.
  • Page 12 OMPETENT ERSONS CHEME Members of the following schemes may self-certify the installation of this stove. If the installer is not a member of one of these schemes, your local Building Control Department must approve the installation. Scheme Web address Telephone APHC (Association of Plumbing and Heating Contractors (Certification) www.aphc.co.uk...
  • Page 13 Remove the grate bars by lifting them away IREPLACE IMENSIONS (Fire surround and side wall shown are combustible from the cam bar and pulling forward out of and all dimensions stated are minimum) the rear grate support. The singular bars should be removed first, noting their positions (low or high), leaving the two static triangular bars in place.
  • Page 14 6. Pull the Baffle forward and to the left hand 9. You can now remove the Side Riddling Bars. side, allowing the right hand edge of the Baffle to drop down into the stove, and remove. You can now remove the Upper Rear Brick. 7.
  • Page 15: Installing The Stove

    12. Slide the cam to the left until the right hand 13. Remove the ash barrier by sliding out of the side is clear of the hole, then raise one side stove. and swing out through the door opening. INSTALLING THE STOVE 1.
  • Page 16: Commissioning And Handover

    Parkray Stoves also recommend that a CO alarm is If any of these tests fail, please re-check the fitted into the room where the appliance is suitability of the chimney/flue system together located.
  • Page 17: Maintenance & Servicing

    Check the 12mm rope around the door. If rope is clean whilst the stove is hot; wait until it has becoming detached, use Parkray Stoves rope glue cooled down. . At no point should any water to reattach it. If the rope is in a poor condition, a...
  • Page 18 NNUAL ERVICE Parkray Stoves recommend that this appliance is water leaking from the appliance. serviced annually, preferably prior to the start of Please consult with your installer if you are...
  • Page 19: Spares & Stove Care

    SPARES AND STOVE CARE Single Door Assembly Single Door (HCE09008) Door Handle Assembly (TDI05ARRT011MB) Rope Sealing Kit (SCPCB900SDRSK-REVC) Single Door Glass (HCE09102) Single Door Gasket (HCE09101) Glass Clip (HHR08146) Glass Clip Screw (FSJM05008SS) JINCHI05 REV E. 11/11/2014...
  • Page 20 Left Hand Door Assembly Left Hand Door (TDI05008) Glass Clip (HHR08046) Glass Clip Screw (FSJM05008SS) Double Door Glass (HCE09031) Double Door Gasket (HCE09030) Door Handle Assembly Door Handle Boss (AVI05010MB) Door Handle, Stainless (AVA08020MB) Hex. Screw (FSHM08050) Rope Sealing Kit (SCPCB900DDRSK) Right Hand Door Assembly Right Hand Door (HCE09009)
  • Page 21 Body Assembly Components Secondary Air Control Support Plate (HCN05050) Slider Plate (HH06086) Gasket (HH06088) Top Air Deflector Slider Shaft (HCN05016) Single Door: (HCN05ARRT023) Slider Knob (HCE06059S) Double Door: (HCN05ARRT024) Baffle (HCN05022) Upper Side Brick (HCN05073 A&B) Upper Rear Brick (HCN05072) Door Hinge: (HH06050) Hinge Pin:...
  • Page 22: Commissioning & Installation Checklist

    COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:...
  • Page 23: Service Records

    SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer...
  • Page 24 JINCHI05 REV E. 11/11/2014...
