Goodmans GCR01 User Manual

Goodmans GCR01 User Manual

Pll fm alarm clock radio
Hide thumbs Also See for GCR01:
Table of Contents

Advertisement

Quick Links

LED CLOCK
RADIO
MODEL : GCR01
PLL FM ALARM CLOCK RADIO
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCR01 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GCR01

Summary of Contents for Goodmans GCR01

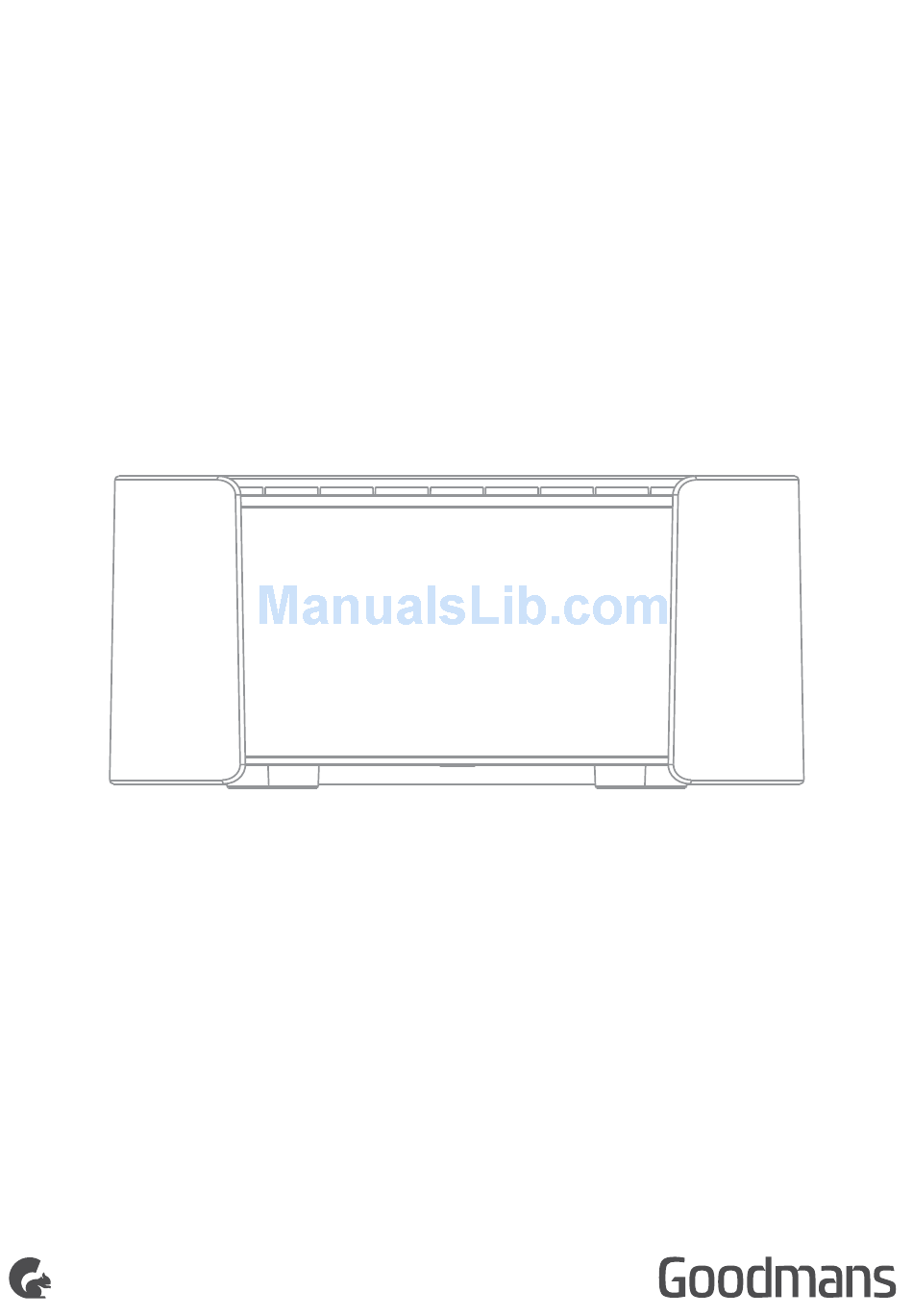

  • Page 1 LED CLOCK RADIO MODEL : GCR01 PLL FM ALARM CLOCK RADIO USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LOCATION OF CONTROLS UNIT POWER SUPPLY CLOCK SETTING ALARM 1 SETTING ALARM 2 SETTING SNOOZE FUNCTION SLEEP FUNCTION LISTENING TO THE RADIO PRESET TUNING MEMORY CALL TROUBLESHOOTING TECHNICAL SPECIFICATIONS CUSTOMER SUPPORT...

  • Page 3: Location Of Controls

    LOCATION OF CONTROLS TIME SET / PRESET Press to set time or to listen to preset stations. C D E F G H MEM BUTTON save the current frequency. HOUR / VOL- BUTTON Press to set the Hour/to lower the volume.

  • Page 4: Unit Power Supply

    UNIT POWER SUPPLY Unit power supply (mains 230V/50Hz) Connect the power cable plug to the (230V) wall outlet. Warning: • Before using the unit, check that the local mains supply is compatible with the unit 230V (50Hz). • Do not plug or unplug the power cable when your hands wet. •...

  • Page 5: Alarm 1 Setting

    2. ALARM 1 SETTING In standby mode 1. Press and hold AL-1/PREV button to make AL-1 LED indicator & time begin to flash. 2. Press HOUR/VOL- button or MIN/VOL+ button respectively to set the correct time and press AL-1/PREV button , then press AL-OFF/AL-S button to choose the alarm sound (FM/AM/buzzer), then press AL-1/PREV button...

  • Page 6: Snooze Function

    4. SNOOZE FUNCTION The alarm can be temporarily turned off manually by pushing the unit down; the alarm will turn back on 9 min later automatically. This feature can be repeated endlessly. 5. SLEEP FUNCTION In Power on mode, press SLEEP button to activate the sleep function, press the button repeatedly to set the sleep timer.
  • Page 7 7. PRESET SAVING 1. Tune to your desired station to the normal tuning procedure. 2. Press MEM button and the station will be stored in the next available preset. (P01 to P20) 2222222 TIME SET / MEM ORY VOL+/H VOL-/M SLEEP TUNE+ / TUNE- /...

  • Page 8: Troubleshooting

    Troubleshooting Problem What to do Check that the volume is not set to the minimum. There is no sound from my radio Make sure that the radio has been able to locate FM stations. As with any radio service, there will be areas of weak signal that may cause poor reception.

  • Page 9: Technical Specification

    Technical Specification Model Number GCR01 230V AC ~ 50 Hz Power Supply Adaptor: DC 6V, 250mA Speaker Output Power RMS 1W Frequency Range FM: 88-108MHz LED Display 4x Seven Segment Display Max Power Consumption Dimensions 170mm (L) x 68.6mm (W) x 79mm (H)

Table of Contents
