NETGEAR R6250 Installation Manual

NETGEAR R6250 Installation Manual

Ac1600 smart wifi router
Hide thumbs Also See for R6250:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks
and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the
United States and/or other countries. Information is subject to change without
notice. © NETGEAR, Inc. All rights reserved.
Compliance
For the current EU Declarations of Conformity, visit:
http://support.netgear.com/app/answers/detail/a_id/11621/.
For regulatory compliance information, visit
http://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134 USA
August 2014
AC1600 Smart WiFi Router
Model R6250

Installation Guide

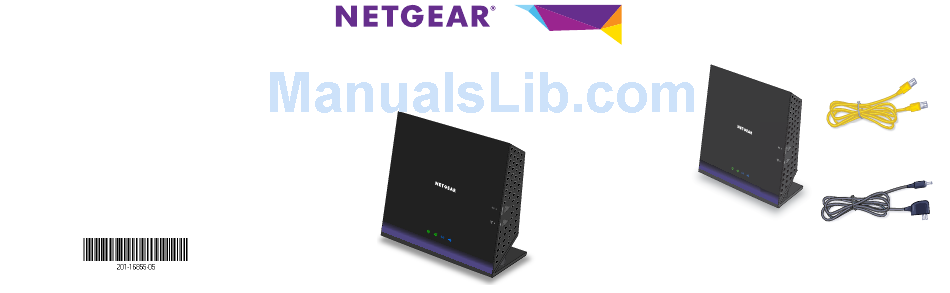

Package Contents

The box contains the following items. If any items are incorrect,
missing, or damaged, contact your NETGEAR dealer.
Ethernet cable

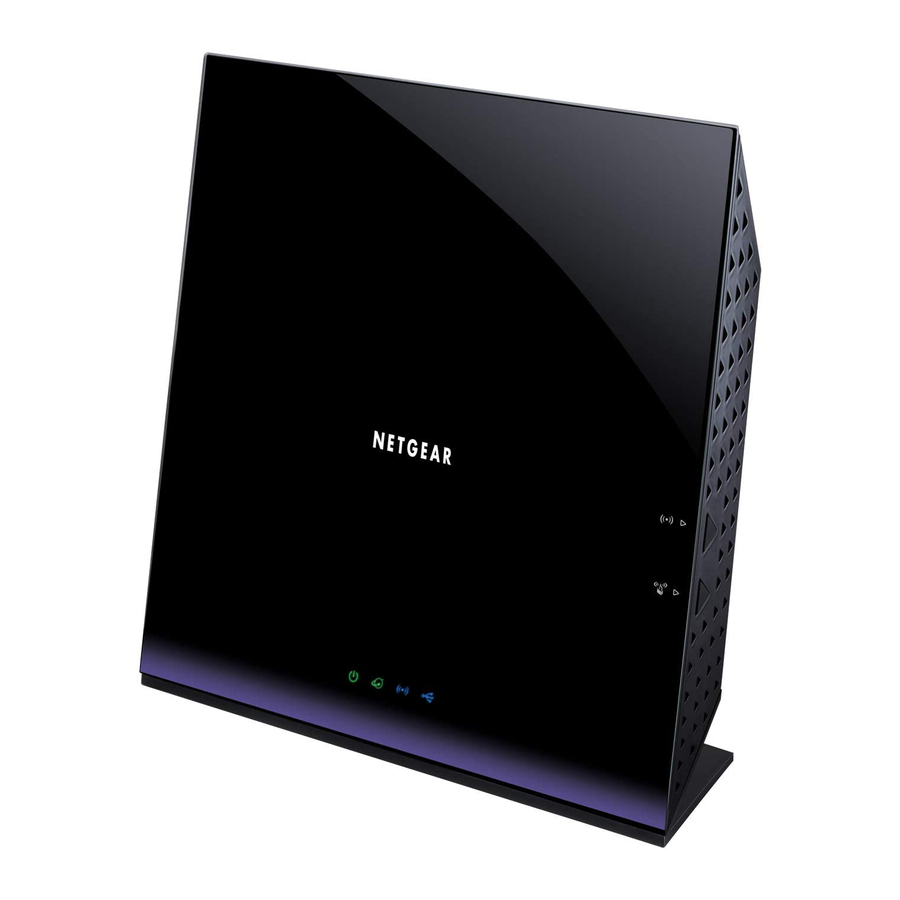

R6250 WiFi Router
Power adapter
In some regions, a resource CD is included in the package.

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR R6250

Summary of Contents for NETGEAR R6250

  • Page 1: Package Contents

    Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without The box contains the following items. If any items are incorrect, notice.

  • Page 2: Connect A Computer

    4. Connect a computer. 2. Connect your modem. 3. Power on the router. https://my.netgear.com. You must register your product before you can use NETGEAR Plug in your modem. Put the battery Wait for the WiFi LED to light. You can use an Ethernet cable or telephone support.

  • Page 3: Table Of Contents

    Personal FTP Server ........14 NETGEAR genie App ........14...

  • Page 4: Install Your Router

    Install Your Router Make sure that your Internet service is active before you install the router.  To install your router: 1. Prepare your modem. DSL or cable a. Unplug your modem’s power. b. If the modem has a battery backup, remove its batteries.
  • Page 5 2. Connect your modem. Router Modem a. Plug in, then turn on your modem. (Replace the batteries if you removed them previously.) b. With the yellow Ethernet cable that came with the router, connect your modem to the Internet port of your router.
  • Page 6 3. Add power to the router. On/Off a. Connect the power adapter to the router, and plug the power adapter into an outlet. b. Wait for the WiFi LED on the front panel to light. If no LEDs are lit, press the Power On/Off button on the rear panel of the router.
  • Page 7 4. Connect a computer. You can use an Ethernet cable or connect wirelessly: • For a wired connection, use an Ethernet cable (not included) to connect your computer to a black Ethernet LAN port on your router. • To connect wirelessly, use the preset wireless security settings on the router label.

  • Page 8: Wifi Network And Security

    If NETGEAR genie still does not display, try the following: • Make sure that the computer is connected to one of the four LAN Ethernet ports, or wirelessly to the router. • Make sure that the router has full power and that its Power is lit.
  • Page 9 NETGEAR recommends that you do not change the preset WiFi SSID or password. If you do change the settings, the SSID and password on the label no longer apply. Record the preset WiFi settings on the label in the space here for easy reference.

  • Page 10: Join The Wifi Network

    Join the WiFi Network You can use either the Wi-Fi Protected Setup (WPS) method or the manual method to join your WiFi network.  To join the network using WPS: Press the WPS button on the router. Within two minutes, press the WPS button on your wireless computer or device, or follow the WPS instructions that came with your wireless device to complete the WPS process.

  • Page 11: Access The Router To Make More Changes

    Access the Router to Make More Changes After you use NETGEAR genie to set up the router, you can log in to the router to view or change its settings. Log In to the Router  To log in to the router: Launch a web browser from a computer or wireless device that is connected to the router.

  • Page 12: Recover A Forgotten Admin Password

    Select the Enable Password Recovery check box. Click the Apply button. When prompted, answer questions. The answers are saved. Recover a Forgotten Admin Password The default password for the admin user name is password. If you changed the password and used the password recovery feature, you can retrieve this password.

  • Page 13: Readyshare Access

    ReadySHARE Access You can connect a USB storage device or printer to the USB port on the router and share it on the network. To access the USB drive from a Windows computer  Insert your USB storage drive into the USB port on the router. If your USB drive has a power supply, you must use it when you connect the USB drive to the router.

  • Page 14: Readyshare Vault Backup App

    Connect a USB HDD to a USB port on the router. For best performance, connect a USB 3.0 HDD to the USB 3.0 port on the router. Install the genie app on each Windows computer. Download ReadySHARE Vault from www.netgear.com/readyshare and install it on each Windows computer.

  • Page 15: Readyshare Printer

    Visit www.netgear.com/readyshare and download and install the NETGEAR USB Control Center utility on each computer that will share the printer. For ReadySHARE Printer setup, follow the Easy to Set-Up Instructions available online just above the download links.

  • Page 16: Personal Ftp Server

    Select the FTP (via Internet) check box. Click the Apply button. From the ADVANCED tab, select Advanced Settings > Dynamic DNS and select NETGEAR as the service provider. For more information about this features, see the user manual, available online at http://downloadcenter.netgear.com...
