Summary of Contents for Northern NVR4POE

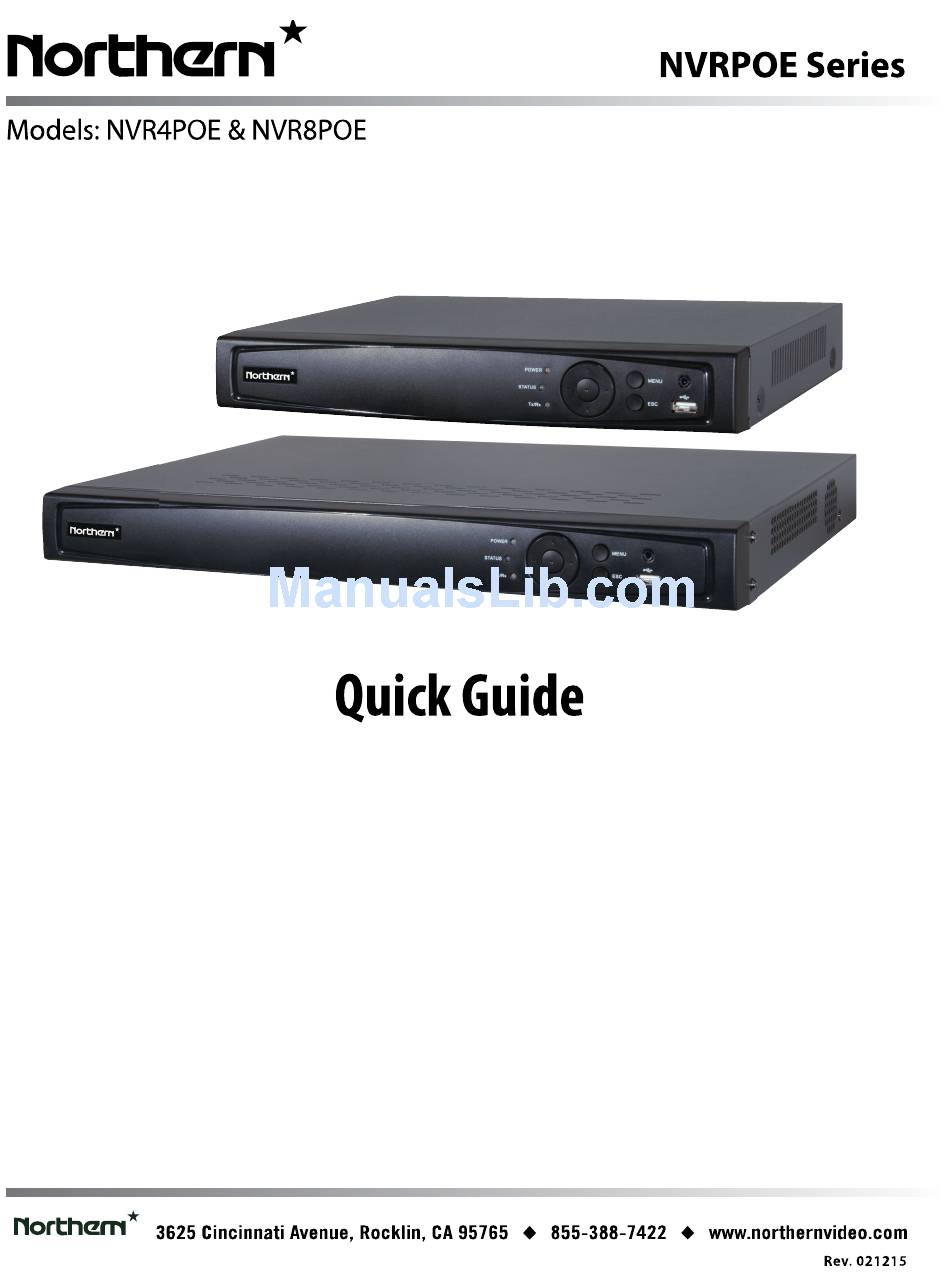

- Page 2 NVR4POE / NVR8POE Quick Operation Guide...
-
Page 3: Table Of Contents
Peripheral Connections ........................... 5 Wiring of Alarm Output ..........................5 Using of Alarm Connectors ........................6 Specifications ..............................7 Specifications of NVR4POE and NVR8POE ..................7 HDD Storage Calculation Chart ........................8 Setting up Admin Password ..........................9 Login and Logout ............................. 9 Accessing by Web Browser .......................... -
Page 4: Trademarks And Registered Trademarks
NVR4POE / NVR8POE Quick Operation Guide Regulatory information FCC information This equipment has been tested and found to comply with the limits for a digital device, pursuant compliance: to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Nvr Pre-Installation
NVR4POE / NVR8POE Quick Operation Guide • VGA is the trademark of IBM. • UPnPTM is a certification mark of the UPnPTM Implementers Corporation. • Other names of companies and product contained in this manual may be trademarks or registered trademarks of their respective owners. -
Page 6: Rear Panel
Rear Panel NVR4POE / NVR8POE NVR4POE NVR8POE Item Description Power Supply 48V DC power supply for NVR4POE and AC 100~240V for NVR8POE. Audio In RCA connector for audio input. HDMI Interface HDMI video output connector. LAN Network Interface 1 10 /100 /1000 Mbps self-adaptive Ethernet interface Audio Out RCA connector for audio output. -
Page 7: Using Of Alarm Connectors
NVR4POE / NVR8POE Quick Operation Guide For DC load, the jumpers can be used within the limit of 12V/1A safely. To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the NVR). -
Page 8: Specifications
NVR4POE / NVR8POE Quick Operation Guide Specifications Specifications of NVR4POE and NVR8POE Model NVR4POE NVR8POE IP video input 4-ch 8-ch Video/Audio Two-way audio input 1-ch, RCA (2.0 Vp-p, 1k ) input 40Mbps 80Mbps Incoming bandwidth Network Outgoing bandwidth 80Mbps Remote connection... -
Page 9: Hdd Storage Calculation Chart
NVR4POE / NVR8POE Quick Operation Guide HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K... -
Page 10: Setting Up Admin Password
NVR4POE / NVR8POE Quick Operation Guide Setting up Admin Password Purpose: For first-time access, you will need to activate the device by setting an admin password. No operation is allowed before this activation process. You can also activate the device via Web Browser, SADP or Client Software. -
Page 11: Accessing By Web Browser
NVR4POE / NVR8POE Quick Operation Guide The device will be locked for 60 seconds if the admin user performs 7 failed password attempts (5 attempts for the guest/operator). User Logout Purpose: After logging out, the monitor returns to live view mode for any menu operations, you will need to enter user name and password to log in again. - Page 12 NVR4POE / NVR8POE Quick Operation Guide Steps: Open web browser, input the IP address of the device and then press Enter. Login to the device. If the device has not been activated, you need to activate the device first before login.
-
Page 13: Live View
NVR4POE / NVR8POE Quick Operation Guide Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Internet Explorer 11.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above. When you log in for the first time, the system will remind you to install the Plug-in control. After the installation, you can configure and manage the device remotely. -
Page 14: Recording
NVR4POE / NVR8POE Quick Operation Guide You can click the button on the toolbar to start the live view of all cameras on the device list. Refer to the following table for the description of buttons on the live view window:... -
Page 15: Playback
NVR4POE / NVR8POE Quick Operation Guide Configure All Day or Customize Record: If you want to configure the all-day recording, please check the All Day checkbox. If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time. -
Page 16: Log
NVR4POE / NVR8POE Quick Operation Guide Playback Window Displays the image of channel. Play Control Bar Play control operations are supported. Time Line Displays the time bar and the records marked with different colors. Playback Status Displays the playback status, including channel number and playback speed. -
Page 17: Configuration
Rules – Enable or Disable Rules (this section requires rules be set up on individual cameras first – for setting up rules please refer to the Northern IP camera Manual). The following section is for setting up the file paths where you would like Record Files, Snapshots in... - Page 18 NVR4POE / NVR8POE Quick Operation Guide Live/Playback, Clips and Downloaded files to record to. Each option provides a browse button which can be clicked on to select a file path directory. Save Record Files to: Save Snapshots in Live View to:...
-
Page 19: Menu Operation
2. After connecting the power supply (NVR4POE) or power cord (NVR8POE) to the NVR, flip the power switch to the “ON” position represented by a (•) on the NVR4POE and a () on the NVR8POE 3. The Power LED should turn green and the unit will begin to start. After the device starting up, the wizard will guide you through the initial settings, including modifying password, date and time settings, network settings, HDD initializing, and recording. -
Page 20: Live View
NVR4POE / NVR8POE Quick Operation Guide To shut down the NVR: Steps: 1. Enter the Shutdown menu. Menu > Shutdown 2. Select the Shutdown button. 3. Click the Yes button. 4. Turn off the power switch on the rear panel when the attention pops up. - Page 21 NVR4POE / NVR8POE Quick Operation Guide 1. Right-click the mouse when in the live view mode to show the right-click menu. 2. Select Add IP Camera in the pop-up menu to enter the IP Camera Management interface. The online cameras with same network segment will be displayed in the camera list. Click the button to add the camera.
-
Page 22: Recording
NVR4POE / NVR8POE Quick Operation Guide You can edit the IP address, protocol, management port, and other information of the IP camera to be added. Click Add to add the camera. (For the encoders with multiple channels only) check the checkbox of Channel No. -
Page 23: All-Day Recording
NVR4POE / NVR8POE Quick Operation Guide All-day Recording Steps: 1. On the live view window, right lick the window and move the cursor to the Start Recording option, and select Continuous Record or Motion Detection Record on your demand. 2. And click the Yes button in the popup Attention message box to confirm the settings. -
Page 24: Backup
NVR4POE / NVR8POE Quick Operation Guide Under multi-screen live view, record files of the selected channel will be played back. Pressing numerical buttons will switch playback to related channels during playback process. 2. Playback management. The toolbar in the bottom part of Playback interface can be used to control playing process. - Page 25 NVR4POE / NVR8POE Quick Operation Guide 3. Check backup result. Choose the recording file in Export interface and click button to check it.
