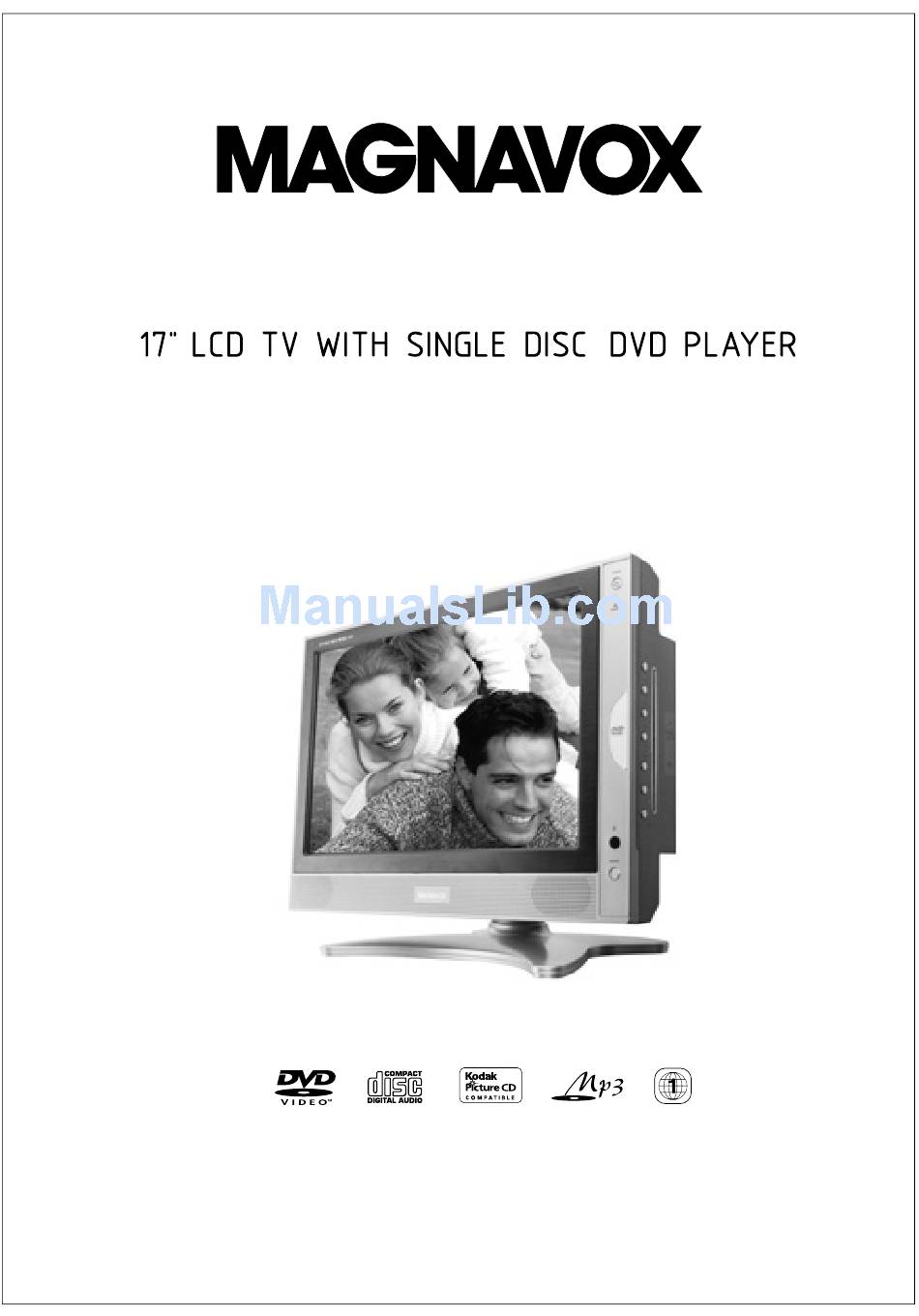

- Page 1 17MD250V...
-
Page 2: Table Of Contents
Table of Contents (For TV Tuner) Important Information Important Safety Precautions Supplied Accessories Preparation Inserting batteries into the remote control ● Using the remote control unit ● Cautions regarding remote control unit ● Functional Overview Front view ● Rear view ●... - Page 3 Table of Contents (For DVD Player) Basic Operations Play discs ● Pause ● ● Volume control ● DVD menu play ● Select with number buttons ● Play Discs In Various Ways Audio mode ● Mute ● Fast play ● Slow play ●...
-
Page 4: Important Information
Important Information WARNING: To reduce the risk of fire or electric shock, do not expose this Product to rain or moisture. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ''dangerous voltage'' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 5: Important Safety Precautions
Important Safety Precautions The present set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in the present unit will protect you if you observe the following procedures in installing, using and servicing. The present unit is fully transistorized and does not contain any element that can be repaired by the user. - Page 6 Important Safety Precautions f) When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. 12. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts.
-
Page 7: Supplied Accessories
Supplied Accessories Make sure the following accessories are provided with the product. Power adapter RF commutating cable AV cables 17MD250V Remote control User guide page4... -
Page 8: Preparation
Preparation Inserting Batteries Into The Remote Control Insert supplied batteries via the battery compartment on the back of the remote control. Make sure polarity matches the (+) and (-) marks inside the compartment. Using The Remote Control Unit Cautions Regarding Remote Control Unit Do not expose remote to liquids, direct sunlight or shock. -
Page 9: Functional Overview
Installing your LCD TV Front View Product Description 1) POWER BUTTON: Use to turn the unit on and off. 2) REMOTE SENSOR 3) SOURCE BUTTON: Use to select the AV signal source between: DVD, Analog RGB (PC input), Composite Video, S-Video, TV, Component Video, and use the OK button to confirm. 4) EJECT BUTTON: Use to eject the disc being played in the disc slot, the main unit must be set to DVD status. -
Page 10: Rear View
Installing your LCD TV Rear View HEADPHONES 1) ANTENNA IN 2) AV1 IN (Composite Video and Audio In) 3) AV2 IN (S-Video and Audio In) 4) AV OUT (Composite Video and Audio Out) 5) HEADPHONES 6) AV3 IN (Component Video and Audio In) 7) VGA (PC Input) 8) DC IN page7... -
Page 11: Remote Control
TV Control Using Your Remote Control Remote Control Diagram POWER Use to turn the unit on and off. Use to set the channel and to enter DVD chapter numbers. Number Buttons Use to select close caption mode. CAPTION VOLUME+/- Use to adjust the volume. Press to return to the previous channel in normal viewing mode. -
Page 12: Remote Control
TV Control Using Your Remote Control (Continued) Use to confirm your selections. Use to bring up the DVD title menu. DVD TITLE PLAY Use to begin the DVD playback. Use to pause the DVD playback. PAUSE PREV/NEXT Use to skip to the previous/next chapter. Use to zoom the DVD playback picture. -
Page 13: Connections
Connections Power Connection Plug the power cable into the power socket with AC100V~240V, 50/60Hz. Antenna Connection Using the supplied antenna cable, connect the antenna terminal to the antenna input terminal on TV set. May also be connected to cable and satellite box antenna output. HEADPHONES page10... -
Page 14: Connecting External Equipment
Connections Connecting External Equipment You can enjoy picture and sound by connecting VCR, DVD player and PC to the terminals located on the back of TV set. Before connecting an external device, turn the TV set off to avoid any possible damage. 1. -
Page 15: Basic Operations
Basic Operations Turning On The Power 1. Press POWER button on the front panel to turn on the TV set. The STANDBY/ON indicator lights up green. 2. If the STANDBY/ON indicator still lights up red, press POWER on the remote control to turn the TV set on. -
Page 16: Watching Tv
Watching TV Turning On The Power 1. Press POWER button on the front panel to turn on the TV set. The STANDBY/ON indicator lights up green. 2. If the STANDBY/ON indicator still lights up red, press POWER on the remote control to turn the TV set on. -
Page 17: Using Last On The Remote Unit
Watching TV Using number buttons on the remote unit NUMBER BUTTONS Select the channels directly by pressing the number buttons. EXAMPLE: To select a 1-digit channel (e.g. channel 2): Press 2 . ● To select a 2-digit channel (e.g. channel 12): Press 1 ,followed by 2 . -
Page 18: Simple Button Operation For Changing Volume/Sound
Watching TV Simple Button Operation For Changing Volume/Sound Changing the volume You can change the volume on the front panel or on the remote control unit. VOLUME+/- 1. Press VOL+ to increase the volume. 2. Press VOL- to decrease the volume. Using MUTE on the remote control Press MUTE to mute the current sound output. -
Page 19: Menu Adjustment
Menu Adjustment TV Tuner Adjustment Press TV MENU to bring up the TV menu screen. Press to select "Settings" and press NOTE: Only when in TV status, there is "TV Tuner"option below "Settings". Make sure press TV MENU to exit TV menu screen before other operatings. TV Source This will help you to select the TV's signal source. - Page 20 Menu Adjustment TV Tuner Adjustment (Continued) 4. Press to select "TV Source". 5. Press to select your desired TV source between Antenna and Cable; press OK to return; press TV MENU to exit. Automatic channel search Channel auto search finds and memorizes all channels viewable in your area. Select one between ANTENNA and CABLE before this operation.
-
Page 21: Content Blocking
Menu Adjustment Content Blocking Password 1. Press TV MENU to bring up the TV menu screen. 2. Press to select "Settings" and press 3. Press to enter "Content Blocking (Password)" menu. 4. Press to select "Enter" and press 5. Press to select digit and press 6. -
Page 22: Picture Adjustment
Menu Adjustment Picture Adjustment Press TV MENU to bring up the TV menu screen. Press to select ''Picture'' and press Contrast 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Picture''. 3. Press to move to ''Contrast''. 4. -
Page 23: Audio Adjustment
Menu Adjustment Audio Adjustment Press TV MENU to bring up the TV menu screen. Press to select ''Audio'' and press Volume 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Audio''. 3. Press to move to ''Volume''. 4. -
Page 24: Audio Adjustment
Menu Adjustment Audio Adjustment (Continued) Balance 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Audio''. 3. Press to move to ''Balance''. 4. Press to adjust audio output between left and right speakers; press OK to return; press TV MENU to exit. -
Page 25: Window Adjustment
Menu Adjustment Window Adjustment PC mode input format SVGA In case of inputting the PC signal other than above signals, ''OUT OF RANGE'' will display. software… … Setup your PC Even if your actual display-setting screen looks different from the windows below, basic setup methods will be applied in most of the case. - Page 26 Menu Adjustment Window Adjustment (Continued) 2. When the control panel screen appears, click on ''Display'' and a display dialog box displays. 3. Navigate to the ''Setting'' tab on the display dialog box. The correct setting of size (resolution) is ''1024 x 768 pixels''. Check the vertical frequency of your PC.
-
Page 27: Menu Adjustment
Menu Adjustment Window Adjustment (Continued) Press TV MENU to bring up the TV menu screen. Press to select ''Window'' and press H-Position 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Window''. 3. Press to move to ''H-Position''. -
Page 28: Options Adjustment
Menu Adjustment Options Adjustment Press TV MENU to bring up the TV menu screen. Press to select ''Options'' and press Menu Background 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Options''. 3. Press to move to ''Menu Background''. -
Page 29: Troubleshooting
Troubleshooting Please check the following items before asking for repair service. Symptom Neither picture nor ● sound. ● Picture is OK, but no ● sound. Sound is OK, but no ● color. ● ● The picture is toward the broadcasting station. overlapped image. -
Page 30: Specifications
Technical Specifications PANEL ● RESOLUTION ● ACTIVE AREA (mm) ● VIEWING ANGLE (°,U/D/L/R) ● CONTRAST RATIO ● BRIGHTNESS (cd/m2) ● DIMENSION WITH STAND (mm) ● WITHOUT STAND (mm) ● WEIGHT (WITHOUT ACCESSORIES) ● TV-FUNCTION TV STANDARD ● TUNING SYSTEM ● FREQUENCY RANGE ●... -
Page 31: Basic Operations
Basic Operations (For DVD Player) Play Discs POWER to turn on the unit. 1. Press 2. P r e s s t h e T V / D V D / A U X / P C b u t t o n o n t h e r e m o t e c o n t r o l t o b r i n g u p t h e AV s i g n a l s o u r c e s e l e c t i o n s c r e e n a n d u s e t h e b u t t o n s t o s e l e c t "... - Page 32 Basic Operations (For DVD Player) Remember, you can only access the Display when you're playing a disc. Also, the Display features are only available if the disc was created with that particular feature (i.e., if you select the Subtitle icon, you won't be able to change the subtitle language unless the author of the disc created the disc with subtitles).
- Page 33 Basic Operations (For DVD Player) 1. When the disc is playing, press OSD on the remote to bring up the Display. 2. Press the buttons to highlight the Subtitle icon. 3. Press the buttons to scroll through the subtitle languages that are available on the disc until the subtitle language you want to use appears in the text box.
-
Page 34: Volume Control
Basic Operations (For DVD Player) To Use Repeat: 1. While a disc is playing, press OSD on the remote to bring up the Display. 2. Highlight the Repeat icon. 3. Press the buttons to scroll through the Repeat options until the Repeat option you want is displayed in the text box. -
Page 35: Select With Number Buttons
Basic Operations Select with Number Buttons Load a disc. Press number buttons to select tracks after the unit finishes reading the disc. 1. If the track number isn't over 10, just push buttons 1-10. Example: push 8 to select track 8. The screen shows: TRACK08/20 00:00... -
Page 36: Play Discs In Various Ways
Play Discs In Various Ways To select audio channel option when for CD playback, press A.MODE . The screen will show the following in order: A.MODE MONO LEFT A.MODE MONO RIGHT A.MODE MIXED MONO A.MODE STEREO You may select one mode. Notes: Different discs differ in languages available. -
Page 37: Slow Play
Play Discs In Various Ways Slow Play Enjoy slow motion by the following the steps below. SLOW 1. Press SLOW to play in slow motion. SLOW The screen shows the following in order: 1/16 2. Press (PLAY) to resume play at normal speed. Repeat Play This function can be used to repeatedly play a title, chapter, track, or a whole disc. -
Page 38: Zoom Play
Play Discs In Various Ways REPEAT 2. To repeat a disc: Press REPEAT , the screen shows " The unit plays all the tracks on the disc. REPEAT 3. To remove "REPEAT" function: Press REPEAT till " ALL" disappears. Zoom Play This function can be used to watch a motion or motionless picture. -
Page 39: Angles Select
Play Discs In Various Ways Angles Select Some discs have images with different viewing angles, you may select among them. For example, when you watch a running train, you may watch it from the front, the left window or the right window without stopping it. Example: A DVD has four viewing angles at your option. -
Page 40: Program Play
Play Discs In Various Ways 1. Press P.MODE until the screen shows: PROGRAM: TRACK (01-20) 01 _ _ 06 _ _ 02 _ _ 07 _ _ 03 _ _ 08 _ _ 04 _ _ 09 _ _ 05 _ _ 10 _ _ EXIT NEXT... -
Page 41: Menu Setting
Menu Setting According to the recorded information and external equipment, set the following functions for the player to obtain the best playing status. 1.Press SETUP to set options in the main menu. SETUP The main menu appears on the screen, with icons across the top of the screen, illustrating General Setup, Audio Setup, Video Setup,Preference, Password Setup, and Exit Setup. -
Page 42: General Setup
Menu Setting Press (PLAY) to confirm your selection. Set "Dual ● Mono" in "Dolby Digital Setup" to "Left Mono". The sereen shows: --Dolby Digital Setup-- Dual Mono Stereo Left Mono Right Mono Mixed Mono D.R.C Audio Setup 3. Exit setup menu. Press the direction button to exit from "Dual ●... -
Page 43: Audio Setup
Menu Setting ■ CAPTIONS ● Subtitles are shown. ● Subtitles are hidden. ■ SCREEN SAVER The screen saver image appears when the unit stops or the image is frozen for a few minutes. The screen saver prevents damage to the TV screen. ON: Start the screen saver. -
Page 44: Video Setup
Menu Setting ■ 3D PROCESSING The setting structure is: - - 3D Processing Page - - V SURR Reverb Mode Concert Living Room Hall Bathroom Cave Arena Church Audio Setup V SURR ● Use to turn the above function off. REVERB MODE ●... -
Page 45: Preferences
Menu Setting Preferences The setting structure is : - - Preference Page - - Audio English French Spanish Chinese Japanese Subtitle English French Spanish Chinese Japanese Disc Menu English French Spanish Chinese Japanese Parental 3 PG 4 PG 13 5 PGR 7 NC17 8 ADULT Default... -
Page 46: Kodak Picture Cd Playback
Kodak Picture CD Playback A Kodak Picture CD has the size and shape of a regular CD. You can order a KODAK Picture CD simply by checking the box on the photofinishing envelope when you drop off a roll of film (35 mm or Advanced Photo System (APS) color print film) at the time of processing in photo processing outlet displaying "Kodak Picture CD"sign. -
Page 47: Troubleshooting
Troubleshooting If you experience the following problems while using the unit, this troubleshooting guide can help you. No sound No image Bad sound quality Disc cannot be played The unit doesn't operate normally Remote control does not work This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. -
Page 48: Technical Specifications
Technical Specifications Laser Video system Frequency response Signal/noise ratio Audio distortion + noise Channel separation Dynamic range Audio out (analog audio) Output Video out Power supply Power Consumption This manual is only for your reference, any change to the design and specifications will not be advised. Wavelength 650nm NTSC 20Hz ~ 20KHz±2.5dB... -
Page 49: Warranty Page
