Toddler Quad
OWNER'S MANUAL
KT1123TR
The owner's manual contains assembly, use and maintenance instructions.
The Minnie Quad must be assembled by an adult who has read and understands
the instructions in this manual. Keep the packaging away from children and dispose
of all packaging before use.
Styles and colors may vary • Made in China
Keep instructions for future reference.
©Disney
Advertisement
Table of Contents
Related Manuals for Disney Minnie Toddler Quad KT1123TR
Summary of Contents for Disney Minnie Toddler Quad KT1123TR
- Page 1 The Minnie Quad must be assembled by an adult who has read and understands the instructions in this manual. Keep the packaging away from children and dispose of all packaging before use. Styles and colors may vary • Made in China Keep instructions for future reference. ©Disney...
- Page 2 Thank You For purchasing this Kid Trax Disney ride-on toy. We hope Your child will have years of riding enjoyment with our product. Please call Kid Trax Toys Consumer Relations at 877-741-6154 with comments or questions.
-
Page 3: Table Of Contents
Contents 1 Safety ..........1 Battery Warnings . -
Page 4: Safety
Safety WARNING! The following safety hazards may result in serious injury or death: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly. Be sure to remove all packaging materials and parts from underneath the vehicle body. -
Page 5: Battery Warnings
BATTERY WARNINGS WARNING! The following safety hazards may result in serious injury or death: • Use of a battery or charger other than the supplied Kid Trax Toys 6V rechargeable battery and charger may cause a fire or explosion. Only use the supplied Kid Trax Toys 6V rechargeable battery and charger with the vehicle. -
Page 6: User Requirements And Warnings
USER REQUIREMENTS AND WARNINGS Age Range 18 months and up Weight Range No more than 45 lb (20 kg) Before using the quad the child should understand the vehicle controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls. -
Page 7: Parts
Parts BODY PARTS Charger 6V 4AH battery Handlebar/steering rod Quad body Open Close Seat Front axle assembly Wheel cover (4) Wheels (4) Hubcaps (4) Figure 2.1 HARDWARE Rear axle Large washer Gear box pad Spanner Small washer (4) Nut (4) Figure 2.2... -
Page 8: Assembly
Assembly ATTACH THE FRONT AXLE ASSEMBLY ❶ Position the front axle assembly so the flat side is facing towards the front bumper. Figure 3.1 ❷ Slide the front axle assembly over the two tubes coming from underside of the front body. ❸... -
Page 9: Attach The Front Wheels
ATTACH THE FRONT WHEELS ❶ Using the spanner, remove the nut from the axle. Then remove the small washer. Note: Leave the large washer on the axle. ❷ Slide the wheel all the way onto the axle until it meets the large washer. Note: All the wheels are identical and can be placed on any axle. -
Page 10: Attach The Rear Axle And Gear Box Pad
ATTACH THE REAR AXLE AND GEAR BOX PAD ❶ Remove the locknut and small washer from the right hand side of the rear axle. Leave the large washers on the axle. Figure 3.3 ❷ Position the rear axle so the gear box end is on the side where the gear box is located. -
Page 11: Attach The Rear Wheels
ATTACH THE REAR WHEELS ❶ Slide the wheel all the way onto the axle until it meets the large washer. Note: All the wheels are identical and can be placed on any axle. Figure 3.4 ❷ Slide the small washer onto the end of rear axle. ❸... -
Page 12: Attach The Steering Wheel Assembly
ATTACH THE STEERING WHEEL ASSEMBLY ❶ Position the steering wheel so the Minnie Mouse ears are facing up. Figure 3.5 ❷ Place the steering rod and wire connector through the opening located on the front panel. Be sure the end of the steering rod is fully inserted through the hole in the front axle assembly. -
Page 13: Connect The Steering Wheel Wires
CONNECT THE STEERING WHEEL WIRES ❶ Carefully turn the quad over. ❷ Attach the wire connector coming from the bottom of the steering wheel assembly to wire connector attached to the underside of the quad body. Figure 3.6 ATTACH THE WINDSHIELD ❶... -
Page 14: Attach The Seat
ATTACH THE SEAT ❶ Insert the seat tabs into the seat slots, located at the back of the seat opening. Figure 3.8 ❷ Lower the seat into the quad body. Turn the locking screw clockwise until the lock is engaged. Open Close Open... -
Page 15: Using The Minnie Quad
Using the Minnie Quad CHARGE THE BATTERY Important! Before using the quad for the first time the battery needs to be charged for at least 10 to 12 hours. Only an adult who has read and understands the safety warnings should handle, charge or recharge of the battery. First charge 24 hours. -
Page 16: Re-Charge Interval And Time
RE-CHARGE INTERVAL AND TIME Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply cord, connector) for wear and damage before charging. -
Page 17: Battery Replacement And Disposal
BATTERY REPLACEMENT AND DISPOSAL The Kids Trax Toys 6V 4AH battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery: Figure 4.2 ❶... -
Page 18: Operating The Controls
OPERATING THE CONTROLS Important! Before using the quad for the first time the battery needs to be charged for a full 24 hours. Note: Do not charge more than 30 hours. Only an adult who has read and understands the safety warnings should handle, charge or recharge of the battery. -
Page 19: Maintenance
Maintenance Maintenance on the quad should be conducted as follows: • Check for damage, missing or badly worn parts before each use. • Check the tightness of the fasteners before each use. • Check the tightness of the wheels before each use. Note: If the wheel locknuts are not tight the drive wheel will not engage and the vehicle will not run. -
Page 20: Troubleshooting Guide
Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. - Page 21 Problem Possible Cause Remedy Vehicle runs Battery low on power Recharge battery sluggishly or Battery is old Replace battery beeping occurs Vehicle is overloaded Reduce weight on vehicle Vehicle is being used in Operate the vehicle level ground and harsh conditions firm surfaces Vehicle needs a Poor contact of wires...
-
Page 22: Services, Repairs And Parts
Services, Repairs and Parts Do not return this product to the place of purchase. If your Disney Minnie Mouse Toddler Quad needs service, repairs or replacement parts, call: Kid Trax Toys Consumer Relations Hours: 8:00 am – 5:00 pm (CST) Monday - Friday Phone: 877-741-6154 Email: customerservice@kidtraxtoys.com... -
Page 23: Warranty
Warranty One-Year Limited Warranty Six-Month Limited Warranty on Battery Pacific Cycle, Inc. (PC) warrants this product to the original retail purchaser as follows: The vehicle (except for the 6-volt battery) is warranted against defective materials or workmanship for one year from the date of original purchase. The 6-volt battery is warranted against defective materials or workmanship for six months from the date of original purchase. -
Page 24: Contact Information
Contact Information If you have any questions or comments please contact us at: In U.S.A. © 2013 Pacific-Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Customer Service: 877-741-6154 customerservice@kidtraxtoys.com www.kidtraxtoys.com...
Need help?
Do you have a question about the Minnie Toddler Quad KT1123TR and is the answer not in the manual?
Questions and answers
Minnie quad only goes backwards
The Disney Minnie Toddler Quad KT1123TR is designed to only move forward at one speed. It does not have a reverse function. Therefore, it cannot go backwards.
This answer is automatically generated

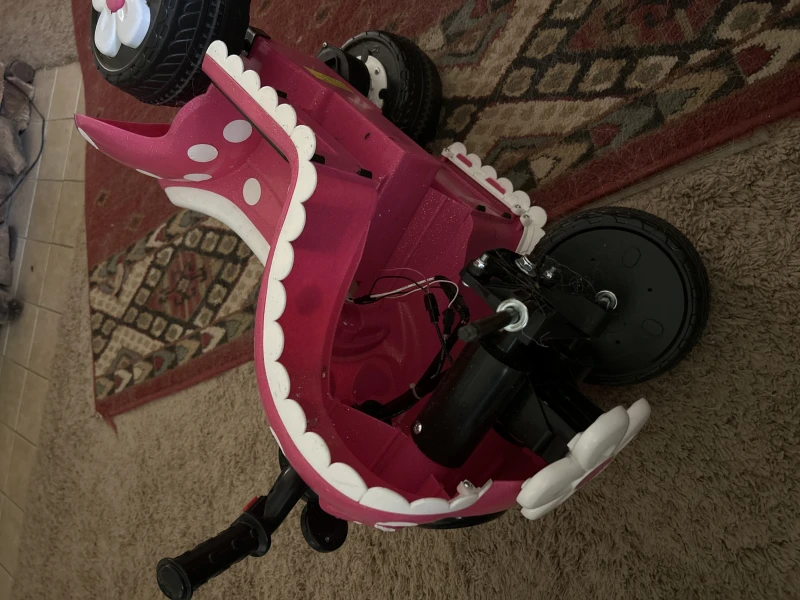

I’m missing a left front wheel! ;(
