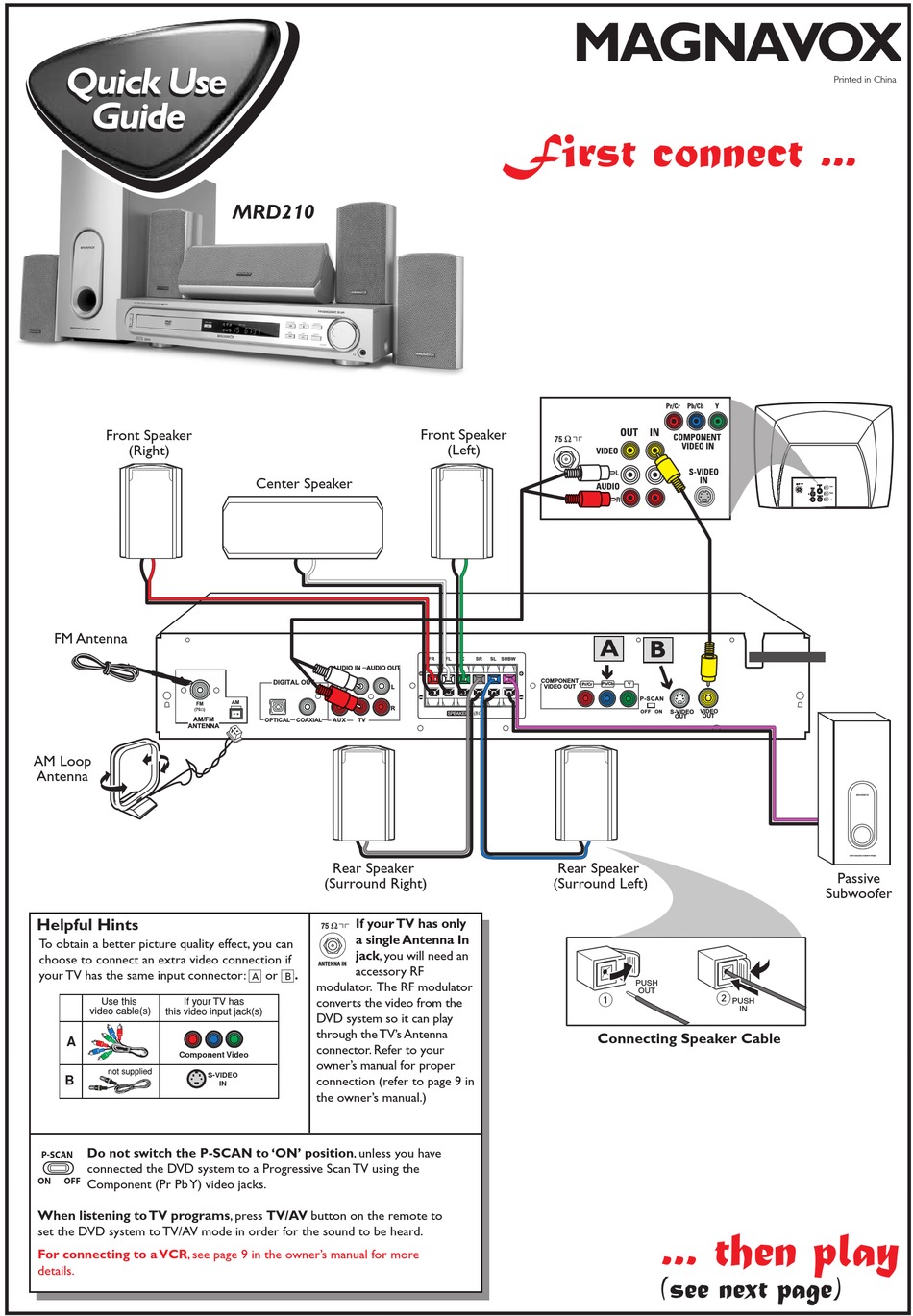

Front Speaker
(Right)
FM Antenna
AM/FM
ANTENNA
AM Loop
Antenna
Helpful Hints
To obtain a better picture quality effect, you can
choose to connect an extra video connection if
your TV has the same input connector: A or B.
Use this
If your TV has
video cable(s)
this video input jack(s)
A
Component Video
not supplied
B
Do not switch the P-SCAN to 'ON' position, unless you have
P-SCAN
connected the DVD system to a Progressive Scan TV using the
ON
OFF
Component (Pr Pb Y) video jacks.
When listening to TV programs, press TV/AV button on the remote to
set the DVD system to TV/AV mode in order for the sound to be heard.
For connecting to a VCR, see page 9 in the owner's manual for more
details.
MRD210
Center Speaker
AUDIO IN AUDIO OUT
DIGITAL OUT
OPTICAL COAXIAL
AUX
TV
Rear Speaker
(Surround Right)
If your TV has only
a single Antenna In
jack, you will need an
ANTENNA IN
accessory RF
modulator. The RF modulator
converts the video from the
DVD system so it can play
through the TV's Antenna
connector. Refer to your
owner's manual for proper
S-VIDEO
connection (refer to page 9 in
IN
the owner's manual.)
First connect ...
Front Speaker
(Left)
COMPONENT
L
VIDEO OUT
R
Rear Speaker
(Surround Left)
MAGNAVOX
Pr/Cr
Pb/Cb
Y
P-SCAN
VIDEO
OFF ON
S-VIDEO
OUT
OUT
PUSH
OUT
2
1
PUSH
IN
Connecting Speaker Cable
... then play
(see next page)
Printed in China
P r /C r
P b /C b
Y
Passive
Subwoofer
