Summary of Contents for Defender SP500-C
- Page 1 Security Camera Indoor/Outdoor Color Camera w/ Night Vision INSTRUCTION MANUAL V1.0 www.defender-usa.com SP500-C...
- Page 2 DO NOT RETURN THIS PRODUCT TO THE STORE Please contact an Defender customer support representative regarding any additional information on product features, specifications or if you need any help with set-up, we are available 24/7! Please contact us via one of the methods below: Email: support@Defender-usa.com...
- Page 3 Warranty Terms 1. Defender products are guaranteed for a period of one year from the date of purchase against defects in work- manship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at Defender’s option.
-
Page 4: Table Of Contents
Vision Color Camera 60ft Video/Power Wire INTRODUCTION Congratulations on your purchase of the SP500-C enhanced night vision, CCD camera! This camera has 420 lines of resolution, which work to provide you with a full color and incredibly clear picture. This allows for a farther viewing distance and better facial recognition. -
Page 5: Camera Features And Functions

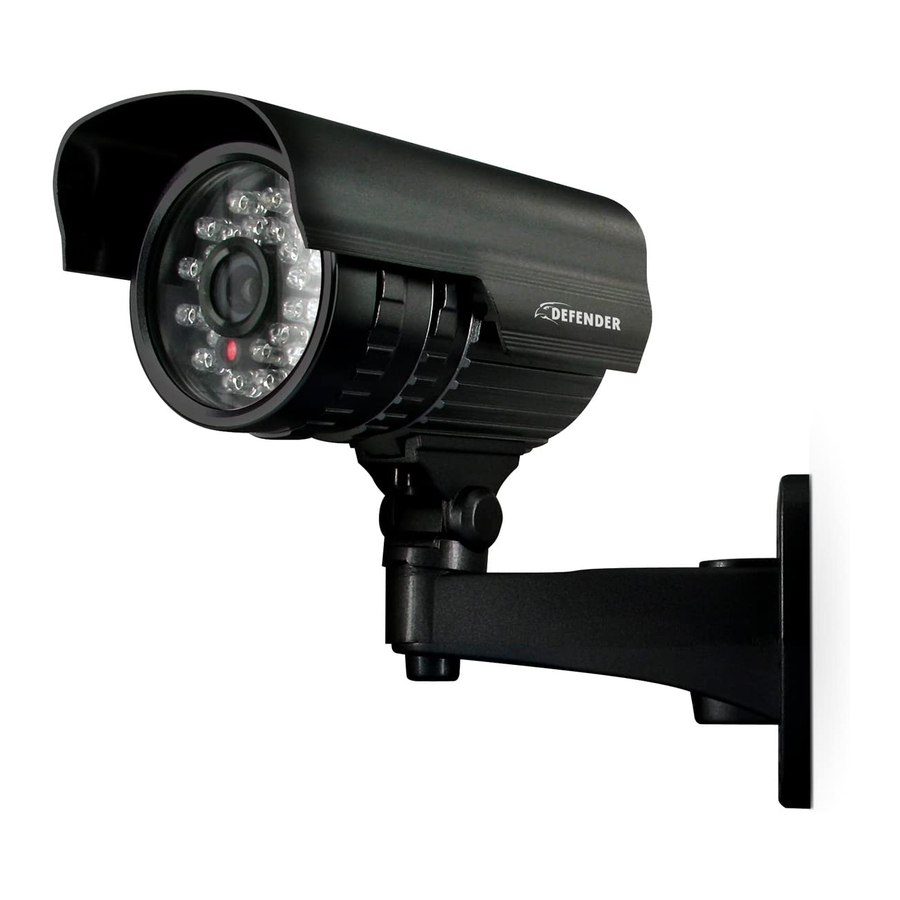

FEATURES SP500-C Camera 1. Sun Shade: Adjustable sun shade helps prevent glare from bright lights 2. Infrared (IR) LEDs: The 24 LEDs allow the camera to see in the dark up to 50ft away 3. CDS Sensor: Automatically turns on the... -
Page 6: Important Information
1. Plug the 4 PIN DIN female connection on the camera into the 4 PIN DIN male connection on the 60ft video/ power wire. 2. Match up the two arrows that are on top of both the connecting cables. SP500-C... -
Page 7: Troubleshooting
• Check the brightness and contrast settings on your TV/monitor • If your camera is connected to a VCR/DVR, check the brightness and contrast settings on the VCR/DVR • Move your camera to another location SP500-C... -
Page 8: Specifications
Camera Bracket ....................Yes Lens Mount type ....................M12 Operating Temperature ..................-14°F ~ 122°F Operating Humidity ...................98% Camera Power Input ..................DC 12V 500mA Power Adapter Input ..................120V 60Hz LED Power Indicator ...................No Dimensions ......................2.75"(L) x 5"(W) x 7.5"(H) Weight ........................1.0 lbs SP500-C... -
Page 9: Notes
Postal Code: Phone Number: Email: Model Number of Product: Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. SP500-C... -
Page 10: Drilling Template
DRILLING TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN SELECTED AREAS SP500-C... - Page 11 Disclaimer Defender does not endorse the use of any Defender products for illegal activities. Defender is not respon- sible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
