Defender HA-8501 Installation Instruction

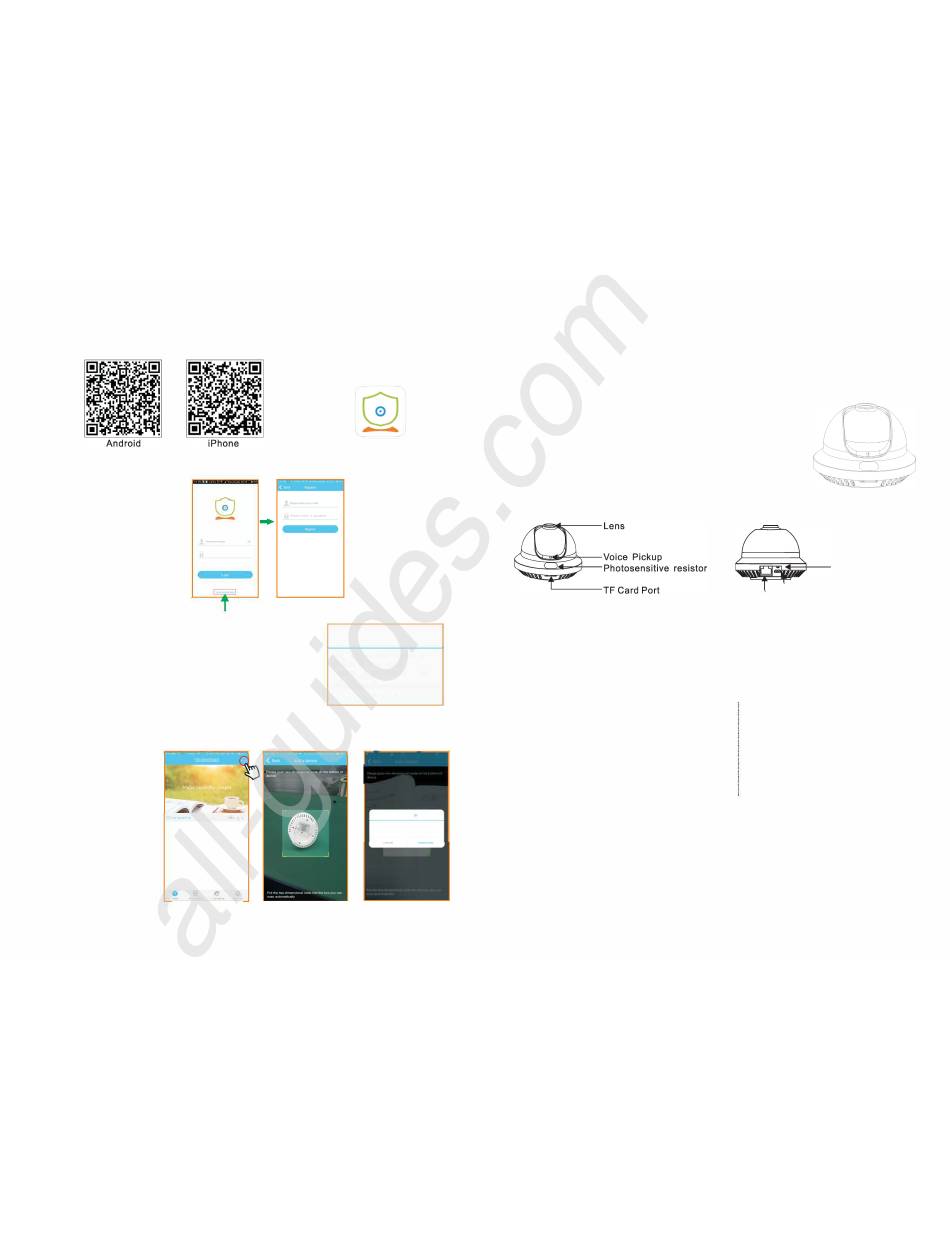

8. Phone Application Settings
8.1 Download and Installation
Please scan the QR code below to download and install.
8.2 Account registration
Click the app to enter login
interface as show in the right.
User name: (EMAIL)
Password: (set as you like)
After setting, please enter
the code and click "Register".
For new users, please click "user registration".
Pop up the following window prompts to register successfully,
Registered EMAIL will receive the CMS platform mail, follow
the prompts to operate, after the completion of registration.
8.3 Add Panel
Click on the login interface to enter the APP main interface.Then.click on the upper right corner of the
icon " (B " to enter the add device interface to scan the QR Code of the back of panel. Scan successfully,
pop-up prompt to confirm the
add. Finally,click [confirm] to
add the panel to the APP main
interface.
APP main interface
-------------------4-------------------
All manuals and user guides at all-guides.com
Click the icon below
to enter settings.
Tips:
Please log in to your registered
mailbox to complete the
verification, verify the success of
the normal login.
Determine
,, • ...-... ''""�
I
<hrln,..,,
• ""If'
Devicename: 10000003
DEFENDER DOME Indoor Infrared
IP Camera Installation Instruction
1. Introduction
HA-8501 IP camera apply Linux operation system and HISI chip
3518EV200. The device is efficiency and small with high stability
and reliability. It can be programmed via IE browser, ONVIF PC
clients, CMS clients, phone application, mainly used for home,
office, warehouse, shop, school and so on.
2. Design Structure
Front sketch
lnfrared detection distance: 5m
TF card slot: Storage interface. When inserting TF card, put the magnetic stripe side
corresponding to the direction of camera lens.
Reset button: Restore factory settings by using a object like a thimble to press the button.
3. Parameters
Operation system: Embedded Linux
User interface: IE browser, Onvif PC client,
Video format: mainstream 720P/D1 25fps
Sub-stream D1/CIF 25fps
.A,;,-.�""' .. *"P .,,..
Audio format : G711 A, support intercom with
speaker and voice pickup.
Network interface: 1 OM/ 1 DOM adaptive network
interface
Confi r m to jd
4. Network connection
4.1 Cable network
Connect the power line first, and use the network interface to connect the same router with
the computer.
P/N:20170926A01 Ver: 2.0
-------------------1-------------------
Back Sketch
storage interface: TF card, support max
128G (1 st time, please format TF card
CMS PC client, phone application on IE browser interface)
Image sensor: Crystal phase H62, 1 DOW
Power: USB 5V/1A
Installation: Ceiling mounting
Reset Button
�--- Power jack
'------- Network interface
(1280*720)
