- Page 1 Mini MAX Bass Amplifier ® Operating Manual www.peavey.com...
- Page 2 (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment.
- Page 3 Here at Peavey, we understand that modern bass players demand portability, which sometimes means compromising on speaker cabinet performance, therefore we believe that simply creating a "mini" bass head is not enough, which is why we developed the psycho-acoustic bass enhancement system.

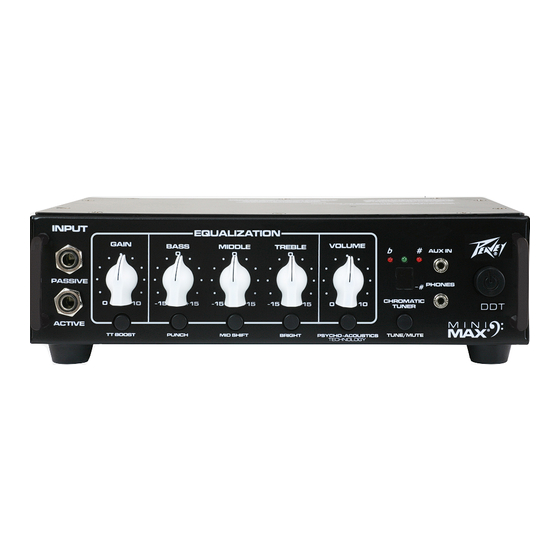

- Page 4 Front Panel ACTIVE/PASSIVE PICKUP Inputs These 1/4" inputs are included so you can choose the appropriate setting for your instrument. The gain structure of the amplifier is modified to accommodate the outputs of different pickup configurations. GAIN This knob controls input level of the instrument. TT BOOST SWITCH ®...
-
Page 5: Aux Input
TUNE/MUTE Pressing this button will engage the chromatic tuner while muting the output to the speaker. The LED screen will indicate which note is being played while the red and green LEDs above the screen indicate whether the note is flat (red), sharp (red) or in tune (green). - Page 6 FX LOOP. XLR BALANCED DI OUTPUT This XLR output is used to connect the Mini Max pre amp section to external equipment, such as mixing consoles, external power amplifiers, or recording equipment. DI GND LIFT SWITCH This switch may be used to eliminate hum caused by ground loops between the amplifier and other equipment, such as a mixing console.
-
Page 7: Power Consumption
50mW x 2 into 8-ohm minimum load Noise Floor = -80dB Features and specifications are subject to change without notice. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • ©2015 • 31700105... - Page 8 NOTES...
- Page 9 NOTES...
- Page 10 What Peavey Will Do We will repair or replace (at Peavey’s discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.
- Page 11 U.S. customer warranty registration. Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005 The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005...
