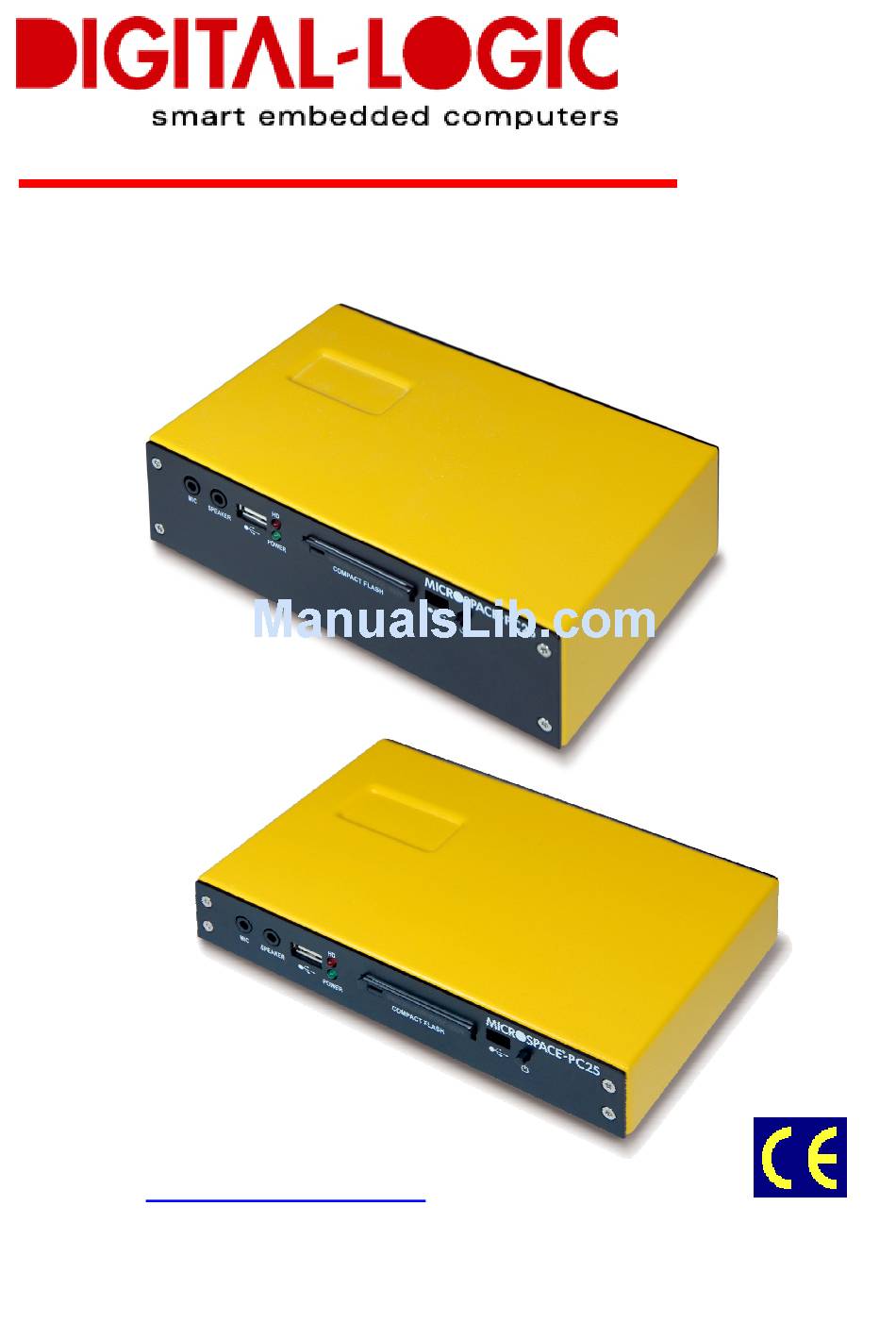

- Page 1 TECHNICAL USER MANUAL FOR: MPC25/L, MPC26/L/A Nordstrasse 11/F CH - 4542 Luterbach Tel.: ++41 (0)32 681 58 00 Fax: ++41 (0)32 681 58 01 Email: support@digitallogic.com Homepage: http://www.digitallogic.com...
-
Page 2: Revision History
DIGITAL-LOGIC AG. The software described herein, together with this document, are furnished under a license agreement and may be used or copied only in accordance with the terms of that agreement. -
Page 3: Table Of Contents
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 Table of Contents ........................5 REFACE 1.1. Trademarks ............................. 5 1.2. Disclaimer ............................5 1.3. Environmental Protection Statement ................... 5 1.4. Who should use this Product ....................... 5 1.5. Recycling Information........................5 1.6. Technical Support .......................... 5 1.7. - Page 4 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.1. Front of the MPC25 / 26 / L ....................28 4.1.2. Rear of the MPC25 / 25L....................... 29 4.1.3. Front of the MPC26/26A......................30 4.1.4. Rear of the MPC26 ........................ 31 4.1.5. Rear of the MPC26A ......................32 4.1.6.
-
Page 5: Preface
Product advances mean that some specifications may have changed. DIGITAL-LOGIC AG assumes no responsibility for any inaccuracies, or the consequences thereof, that may appear in this manual. Furthermore, DIGITAL-LOGIC AG does not accept any liability arising from the use or application of any circuit or product described herein. -
Page 6: Limited Two Year Warranty
DIGITAL-LOGIC AG), wrong connection, wrong information or as a result of service or modification by anyone other than DIGITAL-LOGIC AG. Nor if the user has insufficient knowledge of these technologies or has not consulted the product manuals or the technical support of DIGITAL-LOGIC AG and therefore the product has been damaged. -
Page 7: Explanation Of Symbols
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.8. Explanation of Symbols CE Conformity This symbol indicates that the product described in this manual is in compliance with all applied CE standards. Caution, Electric Shock! This symbol and title warn of hazards due to electrical shocks (> 60V) when touching products or parts of them. -
Page 8: Applicable Documents And Standards
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.9. Applicable Documents and Standards The following publications are used in conjunction with this manual. When any of the referenced specifications are superseded by an approved revision, that revision shall apply. All documents may be obtained from their respective organizations. -
Page 9: For Your Safety
1.11. RoHS Commitment DIGITAL-LOGIC AG is committed to develop and produce environmentally friendly products according to the Restriction of Hazardous Substances (RoHS) Directive (2002/95/EC) and the Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) established by the European Union. -
Page 10: Rohs Compatible Product Design
Components and sub-assemblies are not subject to product compliance. In other words, since DIGITAL-LOGIC does not deliver ready-made products to end users the WEEE directive is not applicable for DIGITAL-LOGIC. Users are nevertheless encouraged to... -
Page 11: Swiss Quality
Network, IQNet, and co-operation contracts/agreements with accredited partners. www.sqs.ch The SQS Certificate ISO 9001:2000 has been issued to DIGITAL-LOGIC AG, the entire company, in the field of development, manufacturing and sales of embedded computer boards, embedded computer modules and computer systems. The certification is valid for three years at which time an audit is performed for... -
Page 12: Ec - Declaration Of Conformity Mpc25
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.14. EC – Declaration of Conformity MPC25... -
Page 13: Ec - Declaration Of Conformity Mpc25L
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.15. EC – Declaration of Conformity MPC25L... -
Page 14: Ec - Declaration Of Conformity Mpc26
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.16. EC – Declaration of Conformity MPC26... -
Page 15: Emv Certificate Mpc25/ 26
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.17. EMV Certificate MPC25/ 26... -
Page 16: Emv Test Diagram, Class A Mpc25/ 26
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 1.17.1. EMV Test Diagram, Class A MPC25/ 26 1.17.2. EMV Test Diagram, Class B MPC25/ 26... -
Page 17: Overview
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 2. O VERVIEW 2.1. Packing List After opening the box, check that the following items from the packing list are included: MICROSPACE-PC25x/26x Technical User Manual CD with drivers and documentation 2.2. System Overview The MICROSPACE-PC25/26 is a miniaturized PC system incorporating the major elements of a PC/AT compatible computer. -
Page 18: Differences Between Mpc25, Mpc26, Mpc26A
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 2.3. Differences between MPC25, MPC26, MPC26A The product has different functions: Option MPC25 MPC25L MPC26 MPC26A Video Input COM1 COM2 internal COM3 COM4 LPT1 PCI/104 Expansion 1 slot 1 slot 2.4. Assembly Options The product has different assembly options. Ask the factory for the detailed information about the currently available options and combination of options. -
Page 19: Functional Block Diagram
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 2.5. Functional Block Diagram The diagram provides additional information concerning board functionality. -
Page 20: Technical Specifications
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 2.6. Technical Specifications Specifications MPC25/26 Intel Atom Z510 / Z530 CPU Compatibility 80x86 CPU Level Cache 16k data and 16k code Level Cache 1024kByte Socket Soldered directly Clock 1.1GHz / 1.6GHz Performance 100MHz Integrated Chipset... - Page 21 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 Power Management Atom / US15W The US15W supports ACPI and APM Version 1.2. The following ACPI Sleep States are supported: Sleep with CPU content. Hibernation (LED* is blinking) with transition to S5. S5-G2 Power Off ( LED* is blinking).
- Page 22 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 Operating Environment Specifications Relative Humidity 5 - 90% non-condensing IEC68-2-30 at -+5 to +50°C operating Vibration Operating IEC68-2-6 10-50Hz, 0.075mm and 55-500Hz, 1.0G Vibration Non-operating IEC68-2-6 10-50Hz, 0.15mm and 55-500Hz, 2.0G Shock Operating IEC68-2-27 10G, 11ms ½ sine Shock Non-operating IEC68-2-27 50G, 11ms, ½...
-
Page 23: Mpc25/26 Incompatibilities To A Standard Pc/At
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 2.7. MPC25/26 Incompatibilities to a Standard PC/AT None. 2.8. Related Application Notes Application Notes are available at support, or on any DIGITAL-LOGIC http://www.digitallogic.com Application CD. Description... -
Page 24: Afety Egulations
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 3. S AFETY EGULATIONS Safety verifications follow the guidelines adapted from the US Army Communication and Electronics Command Supplement (1992 version) 1 to AR385-16. 3.1. Safety: Power-On Indicator The green power indicator is located in the front of the computer system. [MIL-STD-1472D] 3.2. -
Page 25: Ground Potential
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 3.7. Ground Potential All interface connectors are permanently in contact with the ground (earth). The system must be grounded with a ground wire (colors green with yellow stripes). [NFPA 7087] The ground must have the capacity to safely conduct any current that might be imposed thereon. -
Page 26: Protection Against Over-Heating
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 3.10. Protection against Over-Heating The computer system integrates temperature-sensitive components such as Hard disk (max. 55° C) The CPU with a max. junction temperature of 105°C Do not cover the device with paper, textiles or other objects. The minimum space between the housing and the next object is 50mm on each side. -
Page 27: Environmental Safety: Hazardous Environs
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 3.16. Environmental Safety: Hazardous Environs The computer system must not be used in a hazardous area because there is nothing to prevent spontaneous combustion. Never use the system in explosive gas or vapor, flammable dusts or ignitable fibers and filings. -
Page 28: Functions
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4. F UNCTIONS 4.1. Connectors 4.1.1. Front of the MPC25 / 26 / L Connectors: USB: 2.0 USB MIC: Stereo input for microphone FRONT: Stereo speaker out HD-LED (red) Hard disk/CompactFlash activity indicator Flashing: Power is applied, but computer is in the “off” state... -
Page 29: Rear Of The Mpc25 / 25L
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.2. Rear of the MPC25 / 25L Connectors: GND / Shield Dual-USB: USB 2.0 Dual-USB: USB 2.0 DC-Input: 8-20VDC power input DVI: Digital Video output WLAN: Option WLAN: Antenna LAN-Port B: 100MB/s , with activity / link – LED... -
Page 30: Front Of The Mpc26/26A
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.3. Front of the MPC26/26A Version 1.0 Connectors: MIC: Stereo input for microphone SPEAKER: Stereo speaker out USB: 2.0 USB HD-LED (red) Hard disk/CompactFlash activity indicator POWER-LED (green) OFF: No power available, system is not running Flashing: Power is applied, but computer is in the “off”... -
Page 31: Rear Of The Mpc26
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.4. Rear of the MPC26 Version 1.0 Connectors: Row: Dual-USB: USB 2.0 Dual-USB: USB 2.0 VGA: Digital Video output WLAN: Option WLAN: Antenna LAN-Port B: 100MB/s , with activity / link – LED LAN-Port A: 1GB/s , with activity / link –... -
Page 32: Rear Of The Mpc26A
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.5. Rear of the MPC26A Version 1.0 Picture must be added later. Connectors: Row: Dual-USB: USB 2.0 KB/MS: PS2 Keyboard; with a Y-cable, a PS/2 Mouse also DC-Input: Power input VGA: Video output for RGB-CRT/LCD... -
Page 33: Power Supply Connector
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.1.6. Power Supply Connector BLZ 5.08/3F SN SW (Part number: 1803050000) available from www.weidmueller.com Signal Definition: + Power 10-20V power supply 0V or the ground from the power supply Shield Grounding of the MPC25/26 Left... -
Page 34: Hard Disk 2.5" - Standard Type
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.3. Hard Disk 2.5” - Standard Type The internal hard disk is mounted onto a caddy Technical Specifications (without the shock absorbers) Capacity 250GByte Manufacturer HITACHI HTS542525K9SA00 Sector size 512Byte Data heads Disks Rotation speed... -
Page 35: Wlan Option
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4.4. WLAN Option A PCIexpress Minicard wireless LAN module can be installed. Option MPC2x WLAN PCIe-MiniCard consists of Intel’s PRO/Wireless 3965ABGN Network Connection MiniPCI card and a HF connector cable. -
Page 36: Hardware Installation
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 5. H ARDWARE NSTALLATION 5.1. Install an additional PCI/104 card (MPC26/A only) To install a PCI/104 card, open the device as follows (please use a star TX8 screwdriver): 1. Remove the lower screws marked in green: 2 on the front plate and 2 on the back plate. -
Page 37: Prepare The Computer System
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 6. P REPARE THE COMPUTER YSTEM Warning, ESD Sensitive Device! Place the embedded computer board on an isolated, ESD-protected surface. Also be sure that all equipment, tools and personnel are fully protected against ESD. 6.1. Print the Detailed Manuals from the Product CD Note…... -
Page 38: Power -O N The System
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 7. P OWER N THE YSTEM Attention! Check that the voltage is regulated to +12Volts and that the polarity is correct. The power supply voltage must be in the range of 10V to maximum 20Volt. -
Page 39: Bios Setup
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 7.1. BIOS Setup Since the BIOS auto-configures during the start-up procedure, the user normally does not need to enter the BIOS setup. The manual setup is only needed to change from the default settings. Please refer to the Driver/Software/BIOS Manual “Atom_BIOS”... -
Page 40: Dimensions And Diagrams
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 8. DIMENSIONS AND DIAGRAMS 8.1. Front Views Rear Views 8.2. Top Views 8.3. Side Views 8.4. Mounting Plate MPC20/20L/21/21C/25/26/26A 8.5. Front Plate MPC25... -
Page 41: Core Bios
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 9. C BIOS 9.1. BIOS History For the MPC25 / MPC26: Version Date Status Modifications (for previous BIOS versions, please see the GEODE LX800-LX900 Manual) 9.2. Setup Menu Screens and Navigation The XpressROM™ Setup Menu contains a number of features and options. You are advised to evaluate the menu options prior to the shipment of your platform to ensure the removal of options that could have a negative consequence if users change them. -
Page 42: Bios Setup
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 9.3. BIOS Setup 9.3.1. Main Menu The main menu is the first screen that appears when a user selects F1 during the boot process. Below is a screen shot of the main menu. Press the letter or use the arrow keys (↑↓) to select an option. -
Page 43: Boot From Lan - Pxe & Wol (Wake O Nlan)
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 10. B LAN – PXE & WOL (W LAN) OOT FROM 10.1. MPC25WOL and MPC26WOL Not implemented in the moment. Is planed for 2009. 10.1.1. Boot from LAN (PXE) 10.1.1.1. PXE Setup in the BIOS... - Page 44 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 The configuration setup menu shows a list of configuration settings on the left and their corresponding values on the right. Key descriptions near the bottom of the menu indicate how to change values for the configuration settings.
- Page 45 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 If set to 1, the boot agent will enable PME in the adapter’s PCI configuration space during initialization. This allows remote wake- Legacy OS 0 = Disabled up under legacy operating systems that don’t normally support it.
-
Page 46: Wake On Lan (Wol)
MPC20WOL or MPC21WOL with LAN drivers installed MAC address is known (this can be read out on Windows XP with IPCONFIG / ALL) The host PC has a LAN connection and the WOL.EXE tool (on DIGITAL-LOGIC AG’s Product CD) 3. Preparation: In Windows XP, open the Device Manager / Network adapters and then the Properties of the “Intel(R) - Page 47 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 4. Shutdown: Shutdown the computer with Standby mode 5. To Wake Up: On the host computer, start the tool “WOL.EXE” and enter the desired MAC address. By clicking on the “Wake On LAN” button, the client computer will be awakened.
-
Page 48: Boot From Lan (Pxe)
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 MPC25/25L 10.1.3. Boot from LAN (PXE) 10.1.3.1. PXE Setup in the BIOS BIOS Setup Screen with the LAN-BOOT (PXE) DISABLE / ENABLE menu: After ENABLING the LAN-Boot, the Password must be entered. The password must be requested with the PXE License Order Form on page 50. - Page 49 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 10.1.3.2. PXE Boot and PXE Protocol PXE is defined on a foundation of industry-standard Internet protocols and services that are widely deployed in the industry, namely TCP/IP, DHCP, and TFTP. These standardize the form of the interactions between clients and servers.
-
Page 50: Pxe License Order Form
Contact your Sales Manager for more information, price Price per license: 17 Euro in USD/CHF, or if you have any questions. Date: Signature: dd / mm / yyyy Fax this form to your DIGITAL-LOGIC Sales Manager: (please write in his/her name) Fax: +0041 32 681 58 01... - Page 51 Lizenz-Bestimmungen 6. Übertragung des Benutzerrechtes Das Recht zur Benutzung der Software kann nur mit vorheriger schriftlicher Einwilligung von bootix und ® Nachfolgend sind die Vertragsbedingungen für die Benutzung des BootManage Software Produktes nur unter den Bedingungen dieses Vertrages an einen Dritten übertragen werden. Verschenken, zwischen der bootix Technology GmbH, nachfolgend "bootix"...
-
Page 52: Index
DIGITAL-LOGIC AG MPC25/26 Manual V1.1 11. I NDEX Hardware Installation ......... 35 Application Notes..........23 Assembly Options..........18 Incompatibilities ..........23 Install the Drivers ..........39 ISO 9001:2000........... 11 BIOS History ............46 BIOS Initial Message ..........38 BIOS Setup ...........39, 47 Jumper ............... 38 Block Diagram ............19... - Page 53 DIGITAL-LOGIC AG MPC25/26 Manual V1.1 Operating Environment.......... 22 Operating Temperature ......... 22 Physical Characteristics ........21 Technical Specifications ........20 Power Supply ............21 Technical Support ..........5 Video Controller............. 20 Trademarks............5 SQS ..............11 Standards .............8 Swiss Association for Quality and Management Systems............11...
